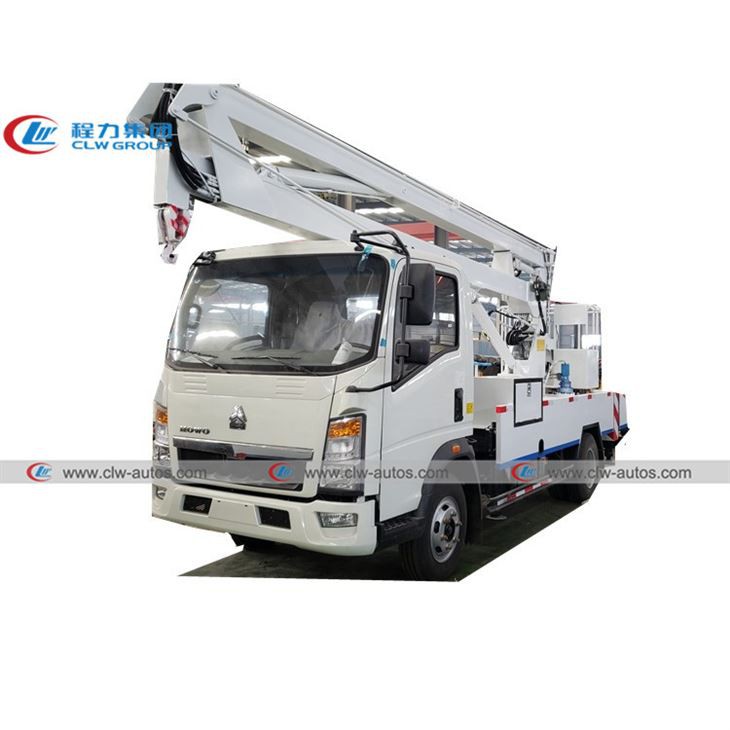

HOWO 45FT 14Meters Aerial Bucket Truck
Engine:YN4102QBZL,116hp
Gearbox:WLY6T46
F/R axle:2.4/4.2T
Tire:7.50R16
Lifting height:45FT/14M/16M
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 45ft 14meters aerial bucket truck in China. If you're going to buy high quality howo 45ft 14meters aerial bucket truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Aerial bucket truck(also bucket truck,aerial lifts,articulated telescopic aerial lifts,aerial platform truck,cherry picker,aerial work platform truck) is used wdely used in electric power, street lamp, municipal, garden, communication, airport, build (repair) ship, traffic, advertising, photography and other aerial work fields.usually it is used to bridge maintenance,lamp maintenance,electric power maintenance with essential fiberglass insulation bucket.
--Aerial bucket truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc aerial bucket truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 aerial bucket truck;
3) according to lifting height:there are 11meters,12meters,14meters,16meters,18meters,20meters,22meters aerial bucket truck;
4) according to lifting frame work,there are telescopic(sraight-arm) or folding(kunckle arm) or vertical lift aerial bucket truck;
Feature
---- HOWO chassis ensures perfect driving performance
---- Yunnei or Cummins engine, super powerful, no overhaul within 100,000 km.
---- 360 ° arm rotation;
----Optional for fiberglass insulation bucket less than 230V
---- Easy operation and easy maintenance.

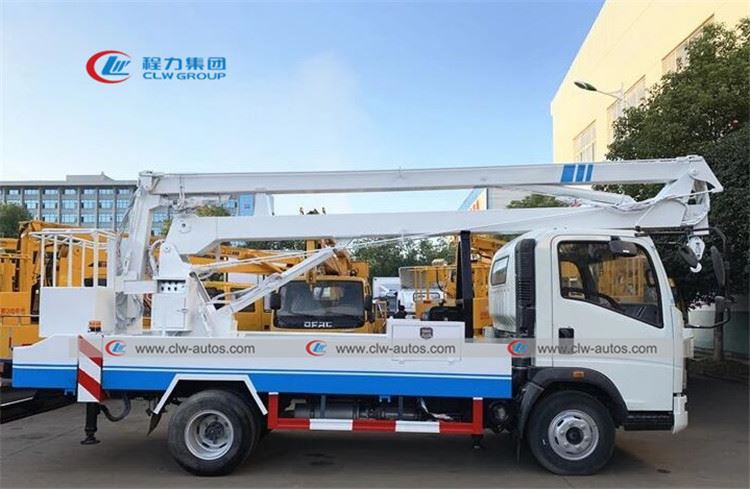

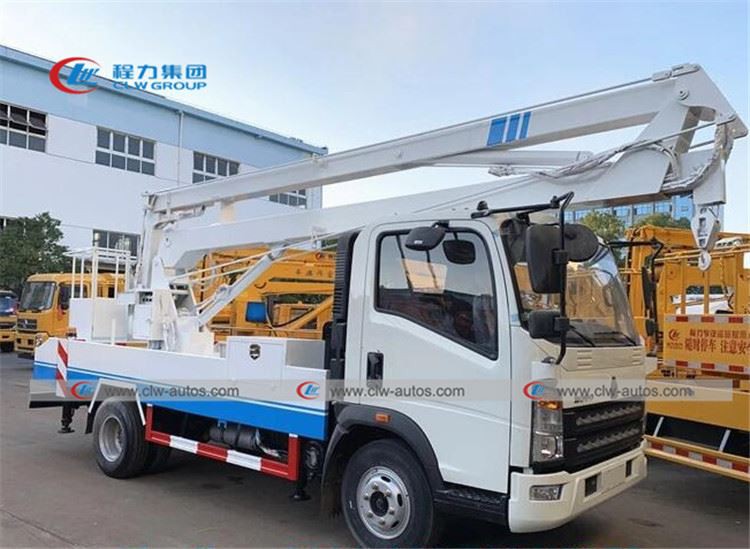

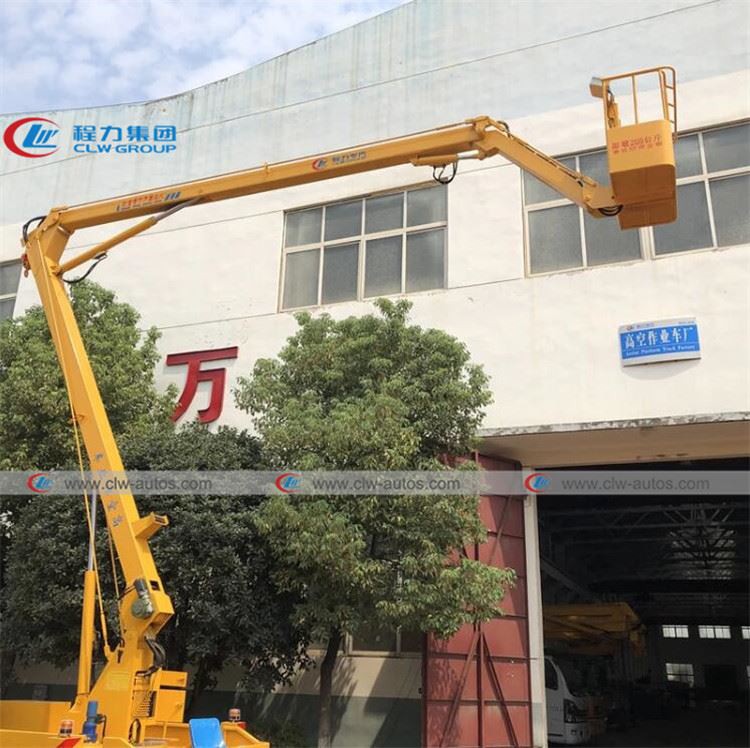

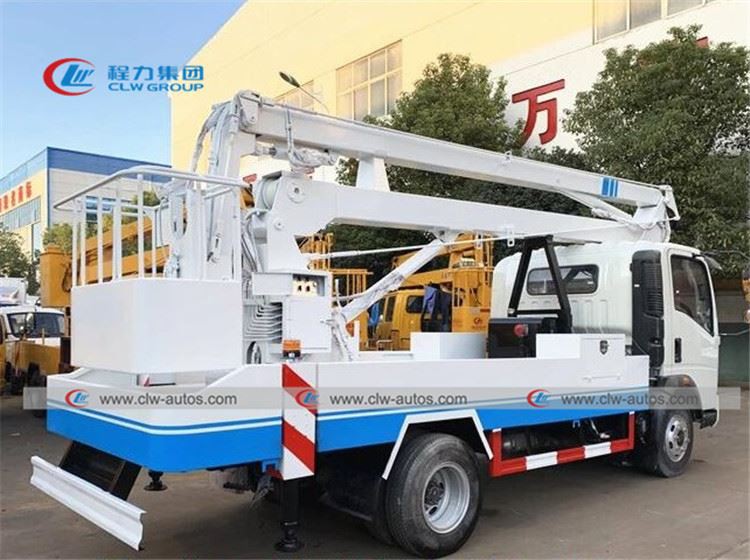

Pictures
Specification
| Brand new/left hand drive or Right hand drive/4X2 | ||
| Brand | Howo | |
Wheelbase(mm) | 3800mm or 3360mm | ||
Dimensions(mm) | 7000X2500X2750mm | ||
Front/Rear Axle loading(kg) | 2400/4200 kg | ||
Wheel track (front/rear) (mm) | 1160/1545 mm | ||
Front/Rear overhang(mm) | 1605/1555 mm | ||
Approach/Departure angle(°) | 18/18 | ||
Max. driving speed(km/h) | 95 | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 7.50R16 | ||
| Manual type WLY6T46,6 Forwards and 1reverse | ||
| Howo 2080 cabin,right Hand Driving,With A/C | ||
| Model | YN4102QBZL, 4-stroke direct injection , 4-cylinder in-line with water cooling, inter-cooling | |
Power | 85KW/116HP | ||
Emission standard | EURO II | ||
Displacement | 3760(ml) | ||
Fuel type | Diesel | ||
Upper body | |||
| Max. Working platform height 45FT(14 meters); Max. Working radius ≥6.92 meters; Working radius when max. Working heights ≥2.26 meters; Working height when Max. Working radius ≥9.2 meters; | ||
| Rated loading capacity:200kg; Safety voltage ≤230V; | ||
| Model: H-type landing leg; No.: 4 Nos; Control method: Separate adjustable or linked adjustable; Lateral span:2680 mm; Longitudinal span:3050mm. | ||
| Max. Craning weight ≤1000kg,800kg is safety; Max. Craning height:7.2meters | ||
| Two sets of operating system.operating above truck chassis or in tool box; | ||
| Steel tool box and anti-slip checked plate working board | ||
| 3-section with Q345 structural low alloy steel | ||
| Double direct 360 degree rotation | ||
| Leg oil cylinder with hydraulic lock,Working arm cylinder with two - way balancing valve | ||
| 1 No of Main boom oil cylinder(CLW brand) | ||
1 No of second boom oil cylinder(CLW brand) | |||
1 No of third boom oil cylinder(CLW brand) | |||
2 Nos of crosswise oil cylinder(CLW brand) | |||
4 Nos of landing legs oil cylinders(CLW brand) | |||
1 set of hydraulic pump | |||
2 sets of hydraulic motors | |||
3 sets of hydraulic mult-way valves; | |||
1 set of two-way balance valve; | |||
Speed-reducer | |||
Pressure gauge | |||
Hydraulic lock | |||
72 pcs of φ8 High pressure oil pipeline; 20 pcs of φ13 High pressure oil pipeline; | |||
