Sinotruk HOWO 12CBM Cement Mixer Truck
Truck Chassis:China Top Sinotruk HOWO
Hydraulic Pump & Motor:US/Italy/Chinese Brand
Support Customize logo
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 12cbm cement mixer truck in China. If you're going to buy high quality sinotruk howo 12cbm cement mixer truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose: For long distance or short distance transporting concrete in construction site.
2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Chassis: Dongfeng, SHACMAN or SINOTRUK 6x4 chassis for optional.

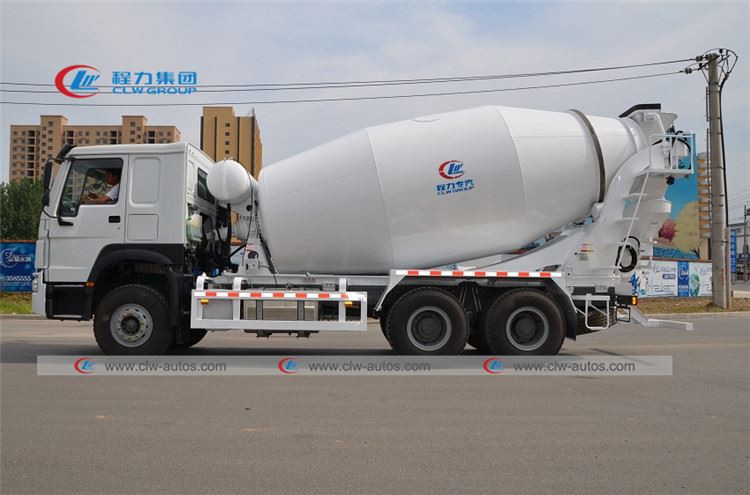

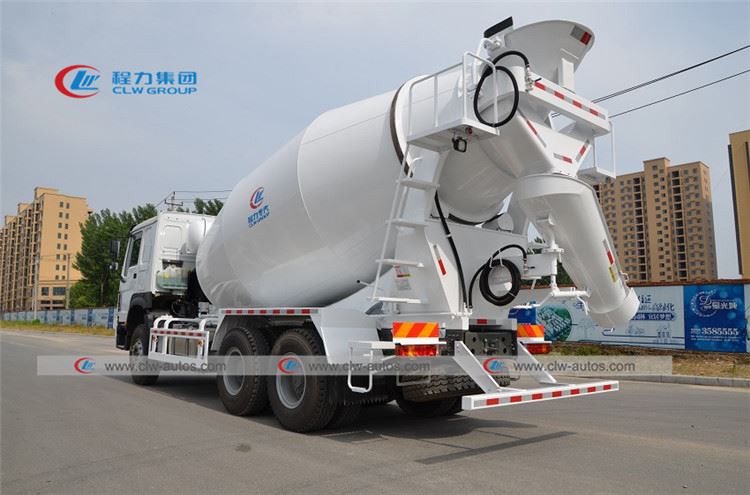

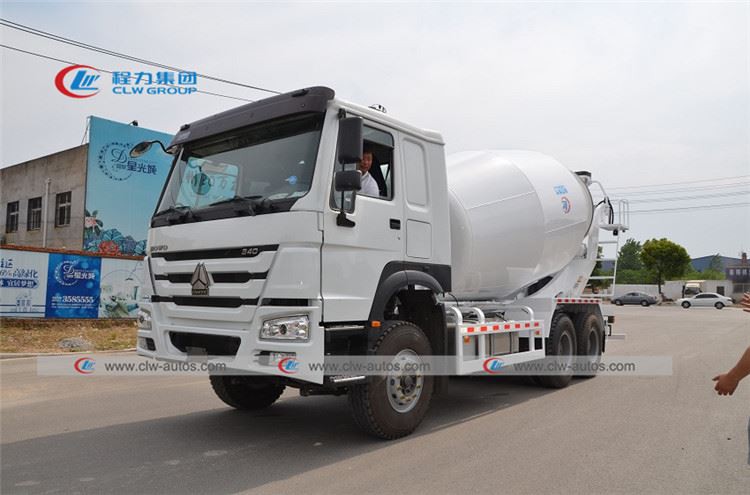

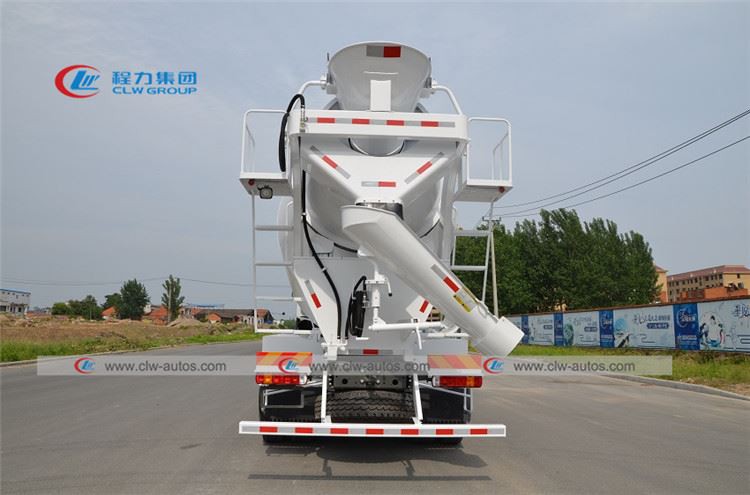

Reference picture
Truck Structure
Specification
| New condition/Left hand drive/6X4 | ||||
| Brand | HOWO | |||
Curb weight(kg) | 25000 kg | ||||
Wheelbase(mm) | 4320+1350 mm | ||||
Dimensions(mm) | 9480*2496*3980 mm | ||||
Overhang (front/rear) (mm) | 1500/2605 mm | ||||
Approach/Departure angle(°) | 16/16° | ||||
Axle Load(kg) | 7000/18000kg | ||||
Max. driving speed(km/h) | 90 km/h | ||||
Clutch | Reinforced diaphragm clutch | ||||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||||
Steering Gear | Power steering, hydraulic steering with power assistance | ||||
Tire | Number | 10pcs with one spare tire | |||
Specifications | 12.00R20 | ||||
Batter | 2x12V | ||||
Starter motor capacity | 24V | ||||
Fuel tank(L) | 400 L | ||||
| 10 Forwards and 1 Reverse with PTO | ||||
| It can accommodate three people, With Air conditioner | ||||
| Power(kw)/Horsepower/(HP) | 248 kw/336 HP | |||
Emission standard | Euro 2 | ||||
| |||||
|
|
| |||
Material | Manganese Steel, 5mm thickness | ||||
| Feeding Speed (m3/min) | ≥2.8 | |||
Discharging Speed (m3/min) | ≥2 | ||||
Discharging Residual rate(%) | ≤0.5 | ||||
Mixing Tank Rotating Speed (RPM) | 0-17 | ||||
Discharging range | 180° full range | ||||
| Hydraulic Pump | US SAUER DANFOSS brand | |||
Hydraulic Motor | US SAUER DANFOSS brand | ||||
Reducer | Italy PMP brand | ||||
Radiator | China local brand KLMAKE | ||||
| Water Tank Capacity (liters) | 400 | |||
Water supply type | Pneumatic water supply | ||||
| Control Way | Connecting Rod Controlling | |||
| 1. Mixer Tank and Vane use special anti-resistant material. | ||||
2. Discharging slot and feeding plate are the same anti-resistant material as the tank. | |||||
3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. | |||||
4. With US and Italy brand driving system. Discharging fast, no residue. | |||||
| 1. Color is optional | ||||
