Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25m3 skid lpg cylinder filling plant in China. If you're going to buy high quality 25m3 skid lpg cylinder filling plant, welcome to get more information from our factory. For price consultation, contact us.
Function

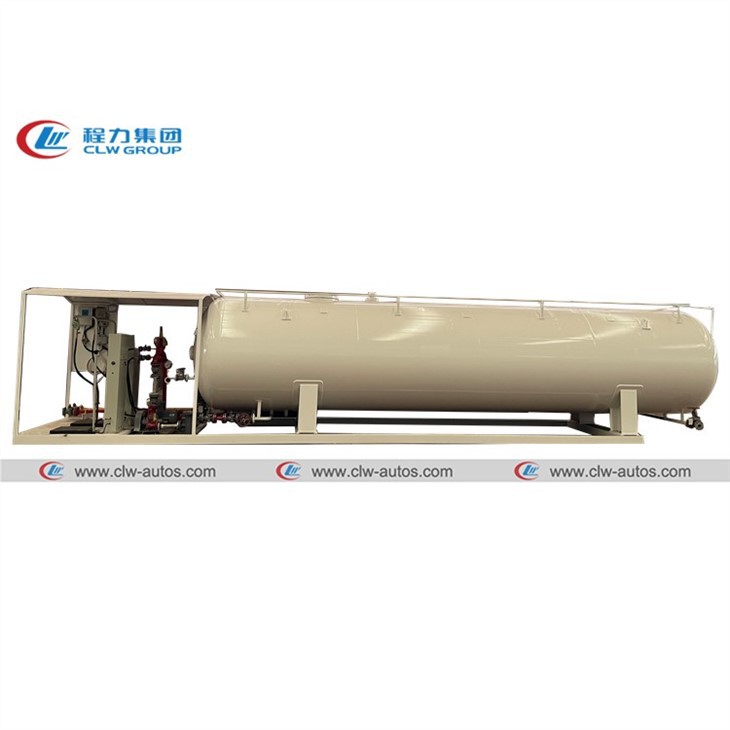

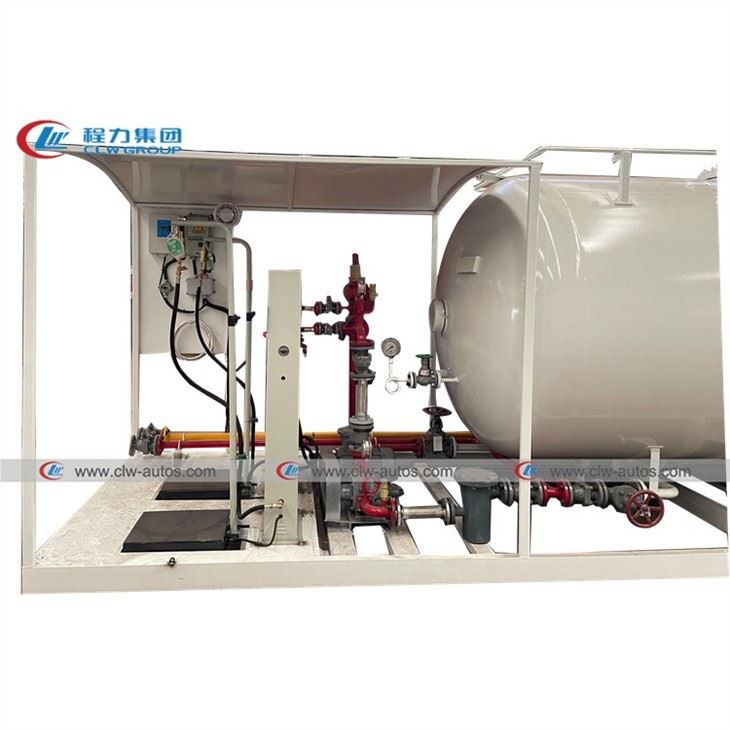

Skid LPG filling plant (also called skid lpg plant,lpg skid station,skid lpg station,lpg refilling skid,mini lpg station,skid filling plant, lpg gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant,lpg gas filling plant) is a completed lpg plant composed with stationary lpg tank,lpg pump and ex-proof motor,cylinder weighting scales or LPG dispensers,valves and pipeline.
Skid LPG filling plant is used to refill home cylinders 3kg,5kg,6kg,12.5kg,50kg. The skid station is suitable for limited land space,limited budget. It's easy to start up gas filling business in Nambia,Nigeria,Bostwana,Kenya,Niger and so on.
Feature
One skid lpg filling plant is with 2 Function: Truck Discharging & Cylinder Refilling with Pump

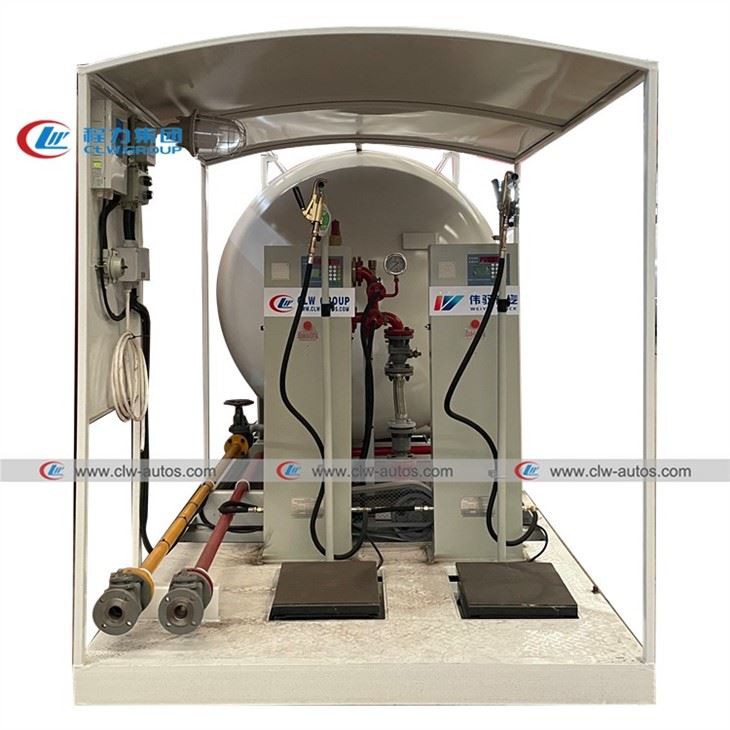

Digital Filling Scale with Auto Filling Cut-off, Thousands of Record Keeping, net & Gross Filling
Filling date transfering and remote monitoring function
Receipt printer function(optional)
Pump optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand
Motor: Chinese,ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
Explosive Proof Central Control Panel for whole station system
Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp,water sprinkler system
whatsapp +86 135 4506 4324
Technical parameter

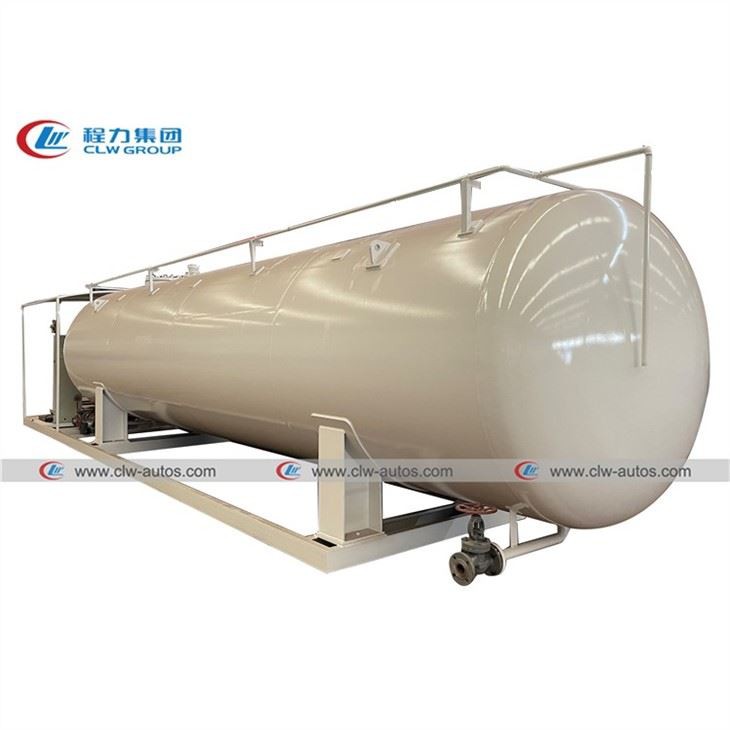

20CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 25CBM | ||
Filling Weight | 12500 kg | ||
Tank Weight | 6120 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 12 mm | ||
Tank Diameter (mm) | 1800 mm | ||
External Dimensions (mm) (length x width x height) | As designed | ||
Overall Skid Size | As designed | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Test Pressure | 2.22 Mpa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50-2" | 1 | |
Inflow Pipe | DN50-2" | 1 | |
Outlet | DN50-2" | 1 | |
Gas phase balance pipes | DN50-2" | 1 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50-2" | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
LPG Skid Part list | ||
Item | Model Number | Quantity |
LPG Tank | LPG Storage Tank with tank accessories | 1 piece |
LPG Filling Pump | 2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, | 1 Piece |
Cylinder Filling Scale/Dispenser | Can fill 3kg to 150kg LPG cylinder | 1 Piece |
Leakage Detector | Leakage warning detector | 1 Unit |
Pipes | / | 1 sets |
Cut-off Valve | J41N-40 DN50 | 5 Pieces |
Ball Vavle | DN50 | 8 Piece |
Safety Valve | A42F-25 DN50 | 1 Piece |
Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
Ball floating level gauge | UQZ-2.5P | 1 Piece |
Discharging pipe | L=4M DN50/DN25 | 1 Piece |
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
Flange | 2.5MPaDN15 | 20 Pieces |
Pressure Gauge | 0 ~4Mpa | 1 Piece |
