Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40000l 20tons lpg tanker skid station for cooking gas in China. If you're going to buy high quality 40000l 20tons lpg tanker skid station for cooking gas, welcome to get more information from our factory. For price consultation, contact us.
Goods despription:
40cbm container gas liquid methane 50m3 mobile skid mounted lpg filling station

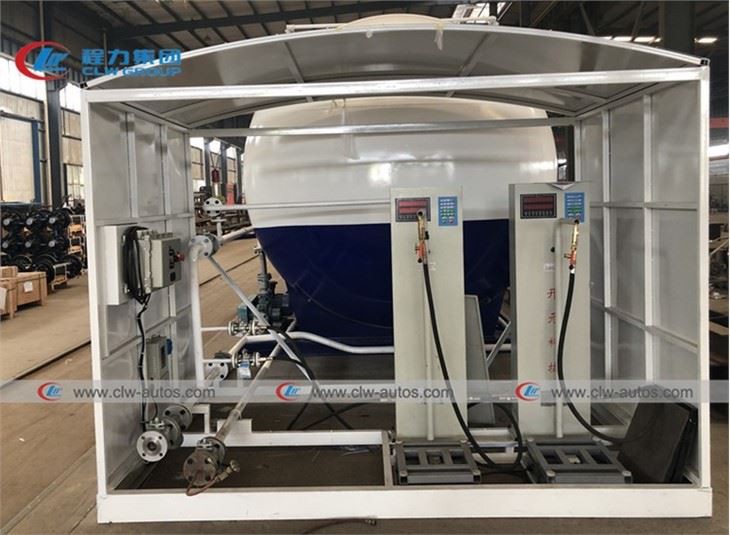

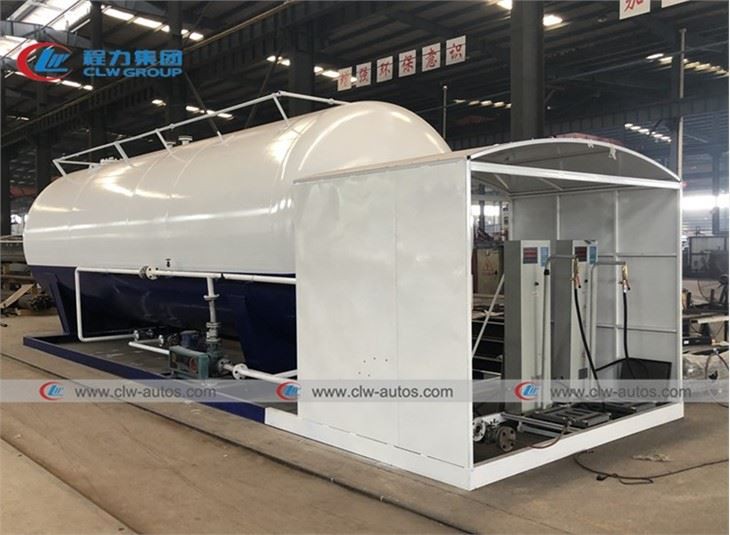

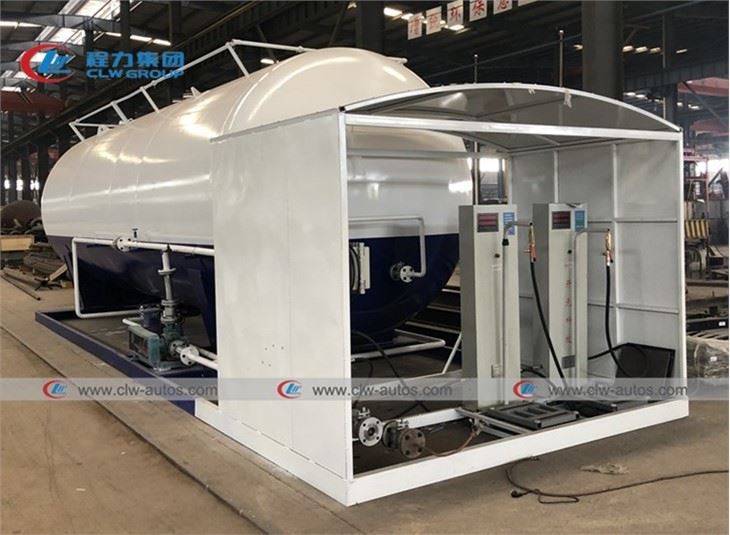

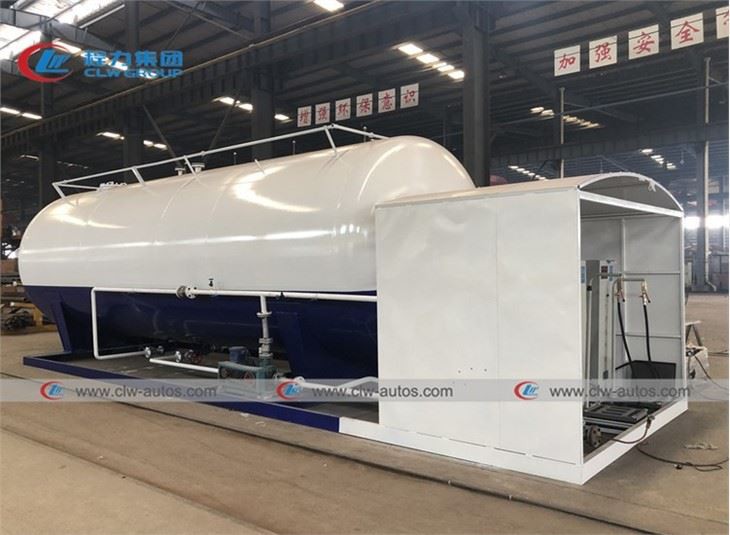

1.Gas Auto Filling Station, skid-mounted LPG station, which is equipped with dispenser and other equipments.
2.The LPG tank truck can unload the medium to the storage tank on the skid-mounted plant smoothly.
3. The residual pressure in storage tank can be released through the emptying port during overguling.
4.Under fault condition, gas filling pump and unloading pump can be mutually alternative.
5. Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
6.Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
7.Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Skid LPG filling plant is used to refill home cylinders 3kg,5kg,6kg,12.5kg,50kg. The skid station is suitable for limited land space,limited budget. It's easy to start up gas filling business in Nambia,Nigeria,Bostwana,Kenya,Niger and so on.
whatsapp +86 135 5419 5719
Product parameters:
Technical Specification
Tank Item Number

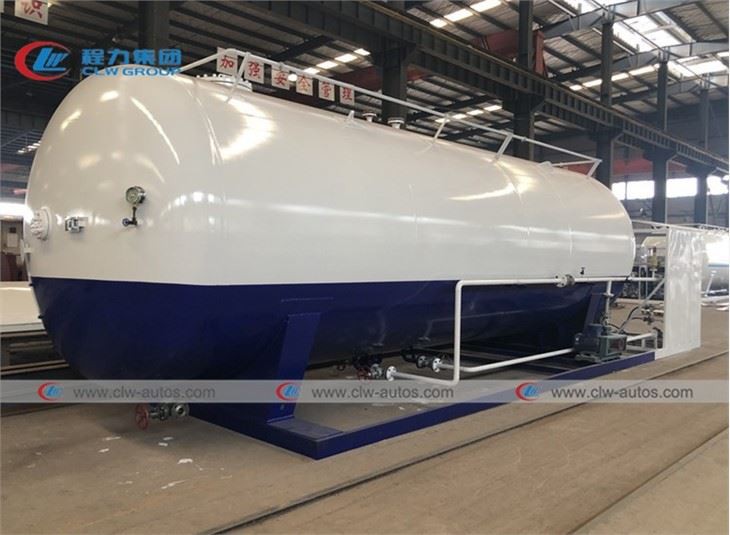

40m3 LPG Tank
Overall Size(mm)
9270*2428*3018mm
Capacity
40 m3
Weight
9280kgs
Normal Pressure
2.5Mpa
Designing Pressure
1.77Mpa
Working Pressure
1.61Mpa
Designing Temperature
-20~50°C
Version
Built-in
Filling Medium
Propane
Normal Pressure
2.5Mpa
Corrosion Margin
1.0mm
Normal Diameter
DN50
Opening pressure
1.68-1.76Mpa
Heat Treatment
Bulk
Filling Factor
420-590kg/m3
Tank material
Q345R
Feed pip/Drain pip
DN50
Accessory list for Skid-mounted LPG Tank
LPG Tanker
40cbm
1 piece
LPG Filling Pump
2" inlet & 2" Outlet
1 piece
Motor
380V with 220V adapter
1 piece
LPG Filling scale
3-300 kg cylinders
1 piece
Cut-off Valve
J41N-40 DN50
25 Pieces
Safety Valve
A42F-25 DN50
1 Pieces
Discharging pipe
L=4M DN50/DN25
1 Pieces
Shock-absorbing Tube
L=500mm DN50
2 Pieces
Flange
2.5 MpaDN15
20 Pieces
Specification
7.5-10HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz supplies applicable
