Dongfeng 8X4 40Tons 360 Degree Rotator Tow Truck
Engine:diesel engine 340hp;
Driving model:LHD or RHD
Gear box:10-speed forward and 2 reverse
Tire:12.00R20
Towing capacity:30tons,40tons,50tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8x4 40tons 360 degree rotator tow truck in China. If you're going to buy high quality dongfeng 8x4 40tons 360 degree rotator tow truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Tow truck(also called road wrecker,wrecker truck,towing truck,recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles or car.
-- Tow truck can be divided into various types as follows,
1) According to the categories, the tow truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.
2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 tow truck;
3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons ttow truck;
4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,shacman,camc tow truck.
Feature
--Powerful sinotruk dongfeng truck chassis;
--2 Nos of 20tons winches with diameter 28mm;
--360 ° rotation rotator towing truck;
--Italy hydro control control valve and balance valve;
--Wuxi oil hydraulic pneumatic equipment co ltd;
--One-step modeling compartment plate by germany 3P2A punching machine;
--Adopting American wrecker design and manufacturing technology.
--Key components using the finite element stress analysis (CAE technology)
--Adopting high quality high-strength steel for important components
--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
--The key hydraulic lines seals imported from Germany.
--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.
--Equipped with various fork lifts (including leaf spring forks).
--High and low fork combined with various fork lifts.
--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
--Boom with 360 degree continuous rotation.
--Equipped with trailer towing disk, remote control is optional.

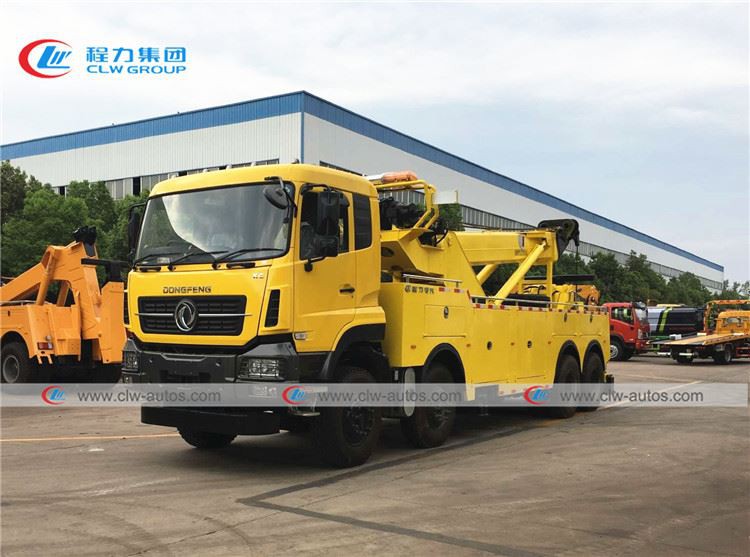

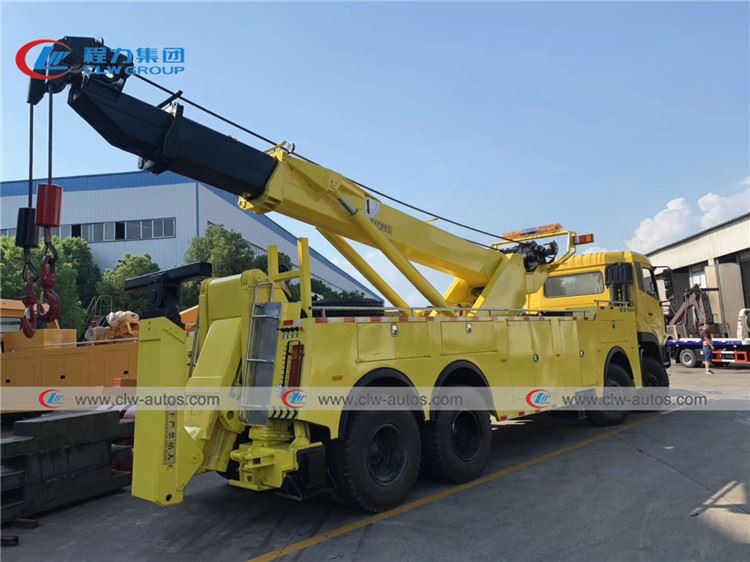

Reference picture
Remote controller
Drawing of towing winch
Specification
| |||
Product Name | Dongfeng 8X4 40Tons 360 Degree Rotator Tow Truck | Gross Vehicle Weight (kg) | 31000 |
Curb Weight (kg) | 19200 | Cab Allowed Persons | 2-3 |
Overall Dimension | 11560x2500x3250 | Lifting Capacity(Kg) | 10000 |
Axle No. | 4 | Wheelbase (mm) | 1350+4725+1350 |
Chassis Technical Parameters | |||
Chassis Brand | Dongfeng | ||
Tire No. | 12 with 1 spare tire | ||
App./ Dep. Angle(º) | 23/18 | Tire Spec. | 10.00-20 11.00-20 |
Leaf Spring No. | 10/12 | Front Track (mm) | 1375 |
Fuel Type | Diesel | Rear Track (mm) | 1040 |
Drive Type | 8X4 | Brake System | Oil brake |
Engine Technical Parameters | |||
Engine Model | / | Emission Standard | Euro III |
Displacement ( ml ) | 7146 | Power (KW) | 250KW |
Engine Type | Water cooling, inter-cooling charged | ||
Superstructure Parameters | |||
Winch Capacity(kg) | 2X20ton | Steel Rope Length(m) | 40 |
Towing Fork | 5 sets | Towing Fork Support | 1 set |
Lifting Boom | 2 section, six hexagon | Supporting Boom | 3 section |
