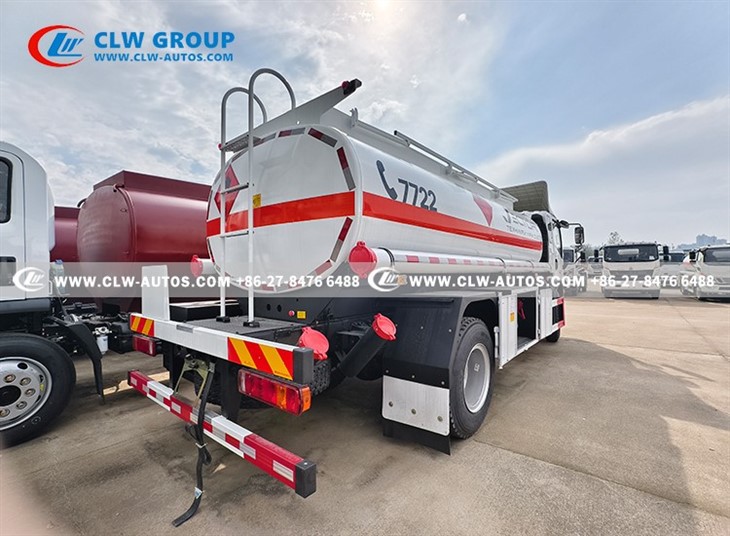

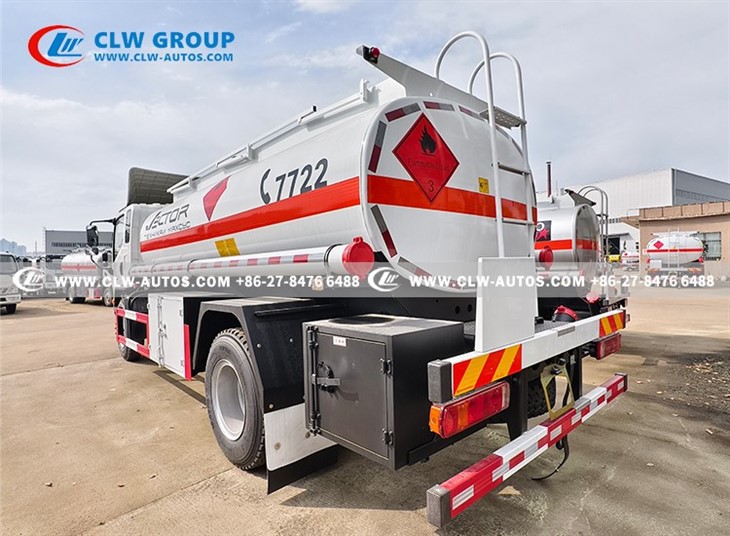

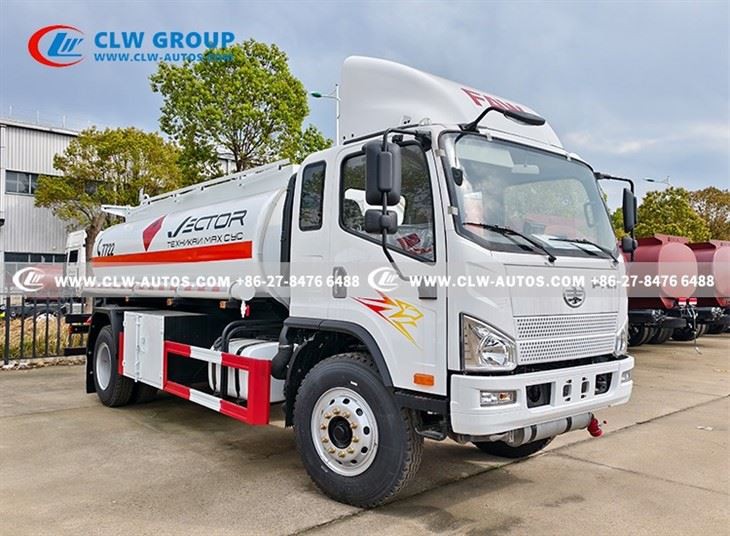

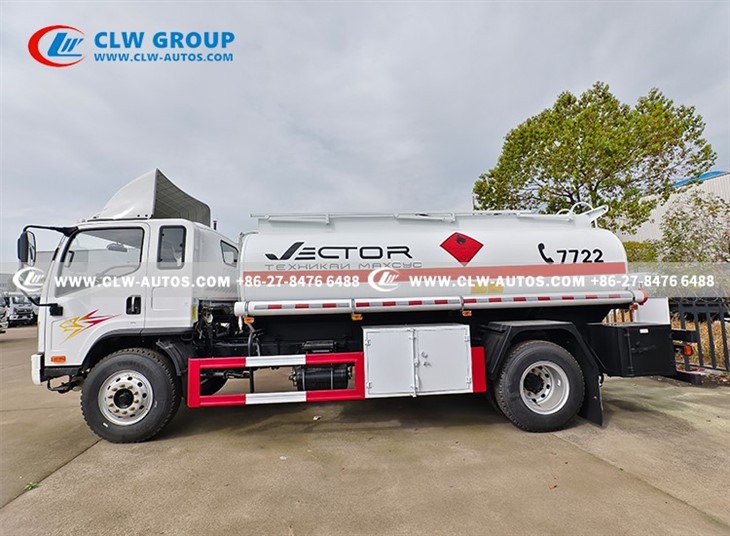

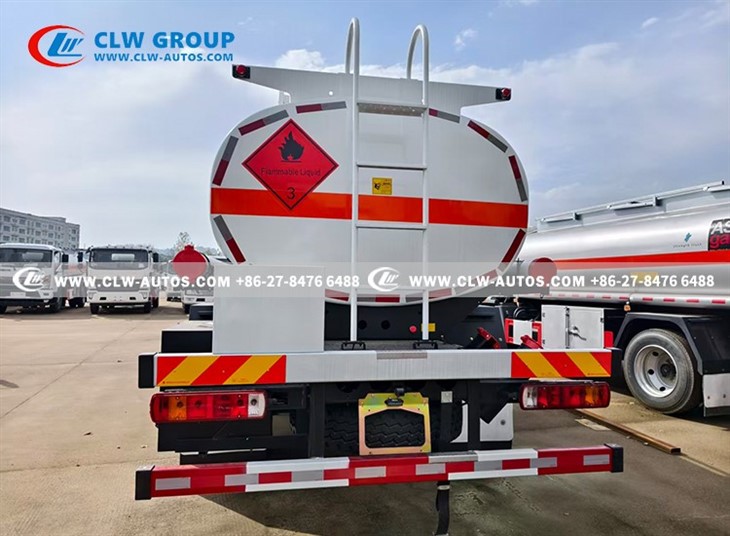

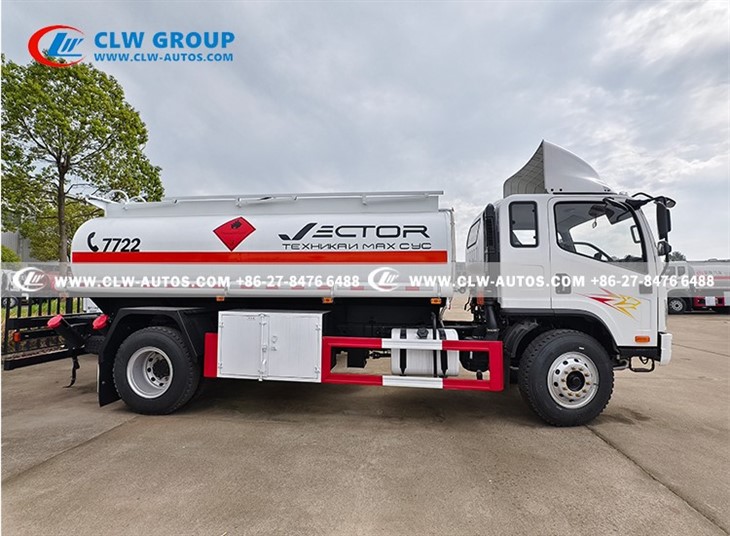

FAW 10m³ Mobile Refueler Truck To Transport And Dispense
Refuel trucks are critical in areas without fixed fueling stations!
How To Choose A Suitable Fuel Truck For You?
1. What is the core purpose of a fuel tanker truck?
This vehicle is a specialized hazardous materials transport vehicle, specifically engineered for the high-efficiency transport and dispensing of diesel, gasoline, and kerosene. More than just a transport truck, it functions as a mobile refueling station, making it the ideal solution for on-site fueling services at construction sites, mining operations, farms, or for fleets in remote areas.
2. What are the capacity and payload options available?
The model shown features a FAW 4x2 (6-wheel) chassis, categorized as a light-duty mobile refueler.
3. What are the material options for the tank body?
We offer two primary materials to suit different operational needs:
4. How to choose the suitable fuel dispenser configuration?
Our vehicle configurations are highly flexible to meet diverse dispensing requirements:
Product Name: FAW 4x2 Refueler tanker Truck
Application: Offer on-site fueling service
Advantages: Efficient transportation and refueling
Cab: one row and half cabin, 2 seats+ 1 sleeper, LHD, A/C
Wheelbase: 4500 mm
Engine: YC4E160-33
Horsepower: 160HP
Emission standard: Euro III
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 16000 kg
Front/Rear Axle loading: 6000kg /10000kg
Tires: 10.00R20, 6 pcs with one spare
|
Fuel Tank |
|
|
Tank volume |
10m³/ 10,000L Fuel tank |
|
Compartment No |
Two compartment ( Or customized multi compartment) |
|
Tank material |
Q235B High-strength carbon steel |
|
Tank thinkness |
5mm of tank and 5 mm of end plate |
|
Tank shape |
Square or as request |
|
Manhole cover |
2 pc of European Aluminum alloy manhole covers, ∮500mm 2 set with breather valve |
|
Fuel Dispenser |
|
|
Dispenser brand |
Top brands of China-Censtar |
|
Dispenser position |
1pc dispenser built-in left side of the truck |
|
Hose reel |
15 meters, Ø25mm |
|
Nozzle type |
High Flow Rate Nozzle |
|
Flow rate |
5 – 80 L/min |
|
Dispenser fuction |
Volume metering, price calculation, sales record |
|
Oil Pump |
|
|
Brand |
Chinese Brand |
|
Type |
80-60 carbon steel pump |
|
Flow rate |
80-60m³/h |
|
Drive Mode |
PTO-Driven |
|
Pumpline system |
2.5 inches |
|
Other configurations |
|
|
Walkway at top of tanker |
Color and design as customer's requirement |
|
Handrail |
Manual controlled at two sides of truck |
|
Ladder |
At rear of tank |
|
Accessories |
Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment; |
Direct factory sales, eliminating intermediate links, providing cost-effective solutions for customers!

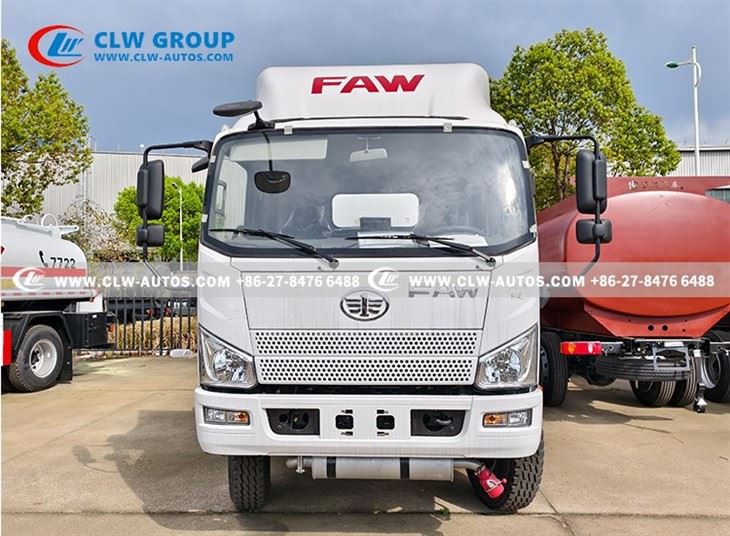

fAW cabin
Left hand drive
1 driver seat + 2 passenger seat
1 bunk bed for sleeping or storing
6-speed Manual transmission
Reverse parking LCD display screen
Middle seat folded into multi-functional tray
Censtar Fuel Dispenser
On-site refueling
Equipped with ticket printers
15-meter hoses & nozzles for precise
Provide real-time fuel volume data via LED screens
Lockable cabin Waterproof and theft-proof
Warranty period: 12 months
API manhole
2 comparments for different fuel
Anti-slip walkway on tanker top
Breathing valve pressure regulating
Manholes facilitate maintenance
Roof Deflector reduces wind resistance
valve box
Lockable valve box
API valve pump inlet/outlet
Static grounding wire reel prevents fires
Regulate and filter the pressure of the system
Remote control the shut-off valve at the bottom of tank
