Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6000l mobile oil dispenser truck in China. If you're going to buy high quality 6000l mobile oil dispenser truck, welcome to get more information from our factory. For price consultation, contact us.

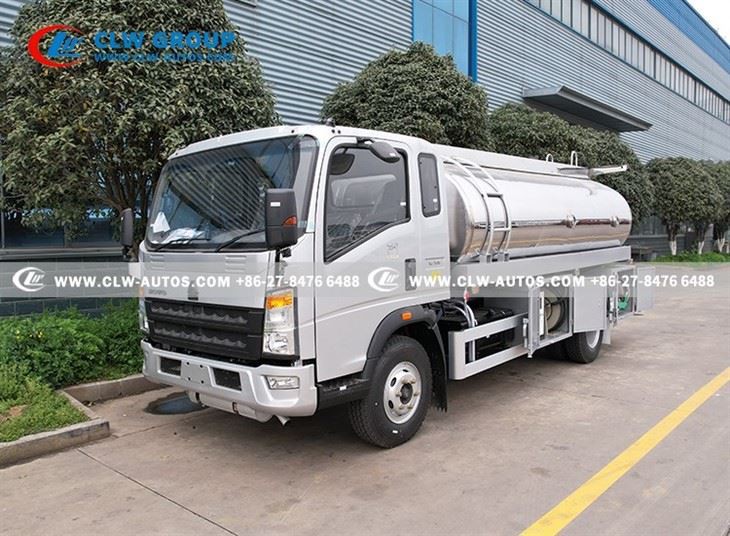

Sinotruk HOWO 6000L Refueling Tanker Truck
2-compartment design can load both diesel and gasoline!
How Can We Ensure Operational Safety During The Loading Process?
1. Ground-Level Safety
Old Way: Operators climb the tank-high risk of falls and fume inhalation.
Pro Way: API Bottom Loading. All operations happen at ground level. No climbing, no falling, zero high-altitude risk.
2. Vapor Recovery (Eco & Profit)
Old Way: Fuel vapors escape during top-loading-fire hazard and money lost to evaporation.
Pro Way: Closed-Loop System. Captures vapors and returns them to the tank. It's explosion-proof, eco-friendly, and saves you fuel.
3. Smart Overfill Prevention
Old Way: Relying on manual visual checks-high risk of messy, costly spills.
Pro Way: Pneumatic Foot Valves. Integrated sensors automatically shut off flow when the tank is full. Precision monitoring for total peace of mind.
Product Name: HOWO 4x2 Fuel Dispenser Truck
Application: For Dispenser gasoline & diesel
Advantages: Dual-Flow Dispensing System
Cab: one row and half cabin, 2 seats+1 sleeper RHD, A/C
Wheelbase: 3360 mm
Engine: YN4102QBZL
Horsepower: 140HP
Emission standard: Euro II
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 10000 kg
Front/Rear Axle loading: 3200kg /7200kg
Tires: 8.25R20, 6 pcs with one spare
|
Fuel Tank |
||
|
|
Tank volume |
6000m³/ 6000L Fuel tank |
|
Compartment No |
Two compartment ( Or customized multi compartment) |
|
|
Tank material |
5454 Mirror aluminum alloy steel |
|
|
Tank thinkness |
4mm of tank and 5 mm of end plate |
|
|
Tank shape |
Square or as request |
|
|
Manhole cover |
2 pc of European Aluminum alloy manhole covers, ∮500mm 2 set with breather valve |
|
|
Fuel Dispenser |
||
|
|
Dispenser brand |
Top brands of China-Censtar |
|
Dispenser position |

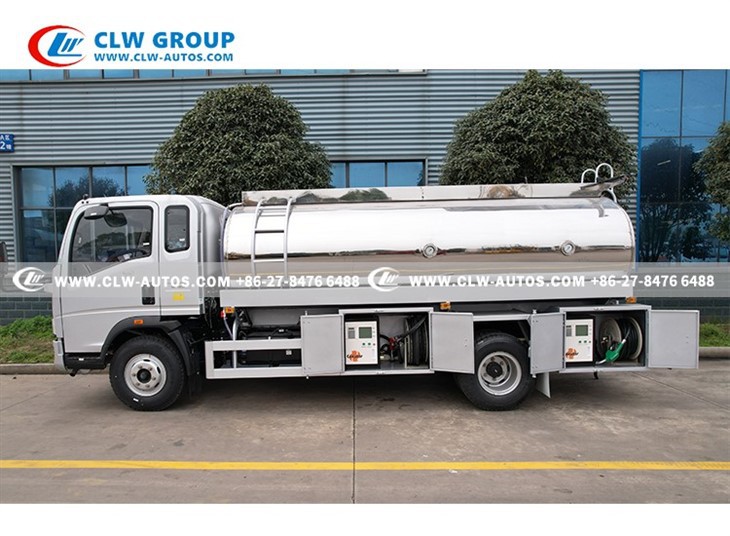

2 pc dispenser built-in left side of the truck |
|
|
Hose reel |
15 meters |
|
|
Nozzle type |
High Flow Rate Nozzle |
|
|
Flow rate |
5 – 80 L/min |
|
|
Dispenser fuction |
Volume metering, price calculation, sales record |
|
|
Oil Pump |
||
|
|
Brand |
Chinese Brand |
|
Type |
80-60 carbon steel pump |
|
|
Flow rate |
80-60m³/h |
|
|
Drive Mode |
PTO-Driven |
|
|
Pumpline system |
2.5 inches |
|
| Mechanical Float Level Gauge | ||
|
|
Fuction | Real-time monitoring of the oil volume in the tank |
| Measurement Range | 0 – 2.4 meters (Maximum tank height) | |
| Key Markers (m) | 0.48 / 0.96 / 1.44 / 1.92 / 2.40 | |
| Language | French / English Bilingual Interface | |
|
Other configurations |
||
|
|
Walkway at top of tanker |
Color and design as customer's requirement |
|
Ladder |
one at rear of tank, one at left side of tank |
|
|
Accessories |
Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment; |
|
it is a productivity booster designed to keep your heavy equipment moving without the wait.
Red Nozzle
Ultra-High Flow for Heavy Machinery
Green Nozzle
Precision Refueling for Fleets
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
