Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 fuel dispenser truck 5000l in China. If you're going to buy high quality howo 4x4 fuel dispenser truck 5000l, welcome to get more information from our factory. For price consultation, contact us.
All Wheels Drive Mobile Refueling Truck With Dispenser
Fully equipped with a digital dispenser-no extra equipment needed to start your mobile refueling business!
Technical Configuration & Specifications
1. Versatile Transport Medium
Designed for the safe and efficient transport of a wide range of liquid substances:
2. Premium Tank Construction
3. Advanced Fueling & Pumping System
4. Safety & Stability Design
5. Specialized Customization

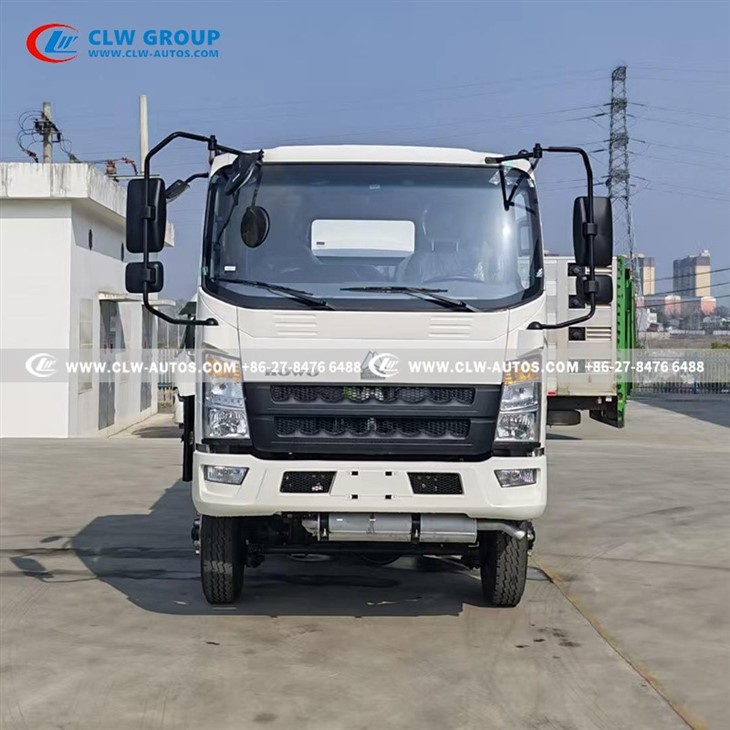

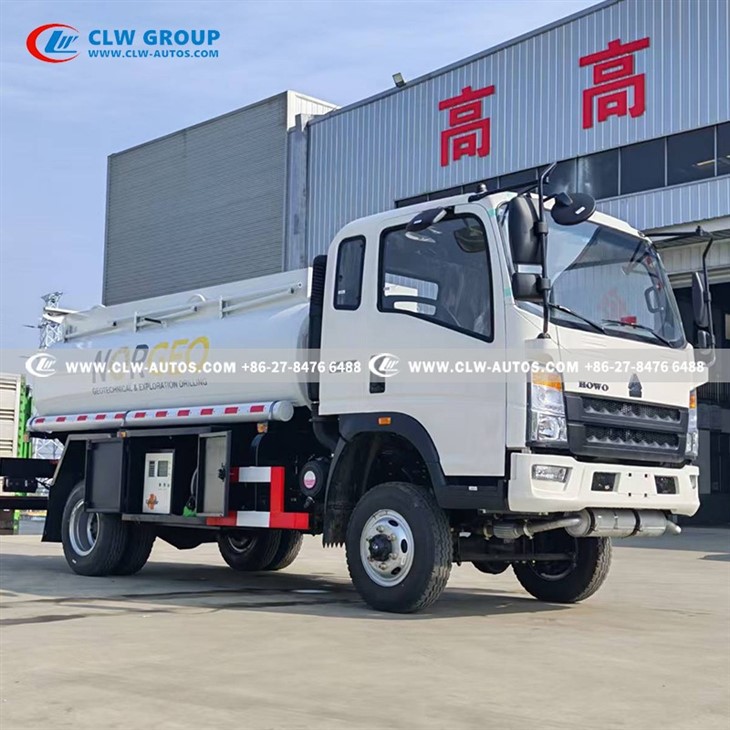

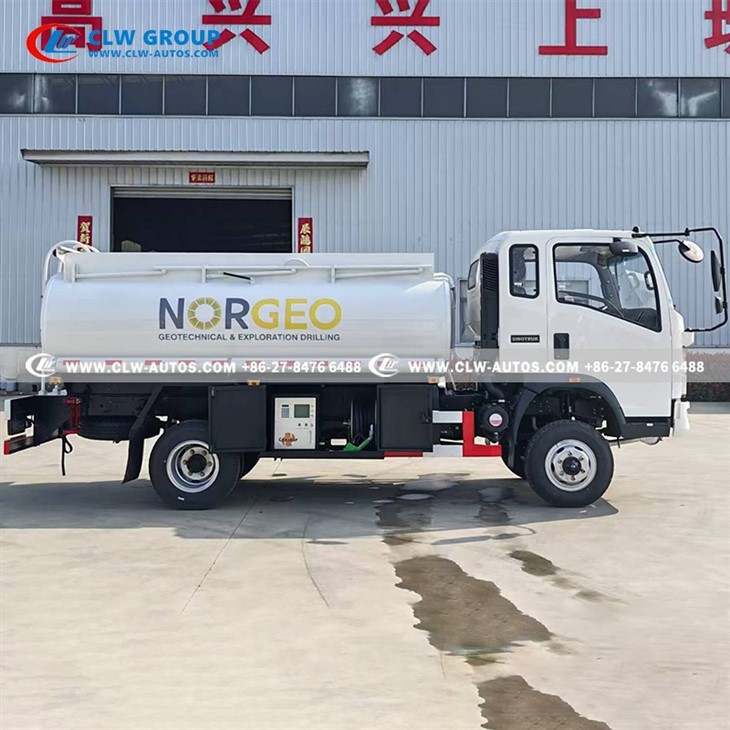

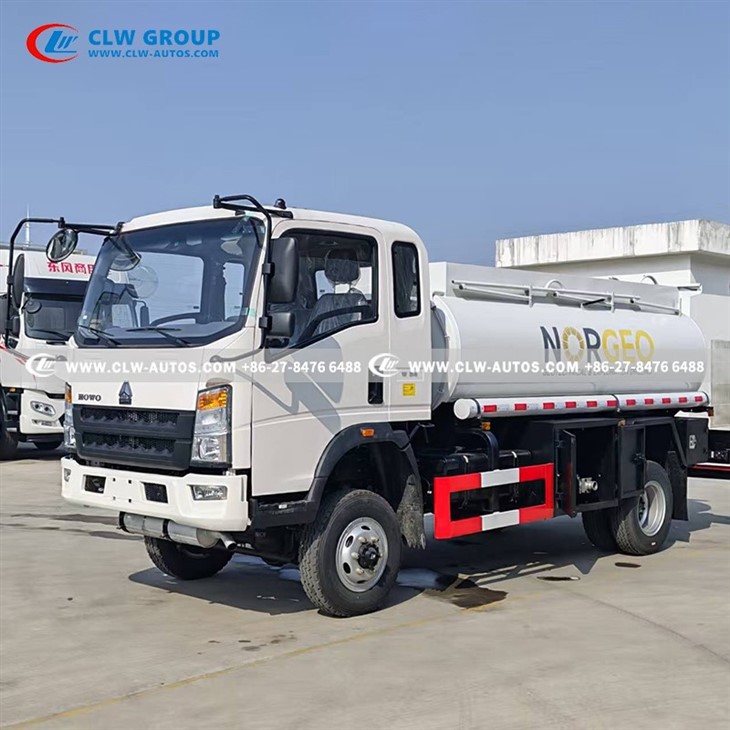

Product Name: HOWO 4x4 Refueling tanker Truck
Application: Delivering fuel directly to machinery
Advantages: Efficient transportation and refueling
Cab: Single row cabin, LHD, A/C
Wheelbase: 4360 mm
Engine: YN4102QBZL
Horsepower: 116HP
Emission standard: Euro II
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 8275 kg
Front/Rear Axle loading: 2800kg /5500kg
Tires: 7.50R16, 6 pcs with one spare
|
Fuel Tank |
|
|
Tank volume |
5m³/ 5,000L Fuel tank |
|
Compartment No |
Two compartment ( Or customized multi compartment) |
|
Tank material |
Q235B High-strength carbon steel |
|
Tank thinkness |
5mm of tank and 5 mm of end plate |
|
Tank shape |
Square or as request |
|
Manhole cover |
2 pc of European Aluminum alloy manhole covers, ∮500mm 2 set with breather valve |
|
Fuel Dispenser |
|
|
Dispenser brand |
Top brands of China-Censtar |
|
Dispenser position |
1pc dispenser built-in left side of the truck |
|
Hose reel |
15 meters, Ø25mm |
|
Nozzle type |
High Flow Rate Nozzle |
|
Flow rate |
5 – 80 L/min |
|
Dispenser fuction |
Volume metering, price calculation, sales record |
|
Oil Pump |
|
|
Brand |
Chinese Brand |
|
Type |
80-60 carbon steel pump |
|
Flow rate |
80-60m³/h |
|
Drive Mode |
PTO-Driven |
|
Pumpline system |
2.5 inches |
|
Other configurations |
|
|
Walkway at top of tanker |
Color and design as customer's requirement |
|
Handrail |
Manual controlled at two sides of truck |
|
Ladder |
At rear of tank |
|
Accessories |
Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment; |
Direct factory sales, eliminating intermediate links, providing cost-effective solutions for customers!
4x4 all wheels drive chassis
Left hand drive
All wheels driving
Sinotruk HOWO chaissis
6-speed Manual transmission
Exhaust pipe special at the front of the truck
Special chassis for transporting hazardous goods

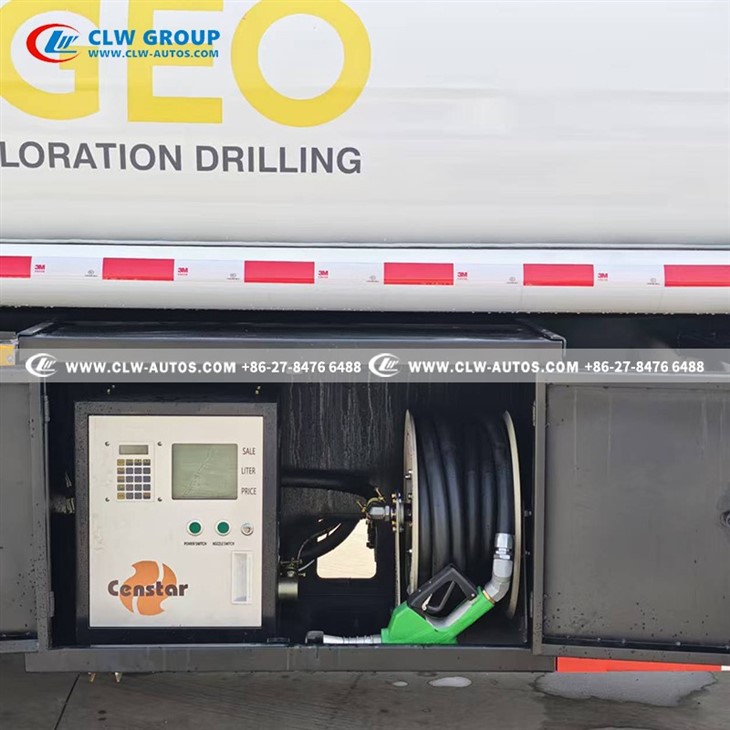

Censtar Fuel Dispenser
On-site refueling
Warranty period: 12 months
Equipped with ticket printers
15-meter hoses & nozzles for precise
Lockable cabin Waterproof and theft-proof
Provide real-time fuel volume data via LED screens
accessories

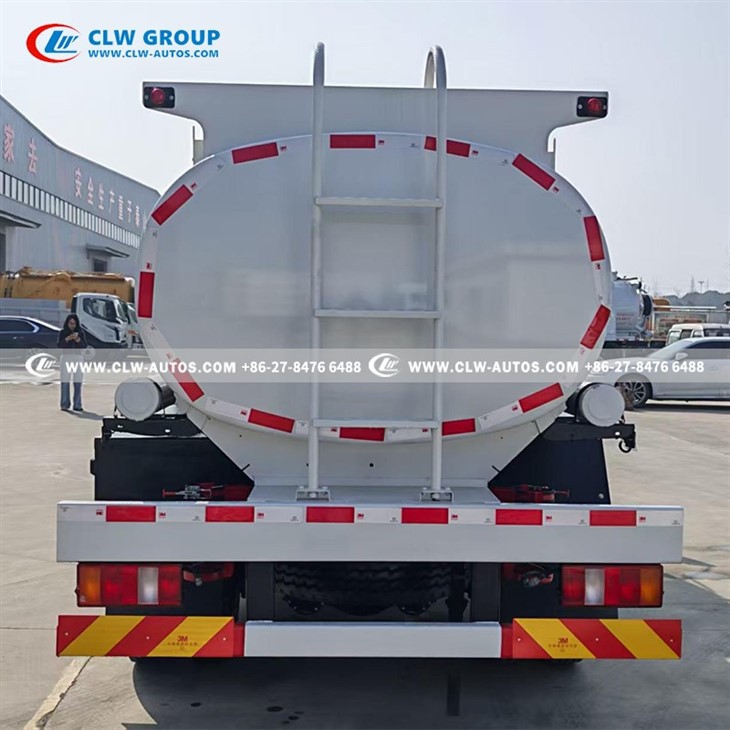

Rear ladder
guard railing
1pc tool box at the left side
2 pcs manhole on the tank top
2 pcs discharge hose at each side
2pcs extingusher at rear each side

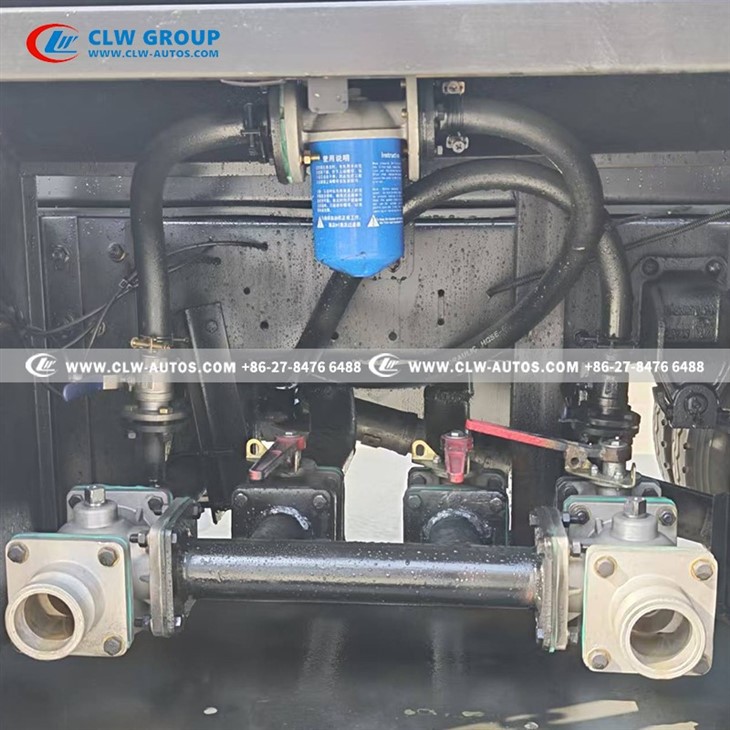

valve box
2 compartments
Lockable valve box
API valve pump inlet/outlet
Regulate and filter the pressure of the system
Remote control the shut-off valve at the bottom of tank
1. Superior Mobility & Maneuverability
"Last-Mile" Delivery: While heavy tankers transport fuel from oil depots to gas stations, this compact truck bridges the final gap-delivering fuel directly to machinery at the job site.
Excellent Off-Road Performance: In many developing regions with underdeveloped infrastructure, its short wheelbase and high ground clearance allow it to navigate narrow rural roads, muddy mining tracks, and steep mountain paths where heavy trucks simply cannot enter.
2. Functionality: A "Mobile Gas Station" on Wheels
Dispensing vs. Transporting: Unlike a standard Fuel Tanker which only moves bulk liquid, this Fuel Dispenser Truck is equipped with a digital flow meter, an automatic hose reel, and a fueling nozzle.
On-Site Billing: Perfect for remote construction sites, mines, or drilling platforms where no gas stations exist. It functions as a mobile service station, allowing you to refuel excavators or drill rigs and track every liter consumed.
3. Lower Operational Costs & Barriers to Entry
Simplified Licensing: In many countries, driving a light-duty truck (5,000L) requires a lower-grade driver's license, making it easier and more affordable to hire qualified operators.
Low Total Cost of Ownership (TCO): The initial purchase price, insurance premiums, maintenance costs, and fuel consumption are significantly lower than heavy-duty vehicles, reducing the financial burden on small-to-medium contractors.
4. Optimized for Niche & Scattered Operations
Precision Refueling: Like NORGEO (Geotechnical Exploration), equipment is often scattered across multiple locations. It is far more efficient to use a 5,000L truck for "round-robin" refueling than sending a massive 30,000L tanker to deliver a few hundred liters.
Versatile Design: Its compact footprint allows it to operate in confined spaces, such as indoor construction sites or urban basement projects.
