Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5m³ Fuel Refueling Truck in China. If you're going to buy high quality 5m³ Fuel Refueling Truck, welcome to get more information from our factory. For price consultation, contact us.

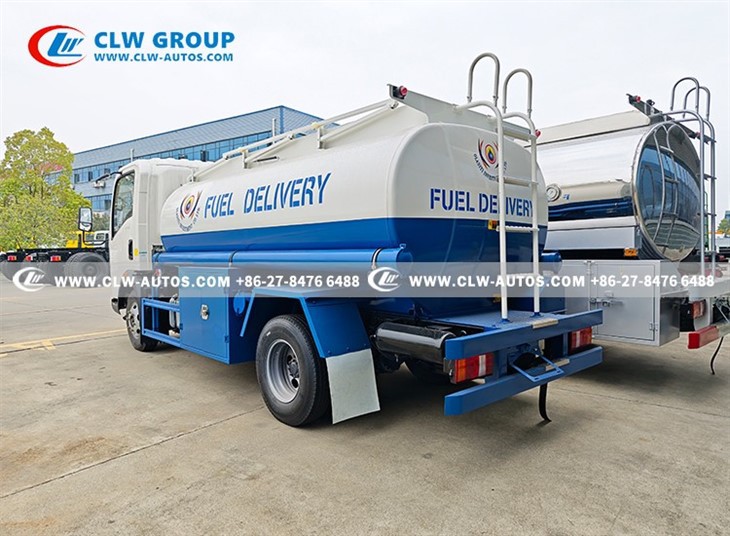

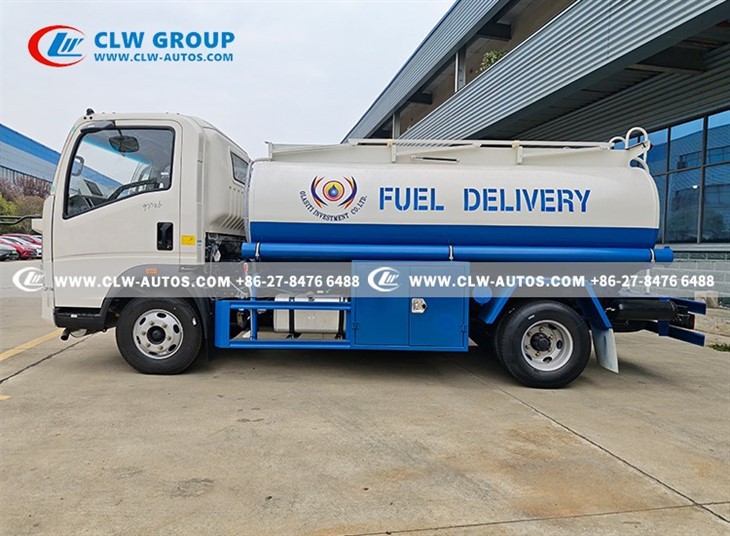

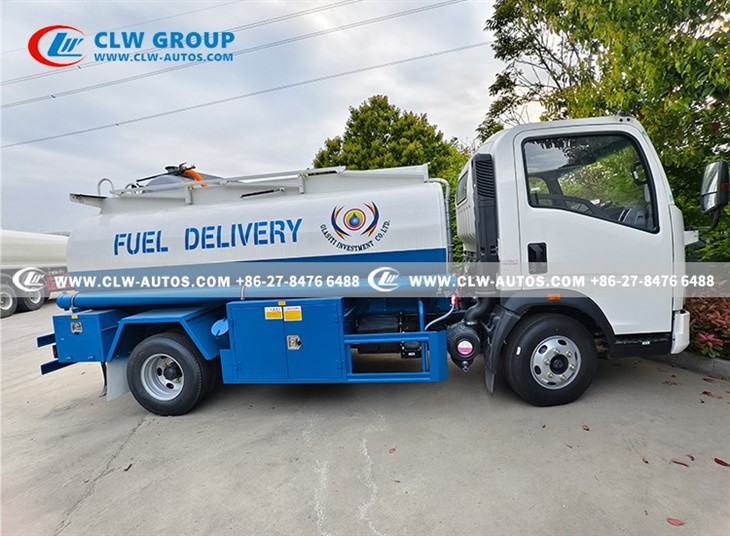

HOWO 4x2 RHD 5,000 Liters Refueling Truck
2-compartment design can load both diesel and gasoline!
This type of fuel truck is highly popular in African markets like Tanzania. It is best suited for the following:
1. Engineering Contractors & Construction Companies
Scenario: Heavy machinery such as excavators, bulldozers, and rollers move slowly or are not road-legal, making it impossible for them to drive to a local gas station.
Advantage: This truck can make daily rounds at the construction site to "refuel" all machinery on-site, ensuring project operations never grind to a halt.
2. Remote Fuel Retailers (e.g., Olasiti Investment)
Scenario: In rural or remote areas of Tanzania, building a permanent gas station is often too costly and time-consuming.
Advantage: This truck serves as a "mobile filling station," selling fuel at scheduled locations to serve local motorcycles and agricultural machinery.
3. Large Farms or Ranches
Scenario: During peak harvest seasons, tractors and harvesters need to operate 24/7.
Advantage: The truck drives directly to the fields, eliminating the need for farm machinery to travel back and forth, which saves both fuel and valuable time.
4. Logistics Fleets & Bus Companies
Scenario: Logistics companies with fleets of a dozen or more trucks.
Advantage: Companies can purchase fuel in bulk from large depots and use this truck to refuel their fleet in their own parking lot. This captures the price gap between wholesale and retail, significantly reducing operational costs.
Product Name: HOWO 4x2 Refueling Truck
Application: Specifically for gasoline & diesel transport
Advantages: As a "mobile gas station"

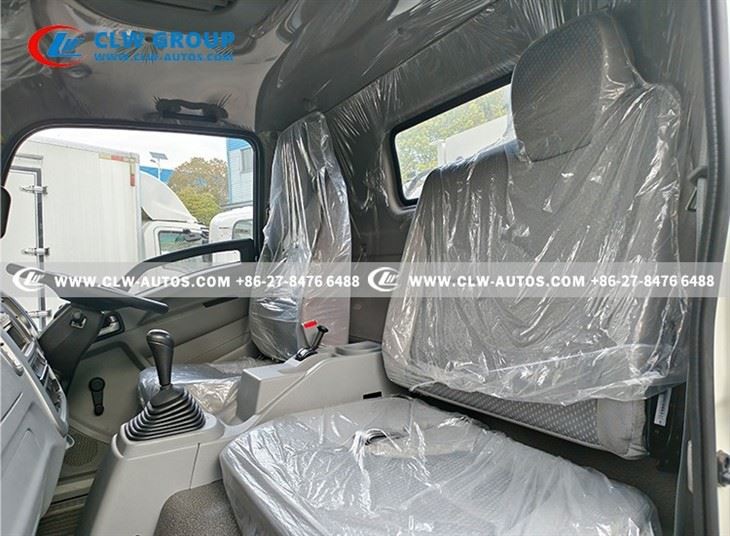

Cab: Single row cabin, 2 passenger seats+ 1driver seat, RHD, A/C
Wheelbase: 3360 mm
Engine: 4102QB2L
Horsepower: 116HP
Emission standard: Euro II
Gearbox: 5 Forwards and 1 reverse
Gross Vehicle Weight: 6000 kg
Front/Rear Axle loading: 2500kg /3500kg
Tires: 7.00R16, 6 pcs with one spare
|
Fuel Tank |
|
|
Tank volume |
5.25m³/ 5250L Fuel tank |
|
Compartment No |
Two compartment ( Or customized multi compartment) |
|
Tank material |
Q235 High-strength carbon steel |
|
Tank thinkness |
5mm of tank and 5 mm of end plate |
|
Tank shape |
Square or as request |
|
Manhole cover |
2 pc of European Aluminum alloy manhole covers, ∮500mm 2 set with breather valve |
|
Fuel Dispenser |
|
|
Dispenser brand |
Top brands of China-Censtar |
|
Dispenser position |
1pc dispenser built-in right side of the truck |
|
Hose reel |
15 meters |
|
Nozzle type |
High Flow Rate Nozzle |
|
Flow rate |
5 – 80 L/min |
|
Dispenser fuction |
Volume metering, price calculation, sales record |
|
Oil Pump |
|
|
Brand |
Chinese Brand |
|
Type |
80-60 carbon steel pump |
|
Flow rate |
80-60m³/h |
|
Drive Mode |
PTO-Driven |
|
Pumpline system |
2.5 inches |
|
Other configurations |
|
|
Walkway at top of tanker |
Color and design as customer's requirement |
|
Handrail |
Manual controlled at two sides of truck |
|
Ladder |

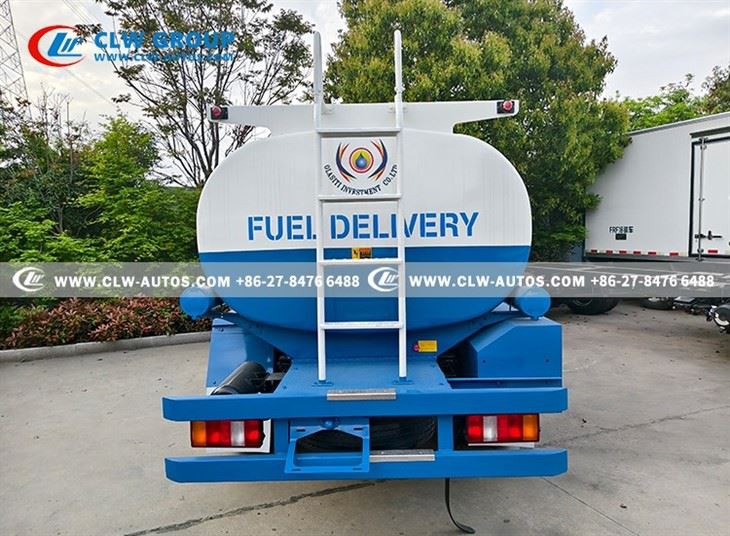

At rear of tank |
|
Accessories |
Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment; |
Direct factory sales, eliminating intermediate links, providing cost-effective solutions for customers!
Operation box
API Oil inlet and outlet pipeline
Emergency shutdown valve
2 compartment for multi-fuel
Gasoline/Petrol, diesel
Electrostatic grounding reel
Four-position three-way valve
Refueling machine intake
Censtar Fuel Dispenser
On-site refueling
Equipped with ticket printers
15-meter hoses & nozzles for precise
Provide real-time fuel volume data via LED screens
Lockable cabin Waterproof and theft-proof
Warranty period: 12 months

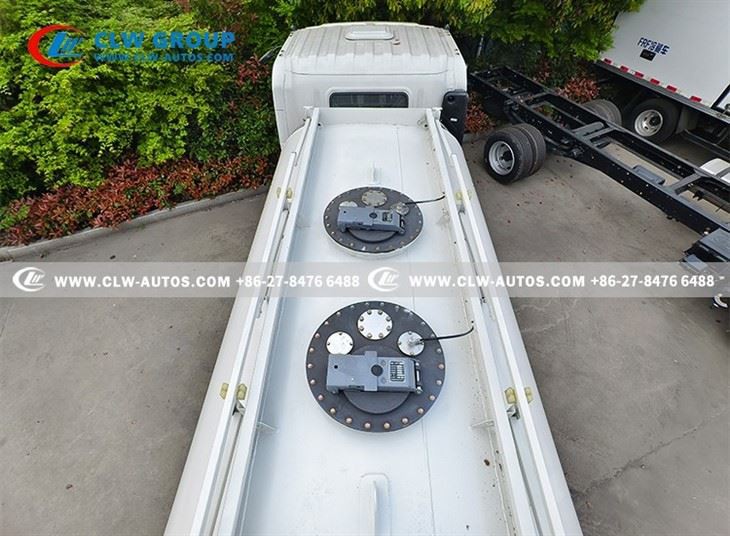

API manhole
Emergency explosion-proof exhaust function
Built-in breathing valve, pressure regulating
Anti-leakage probe rod interface
Oil vapor recovery valve interface
Secondary opening design
Made of aluminum alloy by die casting
In-cab Fueling Control Terminal
Remote control of pump operations
Pre-set fueling amount and volume
Real-time fuel volume monitoring system
In-cab transaction receipt printing support
Rugged display for mobile environments
Automatically record the infos of each fueling transaction
There are various modes of transportation for you to choose from!
