25 Tons LPG Station Skid 50000 liters 50m3 completed skid mounted lpg plan

with 2 pumps,1 compressor, 3 filling machines

LPG Skid Station key Spec.

25 Tons 50m3 LPG Station Skid 11 — **25 Tons LPG skid station**

What is a Skid-Mounted LPG Station?

Large Storage Capacity:

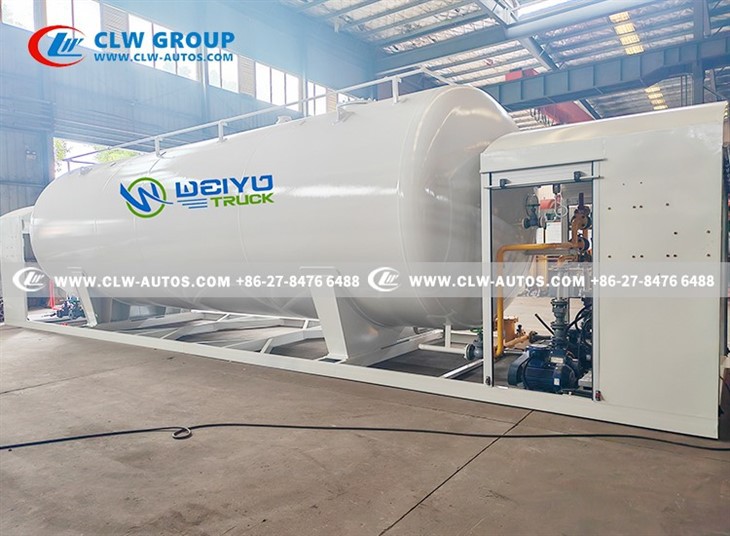

50,000-liter (50m³) storage tank constructed from high-strength Q345R carbon steel, ensuring durability and compliance with pressure vessel standards.
Robust Tank Thickness: Shell: 14mm, End Dish: 16mm, designed to withstand design pressures up to 1.77 MPa and temperatures from -19°C to 50°C

Complete Filling and Safety Accessories

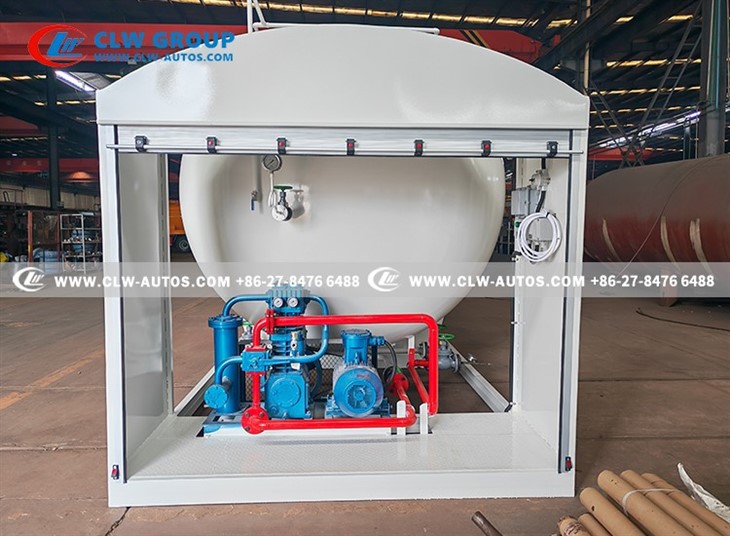

2 sets of pumps with explosion-proof motors for efficient transfer of LPG.

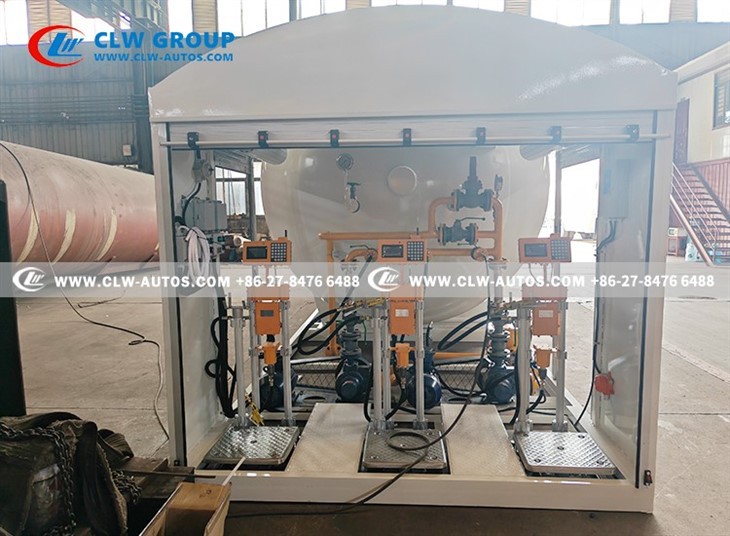

3 sets of filling scales with 4G data transmission for remote monitoring, inventory management, and transaction recording.

1 LPG compressor for tank loading/unloading and pressure management.

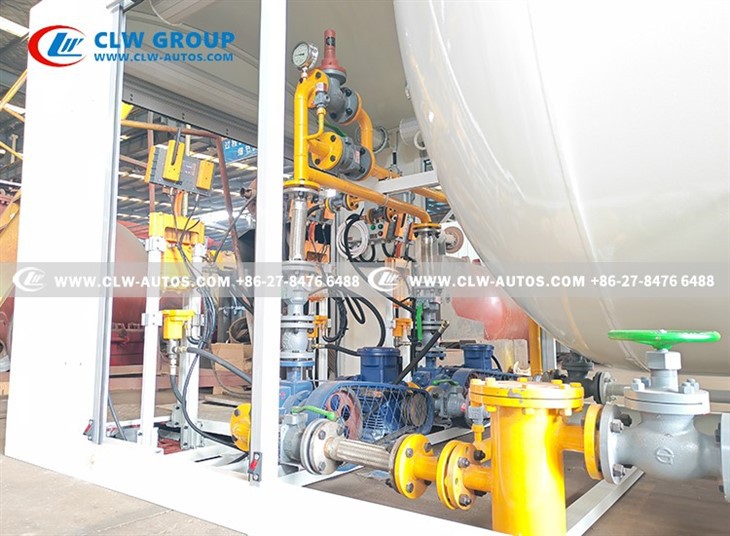

Integrated safety systems: Prinkler system, tank and pipeline safety valves, stop valves, pressure gauges, thermometer, strainer valve, float-ball level gauge, and gas leakage detectors.

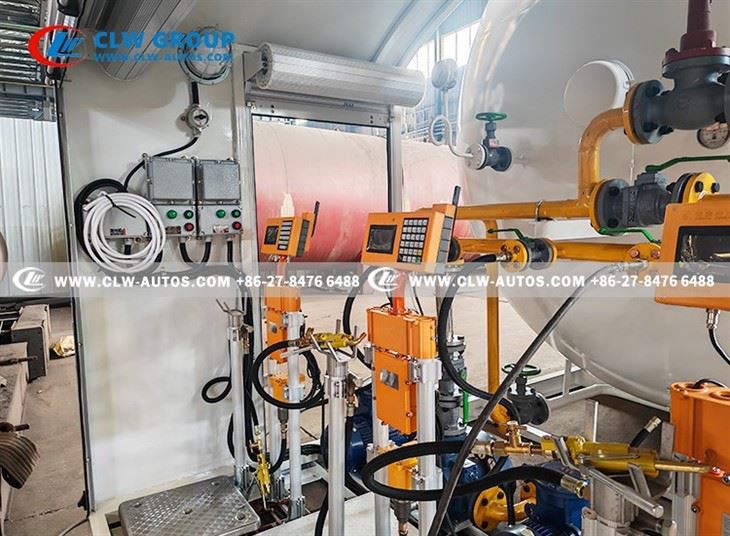

3 cylinder filling nozzles and 2 LPG discharge hoses for similtaneous multi-cylinder operations.

Plug-and-Play Design:

Dimensions: 12,200mm (L) × 2,728mm (W) × 3,400mm (H).

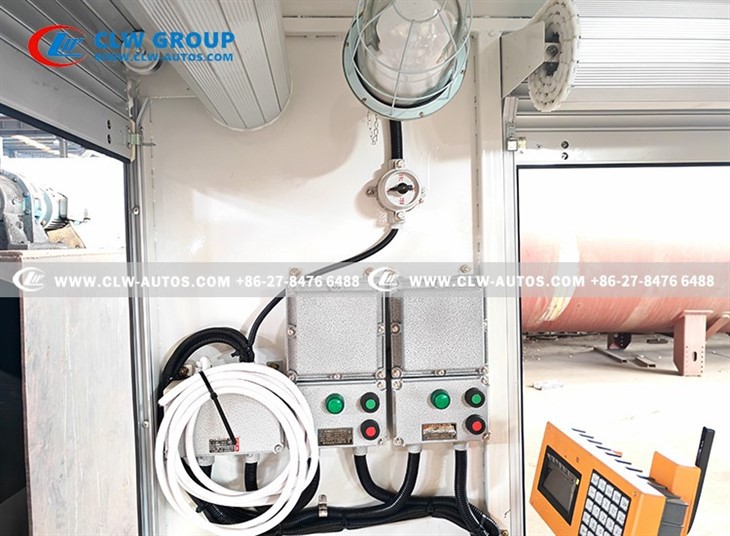

Includes an aluminum alloy roll-off filling room, LED lighting, and an electrical control box for all-weather operation.
Pre-wired and pre-piped, reducing on-site installation time and costs.

Applications of Skid-Mounted LPG Stations

Cooking Gas Distribution: Ideal for LPG bottle filling plants in urban or remote areas where pipeline gas is unavailable.
Industrial Fuel Supply: Used in manufacturing plants, warehouses, or mining sites to fuel machinery, heaters, or forklifts.
Automotive LPG Refueling: Can be adapted for vehicle refueling stations (e.g., taxis, buses) when equipped with appropriate dispensers.
Emergency and Temporary Supply: Deployed rapidly for disaster relief, construction sites, or seasonal demand surges.
Agricultural Use: Supply LPG for grain drying, greenhouse heating, or irrigation pumps in rural farms.

For quick inquiry, please contact Ms. Shirley Fu:

WhatsApp/ Wechat: +86 135 4506 4324
Email: shirley@clw-autos.com.

Why do you Choose Us for Your LPG Skid Station?

Compliance with International Standards:
Our stations are designed and manufactured according to GB150/ASME standards for pressure vessels and comply with safety regulations such as China's Pressure Vessel Safety Technical Supervision Regulations. All welds undergo 100% radiographic and magnetic particle inspection to ensure leak-free integrity.

Turnkey Solution with Advanced Technology:
We provide a fully integrated system with 4G-enabled filling scales for real-time data transmission, allowing operators to monitor fill volumes, track inventory, and generate reports remotely. The station includes automated safety shutdowns and leakage detection to prevent accidents.
Fast Deployment and Cost Savings:
Unlike traditional built-in-place LPG stations, our skid-mounted solution reduces construction time by months. It arrives pre-assembled and can be operational within days after placement on a level concrete foundation. This minimizes labor costs and site disruption.
Proven Reliability and After-Sales Support:
CLW Group offers a 1-year warranty and provides technical support, spare parts, and training. Our stations are built with premium components (e.g., Q345R steel, explosion-proof motors) for long service life even in harsh environments.
Customization and Scalability:
We offer stations from 5m³ to 200m³ capacity and can customize configurations for specific flow rates, pressure requirements, or climate conditions (e.g., cold weather packages)
10 years + experience of supplying lpg skid station in Africa with good feedback

Chassis Pictures

Products Specification

Specification
Overall dimension of skid station(lengthwidthheight)		1220027283284 mm
Volume of Tank		50 CBM/50,000L
Filling Weight		25000 kg/25 Tons
Tank Weight		11500 kg
Thickness of Shell (mm)		14 mm
Thickness of End plate (mm)		16 mm
Tank Diameter (mm)		2700 mm
Tank Dimensions (mm) (length x width x height)		9182X2724X3290mm
Material of Tank		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.71 MPa
Corrosion Allowance		1 mm
Medium Density		420 kg/ cbm (50 ℃)
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50		1
Inflow Pipe	DN50		1
Outlet	DN50		1
Gas phase balance pipes	DN50		2
Manhole	DN450		1
Drain Hole	DN50		1
Other tank accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

LPG Skid Parts List
Item	Model Number	Quantity
LPG Tank		1 piece
LPG compressor		1 piece
Pump	2" inlet & 2" outlet	2 Pieces
Explosive-proof Motor	380V with 220V adapter	3 Pieces
Cylinder filling scale with 4G data transmission	/	3 Pieces
Pipes	/	1 Set
DN50 Check Valve	/	5 pc
DN50 Ball Valve	/	8 pcs
DN15 Ball Valve	/	2 pcs
Strainer	/	1 pc
DN50 Non-return Valve	/	2 pcs
DN50 Steel Anti-shock Pipe	/	4 pcs
Pipeline Safety Valve	/	2 pc
Control box	/	1 pc
Gas Leakage Detector and panel	/	1 pc
Explosive Proof Lamp	/	2 pc
Level Gauge	Float ball type/Chinese brand	1 Unit
Fire extinguisher		1 Unit
