Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 30tons lpg storage tank for cylinder filling gas station in China. If you're going to buy high quality 30tons lpg storage tank for cylinder filling gas station, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
Production Procedure
1. Steel Plate Cutting &Rolling
2. Tanker Body Welding
3. X-ray Welding Seam Detection: each vertical and circular welding seam will be X-ray tested, to prevent welding defective like bubble & cracks
4. Whole Tanker Heat Treatment
5.Water Pressure Test: hydraulic water pressure test: 2.22 Mpa, to make sure tanker meet designed pressure
6. Painting with customize logo

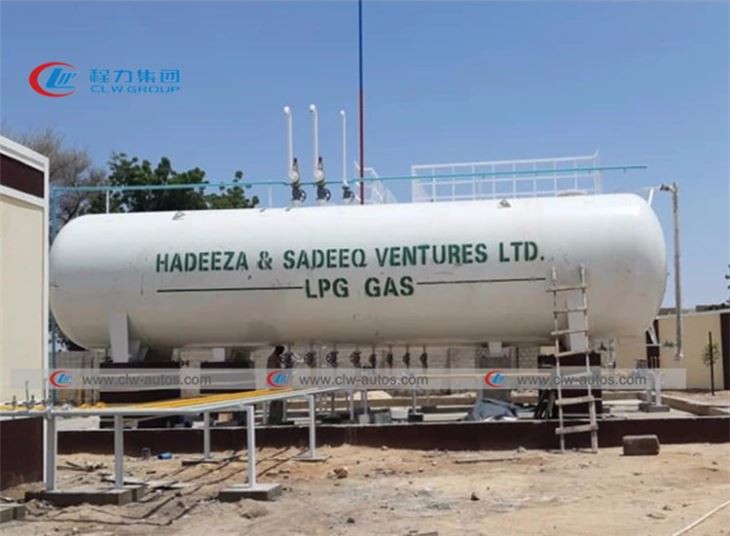

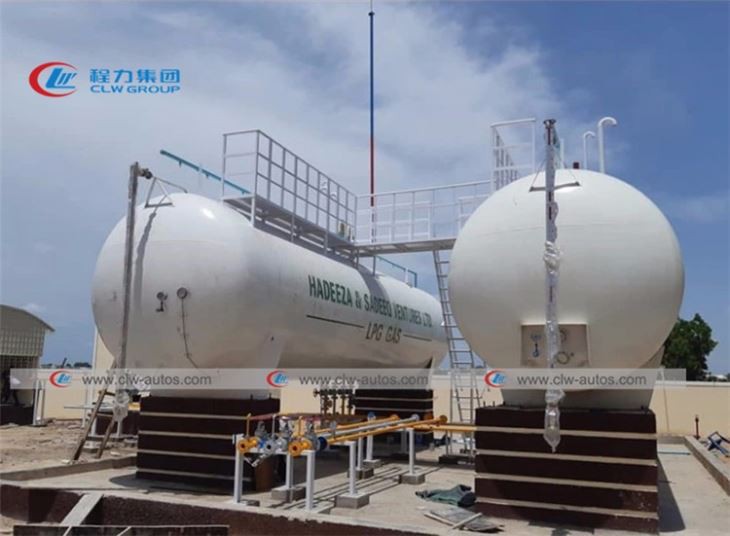

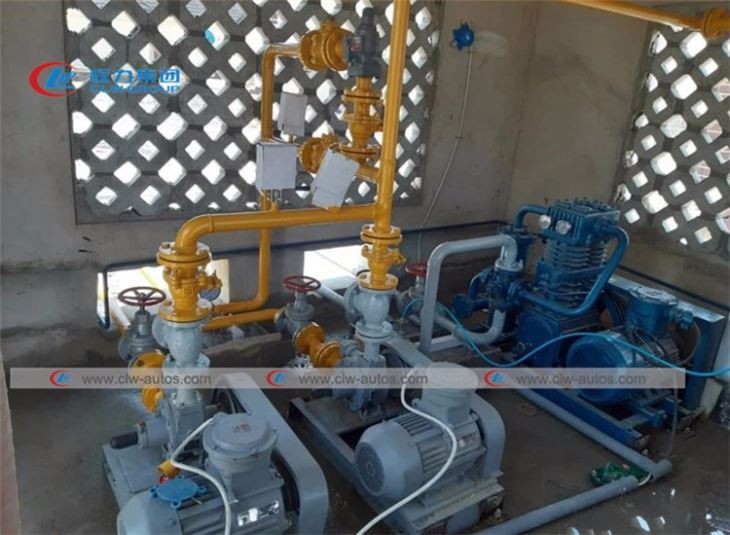

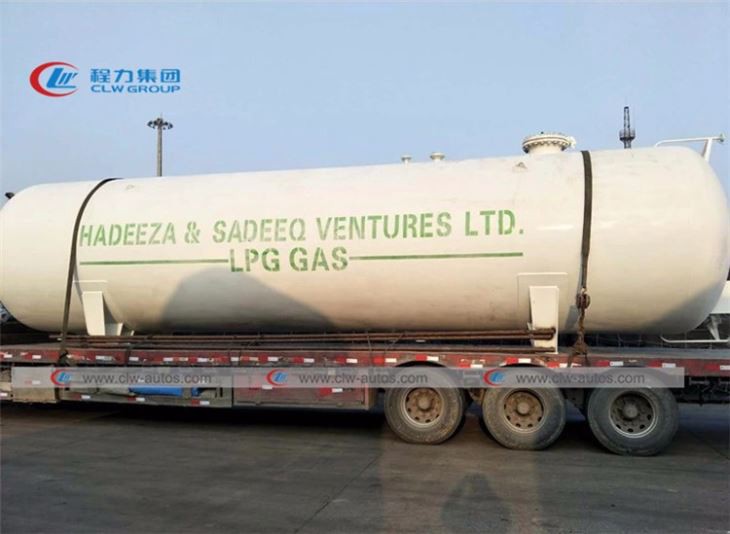

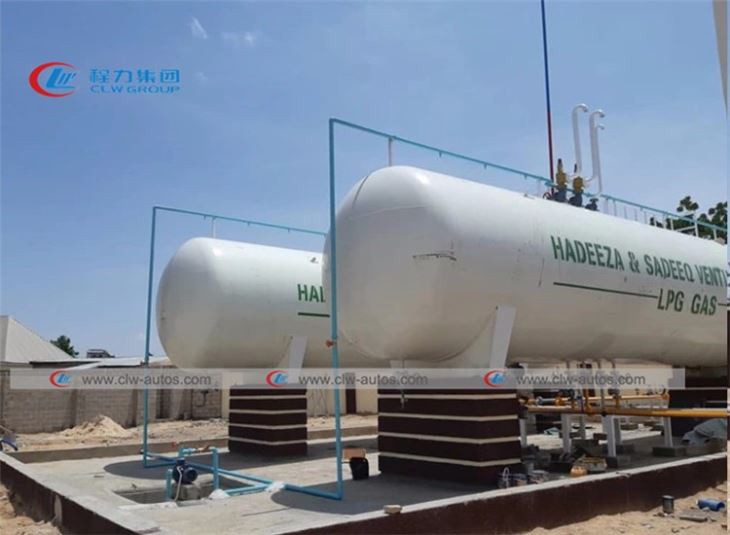

Re
ference picture
Specification
Parameter of 60000liters 30tons LPG Stationary Storage Tank | ||||
ITEM | PARAMETER | ITEM | PARAMETER | |
Volume | 60cbm | Thickness of Shell | 14mm | |
Tank Material | Q345R | Thickness of End plate | 16mm | |
Overall Size | 10962*2728*3318mm | Tank Net Weight | 12750kg | |
Tank Diameter | 2700mm | Loading Capacity | 23940kg | |
Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |
Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |
Vapor Outlet | DN50 | Gas Outlet | DN50 | |
Life time | 15 years | |||
Accessories | ||||
Model | Item | Qty | Junction surface | |
J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |
J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |
J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |
A42F-25-100 | Safety Valve DN100 | 1 | RF | |
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |
