50Ton Cooking Gas Refilling LPG Tank Station

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50ton cooking gas refilling lpg tank station in China. If you're going to buy high quality 50ton cooking gas refilling lpg tank station, welcome to get more information from our factory. For price consultation, contact us.

50Ton Cooking Gas Refilling LPG Tank Station

Tank Standard:

Ø  Tank Volume for Choice: start from 5Ton to maximum 60ton Tank

Ø  Tank Material for choice: Q345R, Q370R, Q420R, SA 516

Ø  Tank Type: Horizontal Cylinder Tank

Ø  Design Standard: GB 150 2013, ASME VIII

Ø  Tank Welding: Submerged Arc Welding,

Ø  100% Radio-graphic Test for tank body

Ø  Hydrauic Test 2.10Mpa for 24 hours

Ø  Magnetic particle Test for Nozzles Connection

Major Station Equipment

Ø  LPG Gas Pump: Corken Pump & Blackmer Pump, Chinese Brand Pump

Ø  Gas Compressor:  4 Way Valve Control with Explosive Proof Motor

Ø  LPG Dispenser: 2 Nozzle & 1 Nozzle, with Digital Displayer,

Ø  LPG Filling Scales: Manual Connection, Auto Shut-off.

Ø  Flow Meter: Positive Displacement Flow meter

Ø  Global Vavles: 2” or 3” or 4”

Ø  Ball Valve: DN50/2”, DN80/3”, DN100/4”

Ø  Safety Relief Valve

Ø  Line Safety Vavel

Ø  Steel Gas Pipe

Photos of LPG Station---------------------------------------------------

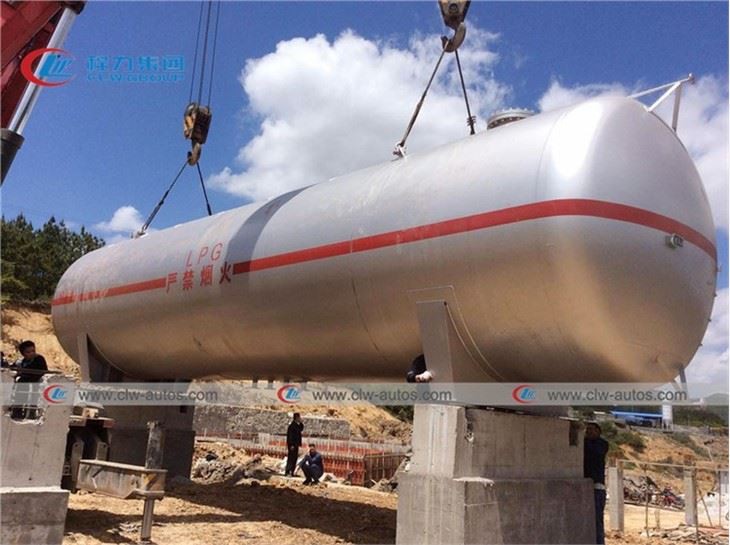

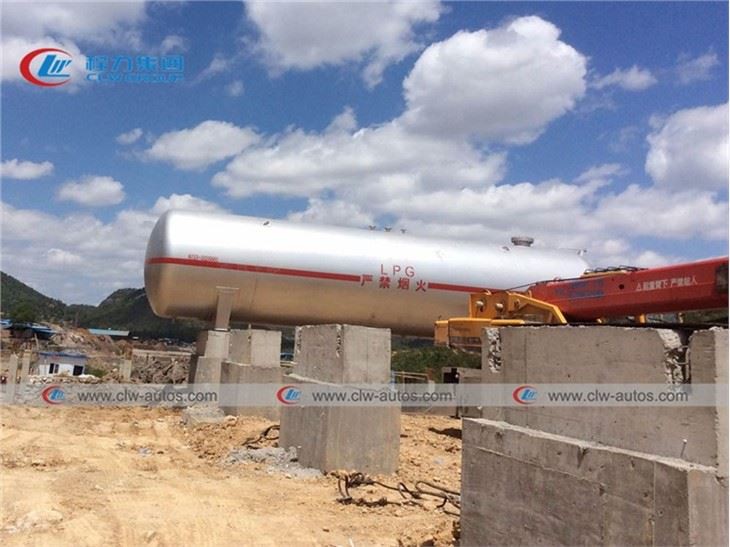

50Ton 100,000Liter LPG Storage Tank Under Lifting

1 Unit 100,000Liter Propane Gas Tank Installed

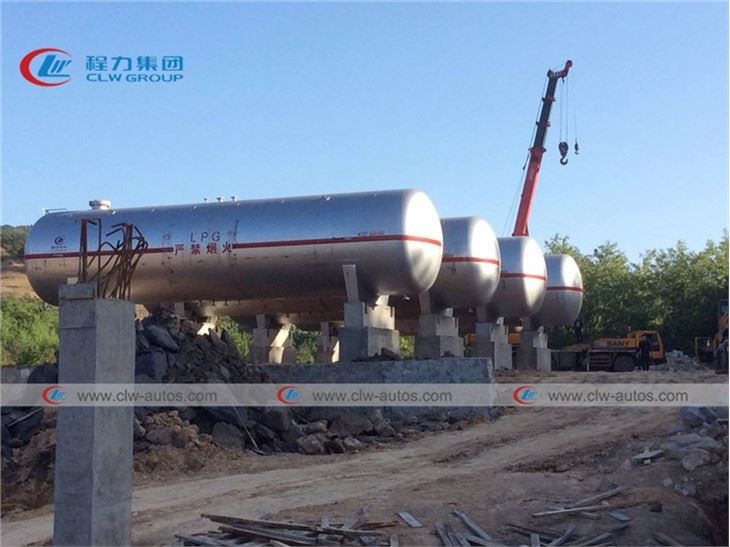

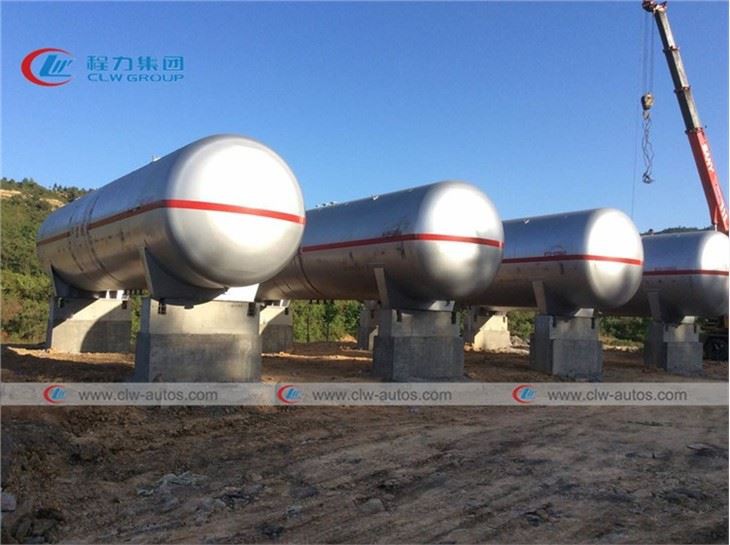

4Unit 50Ton Cooking Gas Storage Tank Seated on Concrete Base

Installation Finished

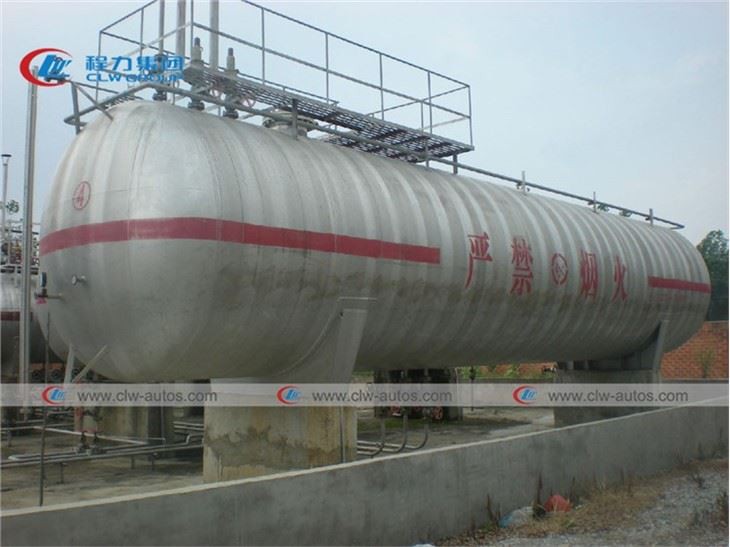

Sprinkler System, Tank Vavle & Gauge, Pipe line Installed
