Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of FAW 35 Tons Excavator Flatbed Truck in China. If you're going to buy high quality FAW 35 Tons Excavator Flatbed Truck, welcome to get more information from our factory. For price consultation, contact us.
FAW J6P-370HP 6x4 Flatbed Transport Truck
A flatbed truck is a commercial vehicle with an open,level bed, designed without sides or a roof for easy,
versatile loading of heavy!
FAW J6P 370HP
Designed for robust international operations, the FAW J6P features a 370HP engine paired with a spacious semi-truck cab. It comes equipped with a 400L steel fuel tank, metallic bumper, and an integrated iron oil-bath air filter for enhanced durability in demanding conditions. The chassis includes reinforced sections and provides reserved space for a lorry crane leg, offering flexibility for specialized transport needs.
Performance & Durability
Built to handle heavy loads, the truck is equipped with an aluminum radiator, a twin fuel filter system, and a 12/12 suspension setup for stable performance under stress. The cab is mounted on a four-point spring suspension, and a 150Ah battery ensures reliable starting power. With a rear suspension of 3100mm and a reinforced frame, it supports a maximum load capacity of 35 tons on a 9-meter platform.
Practical Design Features
Focused on utility, the vehicle includes an electric hydraulic lifting system, a single manual ladder, and rear support legs at the back. Side rope tighteners secure cargo effectively. Note that this model does not include a co-pilot seat belt alarm, front underrun protection, a speed limiter, or a travel recorder, keeping the design streamlined for functional use.
Key Features:
FAW J6P 370HP / New J6L Africa Edition / heavy-duty truck / 35-ton load capacity / reinforced chassis / international export version / practical cargo design / durable suspension / utility-focused features
Product Name: FAW J6P Flatbed Truck With Ladder
Application: Construction Engineering
Cab: Single row and half cabin, LHD, A/C
Wheelbase: 5800+1350 mm
Engine: CA6DL2-37E3F
Horsepower: 370HP
Emission standard: Euro III
Gearbox: 10 Forwards and 2 reverse
Gross Vehicle Weight: 25000 kg
Curb weight: 9500 kg
Loading weight: 15500 kg
Front/Rear Axle loading: 9.5t / 2x15.5t
Tires: 12.00R20 18PR, 10 pcs with one spare
Fuel Tank: 400L Steel material
|
9Meter Long Flatbed With Ladder |
|
|
Flatbed Size (L*W) |
9000x2500mm |
|
Ground Clearance |
950mm |
|
Flatbed Material |
8mm thick patterned steel plate |
|
Flatbed Beam |
120x120x6mm square steel tube under the flatbed |
|
Side Guards |
Q235 carbon steel |
|
Ladder Type
|
Single-section |
|
Manual flipping |
|
|
High Strength Steel |
|
|
Optional Accessories
|
Optional Light/Heavy duty aluminum ramps |
|
Optional heavy-duty rotating tie-downs |
|
|
Optional side-mounted or rear-mounted toolbox |
|
|
Optional hydraulic ladder |
|
| Optional double section ladder | |
|
Optional aluminum alloy side guards |
|
J6L 6x4 Flatbed truck; Easy to operate; Super reliable; Great for medium to heavy loads; Up to 40 ton loading capacity!
9 Meters Flatbed
Overall dimensions: 11650 x 2500 x 3200 mm,
Flatbed size: 9000 x 2500 mm.
It can quickly load various non-standard-sized goods of different sizes and shapes.

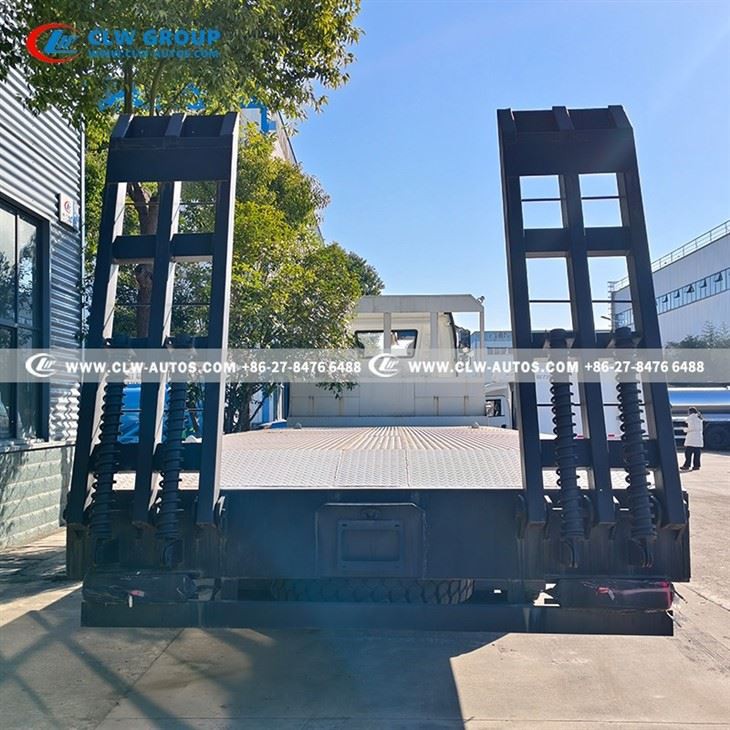

Mechanical Ladder
The ladder and rear legs
Easy ascent of the excavator onto the flat surface.
The ladder is made of three steel bars & double springs.
Equipment can move up and down independently
without the need for additional hoisting equipment
Support Frame
8mm patterned anti-slip plate
120x120x6 mm square tube support
Manganese steel main beam.
Strong compressive strength, service life of 10+ years.
It also adopts reinforced welding and crossbeam structure.
Fastener
Three rope fastening devices each on both side.
There are four positioning protrusions on the flat,
Fixation of goods to prevent them from sliding.
FAW 6x4 Flatbed Truck has a wide range of application!
Construction industry
Transportable heavy machinery such as excavators, bulldozers, loaders, rollers, and small cranes can be provided.
Agricultural machinery transportation
Transporting tractors, combine harvesters, seeders, etc.
Building Material Industry
Prefabricated concrete slabs, reinforcing bars, steel pipes, wood, scaffolding.
Wind power industry
Transporting the blades , tower sections, and nacelles of wind turbines.
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
