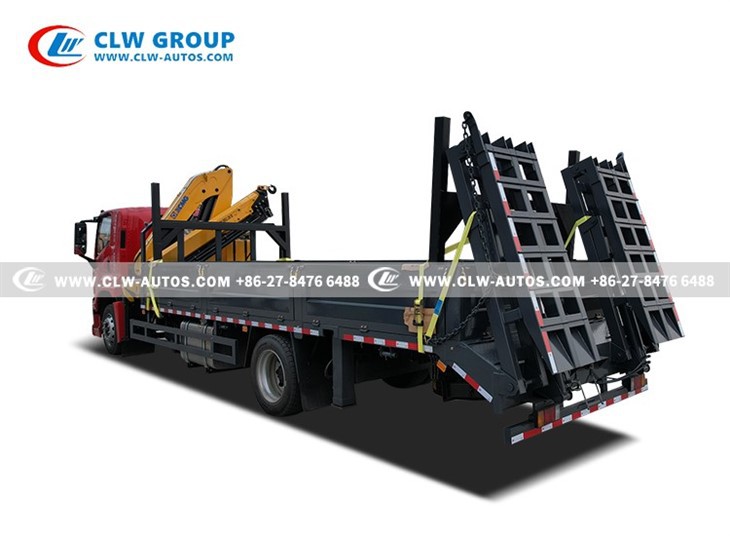

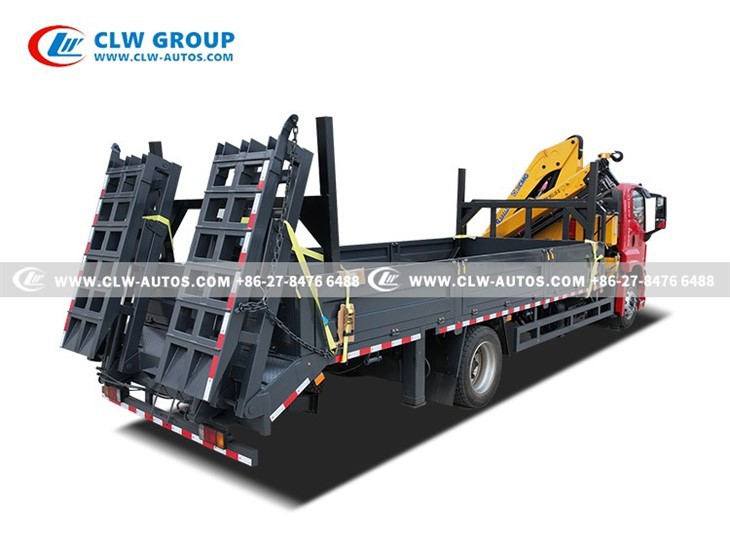

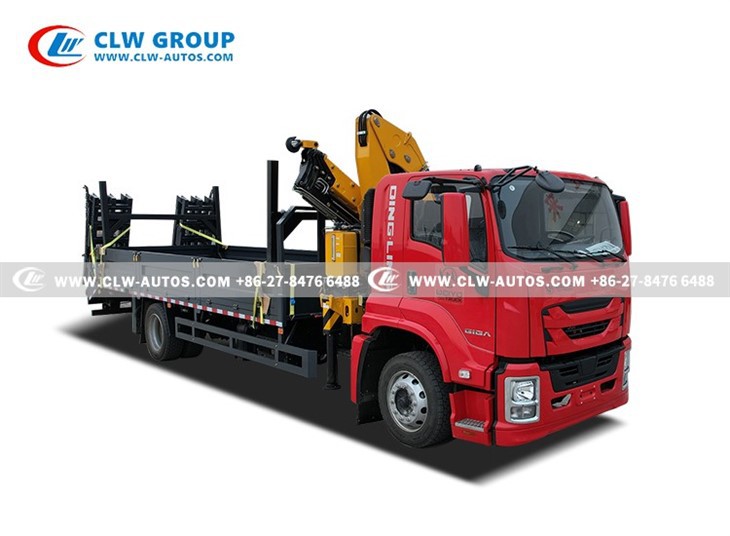

ISUZU FTR 6 Wheels Flatbed Truck With XCMG 6.3Ton Folding Boom Crane For Russia
The Isuzu FTR 205-horsepower flatbed truk with 6.3ton folding boom crane is a versatile model tailor-made by Isuzu for the Russian market. With its reliable quality, fuel efficiency, a 5800mm wheelbase that ensures optimal stability and cargo space, and its core capability of self-loading and unloading, it precisely addresses the key pain points of small and medium-sized enterprise owners and individual truck owners in Russia-reducing operating costs and improving operational efficiency. It is a highly competitive and efficient solution.
This Isuzu flatbed truck integrated with XCMG crane offers multifunctionality and durability: the aluminum alloy electrophoretic anti-corrosion cargo box provides excellent rust resistance, the 8-ton winch delivers powerful traction, the two-section hydraulic ramp facilitates heavy-load loading/unloading, and the movable cargo rack ensures secure and efficient steel transportation. The overall design balances professional operations with long-term service.
1. Aluminum alloy cargo bed with electrophoretic and anti-corrosion treatment
Advantages: Lightweight, corrosion-resistant, extended service life, suitable for high-intensity transport operations.
2. Flatbed equipped with 8-ton winch
Advantages: Provides powerful traction for effortless loading/unloading and rescue tasks, improving operational efficiency.
3. Two-section hydraulic ramp
Advantages: Adjustable angle to accommodate various loading heights, effortless operation with enhanced safety.
4. Movable cargo rack
Advantages: Flexibly secures steel materials, prevents shifting during transit, ensuring cargo safety and stability.
|
ISUZU Flatbed Truck With XCMG Crane |
||
|
Chassis Specification |
||
|
Chassis Model |
QL5180XXYAJWHY |
|
|
Driving Model |
4X2 |
|
|
Cab |
|
|
|
Dimension |
11000 x 2500 x 3500 mm |
|
|
Wheelbase |
5800 mm |
|
|
Gross vehicle Weight |
19,900 kg |
|
|
Curb Weight |
10500 kg |
|
|
Loading Weight |
10,000 kg |
|
|
Front Axle Loading Capacity |
6,500 kg |
|
|
Rear Axle Loading Capacity |
11,500 kg |
|
|
Axle Number |
2 |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
|
Model: 4HK1-TCG60 |
||
|
Horse power: 205 HP |
||
|
Displacement: 5193 ml |
||
|
Emission standard: Euro 6 |
||
|
Transmission |
Model: ISUZU Manual Type |
|
|
6 Forward & 1 Reverse |
||
|
Tire |
295\60R22.5 |
|
|
6 Pcs with one spare tire |
||
|
Upper Body Specifications |
||
|
Flatbed Platform |
Size: 7000 (6700+300) x 2500 mm |
|
|
Thickness : 6mm checked plate |
||
|
Loading Capacity: 10~15 Ton |
||
|
Flatbed: 6 mm Thick manganese plate |
||
|
Winch |
8 Ton |
|
|
Box Plate |
Material: Aluminum Alloy |
|
|
Hydraulic Ladder |
Double sections ladder |
|
|
Storage Shelf |
Removable |
|
|
XCMG 6.3Ton Folding Boom Crane Specifications |
||
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
|
Max. Lifting Capacity |
Effectively: 6,300 kg at 2.1 meters |
|
|
Max. Hydraulic Outreach |
12.2 meters |
|
|
Slewing Angle |
420° |
|
|
Stabilizer Spread |
5607 mm |
|
|
Max. Operating Pressure |
28 Mpa |
|
|
Recommended Pump Capacity |
25 L\min |
|
|
Oil Tank Capacity |
100L |
|
|
Dead Weight |
2099 kg |
|
