Howo 8*4 25,000liters 30,000L Diesel/Gasoline/Petrol/Fuel Transport Tanker Truck
Truck cabin:Howo HW76
Wheelbase:4600+1350mm
Steering:LHD or RHD
Tank Size:25,000/30,000L
Optional:oil pump/flow meter/dispenser
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 8*4 25,000liters 30,000l diesel/gasoline/petrol/fuel transport tanker truck in China. If you're going to buy high quality howo 8*4 25,000liters 30,000l diesel/gasoline/petrol/fuel transport tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Fuel Transport Tanker Truck(also called fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.
1.
Purpose of Fuel Transport Tanker Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2.
Optional for Refueling System of
Fuel Transport Tanker Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine
3.
Tank shape of
Fuel Transport Tanker Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5.
Refueling machine of
Fuel Transport Tanker Truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6.
Optional parts of
Fuel Transport Tanker Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Feature--Heavy duty howo truck chassis;--High quality carbon steel/aluminum alloy tanker material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;
-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.
--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.
-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.
--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

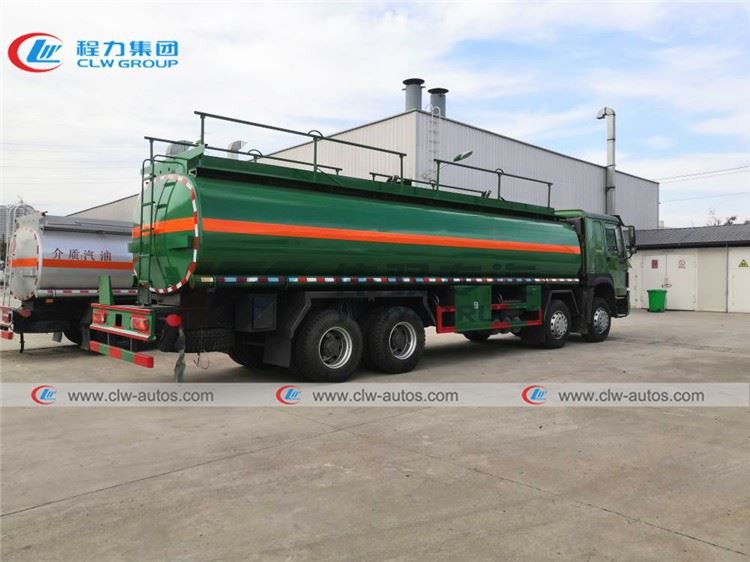

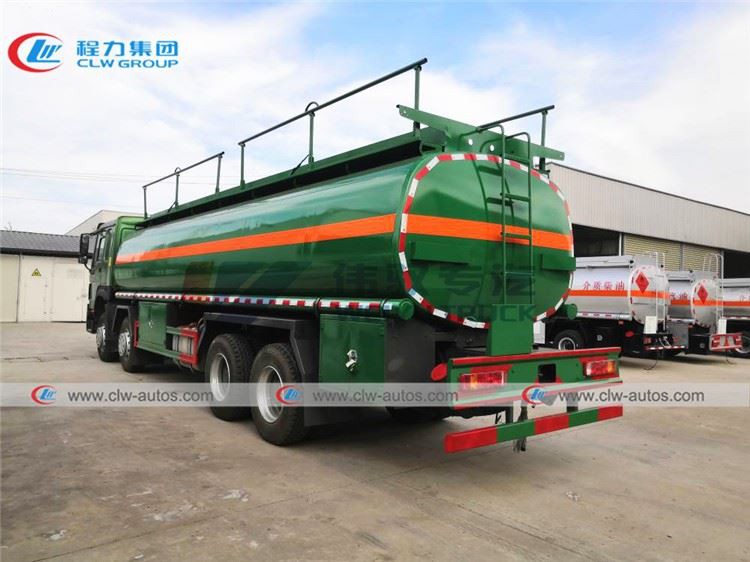

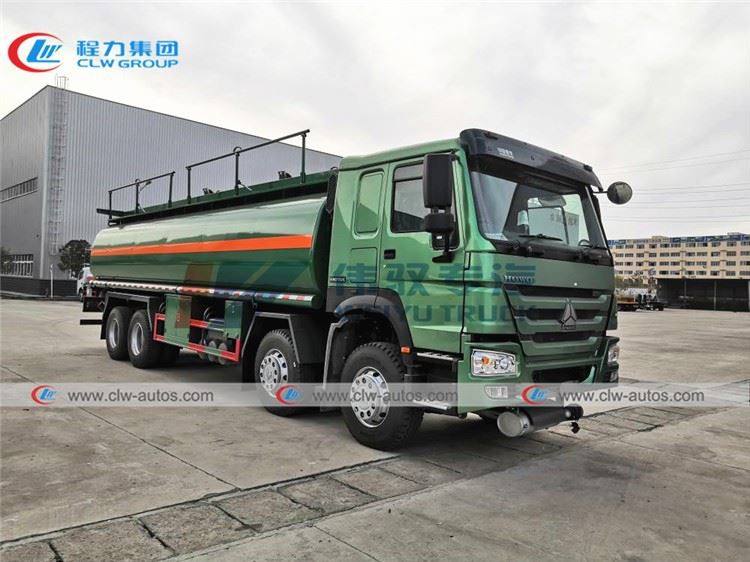

Reference pictures
Specification
| |||
|
| ||
| Brand | Howo | |
Curb weight(kg) | 14300 kg | ||
Wheelbase(mm) | 1800+4600+1350 mm | ||
Dimensions(mm) | 11990X2500X3450 mm | ||
Front/Rear Axle loading(kg) | HF9 front axle/9000kgX2； HC16 rear axle/16000kgX2； | ||
Wheel track (front/rear) (mm) | 2022/2022/2041/2041 mm | ||
Front/Rear overhang(mm) | 1500/2740 mm | ||
Approach/Departure angle(°) | 26/20 | ||
Max. driving speed(km/h) | 95 | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 12 pcs with one spare tire | |
Specifications | 12R22.5 | ||
Fuel box | 400L with lockable cap | ||
| Manual type HW19710, 10 Forwards and 2 reverse | ||
| It can accommodate three people. With Air Conditioner | ||
| Brand | SINOTRUK | |
Model | WD615.47 | ||
Fuel type | |||
Displacement(ml) | 9726 ml | ||
Power(kw) | 273kw | ||
Horsepower(HP) | 371HP | ||
Max. Torque(N.m) | 1160 | ||
Fuel consumption at full load(g/kw.h) | 193 | ||
Cylinder number | In-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection | ||
Emission standard | Euro II | ||
| |||
|
| 30 cbm/30,000 liters | |
| Tank material:Q235 high tensile strength steel. | ||
| 5mm of tank and 5mm of end plate | ||
| Square or as request | ||
| 3 | ||
| 4 mm carbon steel | ||
| 3 pcs of European Aluminum alloy manhole covers, ∮500mm 3 sets with 3 breather valves | ||
| 3 sets of Aluminum alloy Pneumatic Bottom Valves | ||
| 3 set ∮ 4 inches API discharging valves | ||
| Chinese brand,80-60 carbon steel pump with flow meter 60m3/h | ||
| 2.5 inches | ||
| Chinese brand DN50 flow meter | ||
| Anti-slip | ||
| Color and design as customer’s requirement | ||
| Over flow; 3 sets of vapour recovery; Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire; Truck will be waxed before shipment; | ||
| Pneumatic controlled at two sides of truck | ||
| At rear of tank | ||
