Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu kv100 road sweeper truck in China. If you're going to buy high quality isuzu kv100 road sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU KV100 Road Sweeper Truck
Road sweepers are mainly used for efficient cleaning of urban roads, highways, factories and other places. The road sweeper is mainly composed of a truck chassis, a garbage tank, a water tank, an auxiliary engine, a fan, a water pump, four sweeping brushes, suction cup and other parts. A road sweeper can effectively replace dozens of workers.
Description
Garbage Tank: 7cbm Stainless steel material, Liftable self-unloading type
Water Tank: 2.5cbm, stainless steel material
Auxiliary Engine JMC87HP to Supply Power for road sweeper brush and vacuum suction panel.
Four sweeper brushes & suction panel to collect dust, gravel, waste water and leaves.
High pressure water pump & low pressure side sprinkler beside the brushed
Maintenance-free fan with strong suction capacity
Maintenance tips
1. The air filter element should be cleaned every three days and replaced once a month.
2. Add a small amount of fan butter once a month.
3. Clean the filter element of the water cup every week.
4. Change the oil of the auxiliary engine once a month, and replace the diesel filter element and oil filter element every 3 months.
5. Replace wearing parts, brushes, bellows, and sealing strips in time when they are damaged+

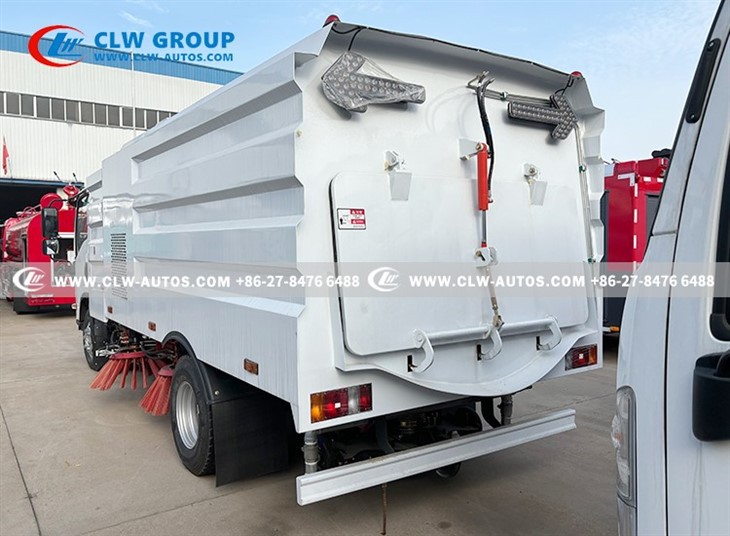

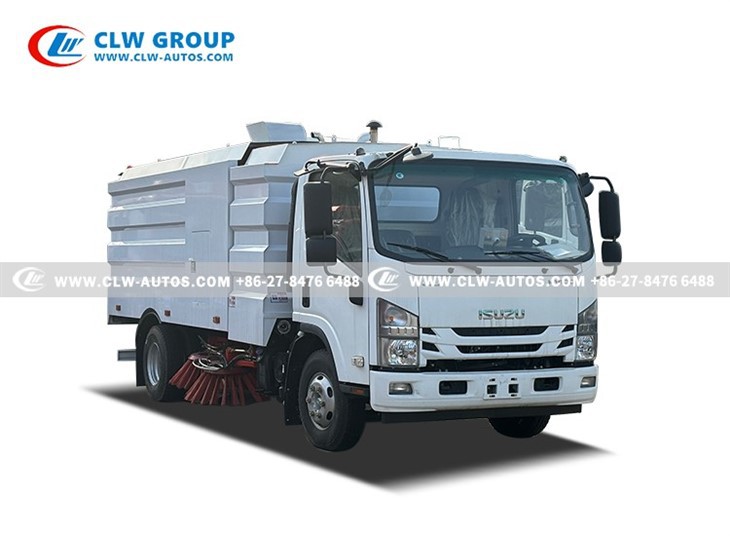

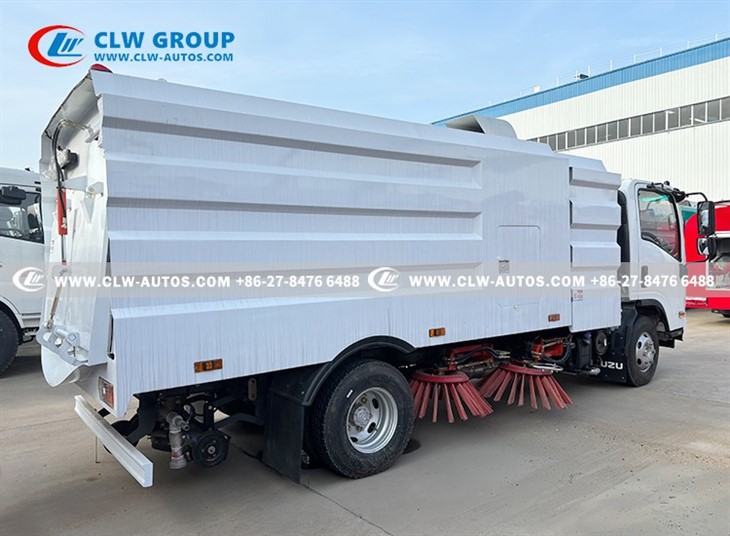

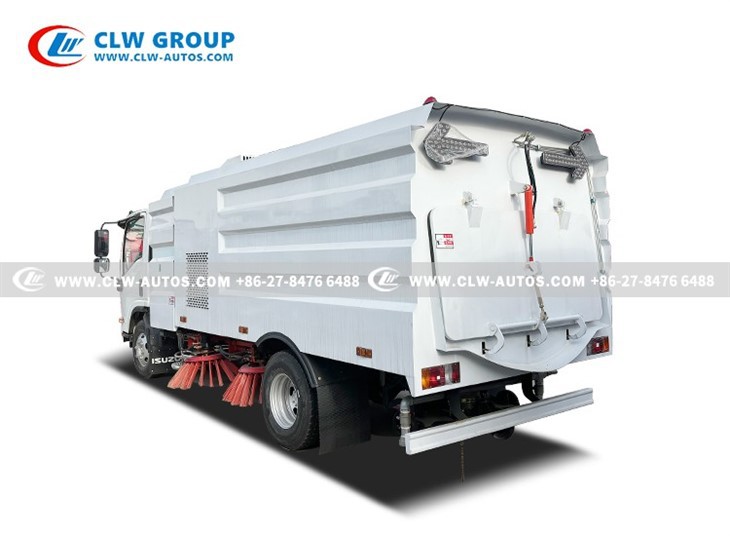

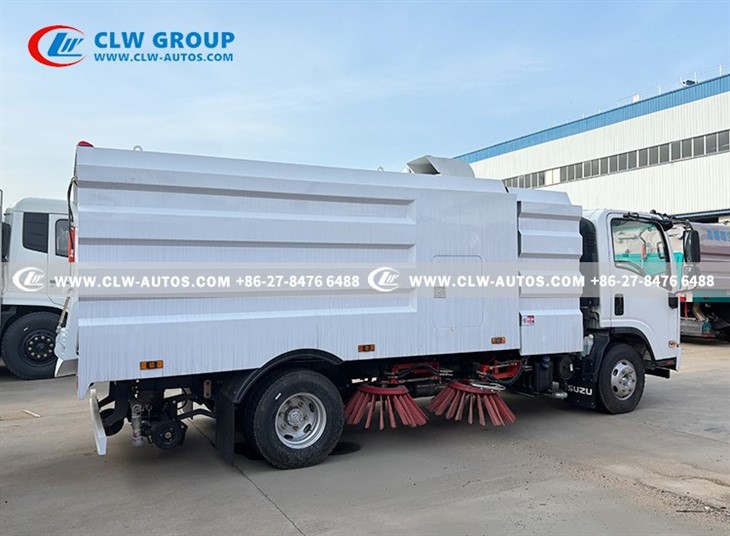

Reference Picture
Technical parameter
| Condition | New condition/Left hand drive/4x2 | ||||
| Chassis | Brand | ISUZU KV100 | |||
| Curb weight(kg) | 5750 kg | ||||
| Wheelbase(mm) | 3815mm | ||||
| Dimensions(mm) | 6700×2200×2810 mm | ||||
| Axle loading | 2500/4800 kg | ||||
| Max. driving speed(km/h) | 80 km/h | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Tire | Quantity(pcs) | 6 pcs with one spare tire | |||
| Specifications | 7.00R16 | ||||
| Gear box | Manual type, 5 Forwards & 1 Reverse | ||||
| Cab | Single row seat, Tiltable. It can accommodate two people. With air conditioner. | ||||
| Engine | Model | 4KH1CN6LB | |||
| Fuel type | Diesel | ||||
| Displacement(ml) | 2.999L | ||||
| Power(kw)/Horsepower(HP) | 85 kw/120 HP | ||||
| Emission standard | Euro 6 | ||||
| Upper | |||||
| Tank | Garbage tank | Tank material | Stainless steel | ||
| Tank volume(cbm) | 5 cbm | ||||
| Water tank | Tank material | Stainless steel | |||
| Tank volume(cbm) | 2.5 cbm | ||||
| Auxiliary engine | Model | JMC | |||
| Power(kw)/Horsepower(HP) | 87 HP | ||||
| Fuel type | Diesel | ||||
| Sweeping System | Type | Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down. | |||
| Sweeper Diameter(mm) | 900 mm | ||||
| Working area(m) | 3 m | ||||
| Cleaning Speed | 8-20km/h | ||||
| Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | ||||
| Remarks | corrosion resistant paint with customized logo | ||||
| 5 meter suction hose at rear door | |||||
| Paniting | Customized logo painting | ||||
