Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 45m3 fuel tank semi-trailer in China. If you're going to buy high quality 45m3 fuel tank semi-trailer, welcome to get more information from our factory. For price consultation, contact us.

3 axles 45m3 Fuel Tank Semi Trailer to Nigeria

We are Straight Manufacturer from China.

Quality First, Service Best, Welcome for Inquiry!

Products Description

This heavy-duty 45-cubic meter (45m³) fuel tanker semi-trailer is engineered for reliable and efficient bulk liquid transport across Nigeria. Designed with operator safety and regulatory compliance in mind, it features a robust triple-compartment carbon steel (Q235) tank (5mm body / 6mm heads) mounted on a durable I-beam subframe.

Equipped with three BPW axles (13-ton capacity each) and JOST brand landing gear, it delivers exceptional load distribution, road stability, and ease of operation. The 3.5-inch JOST kingpin ensures compatibility with standard tractors.

Key features:

Capacity: 45 Cubic Meters (45m³)

Tank Construction: High-Tensile Carbon Steel Q235

Tank Thickness: 5mm Body | 6mm Reinforced Heads (Ellipsoidal/Dished)

Compartments: Three (3) Separate Compartments (Enables multi-product hauling)

Subframe Design: Heavy-Duty I-Beam Construction

Suspension: Triple Axle System (3 Axles)

Axle Brand & Rating: BPW Axles | 13 Tons per Axle (Total Approx. 39 Tonnes GVW)

Landing Gear: Premium JOST Heavy-Duty Landing Gear

Kingpin: 3.5-Inch JOST Kingpin (SAE Standard)

Primary Application: Designed for Nigeria's Transport Needs

Primary Use and Function

This tanker is specifically engineered for the safe and efficient transportation of petroleum products within Nigeria, including:

Diesel Fuel

Gasoline (Petrol)

Kerosene

Other Compatible Liquid Fuels/Oils

The triple-compartment design is a critical feature, allowing operators to transport multiple different fuel grades or products simultaneously in a single trip, significantly enhancing operational flexibility and efficiency.

Products Parameters

Technical Specification
Dimensions
Overall length	Approx. 11,800mm
Overall width	2,500mm
Overall height	Approx. 3,650mm
Tare weight	Approx. 10,900kg
Loading capacity	45m3
Tank body
Shape	Mono block cylinder
Total volume	45m3/CBM
Tank thickness	5mm, carbon steel Q235
End plate	6mm, carbon steel Q235
Lifting ladder	Including top walkway and backside steel material
Manhole cover	4 sets aluminum alloy API manhole cover, with breather valves and anti-spillage valves.

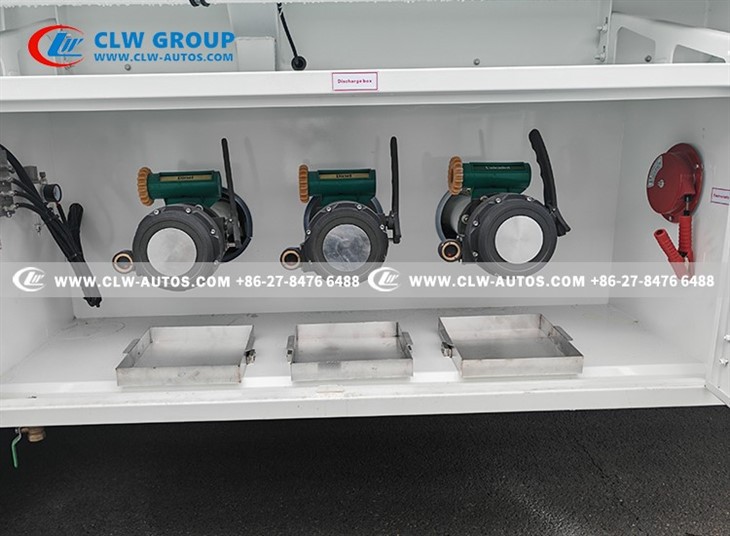

Bottom valve	4 sets of DN100 pneumatic bottom valve, pneumatic control for each compartment;
Discharging valve	4 sets DN100 API discharging valves
Discharging pipe	4'' rubber hose
Chassis
Main beams	Special design I beam, steel saddle support 8 No's each side
Axle	Axle number	3 axles
	Axel brand	BPW brand 13 tons
Landing gear	JOST brand
Kingpin	JOST brand 2'' or 3.5'' bolt-in kingpin, interchangeable
Suspension	Heavy duty leaf spring type; front axle with BPW brand air bag as customized
Pneumatic braking system	WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; 45L air tanks
Tire	12R22.5 tubeless tire with one spare, 13 pieces
Painting	Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Lighting system	Electrical wires: Placed in leak tight sheathes, neither bare wire nor split sheathes; Back lights: Inserted inside rear bumpers and protected. Stop light: Additional LED stop lighting. Lighting repeaters: Turn, reverse and stop lights must be repeated on top left and right sides. Indicator: In the rear side.
Other Accessories	Dust board to cover the tires; Rear ladder to access the top of the tanker; Walkway with fold-able handrail; One standard tool box; Double spare tire carrier; Anti-skid design on the whole available surface; 2 fire extinguisher holder, with 29kg extinguisher; Drip collecting system; Earthing plots4 in brass; A 5cm wide yellow, reflective safety line shall be placed along both side of tank shell; With ABS system; Epoxy coated inside tanker; Aluminum alloy pipeline suitable for transport JET A1

Videos Shots On The Spot

Benefits and Features:

Robust Nigerian Market Build: Thick 5/6mm Q235 carbon steel construction withstands demanding African road conditions and operational stresses.

Enhanced Safety & Efficiency: Triple compartments allow safe segregation of different fuels, optimizing delivery logistics and reducing empty runs.
Superior Reliability: Premium BPW axles (13T each) are globally renowned for durability, low maintenance, and excellent road-holding, crucial for Nigerian terrain.

Durable Subframe: The I-beam design offers proven strength and rigidity for long-term structural integrity under heavy loads.
Trusted Components: JOST landing gear and kingpin ensure dependable support during loading/unloading and secure tractor coupling, maximizing uptime.
Optimal Load Distribution: Triple axle setup combined with the I-beam frame provides exceptional stability and weight distribution for safer handling and road compliance.

High Volume Capacity: The 45m³ capacity is ideal for cost-effective bulk fuel transport between depots, terminals, and service stations across Nigeria.

Reference Pictures

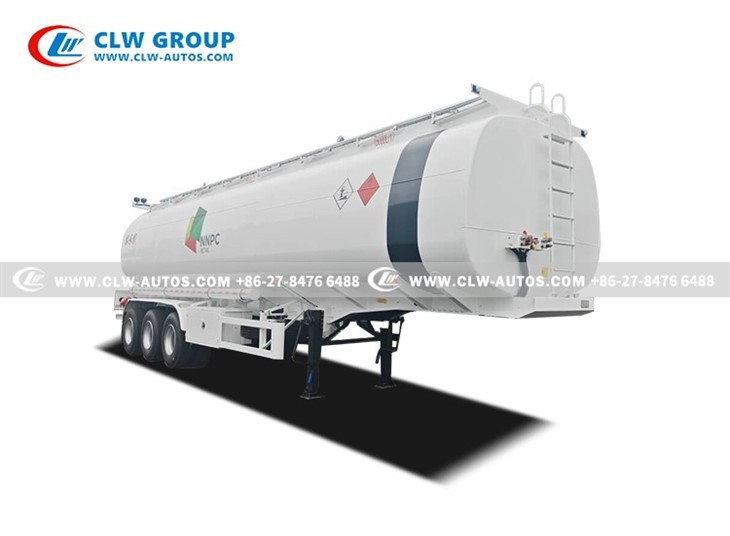

45m3 fuel tank semi-trailer supplier

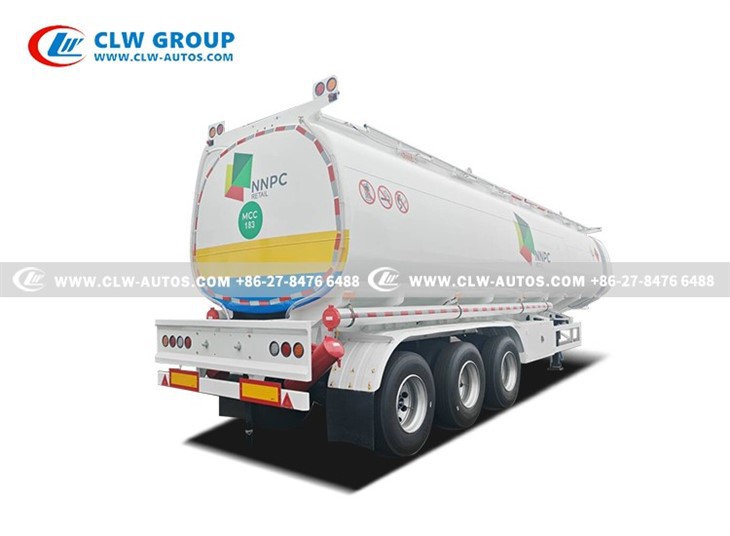

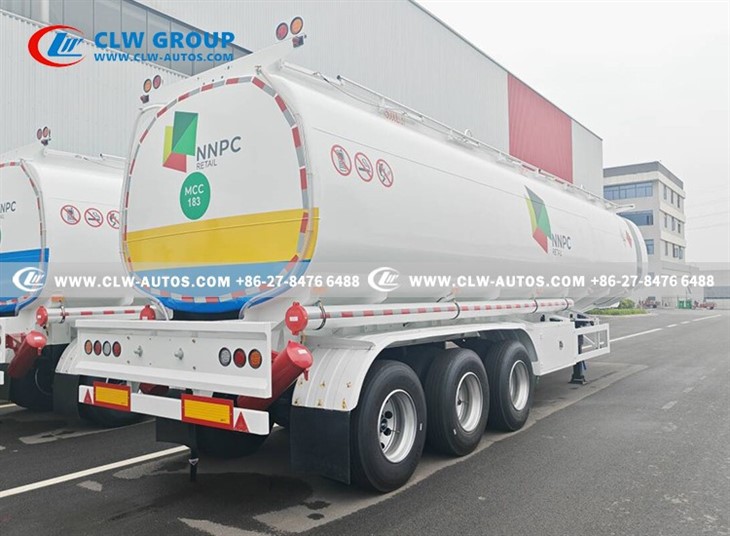

45m3 fuel tank semi-trailer with three compartments

Core Advantages:

Built with premium components (BPW, JOST) and designed for the specific challenges of Nigerian transport operations, this 45m³ triple-compartment fuel tanker offers an optimal blend of durability, safety, operational flexibility (multi-compartment), and efficiency.

Its robust Q235 construction ensures longevity, while the renowned BPW axles and JOST hardware guarantee performance and reliability, minimizing downtime and maximizing your return on investment in the demanding Nigerian market.
