Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 8m3/8cbm/8000litres/2000gallon oil/fuel tanker truck with dispenser refilling system in China. If you're going to buy high quality howo 8m3/8cbm/8000litres/2000gallon oil/fuel tanker truck with dispenser refilling system, welcome to get more information from our factory. For price consultation, contact us.
Description
Fuel Refueller Truck(also called fuel refilling truck,oil dispenser truck,oil tanker truck,oil transport truck,oil tank truck,oil delivery truck,fuel dispenser truck,fuel tanker truck,fuel transport truck,fuel tank truck,fuel delivery truck) is used to transport petroleum,diesel,gasoline,kerosene,crude oil and it can be used to refill cars,trucks or machinery at construction site,farm, boilers,hotels and other units distribution of fuel vehicles.
1.Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2.Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3.High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4.Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5.Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6.Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7.Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8.Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications
| ||||
Overall Dimension | 6900*2200*2730 (mm) | Gross Vehicle Weight | 11495(kg) | |
Curb Weight | 4900(kg) | Loading Weight | 6400(kg) | |
| ||||
Chassis parameters | Chassis Brand | Howo | ||
Cabin | Single, Left Hand Driving | |||
Engine | Power | 150HP | ||
Emission standard | EURO V | |||
Displacement | 3.767L | |||
Fuel type | Diesel | |||
Gearbox | 5 Forward & 1 Reverse Gear | |||
Front and Rear Axle load | 5T rear axle | |||
Wheel Base | 3650(mm) | |||
Overhang(Front/Rear) | 1250/1850(mm) | |||
Angle(Approach/departure) | 16/14(°) | |||
Brake System | Pneumatic | |||
Steering Gear | Power Assistant | |||
Tire | 8.25R20 16PR, 6 Pieces | |||
Maximum speed | 80(km/h) | |||
| ||||
Fuel Tanker | Tank Volume | 8,000 Liters / 8m3 | ||
Tank Material | Q235B Carbon Steel | |||
Tank Shape | Square Round | |||
Transport oil type | Diesel/Petrol | |||
Refueling system | Oil Pump | 1pc, Chinese famous brand | ||
Oil dispenser | 1pc, Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount | |||
Hose Reel with Filling Gun | 6 Meter (Length can be longer as per request), Corrosion Resistant | |||
Equipment | Lifting fence, ladder, Manhole 1 Unit, Emergency cut-off valve 1 Unit | |||
Optional API standard system | Anti-overflow probe, Oil Vapor Recovery System | |||

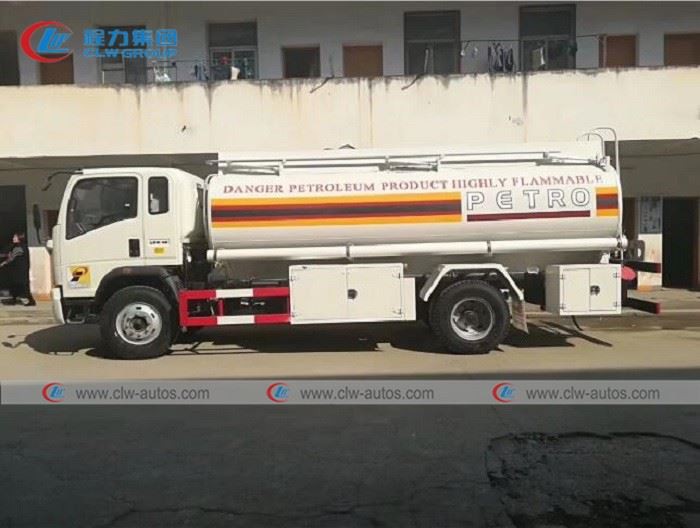

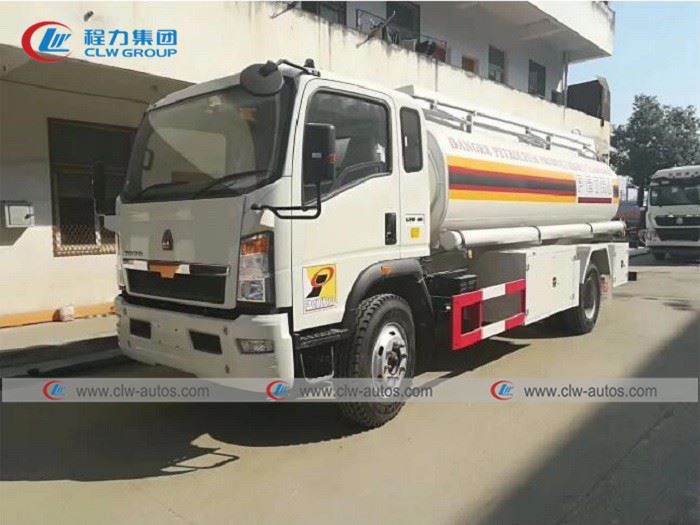

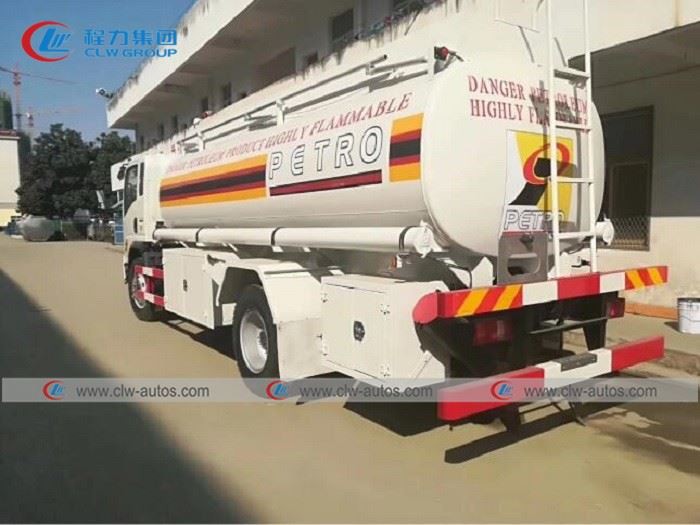

Reference picture
![T54D7ZH~]6E~UPYN%IO6H12_副本](jpg/20200904153112659928b5a24d494da6d734ca9c08426au1yxbq.jpg)
