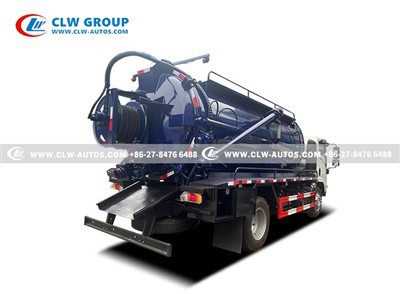

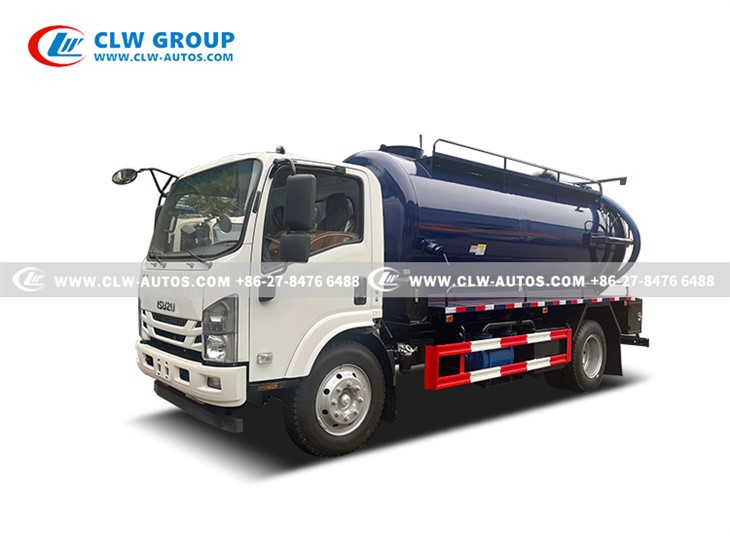

ISUZU 5000 Liter Vacuum Tank Truck
Brand: ISUZU
Horsepower: 150hp
Sewage tank capacity:5m3
Emission standard: Euro 6
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5000 liter vacuum tank truck in China. If you're going to buy high quality isuzu 5000 liter vacuum tank truck, welcome to get more information from our factory. For price consultation, contact us.
Export-Ready Isuzu 5000 Liter Vacuum Tank Truck for Africa&Asia Markets
1. Products Description
The Isuzu 5000 Liter Sewage Vacuum Tank Truck is a high-performance, export-ready solution engineered for efficient waste collection, septic tank servicing, and municipal sanitation. Built on a durable Isuzu chassis and equipped with a powerful vacuum pump system, this compact 5m³ vacuum truck is ideally suited for urban, rural, and off-road operations in Africa, Southeast Asia, and other developing regions.
With robust suction power, user-friendly controls, and a reliable diesel engine, this unit ensures rapid and hygienic sludge removal - minimizing downtime and maximizing operator productivity. It is the perfect partner for contractors, municipalities, and sanitation service providers seeking a cost-effective and dependable vehicle for septic and sewage waste management.
2. Key Highlights
- Trusted Isu zu Chassis: Reliable performance, low fuel consumption, and easy maintenance
- 5000L Tank Capacity: Ideal for medium-scale septic and sludge removal tasks
- Powerful Vacuum Pump: Fast suction/discharge with high vacuum pressure output
- Safety First: Anti-overflow valve and emergency shut-off system ensure clean, safe operation
- Export-Ready Build: Designed for harsh road and climate conditions in Africa & Asia
- Customizable Design: Optional stainless steel tank, pump brand, color, and logo
- Multi-Use: Suitable for sanitation departments, private contractors, and rural utility services
3. Technical Specifications
| 1.Technical Specifications--Isuzu Chassis | ||
| Chassis Model | QL1080AKKAY | |
| Driving Model | 4 X 2 | |
| Cab |
Single Row Left Hand Driving With air conditioner Power steering assistance Electric window Central lock |
|
| Wheel Base | 3815 mm | |
| Axle Loading (front/rear) | 3500/6000 kg | |
| External Dimensions (L x W x H) | 7500×2400×2800mm | |
| Max. driving speed | 100 km/h | |
| Engine | Model | 4JZ1-TCG60 |
| Type | ISU ZU diesel engine 4 cylinders in a line Turbocharged & Inter-cooled |
|
| Horse Power | 150 HP | |
| Max output power | 110 KW | |
| Emission standard | Euro VI | |
| Displacement | 3000 ml | |
| Rated Speed | 2800 rpm | |
| Gearbox |
Manual type, MYY, 6 forward gears & 1 reverse |
|
| Clutch | Reinforced diaphragm clutch | |
| Tire | 750R16, 6 pieces with 1 spare tire. | |
| Others |
With ABS Air break |
|
| 2.Technical Specifications--Sewage Suction Tanker | ||
| Sewage tank | Capacity | 5000 liters |
| Tank material | Q235 carbon steel | |
| Thickness(mm) | 6mm | |
| Opening of Rear Cover | open by hydraulic control | |
| Working pressure | 93% Vacuum | |
| Sewer Discharging outlet(mm) | 100-150mm | |
| Sewage pump | Brand | Jurop PN84D |
| Continuous Working Vacuum | 60% | |
| Free Air Flow | 540 m³/h | |
| Rotational Speed | 900-1300 RPM | |
| Shaft Size | 1 3/8" (approx. 35 mm) | |
| Power | 11.2 kw | |
| Lamp | 1-Revolving Warning Light on top(optional,not standard equipment) | |
| 2-Upper Arrow Warning light at truck rear(optional,not standard equipment) | ||
| 3-Signal light at truck rear | ||
| Main parts | 1. suction hose 6 meters | |
| 2. Water-gas separator | ||
| 3. Oil-gas separator | ||
| 4. Four way valve | ||
| 5. Drain valve | ||
| 6. Sewer-observation valve (glass valve) | ||
| 7. Anti overflow valve | ||
| 8. Hydraulic control rear cover | ||

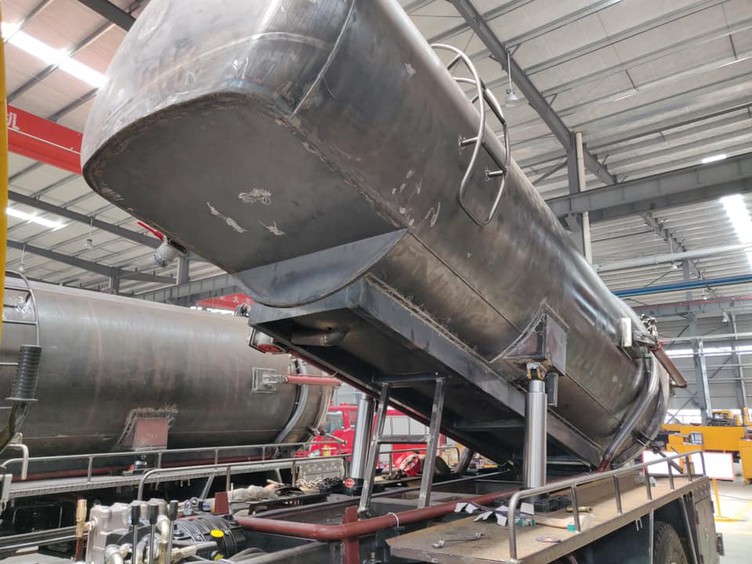

| 9. Tipping sewage tank body | ||
| 10. PTO | ||
| 11. Pressure Gauge | ||
| 12. Hand washing device | ||
| Remarks | The color and logo on sewage tank is customized | |

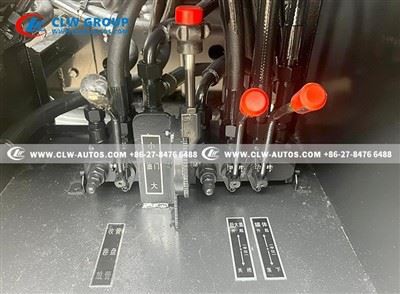

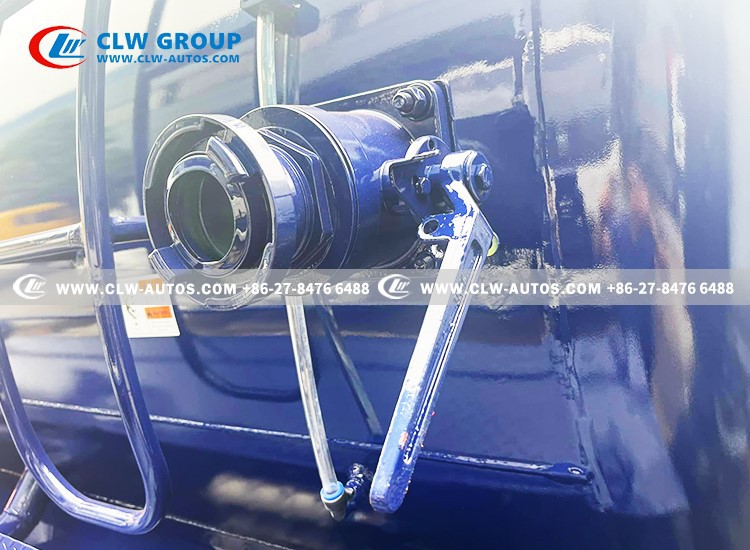

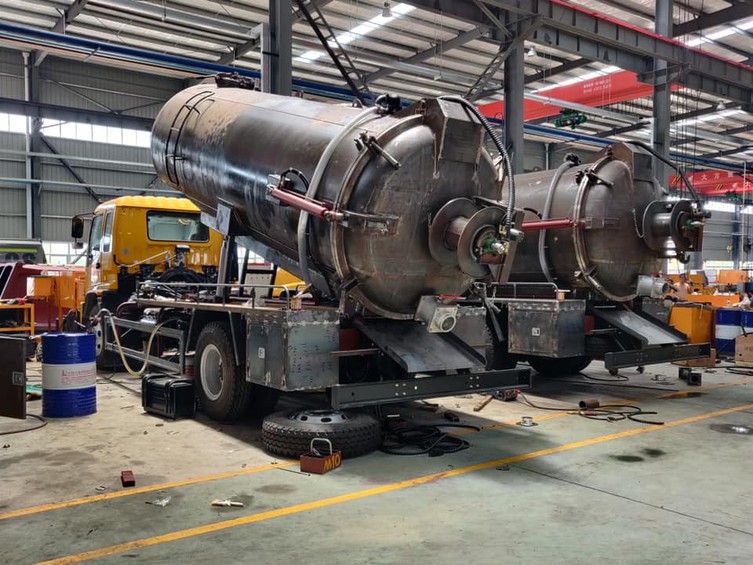

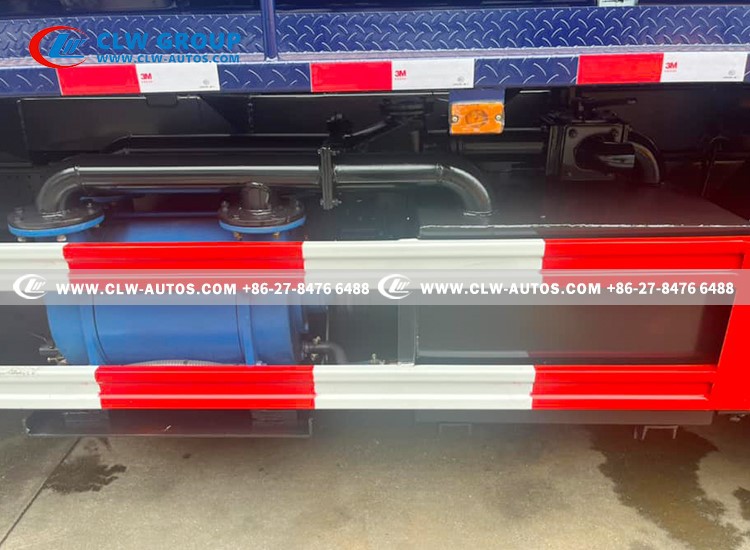

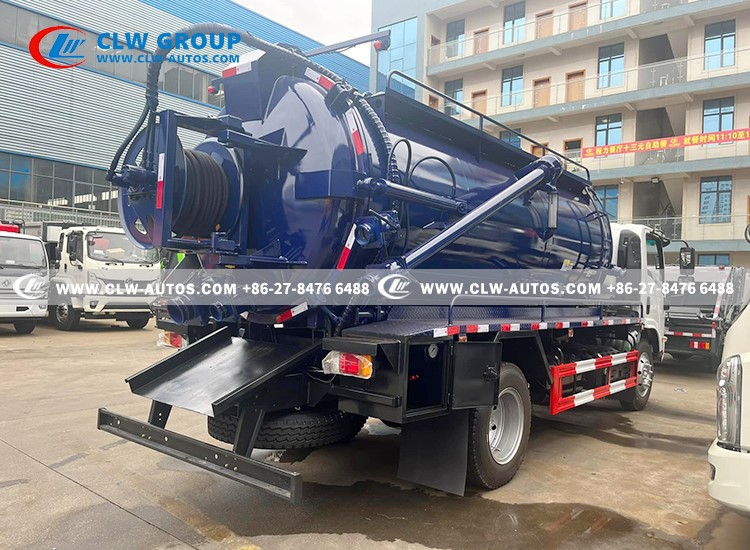

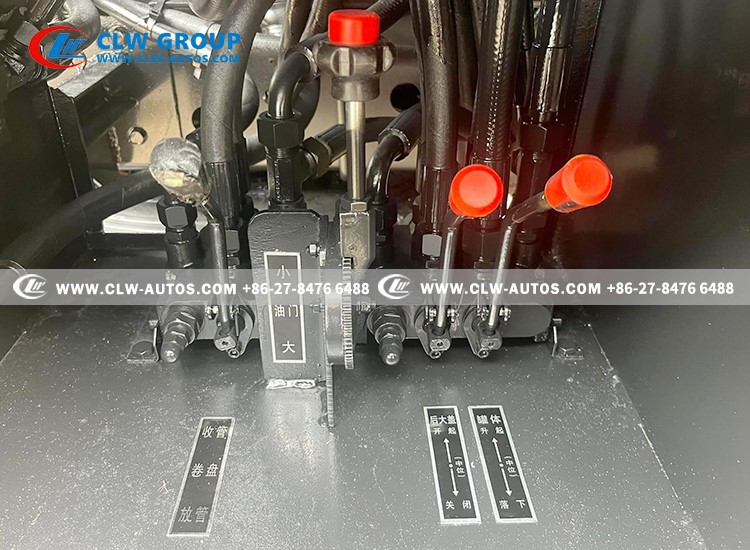

4. Detailed Photos
