ISUZU 20CBM Vacuum Jetting Truck Super Sucker

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 20cbm vacuum jetting truck super sucker in China. If you're going to buy high quality isuzu 20cbm vacuum jetting truck super sucker, welcome to get more information from our factory. For price consultation, contact us.



------- Before everything: what is a vacuum jetting truck?





         A vacuum jetting truck (also known as a vacuum sewer jetting truck, combination jet vac truck, or sewer cleaning truck) is a specialized vehicle used for cleaning, maintaining, and unblocking sewer lines, storm drains, and other underground piping systems. It combines high-pressure water jetting with powerful vacuum suction to remove debris, sludge, roots, grease, and other obstructions from    pipelines.



Key Features & Functions:

• High-Pressure Water Jetting System

Uses a high-pressure water pump (typically 1,500–4,000 PSI) to blast away blockages and clean pipe walls.

Equipped with a rotating nozzle to dislodge stubborn buildup like grease, scale, and roots.

• Vacuum System

A powerful vacuum pump and debris tank (usually 500–5,000+ gallons) suck up loosened waste, sludge, and water.

Can handle both wet and dry materials.

• Debris Tank

Stores the extracted waste for proper disposal at a treatment facility or landfill.

Some models have a separation system to filter liquids from solids.

• Hose Reels & Boom

Flexible hoses for water jetting and vacuum suction.

Some trucks have an articulating boom for easier access to manholes and drains.



Applications:

• Clearing blocked sewer and stormwater lines.
• Cleaning industrial pipes, septic tanks, and culverts.
• Hydro-excavation (non-destructive digging).
• Spill cleanup and hazardous material removal (if properly equipped).



Advantages Over Traditional Methods:

• Faster & more efficient than manual rodding or simple vacuum trucks.
• Environmentally safer since it reduces the need for chemical cleaners.
• Versatile for both small and large-scale pipe maintenance.



---

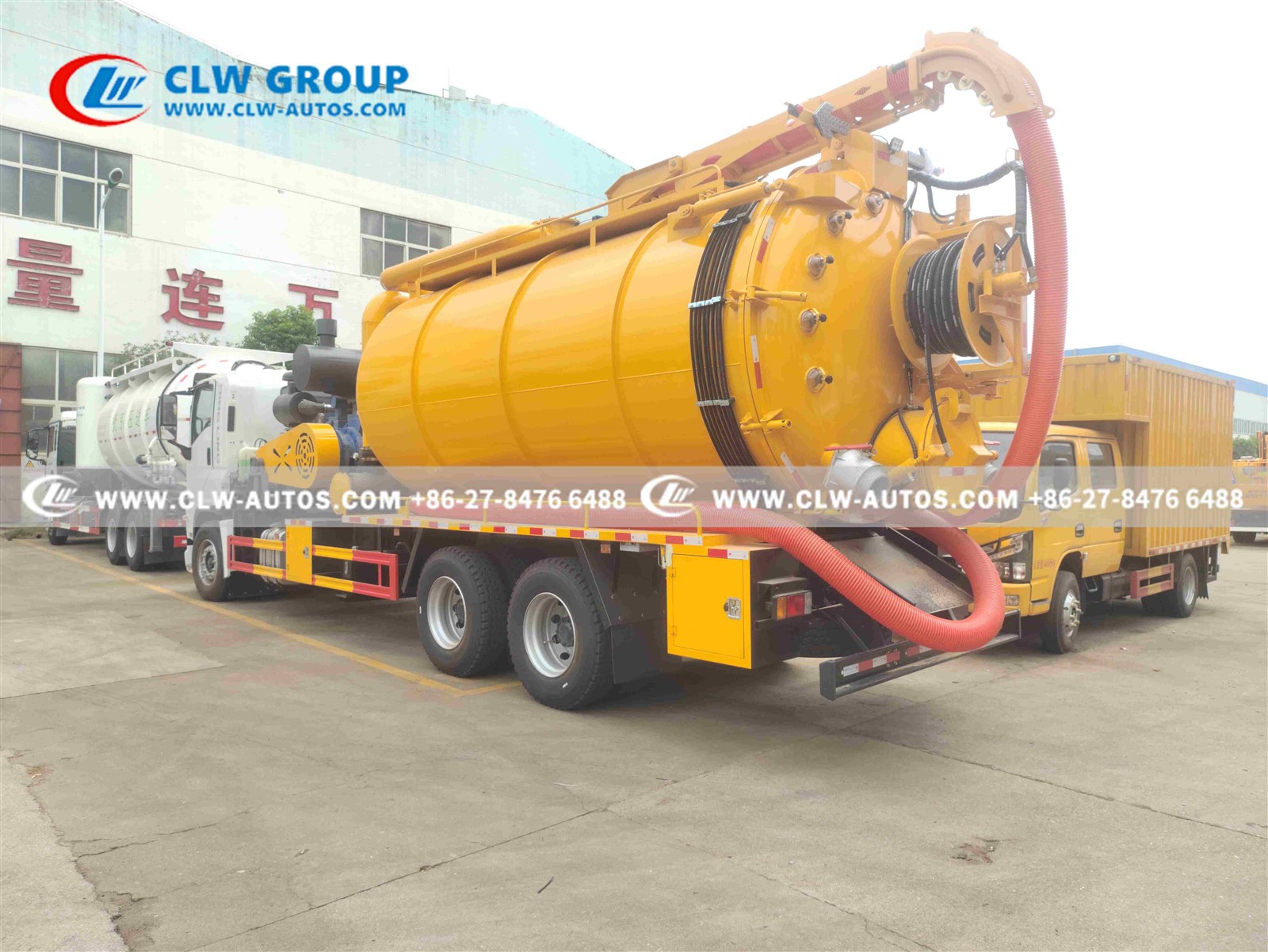

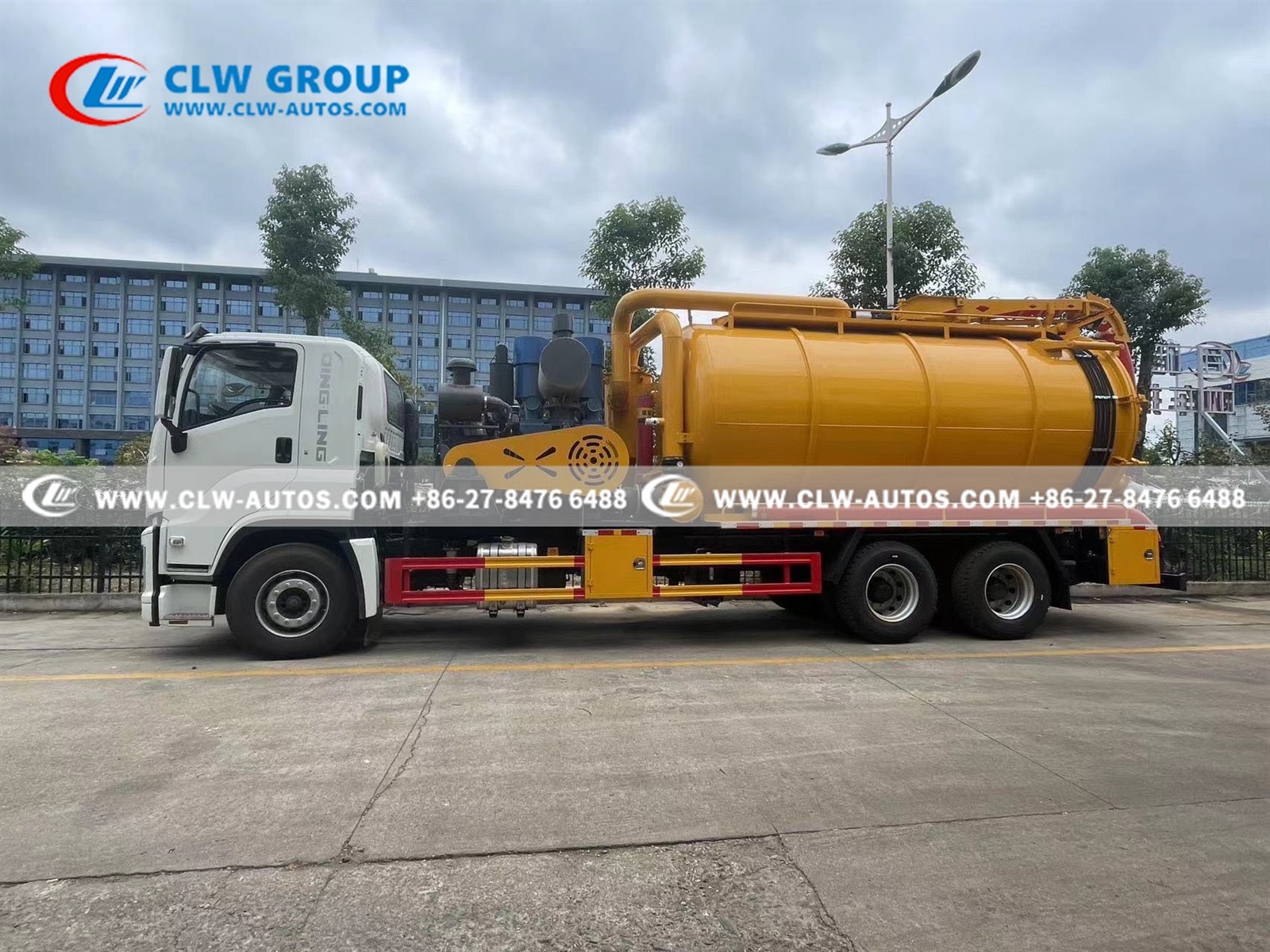

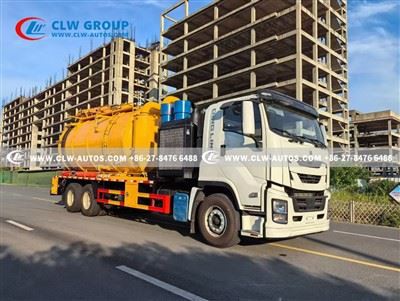

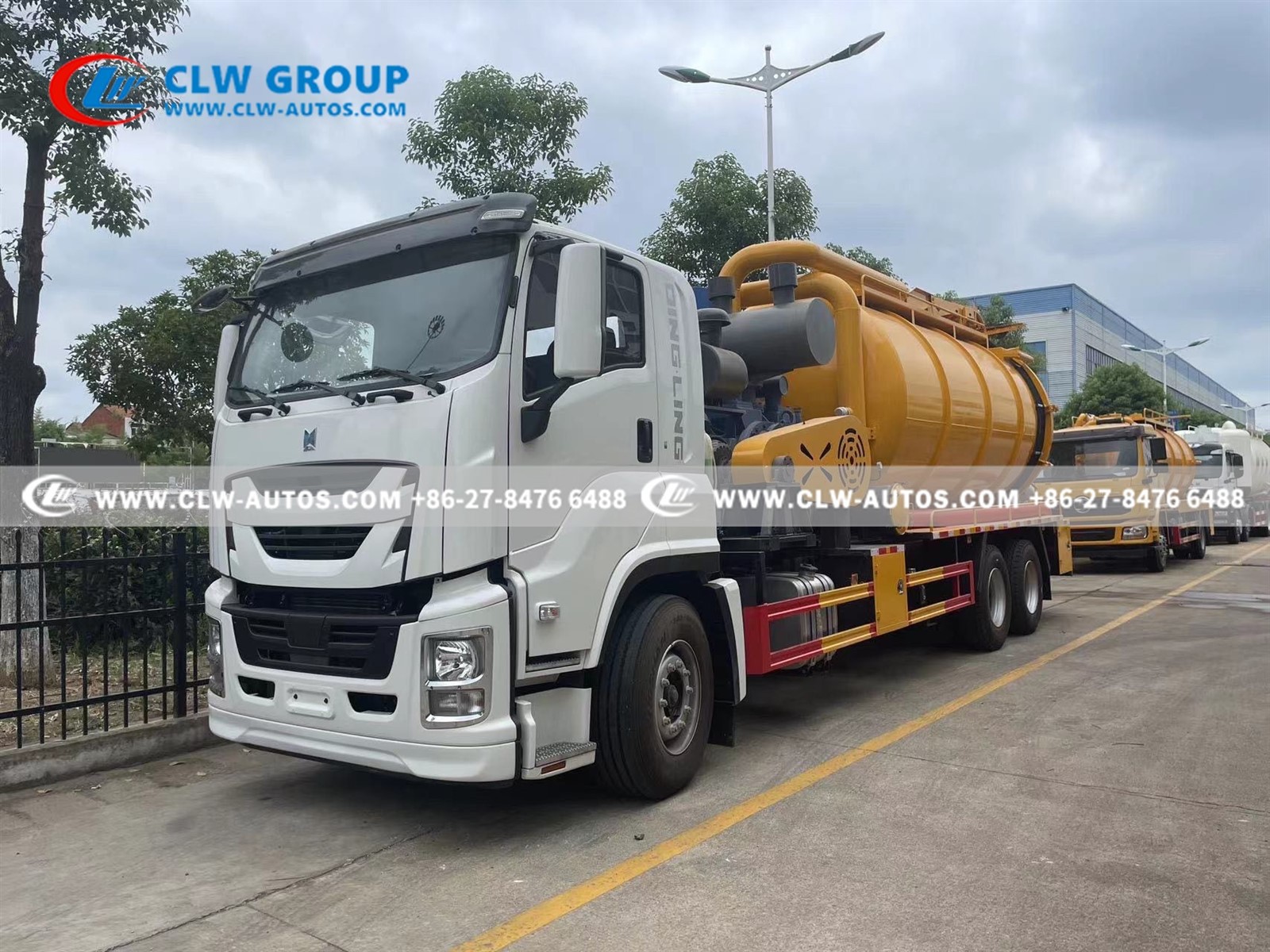

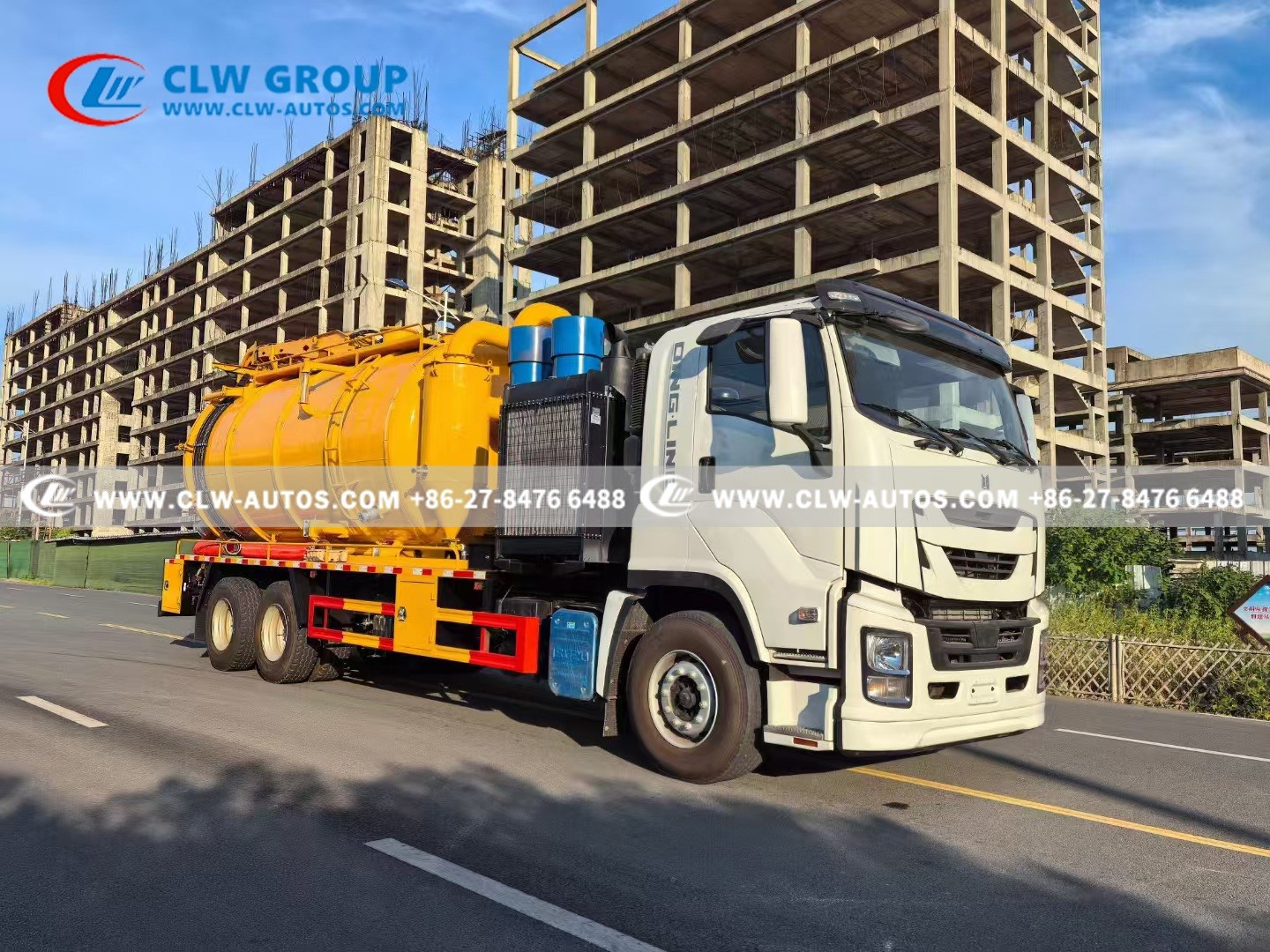

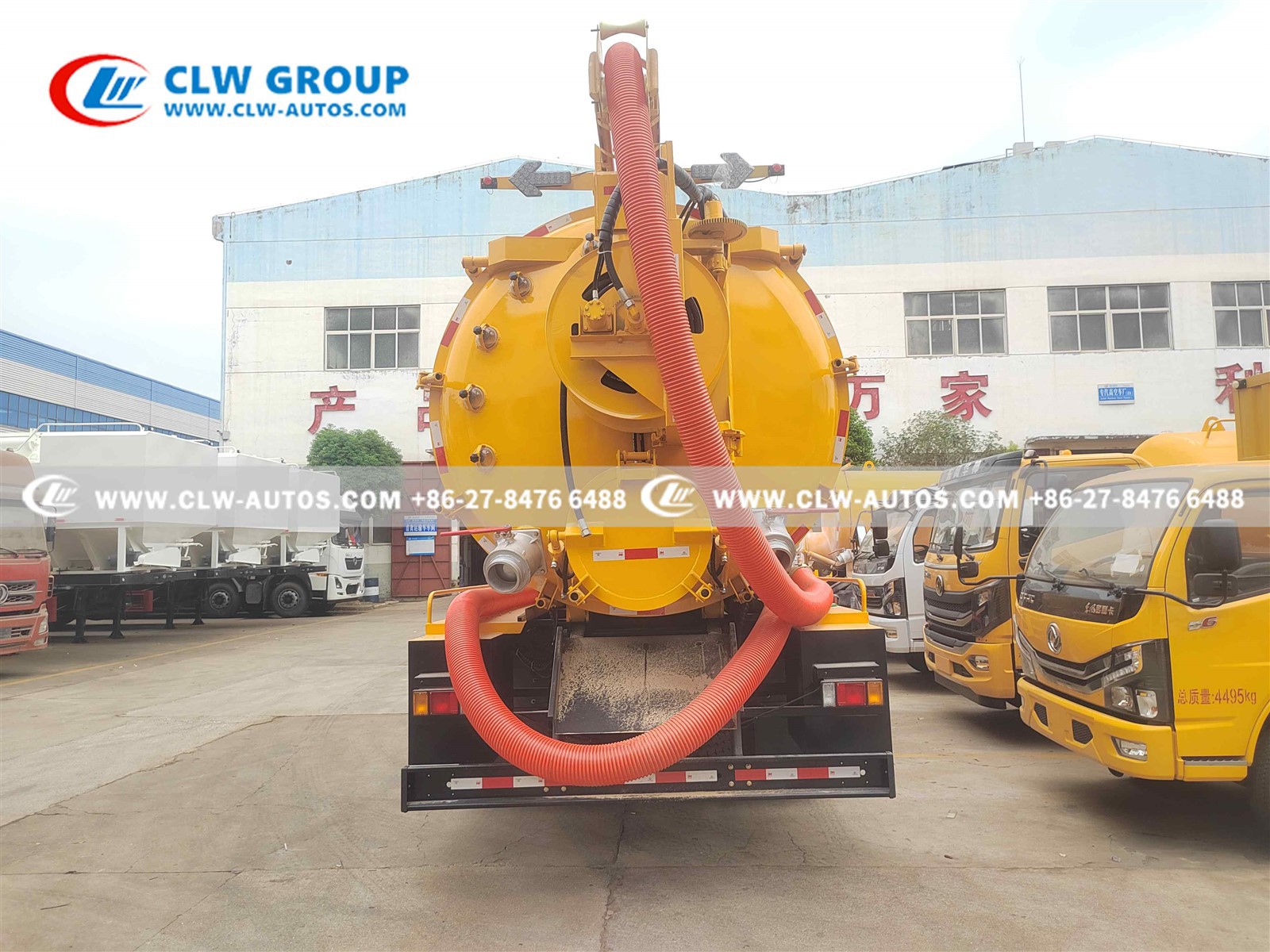

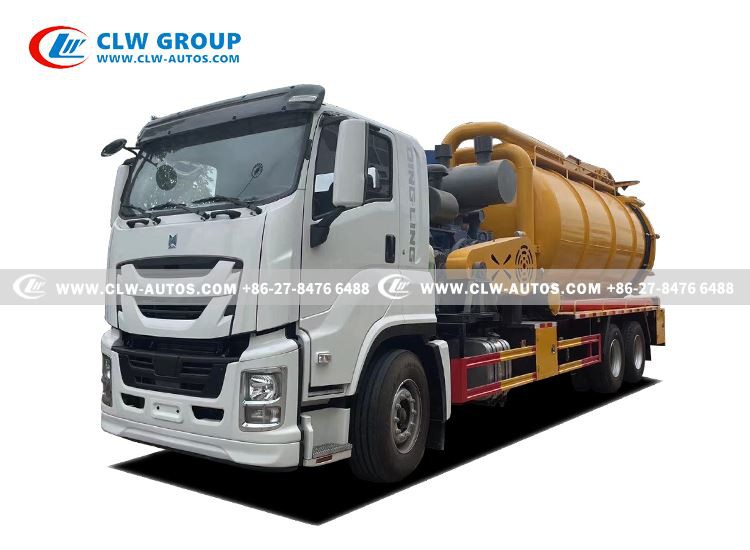

Reference Pictures for ISUZU 20CBM Vacuum Jetting Truck





---



------ What are the advantages of ISUZU 20CBM vacuum jetting truck?



         The ISUZU 20CBM vacuum jetting truck (a combination jetting and vacuum suction truck with a 20-cubic-meter tank capacity) offers several advantages, making it a popular choice for sewer cleaning, drain maintenance, and industrial waste management. Here are its key benefits:



• Powerful & Efficient Cleaning

High-pressure water jetting (typically 200–350 bar/2,900–5,000 PSI) effectively removes tough blockages like grease, roots, and sediment.

Strong vacuum system (often ≥ 25" Hg suction power) quickly extracts debris, sludge, and liquids.

20m³ (5,280-gallon) tank capacity allows for longer operation without frequent dumping.



• Reliable ISUZU Chassis

Built on a durable ISUZU truck chassis (e.g., ISUZU GIGA or FVR series), known for:

High load-bearing capacity (suitable for heavy-duty operations).

Fuel-efficient diesel engines (reduces operating costs).

Low maintenance & long service life (trusted in municipal and industrial fleets).



• Versatile Applications

Municipal sewer & storm drain cleaning

Industrial pipeline maintenance (factories, refineries)

Septic tank & cesspool cleaning

Hydro-excavation & spill recovery



• Advanced Features (Depending on Model & Configuration)

Automatic hose reel system for easier deployment.

High-capacity debris separation system (optional) to filter solids from liquids.

Safety features (explosion-proof options for hazardous environments).

Optional high-temperature water jetting for grease and oil removal.



• Cost-Effective Operation

Large tank reduces downtime (fewer trips for waste disposal).

ISUZU's fuel efficiency lowers running costs compared to some Western brands.

Robust design minimizes breakdowns, reducing maintenance expenses.



• Compliance & Safety

Meets international emission standards (Euro 5/6, depending on region).

Equipped with safety valves, pressure controls, and emergency shutdowns.

Some models feature anti-overflow systems to prevent spills.



• Comparison with Competitors

More affordable than equivalent European/American trucks (e.g., IVECO, MAN, or DAF-based units).

Better suited for Asian & developing markets due to parts availability and servicing ease.

Smaller footprint than some 20m³ trucks, making it more maneuverable in tight urban areas.



Ideal For:

• Municipalities – Large-scale sewer maintenance.
• Contractors – High-efficiency drain cleaning services.
• Industrial plants – Waste and sludge removal.



---



Configurations
(1)Overall Parameters
Dimensions	Approx. Overall Dimensions	9500*2500*3600 mm
	Wheelbase	5200+1370 mm
	Tank Capacity	Water		6 m³
		Sludge		14 m³
Performance	Max. Engine Power	279 kW/ 380 hp
	Displacement	10 L
	Max. Vacuum Flow	660 m³/h
	Max. Jetting Flow	330 L/min
(2)Chassis
Condition	Factory New
Brand	ISUZU VC66
Engine	Model	6WG1-TCG61
	Max. Power	338 kW/ 460 hp
	Max. Torque	2250 N·m
	Emission Standard	Euro 5
Gearbox	FAST Manual, 12 forwards & 2 reverses
Suspension	Heavy duty leaf spring
Axles	Axle Configuration	6x4
	Front	9 tons
	Rear	13 tons*2
Tire	Size	295/80R22.5
	Quantity	11 pcs including 1 spare
Other Features	Power windows, central lock, AC, power steering, air brake Multi-function steering wheel & dashboard, ABS
(3)Superstructure & Equipment
Overall Tank Dimensions	Water Tank	6 m³/6,000 liters
	Sludge Tank	14 m³/14,000 liters
	Total Capacity	20 m³/ 20,000 liters
	Material	Carbon steel
	Thickness	8mm for shell & head

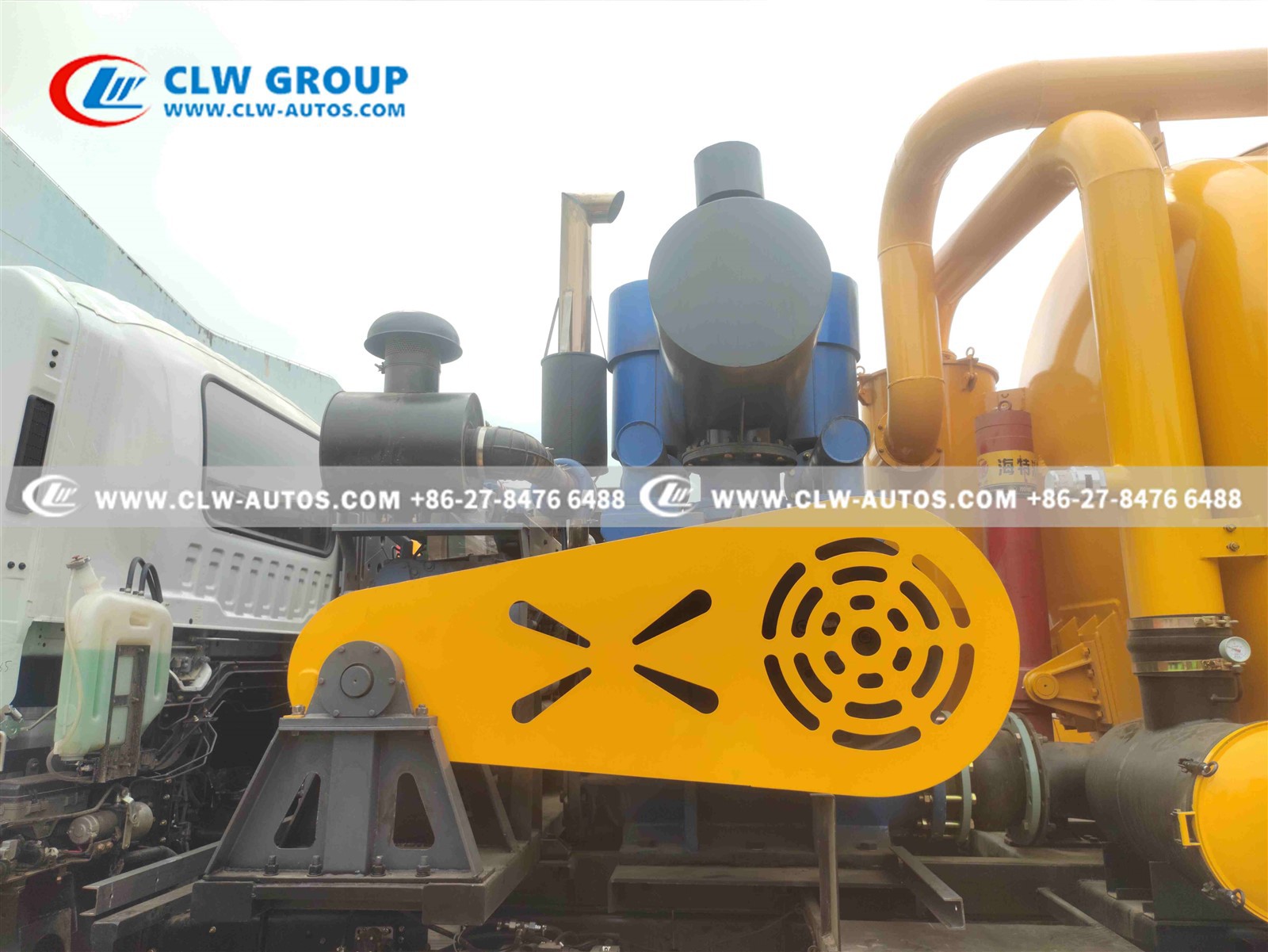

Sludge Tank	Vacuum Pump	Roots
		Max. Flow		7200 m³/h
		Suction Depth		≥7 meters
	Fully open hydraulic rear head
	DN600 Discharging Port
	DN150 Drain Valve
	Rear hydrauli loading boom with remote control
	DN150 suction hose
Water Tank	High Pressure Jetting Pump	PINFL
		Max. Flow	≥350 L/min
		Max. Pressure	≥180 bar
	DN150 drain valve
	30 meter high pressure hose reel



---
