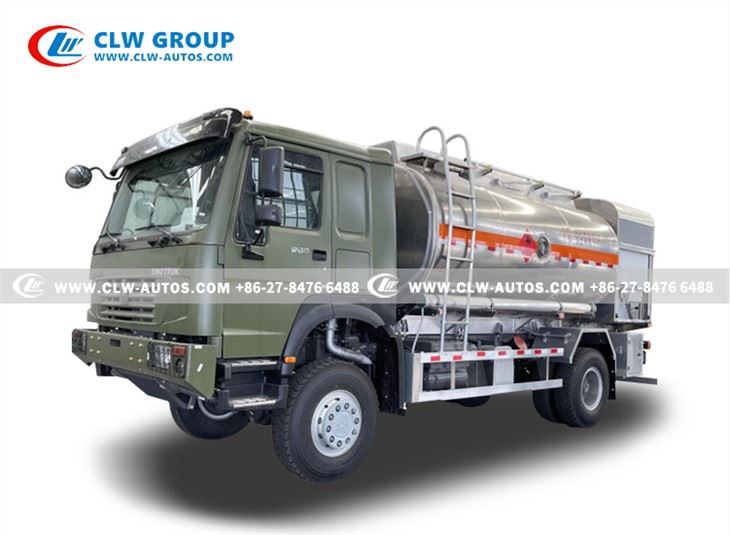

HOWO 4x4 15000L Aviation Jet A1 Refueling Tank Truck
Aircraft Aviation Helicopter plane filling/Refilling Refueling Tanker Truck.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 15000l aviation jet a1 refueling tank truck in China. If you're going to buy high quality howo 4x4 15000l aviation jet a1 refueling tank truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc. Brands are imported from abroad.
3. Advantage: Top quality Jets Refueling Truck with competitive price.
Main Specification for Truck Chasssis:
(1) Sinotruk HOWO HW70 or HW76 Standard Flat Cabin, With one or Without Sleeper Bed. Air conditioner.
(2) Diesel Engine, WD615.62, 266HP, EURO-2, or Euro-3, EURO-4.
(3) Steering Wheel: RHD, Right Hand Drive, Or Left Hand Drive is available.
(4) Drive Model: 4x4 Full Wheel Drive, All Wheel Drive(AWD), Off Road For Bad Road Condition.
(5) HW19710 Transmission/Gearbox, Manual control, 10 forward & 2 reverse
(6) Front Axle, HF9 9Tons Capacity, 1 pieces; Rear Axle: HC16, 16Tons, 1 pieces. Speed Ratio: 5.73
(7) Fuel Tanker: 400L
(8) Tire: 12.00R20, 12R22.5, 315/80R22.5 are for option.
Product Specification:
| Condition | New condition/Left hand drive | ||
| Drive Type | 4x4, Full Wheel Drive, All Wheel Drive, AWD. Off Road Type For Army, Military Using | ||
| Chassis | Brand | SINOTRUK | |
| Model | HOWO | ||
| Curb weight(kg)(Whole Truck) | 9000 kg | ||
| Loading weight(kg) | 12000 kg | ||
| Wheelbase(mm) | 4600 mm | ||
| Front/Rear axle loading weight(kg) | 9000/16000 kg | ||
| Dimensions(mm)(Whole Truck) | 9175*2480*3290 mm | ||
| Front/Rear overhang(mm) | 1500/2675 mm | ||
| Approach/Departure angle(°) | 20/14° | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheel. Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 10pcs with one spare tire | |
| Specifications | 12.00R20/12R22.5 | ||
| Fuel tank volume(L) | 400 L | ||
| Transmission | Manual type, HW19710, 10 Forwards and 2 reverses | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.62 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 9726 ml | ||
| Power(kw) | 196 kw | ||
| Horsepower(HP) | 266 HP | ||
| Cylinder number | 6 pcs | ||
| Rated speed(rpm) | 2500 rpm | ||
| Emission standard | Euro 2 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 15cbm, 15000Liters, 15M3, 15 Cubic Meters | |
| Tank material | Aluminium alloy | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene, Jet A1 | ||
| Piping system | Stainless steel | ||
| Manhole | Quantity(pcs) | 2 pcs | |
| Size(mm) | 500 mm | ||
| Filter | International brand filter | ||
| Remarks | Pls directly contact with us for more technical parameters | ||

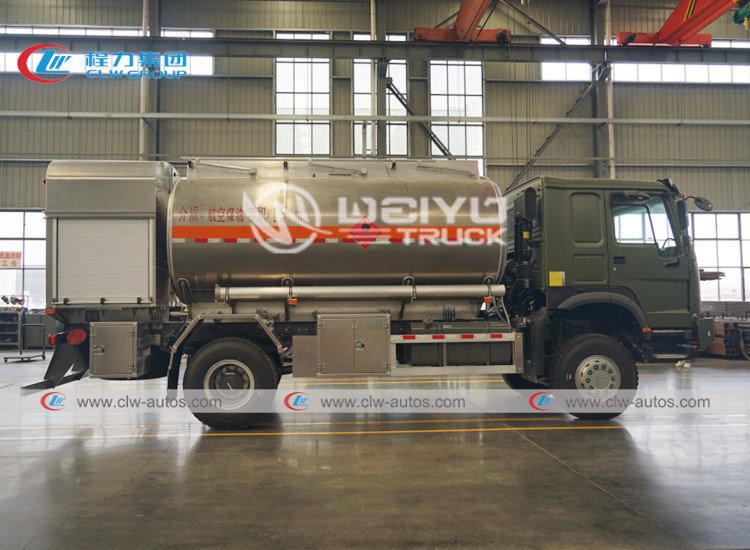

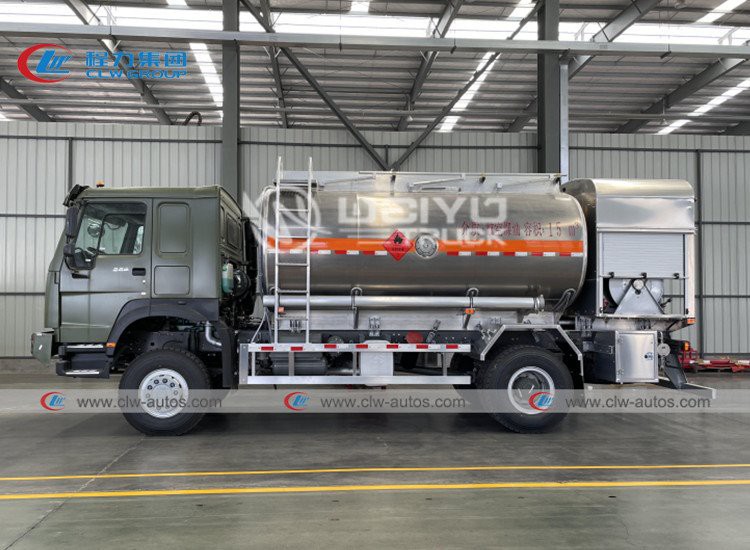

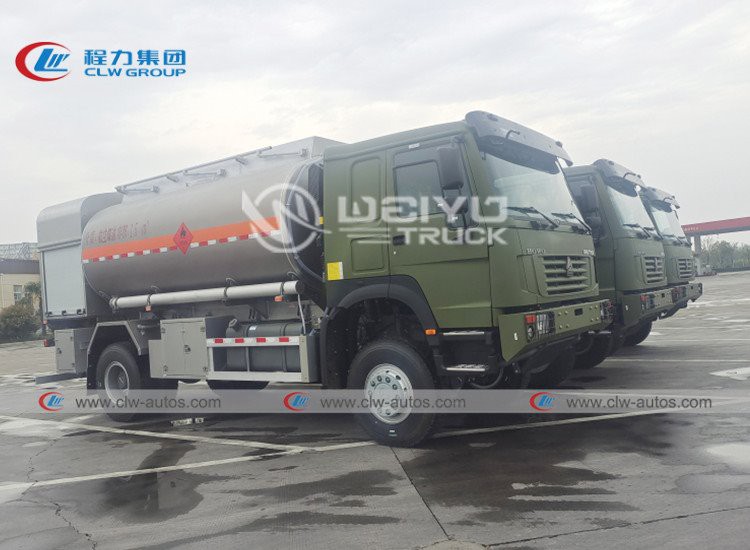

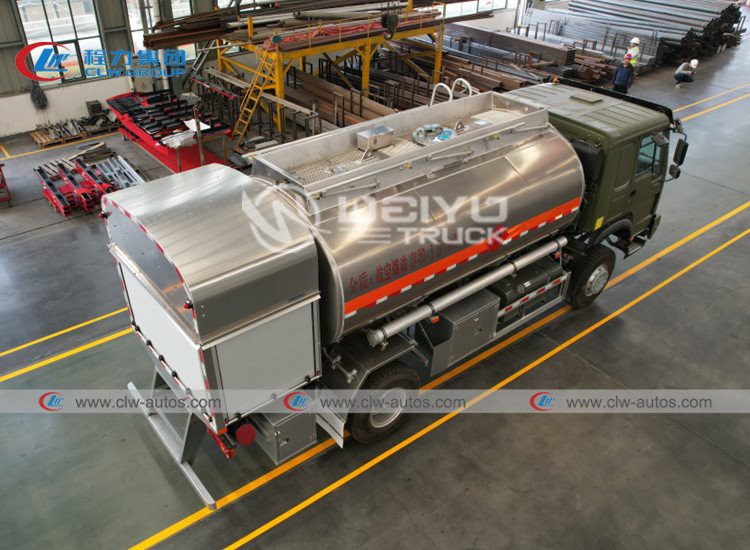

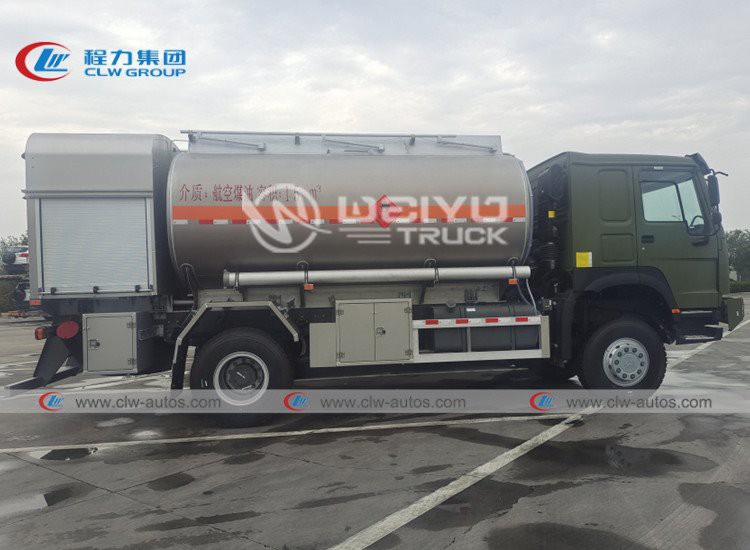

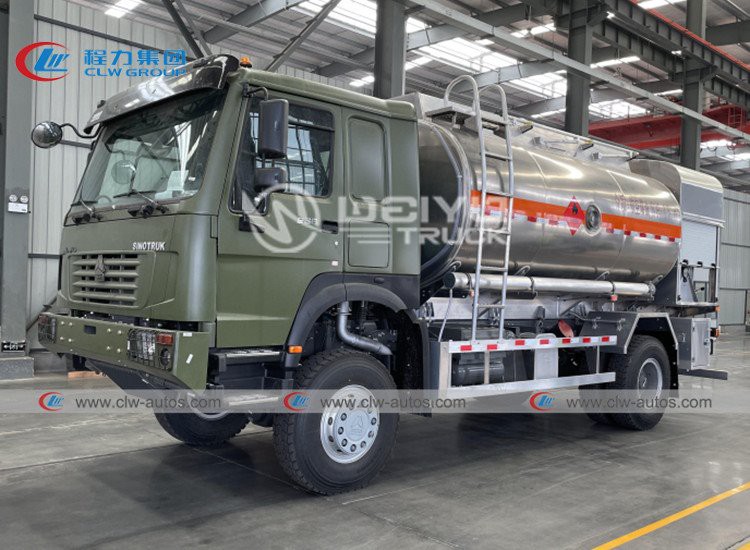

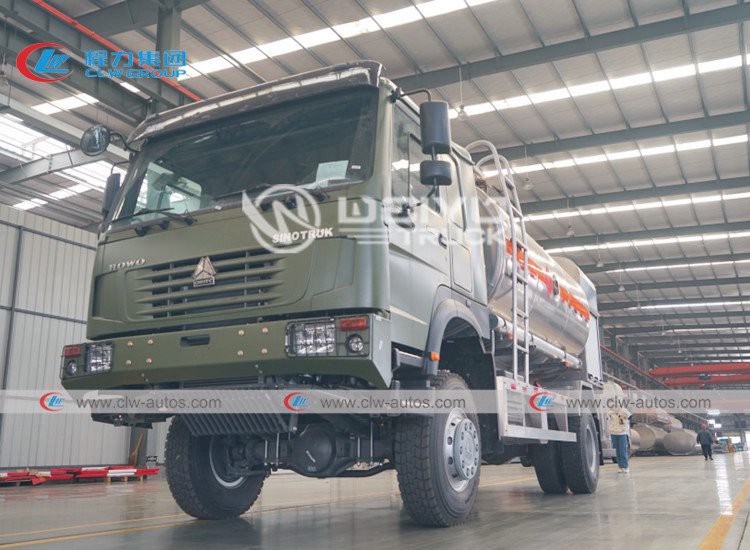

More pictures for HOWO 4x4 15000L Aviation Jet A1 Refueling Tank Truck:
