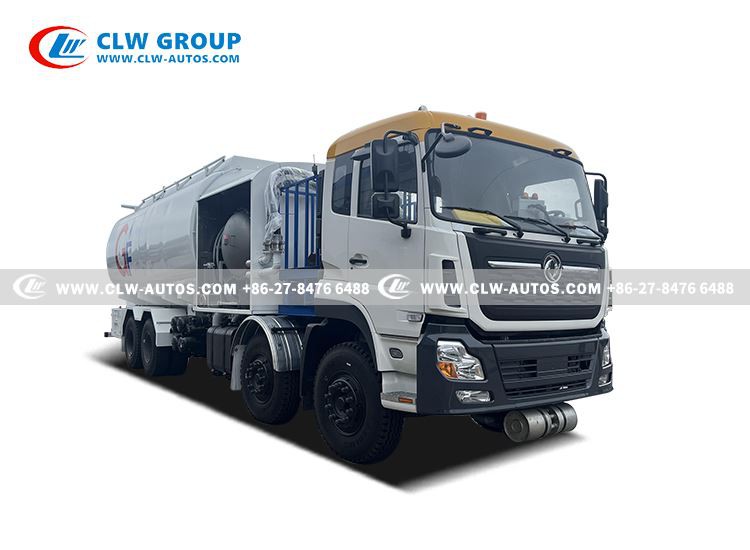

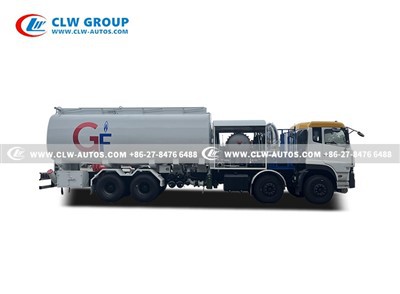

8X4 30,000 Liters Aircraft Refueling Truck

Volume:30,000 liters
Right hand driving
GVW:32000kg
Fuel box:400L
Wheelbase:1800+4600+1350

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 8x4 30,000 liters aircraft refueling truck in China. If you're going to buy high quality 8x4 30,000 liters aircraft refueling truck, welcome to get more information from our factory. For price consultation, contact us.

30,000 liters Aircraft Refueling Truck

We Are 100% Straight Factory Manufacturer For Aircraft Refueling Truck Since 2004

Products Description

The aircraft refueling truck is used for helicopter refueling and mobile transporting aviation keroscene. And it's also called Aviation Jet Refueling truck, aircraft fuel servicing truck, Jet A-1 refueler vehicle, avaition bowser truck, aircraft refueling lorry, Jet refueler truck, etc. The main parts include fuel pump, flow meter and filling gun, and the brands are imported from aboard.

Features:

SINOTRUK 8×4 Jet A-1

Explosion-proof design

Leak detection technology

High-flow pumps

Corrosion-resistant tanks

Durability

Corrosion-Resistant Tanks: Made of aluminum or stainless steel for long-term durability.

All-Terrain Mobility: Reinforced chassis and 8x4 options for operations in harsh environments

Enviromental Protection

Vapor Recovery Systems: Capture 99% of fuel vapors to reduce emissions.

Spill Containment: Secondary containment barriers prevent soil/water contamination.

Cost-effective Solutions

Reduce ground crew labor costs by 30% through automated systems. Lower maintenance costs with modular, easy-to-replace components.

High Safety Standards

Explosion-Proof Design: Built with fire-resistant materials and anti-static systems to prevent fuel ignition.

Leak Detection Technology: Sensors monitor fuel lines for leaks, ensuring compliance with aviation safety regulations.

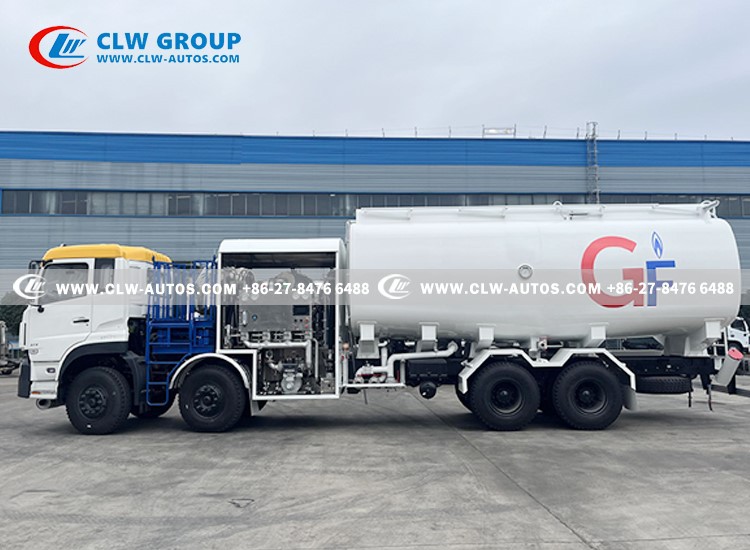

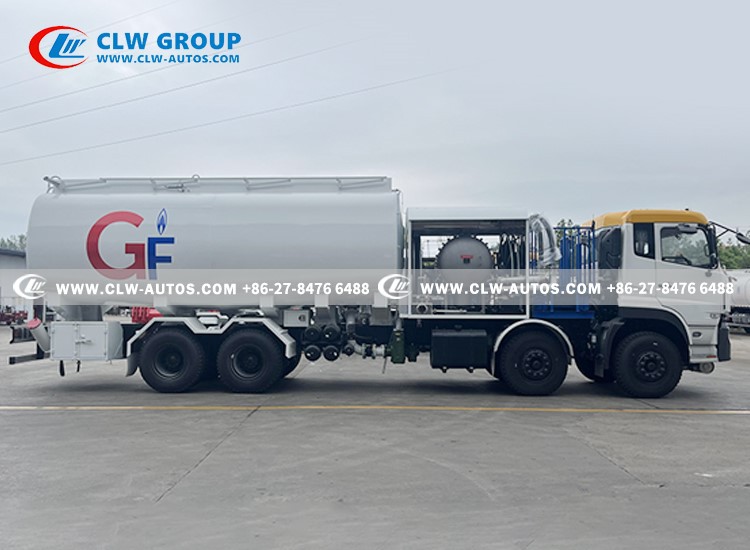

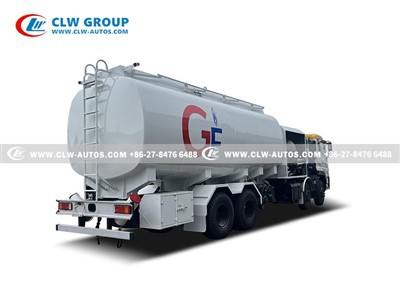

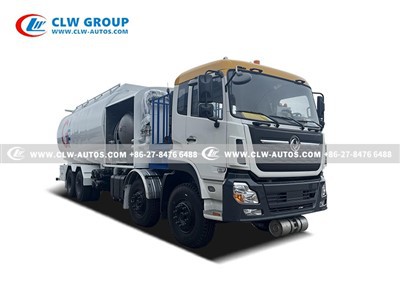

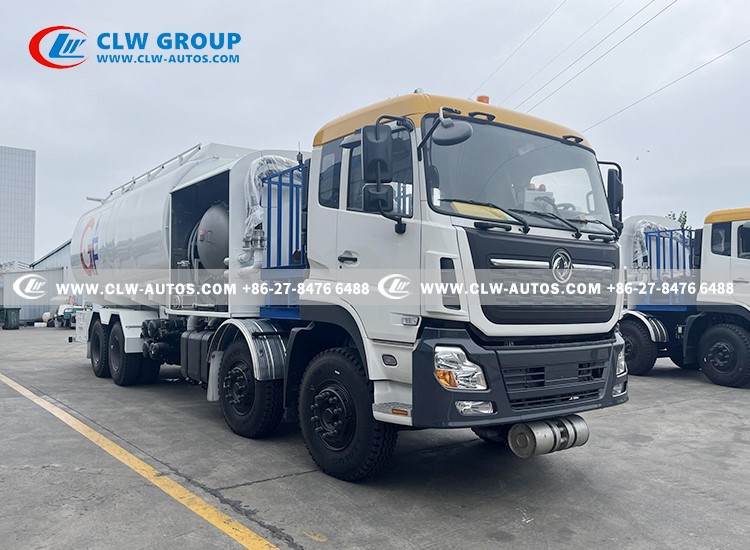

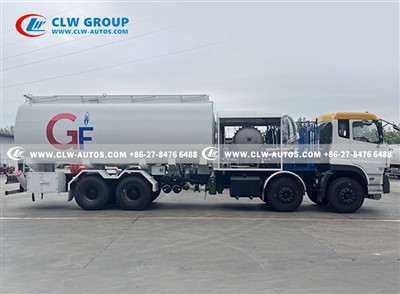

Reference pictures

Products Specification

Technical Parameter
Design standard		GB18564.1-2006 Tank vehicles for road transport of dangerous liquid goods Part 1: Technical requirements for metal atmospheric pressure tanks
Item No.		Parameters
Overall Dimension		12500x2550x3950 mm
Driving Model		Right hand drive
Gross Vehicle Weight		32000 kg
Curb Weight		10,800kg
Payload		21,200kg
Wheel Base		1800+4600+1350 mm
Axle	Front Axle	VGD95,9500kgx2
	Rear Axle	MCX16ZG,16000kgX2
Suspension	Front Axle	1500 mm
	Rear Axle	2445 mm
Max. Speed		≥ 90 km/h
Min. Turning Diameter		19 m
Max. Grade-ability		30%
Fuel Box		400L
Engine Model		WP12.400E201
Engine Type		4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower		400HP EUROII
Displacement		11.596mL (Diesel)
Max. Torque		1500N.m
Gearbox		HW19710+HW70 PTO,10-speed forward and 2 reverse
Clutch		Φ430 pull-type diaphragm clutch
Cabin		Standard HW76 cabin with one sleeper 2 Passenger allowed with Air Conditioner
Tire		12.00R20 (12 pcs with one spare)
Fuel box		400 L Aluminum Alloy material
Exhaust Pipe		At front of Cabin for safety

Loading Medium	Aviation kerosene or aviation gasoline
Volume:	30,000liters
Tank material:	Tank shell: Aluminum alloy 5182, 5.6mm thickness End plate: Aluminum alloy 5182, 5.8mm thickness Baffles: Aluminum alloy 5182, 5.6mm thickness
Main equipment
Pumping system	Self-priming centrifugal oil pump, 2500L/min

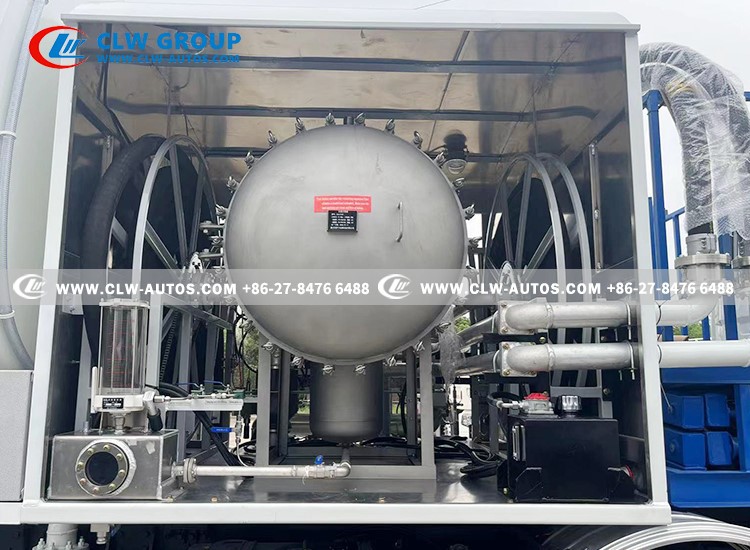

Filter separator	2500L/min
Differential pressure gauge	Equipped

Air eliminator	Equipped
HEPCV underwing refueling nozzles	Single tube 1200L/min, double tube 2200L/min
Fuel filling tube	DN63
Reel expansion joint	Equipped
In-line pressure control valve	Equipped
DeadMan system	Equipped
Valve	Equipped
Bypass valve (overflow pipe pressure)	Equipped
Pneumatic system	Equipped
Dial gauge	Equipped
Main valve with Venturi tube	Equipped
Swivel joint compensator	Equipped
Flow meter	2500L/min
Electrostatic reels	Equipped
High level sensor	Equipped
Straight through valve	Equipped
Pipeline fittings
Manhole	European standard aluminum alloy explosion-proof manhole *2
Breather valve	4 sets, Aluminum alloy

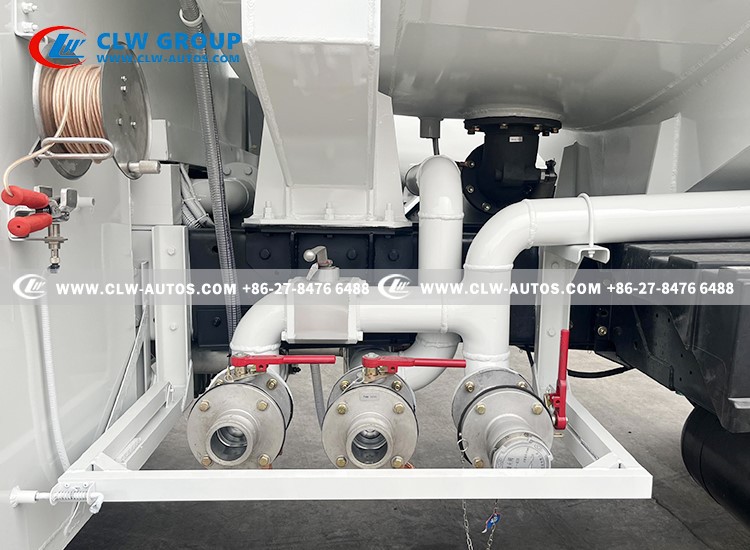

Bottom loading	Aircraft fuel coupling
ARVR	Aircraft refueling vapor recovery
Overflow prevention	With anti-overflow system

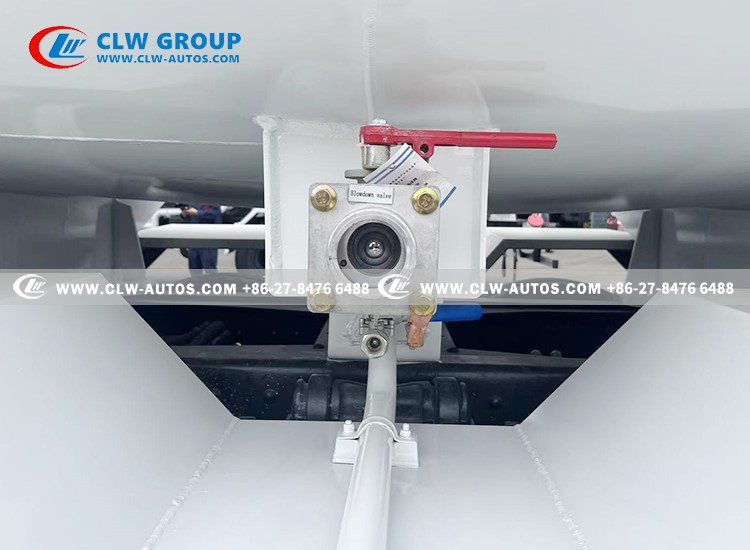

Safety bottom valve	8-inch seabed valve1, high-level valve1
Fuel truck gun	DN38
Hydraulic reel	20m
Refueling flow	350L/min
Accessories
Roof guardrail	Segmented lifting guardrail, tank top anti-slip net
Ladder	Inside and external of the tank
Mudguard	Factory aluminum alloy integral (module stamping)
Side guard	Factory-fitted aluminum profiles
Rear bumper	Factory-fitted aluminum profiles
Fireproofing	8kg fire extinguisher *2
Antistatic device	One electrostatic cable, one electrostatic cable tray
Electrical system
Lamp	24V system, 7-core socket, LED lamp
Circuitry	Explosion-proof junction box
Wires	Turn signals, brake lights, reverse lights, running lights and fog lights are installed on the left and right of the rear bumper
Wires	All wires are sealed with corrugated pipes
Brake system	Relay valve
Brake system	ABS system

Why do you choose us?

We also provide different brands of Jet A-1 refueler vehicle, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.

Our advantages:

Maximize Aircraft Availability: Fast, safe fueling keeps fleets airborne.
Future-Proof Technology: Supports sustainable aviation fuel (SAF) and automation trends.
Global Trust: Used by leading airlines, militaries, and FBOs worldwide.
Scalable tank capacities (5,000 to 50,000 liters) for small airports or mega-hubs.
Regular audit-ready documentation for fuel quality traceability.
360° Visibility: LED lighting and cameras enhance safety during night or low-visibility refueling.
Spill Containment: Secondary containment barriers prevent soil/water contamination.
