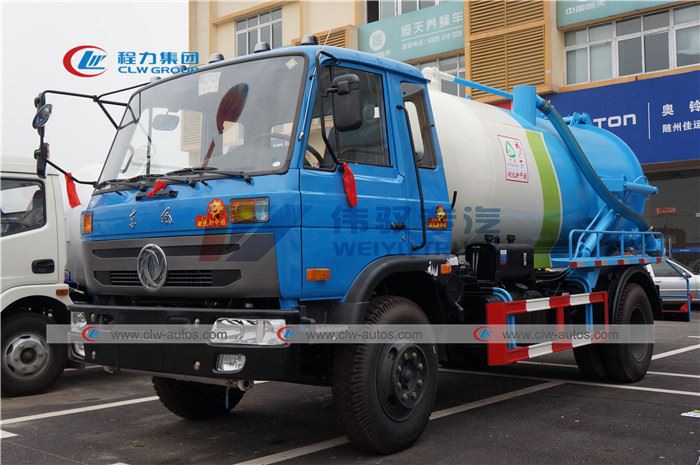

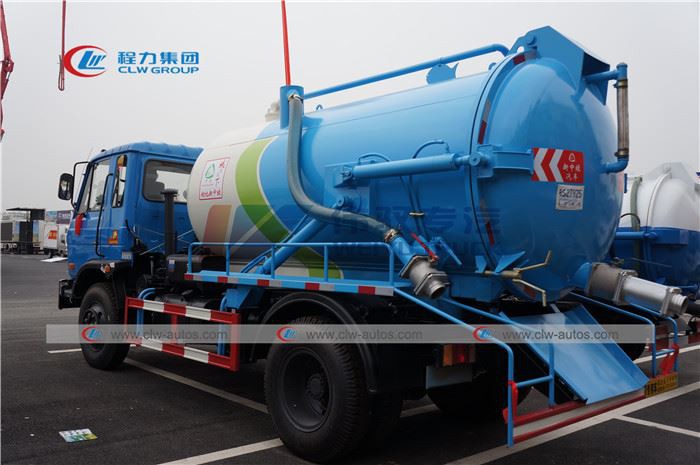

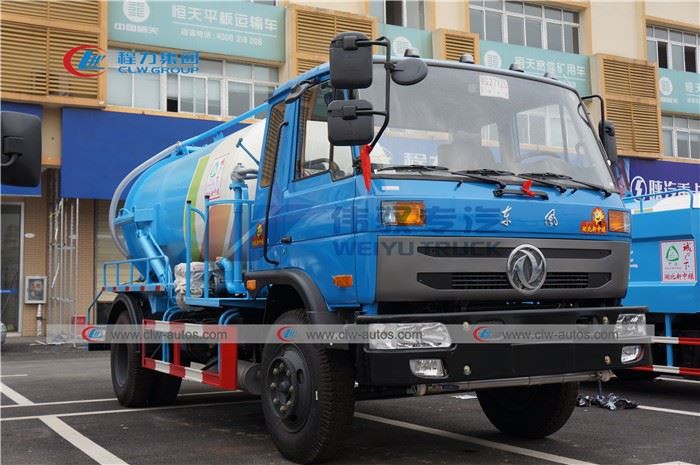

Dongfeng 8CBM Sewage Vacuum Suction Truck
Engine:diesel cummins engine 190HP;
Driving model:LHD or RHD
Gear box:6-speed forward and 1 reverse
Sewage
pump:Italy Brand BP pump
Tank size:10cbm/10,000Liters
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8cbm sewage vacuum suction truck in China. If you're going to buy high quality dongfeng 8cbm sewage vacuum suction truck, welcome to get more information from our factory. For price consultation, contact us.
Function
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Reference picture
Truck Structure
working diagram

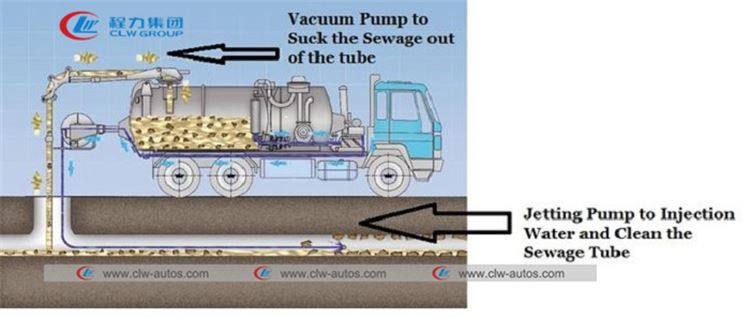

working show
Specification
Items | Descriptions | Specifications and Types |
General | Truck Name | Sewage suction truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 11495 | |
Curb Weight (kg) | 6300 | |
Overall Dimensions L*W*H(mm) | 7600*2490*3200 | |
Engine Brand | Cummins | |
Fuel Type | Diesel | |
Power | 170 HP | |
Emission Standard | Euro 2/ 3 | |
Displacement(ml) | 3900 | |
Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Axle | 2 | |
Front/Rear Axle Load(KG) | 3600/9000 | |
Tire No. | 6+1 spare | |
Tire Specification | 9.00-20 | |
Wheelbase (mm) | 3950 | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Steering Wheel | Left / Right hand drive with power-assisted | |
Brake | Oil brake | |
Radiator | Suitable for tropical climate | |
Sewage tank | Sewage tank Volume(L) | 8,000 |
Tank shape | Round | |
Tank Material | 5mm thickness carbon steel | |
Sewage pump | Quantity | 1 |
Brand | Italy BP Pump | |
Model | MEC/P 13500 | |
Speed(r/min) | 1400 r/min | |
Max vacuum - % | 95% | |
Vertical suction range(m) | ≥9m | |
Rate suction speed(m³/h) | 810 m³/h | |
Remarks | The color and Logo can be customized. | |
Key word: 8cbm sewage suction truck, 8cbm vacuum suction truck, dongfeng sewer suction truck
