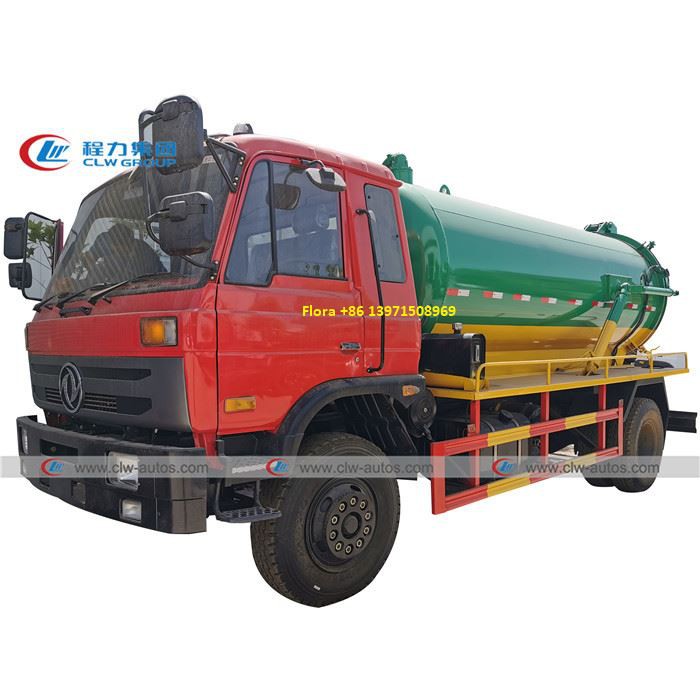

Dongfeng RHD 10cbm 10000Liters Liquid Waste Sewage Vacuum Suction Truck
10000L Sewage Tank
Italain BP/BP/MORO Pump
Sewage Suction & Jetting
Auto Tipping & Washing
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng rhd 10cbm 10000liters liquid waste sewage vacuum suction truck in China. If you're going to buy high quality dongfeng rhd 10cbm 10000liters liquid waste sewage vacuum suction truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
--1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
--2. Tanker body:From 2m3 to 25 m3 capacity.
--3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

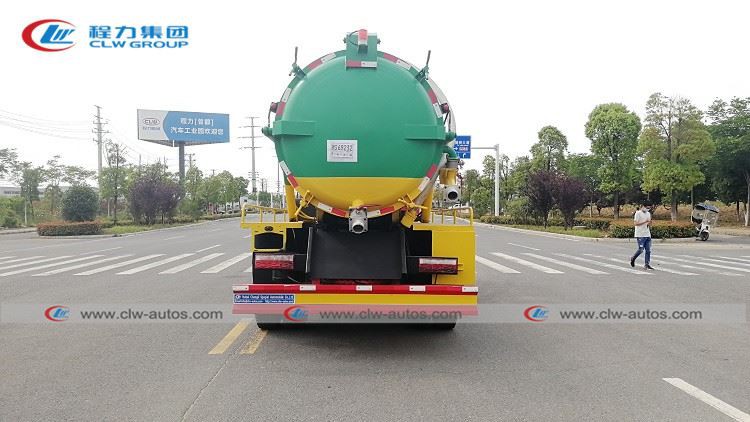

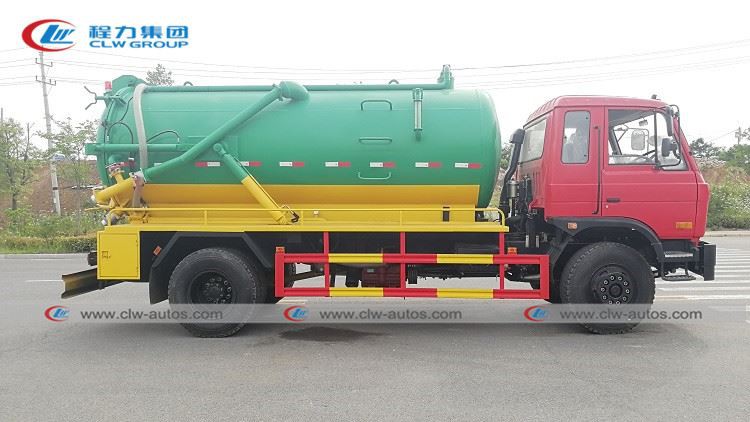

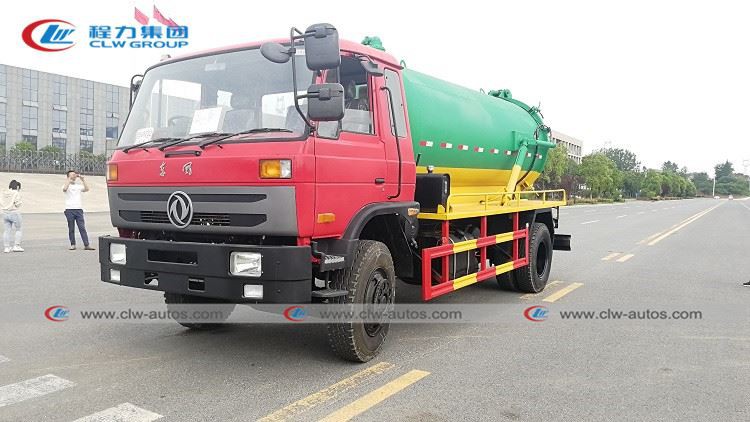

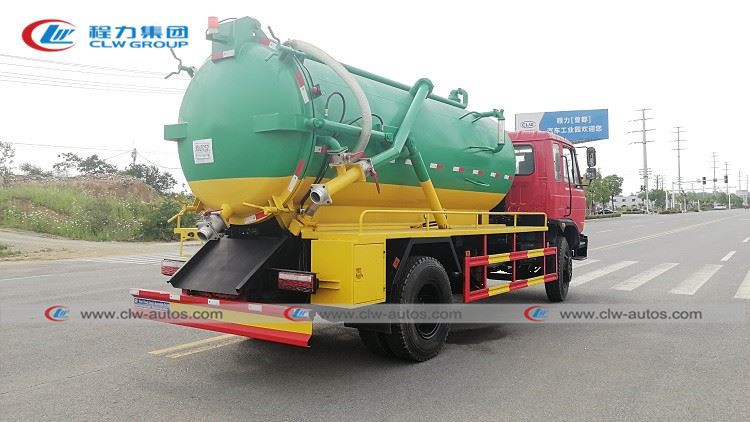

Reference Photos
Main Structure
Working Scene
Product Specification
Overall Dimensions | 7800*2490*3900mm | |
GVW | 15800kg | |
Chassis Brand | China Dongfeng | |
Traction Type | 4*2 | |
Chassis Model | Dongfeng | |
Cab | One and a half row, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
Traction Type | Right-hand drive | |
Drive Type | 4*2 | |
Wheelbase | 4500mm | |
Tire Specification | 10.00R20 | |
Tire Quantity | 6+1 units | |
Engine | Engine model | CUMMINS 190HP |
Emission level | Euro 2or3 | |
Displacement/output | 5900ml/140kw | |
Horse power | 190HP | |
Gear Box | Model | Dongfeng |
Number of gears | 6 forward gears& 1 reverse, synchronized | |
Suspension | Front | 8/8- Leaf spring with shock absorber |
Rear | 9/9-Leaf spring | |
Fuel Tanker | Type | Steel fuel tank, with lockable cap |
Tanker Capacity | 10,000cbm | |
Pump | Type | Italy BP Pump |
Rating speed | 1400(r/min) | |
Max vacuum - % | 98% | |
Pipe | Suction and discharge pipe | |
Special function | Suction time ≤ 3mins, | |
Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus, 5 meter long suction pipe,oil-water separators, overflow valve, etc. | |
Optional configuration | Tanker material: stainless steel. | |
Remarks | The color and Logo can be customized. | |
