HOWO 4X2 8Tons Flat Bed Wrecker
Chassis brand:SINOTRUK HOWO
8 tons capacity flatbed tow truck
Wheelbase: 4700mm
Horsepower: 200hp
Length of flatbed: 6.8m
Winch pulling capacity:8,000kg
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x2 8tons flat bed wrecker in China. If you're going to buy high quality howo 4x2 8tons flat bed wrecker, welcome to get more information from our factory. For price consultation, contact us.
SINOTRUK HOWO 4X2 8Tons Flatbed Towing Truck
We are Straight Manufacturer from China.
Quality First, Service Best, Welcome for Inquiry!
Products Description
A road wrecker, also known as a tow truck, recovery vehicle, or incident response unit, is a heavy-duty vehicle engineered to clear accident scenes, relocate disabled vehicles, and ensure road safety.
Equipped with integrated lifting, winching, and towing systems, it serves critical roles in urban traffic management, emergency rescue operations, and law enforcement.
key Words:
- Heavy-duty 8-ton recovery vehicle
- Hydraulic wheel-lift tow truck
- Euro VI compliant wrecker truck
- Multi-functional flatbed wrecker
- Emergency vehicle recovery systems
How to Operate a Flatbed Towing Truck
The Main Application Scenarios
Key
Application
Accident clearance on highways (e.g., overturned trucks).
Towing illegally parked vehicles in urban zones.
Post-storm debris removal (fallen trees, flooded cars).
Recovery of hazardous material spills.
Impounding vehicles in police operations.
Counter-terrorism barrier removal.
Core Functions & Operational Capabilities:
Multi-Task Recovery Systems
- Hydraulic under lift over lift arms: Lift capacities from 2 to 80 metric tons (t).
- Rotary winches: 10–30-ton pulling force with steel cable or synthetic rope options.
- Stabilizing outriggers: Ensure operational safety during heavy-load recovery.
Modular Attachments
- Wheel-lift assemblies: For secure towing of passenger vehicles.
- Flatbed configurations: Hydraulic tilt beds (6–12m length) for damaged vehicle transport.
- Auto-clamping systems: Hydraulic jaws to immobilize wrecked vehicles.
Products Parameters
|
Chassis Technical Specification |
||||
|
Chassis Parameters |
Driving mode |
4X2 |
||
|
Cabin |
|
|||
|
Wheelbase |
4700mm |
|||
|
Engine |
Engine brand |
WEICHAI, WP4.1NQ200E62 |
||
|
Horsepower |
200hp; 147kw |
|||
|
Displacement |
4.1L |
|||
|
Emission standard |
Euro Ⅵ |
|||
|
Transmission |
Fast, Manual, 8 forward gears and 2 reverse gears |
|||
|
Font axle loading |
3,200kg |
|||
|
Rear axle loading |
8,500kg |
|||
|
Tyre |
8.25R20 16PR, 6 pieces + 1 spare tire |
|||
|
Suspension |
9/12+9B |
|||
|
Superstructure |
||||
|
Flatbed |
Length |
6,800mm |
||
|
Width |
2,550mm |
|||
|
Max. Loading weight |
8,000kg |
|||
|
Min. Angle of slope |
15° |
|||
|
Platform height from the ground |
1,100mm |
|||
|
Checker plate thickness |
6mm (plate punching) |
|||
|
Winch |
Quantity |
1 piece |
||
|
Winch rating pulling capacity |
8,000kg |
|||
|
Length of steel cable |
25m |
|||
|
Rear -arm hoisting organ |
Rating under-pulling capacity |
8,000kg |
||
|
Fully extended max under-hoisting capacity |
2,500-4,800kg |
|||
|
Max under-hoist useful length |
1,340mm |
|||
|
Remarks |
|
|||
|
Others |
|
|||

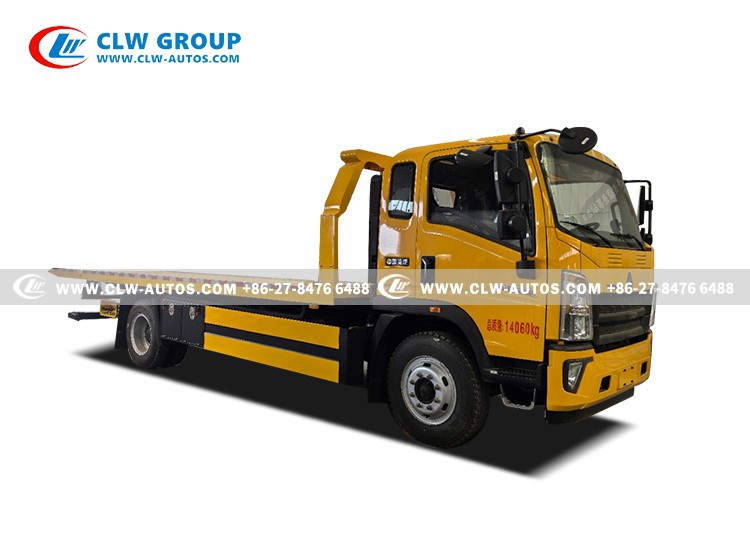

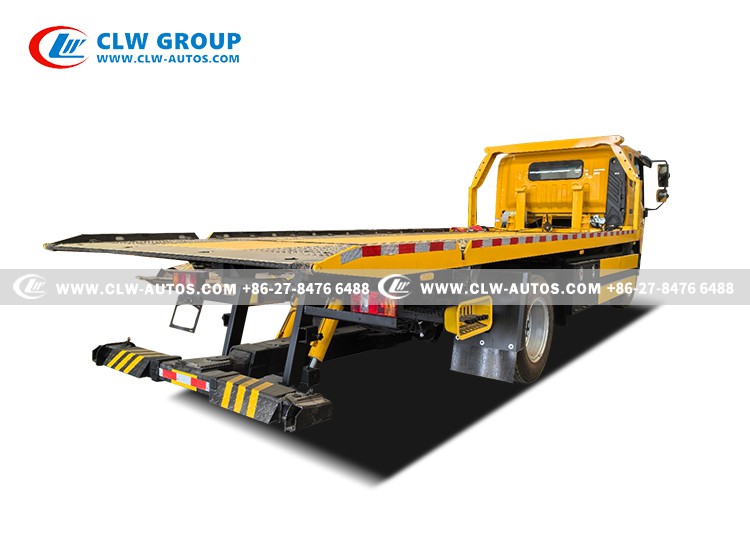

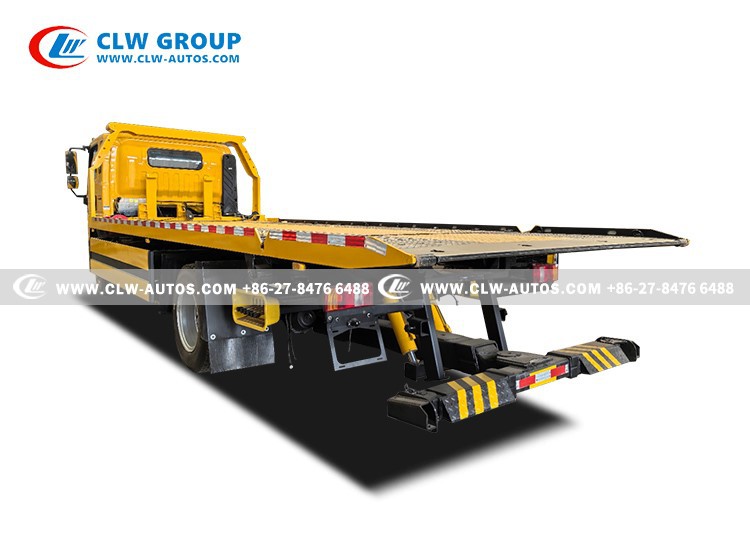

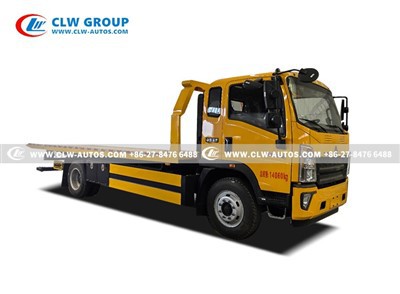

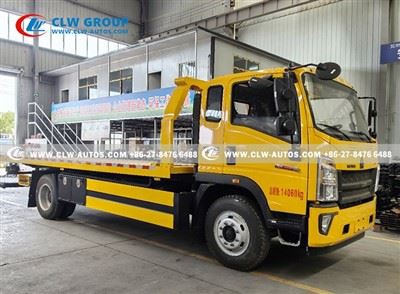

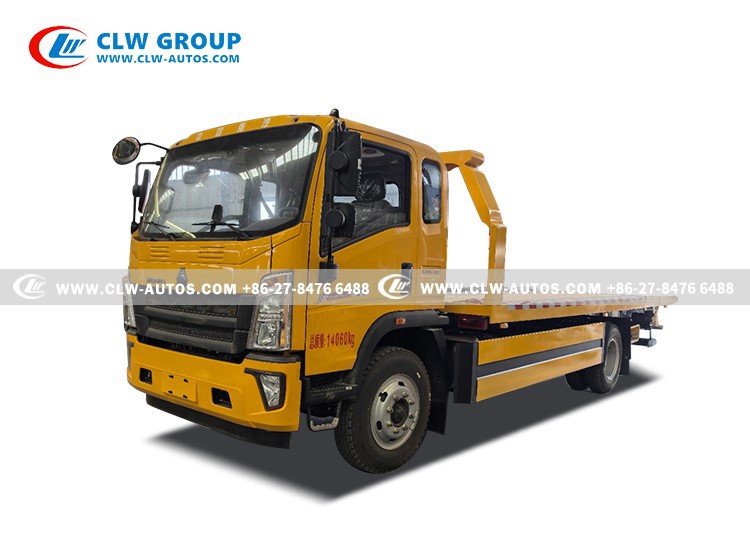

Reference Picture
Classification By Structural Design
Integrated Tow & Lift : Combines boom and flatbed for versatile recovery.
Separate Tow/Lift : Dedicated systems for specialized operations.
Multi-Task Units : Modular add-ons (e.g., crane arms, lighting towers)
Classification By Capacity
Light-duty: 2–5t: urban towing.
Medium-duty: 8–15t: highway accidents, buses.
Heavy-duty: 25–80t : commercial trucks, construction equipment.
Durability: High-tensile steel booms (ASTM A572 Grade 50) and corrosion-resistant coatings.
Precision Control: Proportional hydraulic valves for millimeter-level positioning.
Safety Compliance: CE/OSHA-certified stabilizers and anti-rollover sensors.
Efficient Hydraulic System – Features a smooth hydraulic winch and tilt mechanism for easy loading and unloading of vehicles, reducing recovery time.
Enhanced Safety Features – Includes anti-slip decking, LED warning lights, and secure tie-down points to ensure safe transport.
Powerful Engine Options – Powered by a fuel-efficient Sinotruk engine, delivering reliable performance and low maintenance costs.
