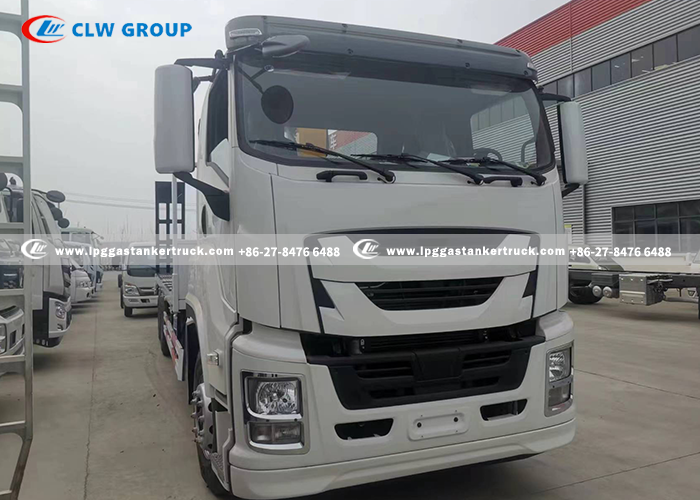

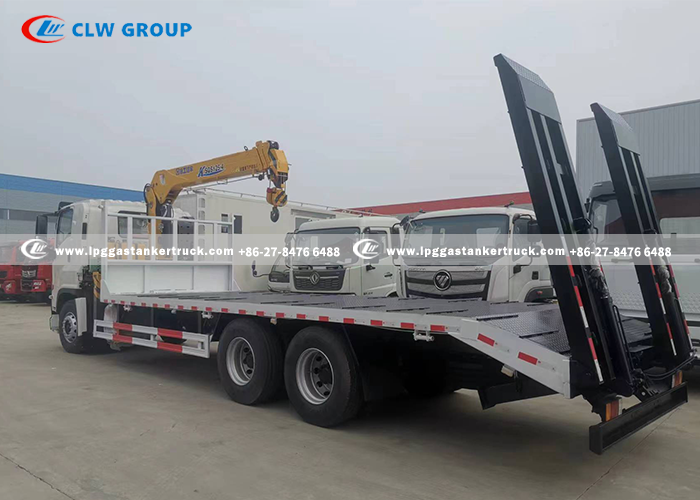

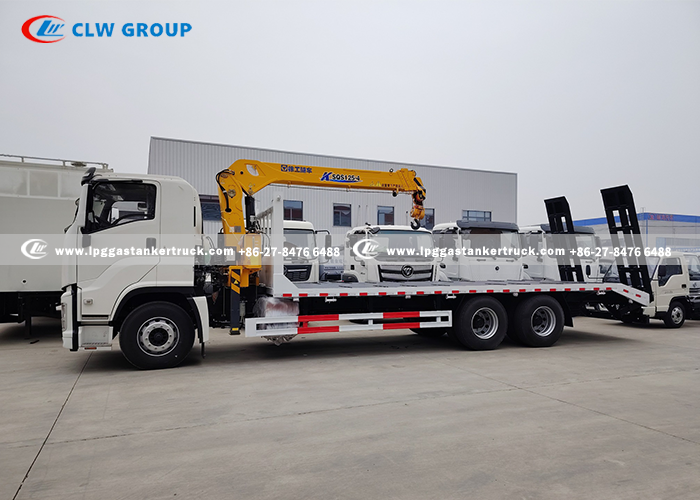

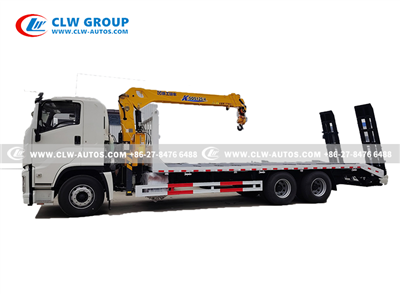

ISUZU Giga 16Tons Flatbed Tow Truck With 5Tons Stragiht Boom Crane





This specialized towing unit is built on a flatbed carrier chassis equipped with a hydraulic crane, typically fitted with XCMG lifting systems.

As implied by its designation, it may be referred to as:

• Flatbed Carrier with Integrated Crane
• Crane-Enabled Recovery Vehicle

Key Functional Advantages

1. Dual-Mode Operation

• Capable of conventional towing (via tow bar or wheel-lift)
• Direct vehicle loading onto the flatbed using the crane (ideal for severely damaged vehicles).

2. Multifunctional Design

• Combines flatbed transport and crane-assisted recovery in one unit.
• Eliminates the need for separate equipment.

1. High-Performance Towing Capability – Heavy-duty 16-ton capacity for commercial trucks.
2. Integrated Lifting Mechanism – Built-in 5-ton hydraulic crane for effortless disabled vehicle loading and unloading.
3. Reinforced Flat Platform – Heavy-gauge steel bed with non-slip surface ensures safe cargo transport.
4. Dependable ISUZU Underbody – 6x4 chassis provides superior traction and off-road recovery performance.
5. Precision Hydraulic Controls – Seamless winch and crane operation with industrial-grade hydraulic system.
6. User-Friendly Interface – Wireless remote and optimized cab layout streamline recovery procedures.
7. Eco-Conscious Powertrain – ISUZU Euro 6-compliant diesel engine delivers optimal fuel efficiency with reduced emissions.
8. Configurable Features – Optional wheel lift adapters, auxiliary toolboxes, or expanded deck sizes.
9. Durability Optimized – Weather-resistant construction and premium components minimize service requirements.

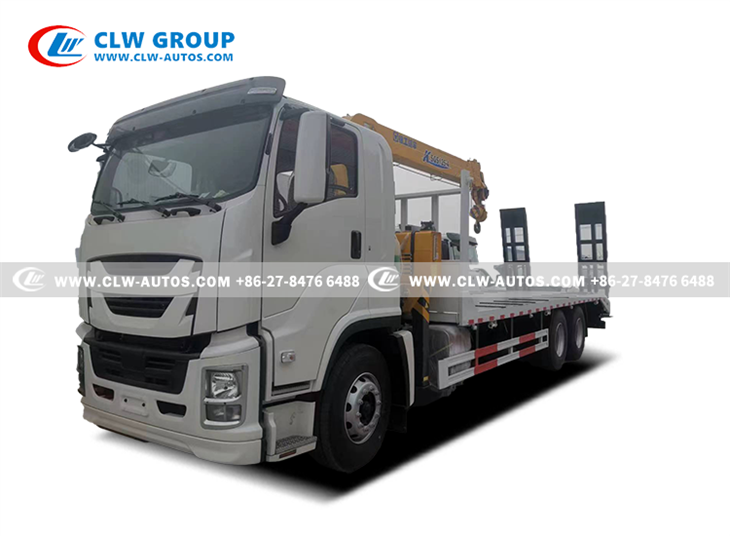

ISUZU 16Tons Flatbed Tow Truck With 5Tons Straight Boom Crane
Chassis Specification
Chassis model	QL1251
Driving model	6X4
Dimension	12000×2500×3950 mm
Cab	Original ISUZU FVZ/5X cabin Single Row Left Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Overall Weight	25000 kg
Net Weight	21550 kg
Wheelbase	5800+1370 mm
Axle loading (front / rear)	7000 / 10000 x 2 kg
Engine	ISUZU, diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1
	Horse power: 300 HP, 221 KW
	Displacement: 7790 ml
	Emission standard: Euro 6
Transmission	Manual type, 9 Forward & 1 Reverse
Upper Parameters
Flatbed	Ground Clearance: 1200 mm
	Flatbed Plate Size(length*width): 8500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 16000 kg

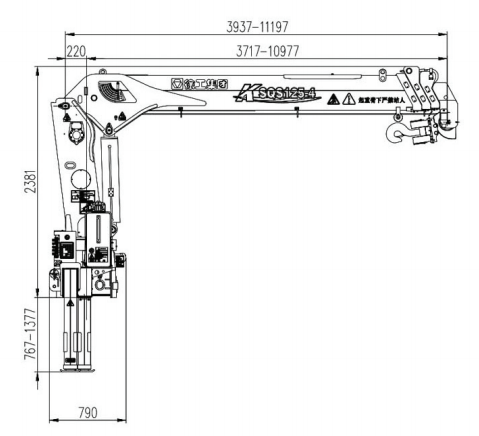

Crane Parameters
Model		SQS125
Working Platform		360°turning (left or right), H-shape legs 360°
Extendable Boom Section		1 main boom + 5 extendable boom
Crane Type		Straight Boom Crane
Max. Lifting Capacity		Effectively: 5000 kg at 2.5 meters
Max. Working Radius		11.2 meters
Max. Lifting Height		13 meters
Max. Lifting Moment		125 T.m
Max. Oil Flow of Hydraulic System		40~63 L/min
Max. Pressure of Hydraulic System		22 Mpa
Crane Weight		2200 kg
Landing Leg		4 Pcs hydraulic handing leg

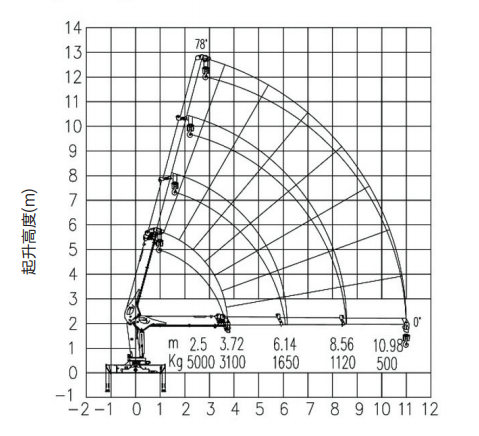

Crane Rated Lifting Road Photos
