Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of tractor truck with 8-ton knuckle boom crane in China. If you're going to buy high quality tractor truck with 8-ton knuckle boom crane, welcome to get more information from our factory. For price consultation, contact us.

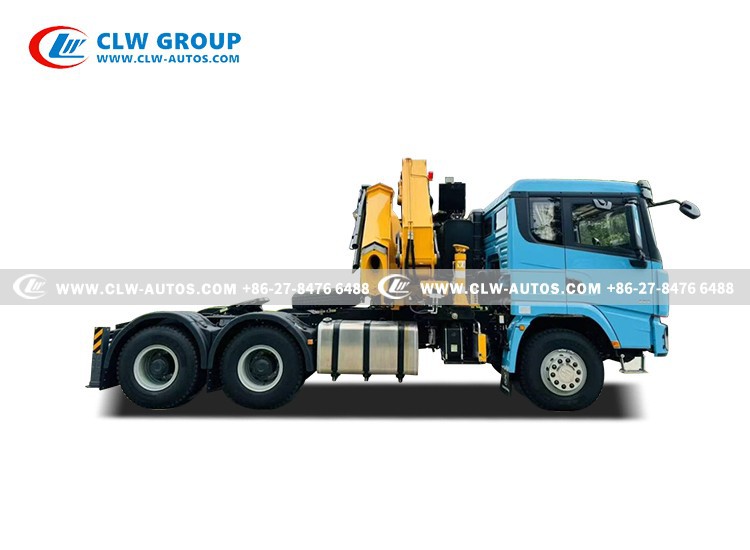

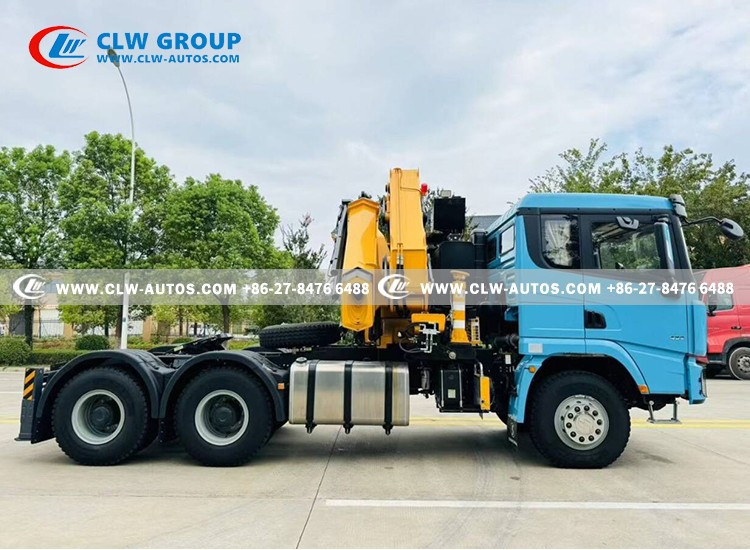

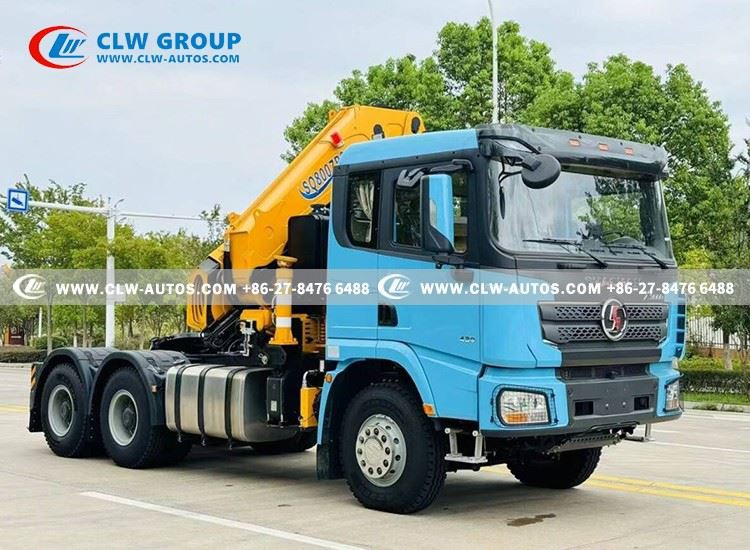

This model is based on the SHACMAN X3000 6×4 tractor truck, powered by a Weichai 430 HP diesel engine and equipped with a FAST 12-speed manual transmission, delivering strong, reliable performance for heavy-duty and multi-functional operations.
The vehicle is fitted with an 8-ton knuckle boom crane, providing excellent lifting capacity, flexible operation, and high efficiency in loading and unloading tasks. The knuckle boom design allows precise control in confined spaces, making it ideal for construction sites, logistics hubs, and infrastructure projects.
At the rear, hydraulic stabilizer outriggers are installed to ensure outstanding stability and safety during lifting operations, even under heavy loads. The robust chassis structure of the X3000 ensures excellent load-bearing capability and long-term durability.
SHACMAN X3000 6×4 heavy-duty chassis
Weichai 430 HP engine with strong torque output
FAST 12-speed manual gearbox for smooth and efficient power transmission
8-ton knuckle boom crane with flexible and precise lifting performance

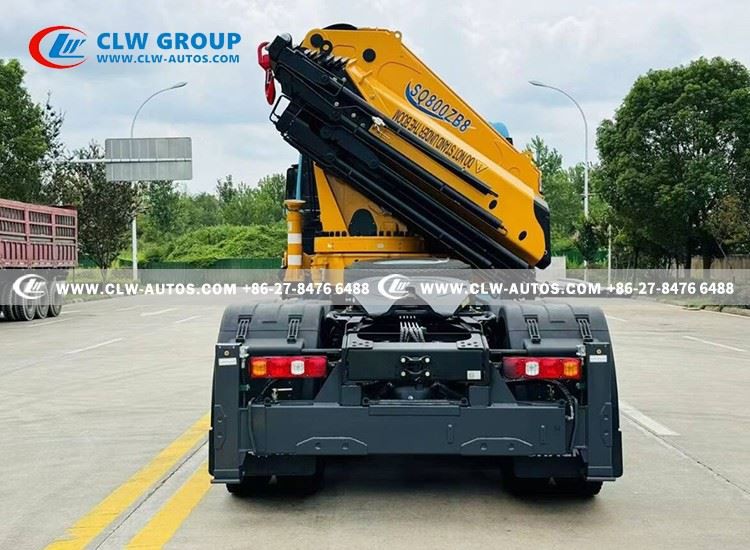

Rear-mounted hydraulic outriggers for enhanced operational stability
Suitable for construction, equipment transport, and integrated lifting & hauling operations
|
Cabin |
Driving type 6x4 LHD, Extended cab with flat top Passenger capacity: 3 people |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm |
6850×2550×3980 |
|
Wheel base (mm) |
3175+1350 |
|
|
Weight in KGS |
Tare Weight |
9100 |
|
Hauling Capacity |
40 Tons |
|
|
Front /Rear axles loading capacity |
MAN7.5T/ 2x13T STR |
|
|
Max. driving speed(km/h) |
109 km/h |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP12.430E201 |
|
|
Type |
6-cylinder in-line with water cooling |
|
|
Horse Power(HP) |
430 HP |
|
|
Displacement |
11.596L |
|
|
Maximum torque |
2060 |
|
|
Emission standard |
Euro III |
|
|
Gearbox |
FAST 12JSD200TA, Manual, 12-speed forward, 2 reverse gears |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
400L |
|
|
Tire |
12.00R20 tire 10 pcs including one spare tire |
|
|
Color & LOGO |
According to wish |
|
|
Superstructure |
|||
|
crane |
item |
Unit |
SQ800ZB8 |
|
Max. lifting moment |
kN·m |
160 |
|
|
Max. lifting capacity |
kg |
8000 |
|
|
Max. hydraulic outreach |
m |
9.755 |
|
|
Slewing angle |
° |
360° Continuous |
|
|
Stabilizer spread |
mm |
5210 |
|
|
Max. operating pressure |
MPa |
28 |
|
|
Recommended pump capacity |
L/min |
40 |
|
|
Oil tank capacity |
L |
160 |
|
Features:
◆ Adopt world-class shcman Chassis, High power and Fuel efficiency, Reliability, Uptime
◆ All Structural made of High Strength Steel
◆ Easy to mount and Minimum space required for Mounting
◆ Optional Chassis 4x2, 6x4,8x4 and engine power
◆ Optional Crane brand: XCMG
◆ Optional Crane type: Telescopic boom crane or knuckled boom crane
◆ Radio Remote Control Available as an Optional Fitment
◆ Crane capacity : 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons
