Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 8tons crane truck in China. If you're going to buy high quality isuzu giga 8tons crane truck, welcome to get more information from our factory. For price consultation, contact us.

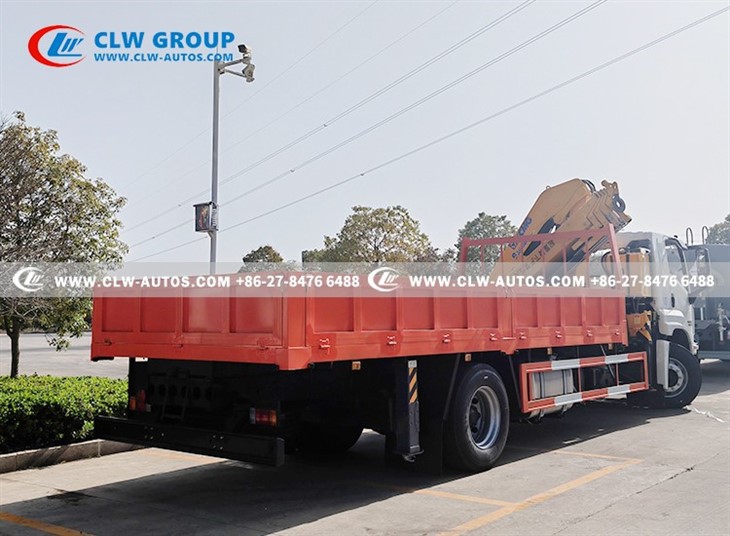

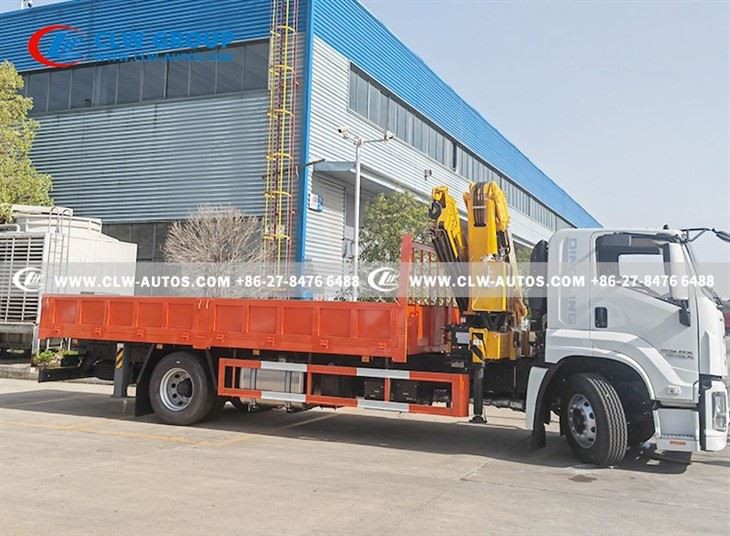

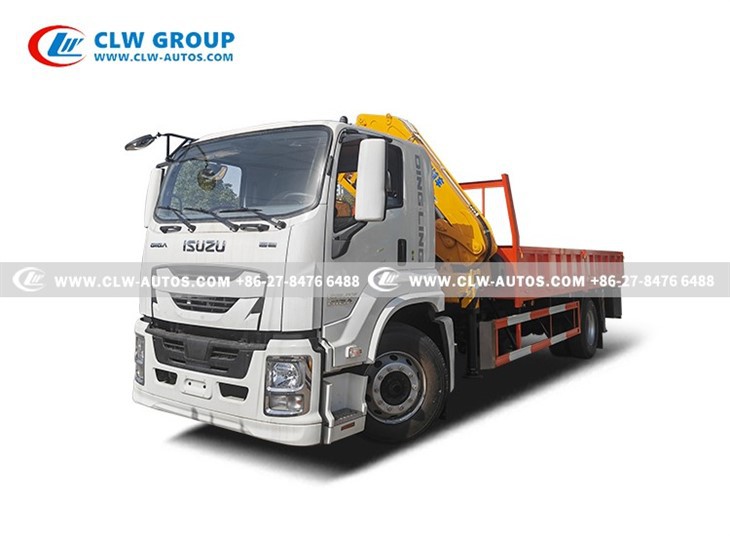

ISUZU GIGA 4X 8 TONS CRANE Truck
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
ISUZU GIGA Crane Truck (also known as ISUZU truck mounted 8 tons crane,ISUZU truck with kunckle boom crane,8 tons XCMG crane,ISUZU Crane truck factory), which is mainly used in construction sites, warehouses, docks, bridges and other fields. The truck-mounted crane can be lifted and transported. It can also have a self-unloading function, making one vehicle multi-purpose.
For a Crane truck or truck-mounted crane, you need to consider the three major elements of the chassis, crane, and cargo box. At the same time, you should consider the working condition. For an open working environment, you can choose a ISUZU straight-arm truck-mounted crane, and for a narrow working environment, you can choose a folding-arm or kunckle boom ISUZU truck-mounted crane.
The crane can be divided into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons and 20 tons.
Crane brand is available for chinese top brands XCMG,PALFINGER or CLW crane, or Japanese brand UNIC
For Quick inquiry: +86 135 4506 4324(whatsApp)
Email: shirley@clw-autos.com
The whole truck is combined with
--ISUZU GIGA 4X 205HP truck chassis
--XCMG GSQZ160 8 tons with aerial operation seat
--Crane section can be 4 or 5 section
--Lifting height 13 meters
--Working radius/Outreach 10.3 meters or 12.8 meters
Customized design is available,please let us know your working condition.
|
Specification of Truck Chassis |
||
|
Chassis Model |
QL518XXYAJWHY |
|
|
Driving Model |
4 X 2 |
|
|
Cab |
Original ISUZU VC61 cabin Single Row Left Hand Driving with air conditioner Power steering Electric window Central lock |
|
|
Wheel Base |
5550mm |
|
|
Axle Loading (front/rear) |
6300/13000 kg |
|
|
External Dimensions (L x W x H) |
11200×2500×3850 mm |
|
|
Max. driving speed |
95 km/h |
|
|
Engine |
Model |
4HK1-TC60 |
|
Type |
ISUZU diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
205Hp |
|
|
Max output power |
151KW |
|
|
Emission standard |
Euro VI |
|
|
Displacement |
5193 ml |
|
|
Rated Speed |
2600 rpm |
|
|
Gearbox |
Manual type, MLD, 6 forward gears & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
295/80R22.5, 6 pieces with 1 spare tire. |
|
|
Cargo box |
|||
|
Cargo box |
Carbon steel with bottom 3mm and side 2mm |
||
|
Box size(Length*width*height) |
6500*2450*550mm |
||
|
Loading capacity |
10~15 tons |
||
|

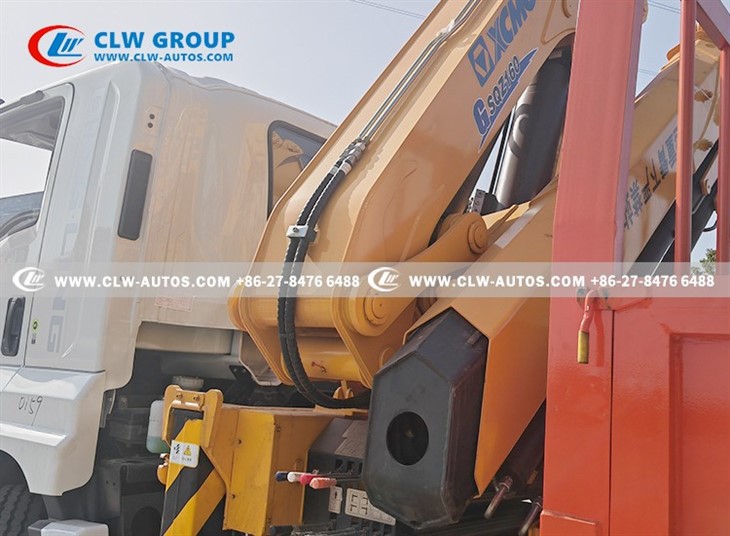

Crane |
|||
|
Installed at rear of truck |
|||
|
Palfinger Crane |
Model |
GSQZ160 |
|
|
Boom section |
1+3 section boom |
||
|
Boom Type |
Folding boom type |
||
|
Max. Lifting Capacity |
8000kg ( 2.5meters) |
||
|
Rated lifting moment |
14.6MT |
||
|
Slewing angle |
420 ° |
||
|
Lifting angle |
0~75 ° |
||
|
Max. Crane Arm Reach out |
10.5/12.8 m |
||
|
Oil tank capacity |
200 L |
||
|
Operating pressure |
30 Mpa |
||
|
Span of front landing leg |
6.6 meter |
||
|
Rear Landing Leg |
With |
||
The "CLW" brand is honored as the "Hubei Well-kown Trademark", Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection, Pressure Vessels certificated by A2 C2 C3, ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd. tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.
