ISUZU 5Tons Truck Mounted Crane

ISUZU 4X2 chassis
Engine:190HP/5.193L/139kW
XCMG 5 tons straight telescpoic boom
Max. lifting capacity:5,000kgs
Max. lifting moment:125KN.m
Cargo box dimension:6500×2300×550mm

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5tons truck mounted crane in China. If you're going to buy high quality isuzu 5tons truck mounted crane, welcome to get more information from our factory. For price consultation, contact us.

ISUZU 4X2 XCMG 5Tons Truck Mounted Crane For Sale

We are professional crane truck manufacturer in China since 2004

Products Description

The crane truck, also known as a truck-mounted crane or a truck with a crane, is a type of machinery that accomplishes the lifting, rotation, and hoisting of goods through a hydraulic lifting and telescopic system. Typically, it is mounted on a truck.

This ISUZU truck-mounted crane can be equipped with various attachments like wooden grabs, hanging construction baskets, brick clamps, and drilling tools to facilitate operations in multiple scenarios.

The application and Use:
Landscaping, power infrastructure construction, high-speed rail projects, wind power installations, bridge construction, plant relocations, material transport, equipment moving, road rescue operations, and more.

Options:
Truck chassis: Dongfeng, FAW, FOTON, SHACMAN, ISUZU, SINOTRUK HOWO

Crane brand: XCMG, Palfinger, CLW, etc.
Crane type: straight arm or folding arm
Crane lifting capacity of XCMG straight arm: 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14tons, 16 tons, 20 tons
Max. working height of XCMG straight arm: from 6.8m to 25.6m
Cargo box dimension and thickness: customizable

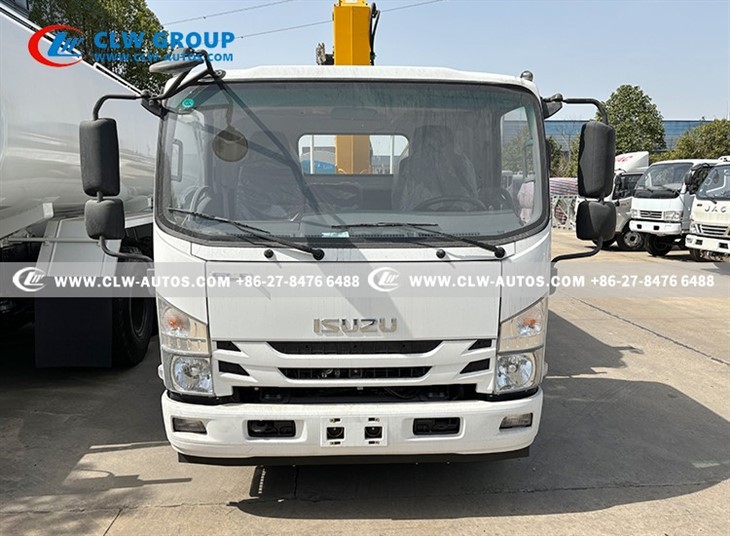

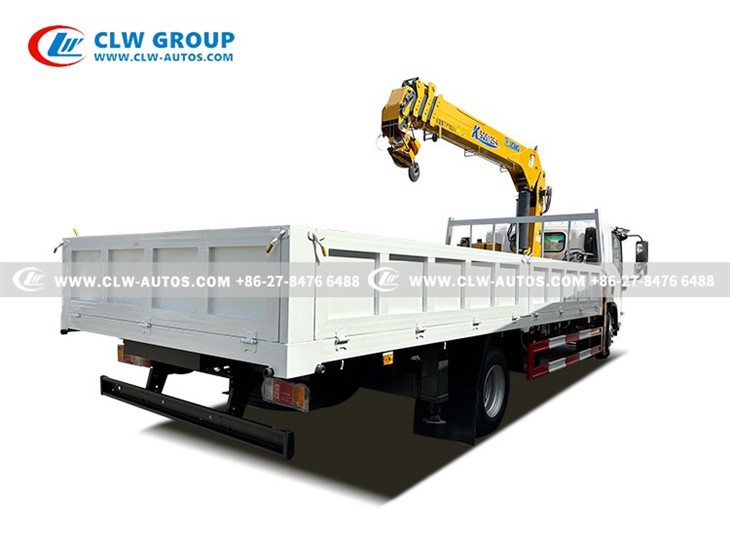

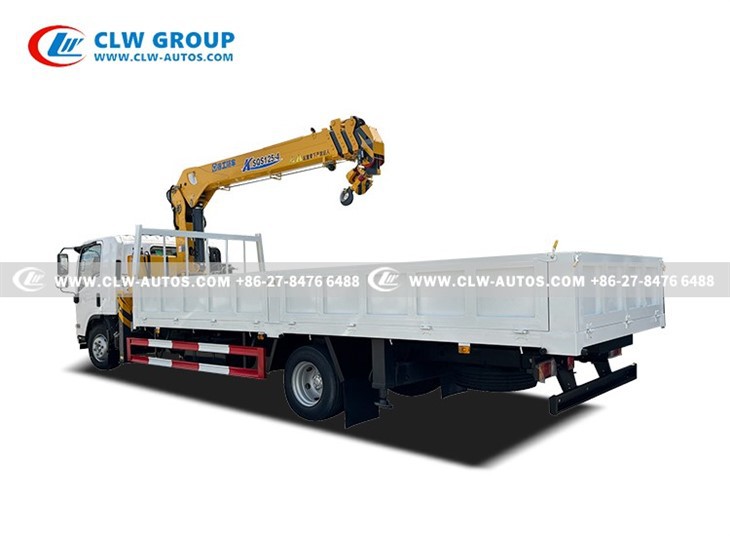

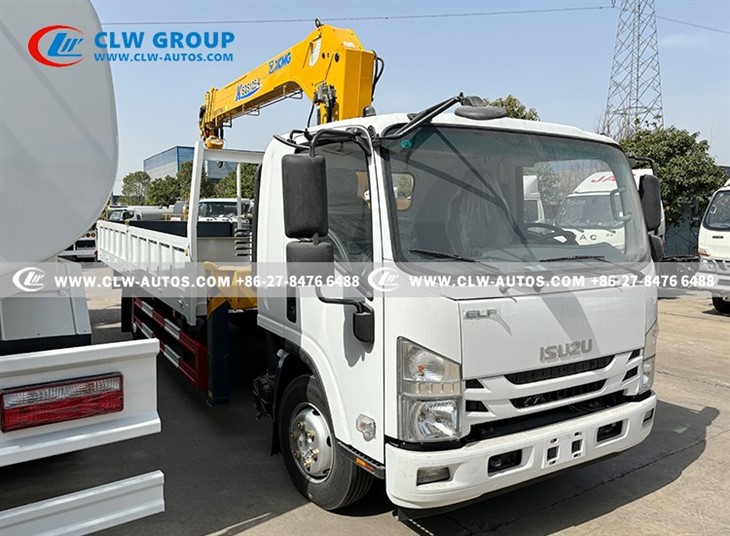

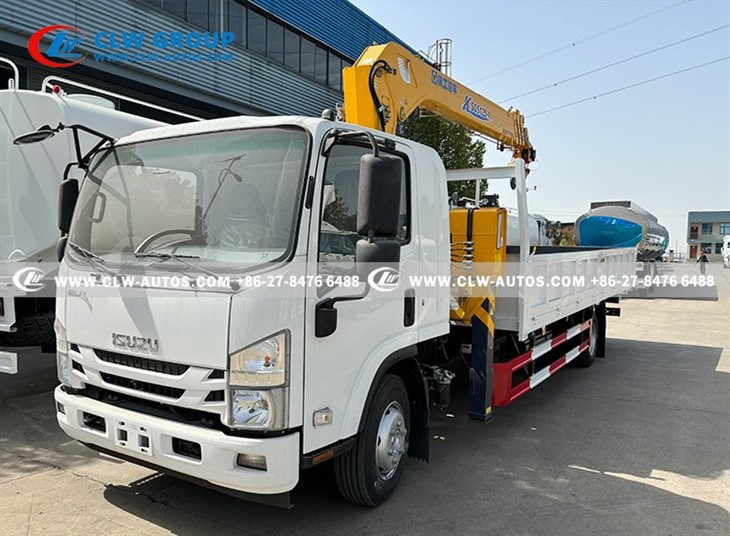

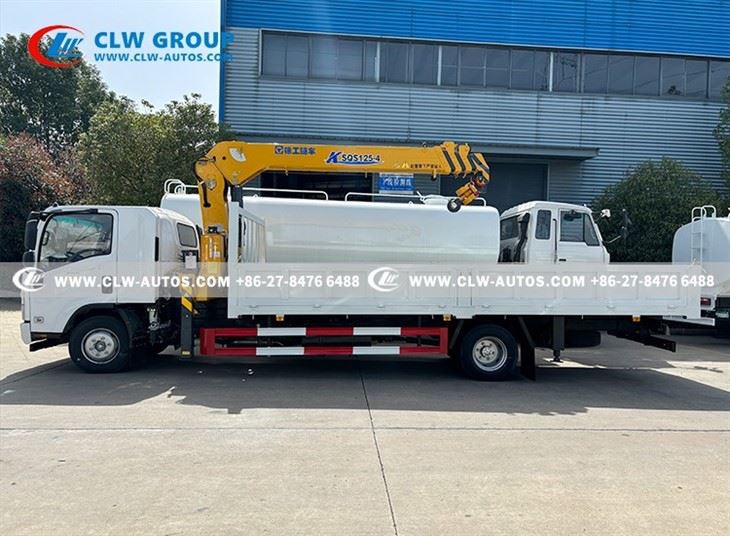

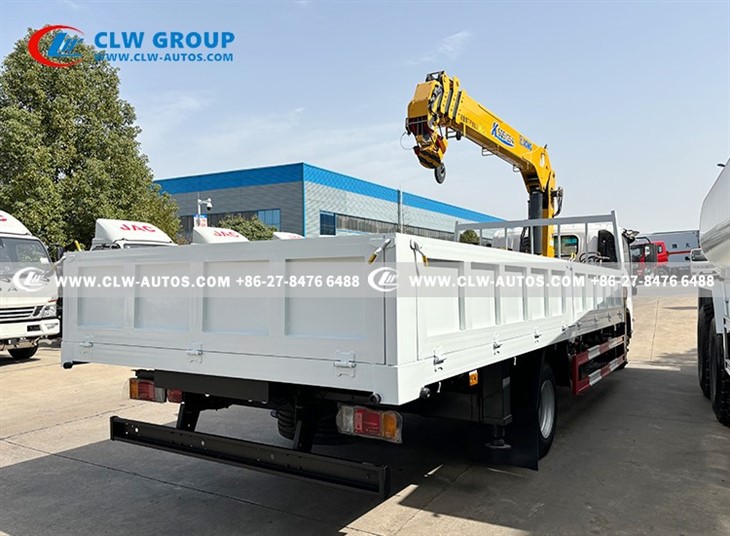

Products Pictures

Products Parameters

Chassis Specification
Chassis Parameters	Chassis Brand		Japan ISUZU
	Cabin		Left Hand Driving, with A/C, Central lock,Power steering
	Engine	Model	4HK1-TCG61, 4 cylinders, 139kW
		Power	190HP
		Emission standard	EURO 5/6
		Displacement	5.193L
		Fuel type	Diesel
	Gearbox		6 Forward and 1 Reverse Gear
	Front and Rear Axle load		4T/7T with ABS
	Wheel base		5200mm
	Brake System		Air Brake
	Steering Gear		Power Assistant
	Tire		235/75R17.5, 6 Pieces with 1 Spare Tire
	Maximum speed		90(km/h)

Superstructure
Cargo box	Dimension	6500×2300×550(mm)
Crane	Brand	XCMG, or Palfinger brand, CLW brand
	Boom Model	KSQS125-4
	Boom Type	Straight arm 4 section telescopic boom
	Max. lifting weight	5,000kgs
	Max. lifting moment	125KN.m
	Recommend power	18kw
	Max oil flow of hydraulic system	40L/min
	Max pressure of hydraulic system	22MPa
	Oil tank capacity	90L
	Crane weight	2230kg
	Installation space	900mm
	Rotation angle	360° ALL Rotation
