Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 6x6 off road 30tons tipper truck in China. If you're going to buy high quality howo 6x6 off road 30tons tipper truck, welcome to get more information from our factory. For price consultation, contact us.
Description:
HOWO off road, Mining warrior dump is a new model independent developed by sinotruk for a variety of open-pit mine, mill, hydroelectric sites, docks and other harsh working conditions. It successfully makes up the blankness of those kinds of economy trucks in china, fully in line with the trend of China's economic development and the users' requirement home and aboard.
| SINOTRUK HOWO 6X6 DUMP TRUCK | ||
| Model | ZZ3257N4357A | |
| Cab | Cap type | HOWO76 flat roof cab with one sleeper bed, with A/C, if need more details, pls contact us +8653286810020 |
| Drive type | Left Hand Drive(RHD is optional) | |
| Engine | Engine model | SINOTRUKWD615.69,336hp,EUROII |
| Type | 6 cylinder in-line with water cooling, turbo-charging & inter cooling, rear supercharger | |
| Engine output | 336hp(247kw)/2200 rpm | |
| Maximum torque | 1350NM/1100-1600rmp | |
| Displacement | 9.726L | |
| Clutch | 430 diaphragm spring clutch, hydraulically operating with air assistance | |
| Transmission | HW19710, 10 speed transmission | |
| Steering | ZF8098, Germany ZF technology | |
| Front axles | STEYR axles | |
| Rear axles | ST16 STEYR double reduction drive axles, | |
| Ratio:5.73 | ||
| Brakes | Service brake, parking brake, auxiliary brake, ABS,EVB is optional | |
| Tires | 12.00-20,10+1spare | |
| Fuel tank | 300L | |
| Electrics | Operating voltage:24V Starter:24V, 7.5kw Batteries:2*12V/165Ah Alternator:1540W | |
| Weight in kg | Curb weight | 12592kg |
| Total weight | 25000kg | |
| Rated payload | 12278kg | |
| Dimensions in mm | Overall dimension(mm) | 8738×2496×3500 |
| Wheel base(mm) | 4300+1400 | |
| Front/rear overhang(mm) | 1578/1460 | |
| Front/rear wheel track(mm) | 2022/1830 | |
| Minimum ground clearance(mm) | 314 | |
| Minimum turning diameter(m) | 19 | |
| Performance | Approach/departure angle | 31/74 degree |
| Max. driving speed(km/h) | 73 | |
| Max gradeability(%) | 50 | |
| Dump body | Cargo body size(mm) | 5670×2300×1500 |
| Capacity | 19.6CBM | |
| Thickness of dump body(mm) | floor 12, side & back 10 | |
| Lifting type | HYVA front type lifting | |

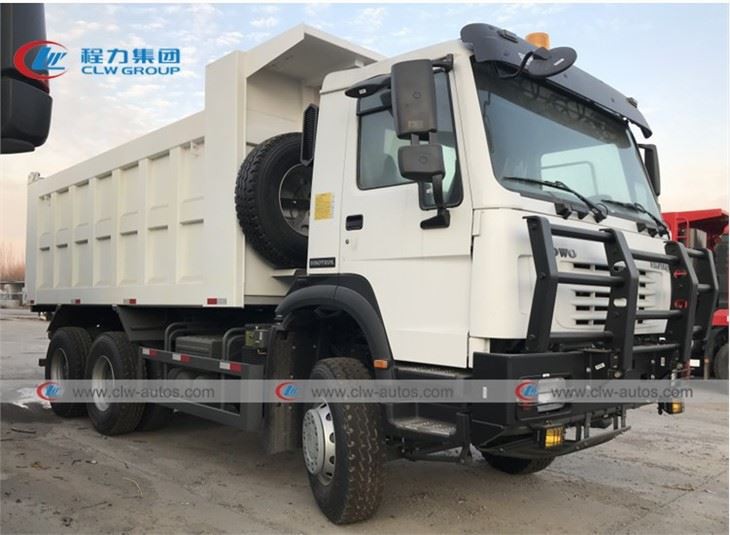

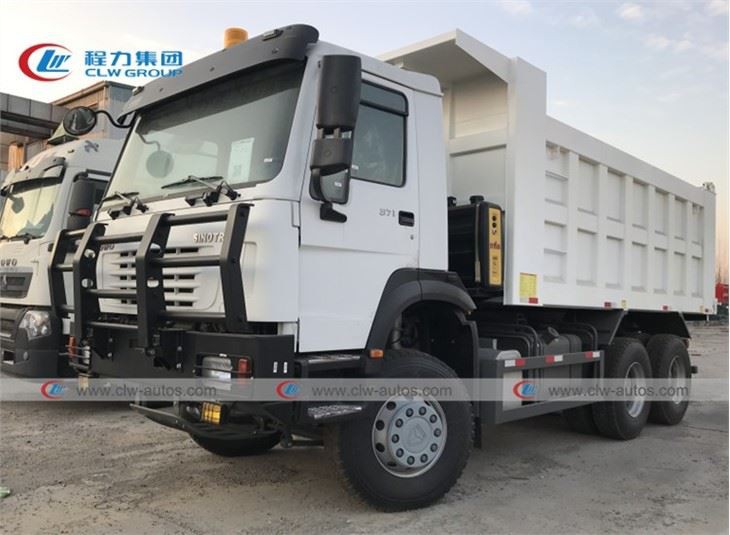

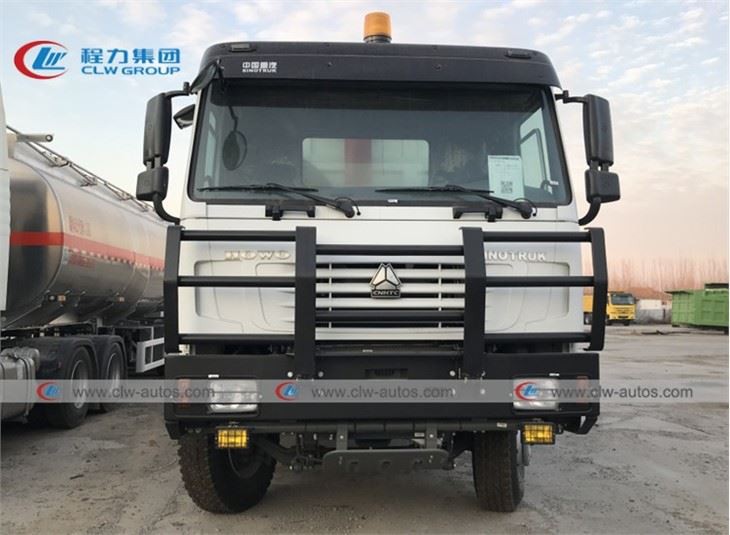

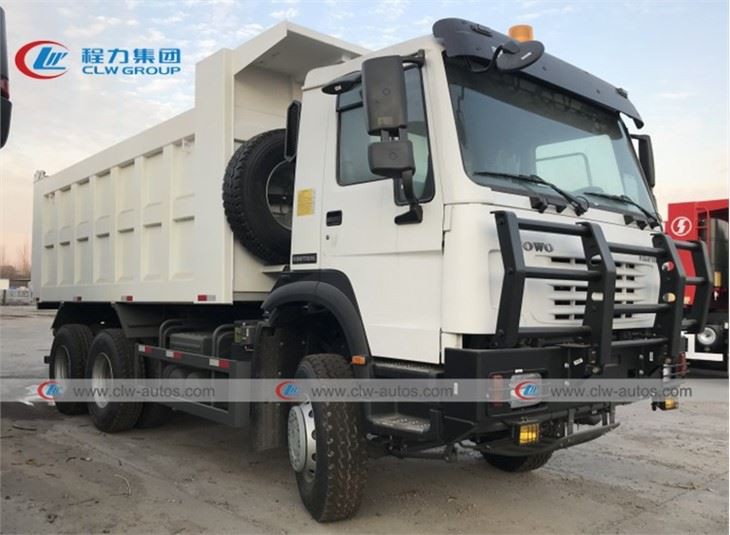

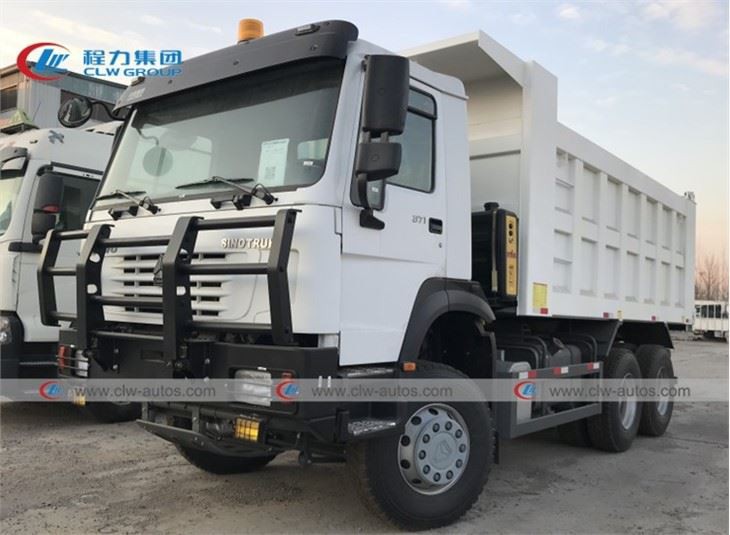

More pictures of HOWO 6x6 Off Road 30Tons Tipper Truck:
