Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 6x6 off road 20tons water sprinkler truck in China. If you're going to buy high quality howo 6x6 off road 20tons water sprinkler truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Descrition:
Water Sprinkler Truck is suitable for all kinds of road washing, trees, green belt, lawn greening, roads, factories and mining enterprises construction construction, high-altitude building washing, with sprinkling, pressure dust, high, low spraying, pesticide spraying, guardrail washing and other functions, but also with water transport, water supply, emergency fire control and other functions.
Sprinkler basic configuration: forward, back, side spray, high sprinkler and green gun platform. The vehicle can meet the road cleaning, green maintenance, fire emergency and transportation supply and other work needs.
Front punch function: it is mainly used for road cleaning. The height of front punch can be adjusted to flush up to 10 lanes. The mounting position can be selected at the front of the cab, the rear end or the rear of the tank.
Side spray function: mainly used for maintenance of green belt, installation height can be customized according to the actual needs of customers. Side sprinkler can choose duck mouth, shower head, fire interface, etc.
After sprinkling function: mainly used for road dust removal and road maintenance work, after sprinkling fan can be according to the actual work needs 360 degree rotation debugging.
High sprinkler function: mainly used for greening maintenance, engineering maintenance and dust removal. The installation height of high shower is optional, and the density of shower head is optional.
Greening gun function: mainly used for road cleaning, greening maintenance, fire emergency work. Water column can be adjusted fog, water column, rain, etc., the installation location can be customized.
Parameters for HOWO 6x6 Off Road 20Tons Water Sprinkler Truck:
Model | ZZ1257N4341W | |
Cabin | HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler | |
Engine | Model | WD615.47 |
Horse Power (Hp/rpm) | 371/2200 | |
Max.Toruqe(Nm/rpm) | 1820/1100-1500 | |
Displacement (L) | 9.726 | |
Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine | |
Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance | |
Transmission | HW19710, 12 speeds forward and 2 speeds reverse. | |
Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. | |
Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) | |
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah | |
Tire | 12.00R20 | |
Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank | |
Dead Weight (kg) | 12530 | |
Gross Vehicle Weight (kg) | 33000 | |
Gross Combination Weight (kg) | 80000 | |
Overall Dimension(L*W*H)(mm) | 9445*2560*3350 | |
Wheelbase(mm) | 4300+1350 | |
Front/Rear Overhang( mm) | 1500/725 | |
Wheel Track(Front/Rear)(mm) | 2022/1850 | |
Min. Ground Clearance(mm) | 314 | |
Approach/Departure Angle( °) | 16/70 | |
Max. Speed (km/h) | 92 | |
Max. Gradebility (%) | ≥40 | |

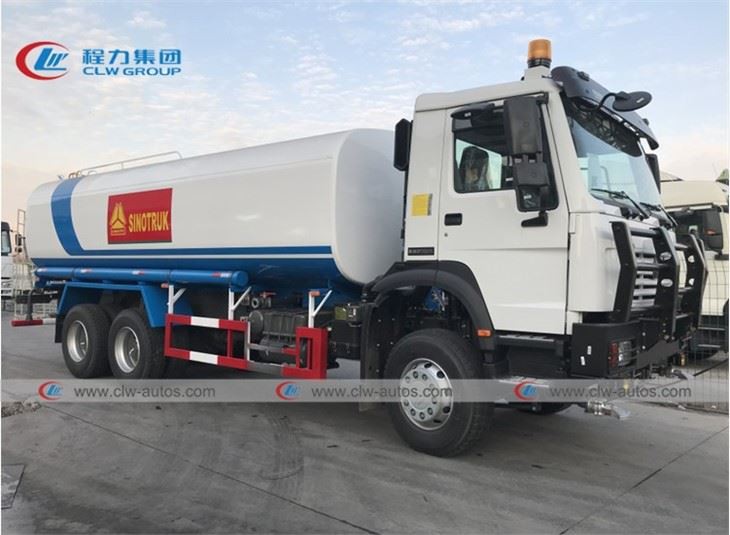

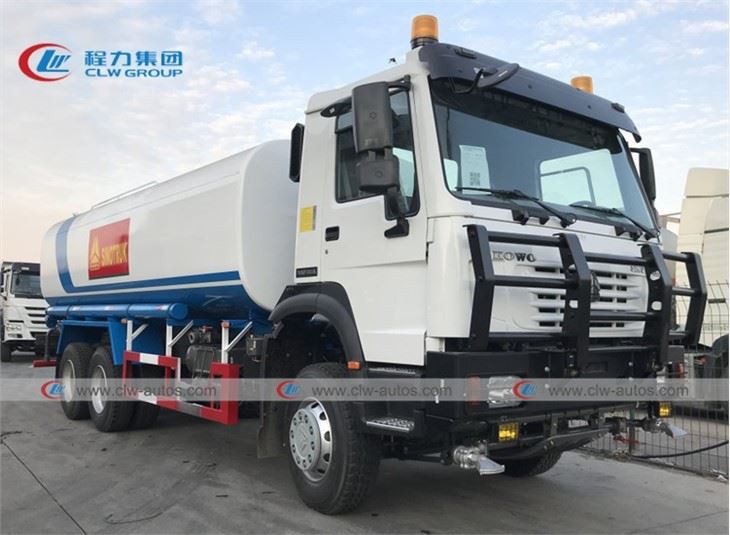

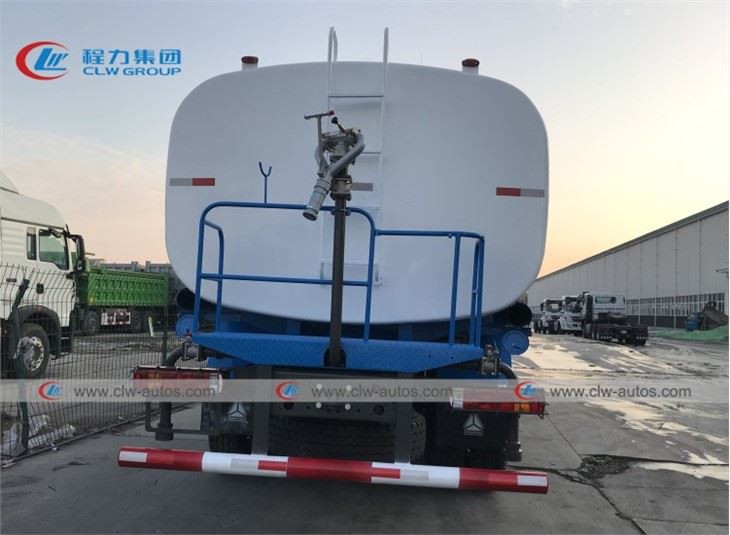

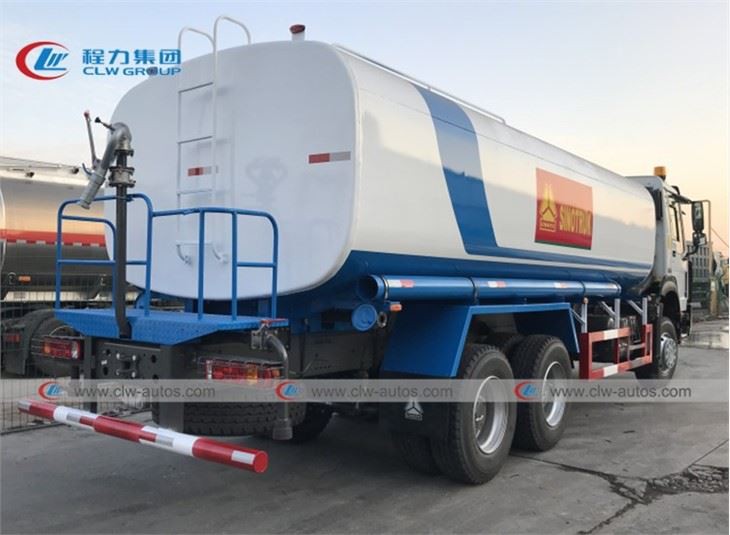

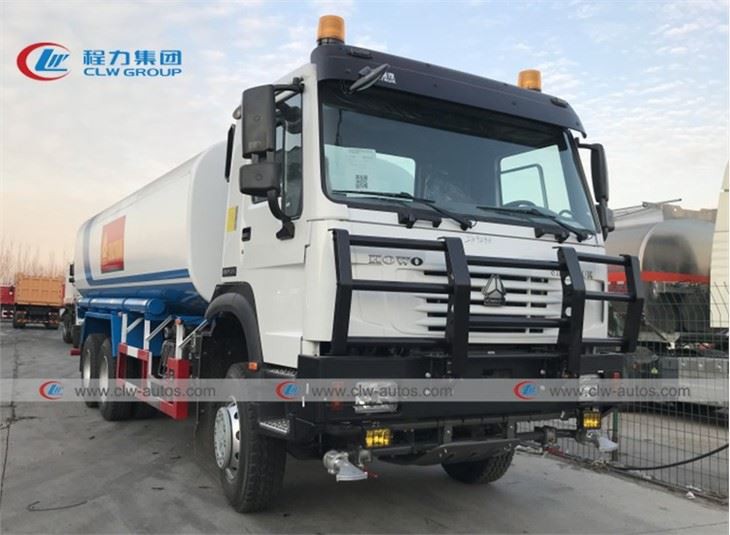

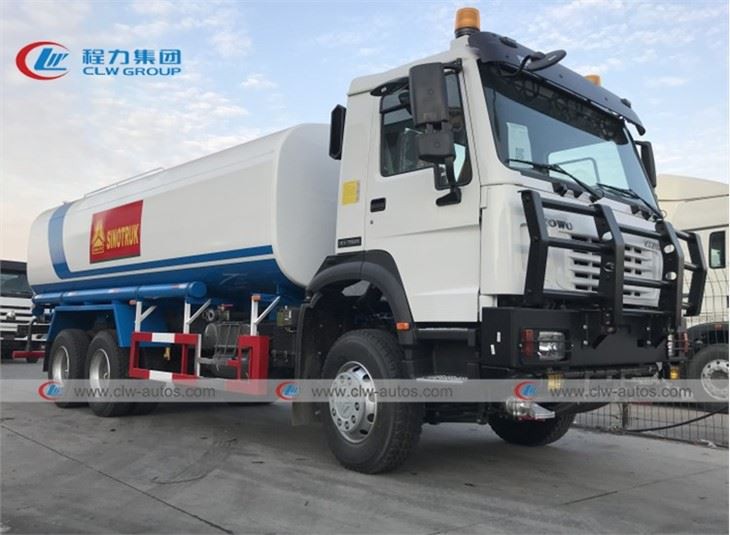

More pictures for HOWO 6x6 Off Road 20Tons Water Sprinkler Truck:
Features for off road water sprinkler truck:
performance and level:
1. Pre-rinse: install two dc nozzles of 360°. The flushing width shall be above 25m. In addition to washing the road, when the sprinkler head to about 45°, can be on both sides of the road to wash the tall trees.
2. After spraying; Equipped with two post-spraying devices, mainly for road cleaning and dust pressure, when the fan spraying, sprinkler width can reach more than 10m.
3. Height: it is equipped with a high-altitude missile with a firing range of more than 30m. It can be adjusted into a fog or column shape according to the needs.
4. Side spraying: two side spraying nozzles are equipped on both sides of the tank body, mainly for spraying, watering and dusting the green belt, and also for spraying the pedestrian passage of the green isolation belt.
5. Self-priming: equipped with two suction pipes and one filter, it can self-priming the lake and pond water to save the use cost.
6, the type of car tanks before coating phosphating and metal accessories, spraying polymer anticorrosive paint and metal paint, strong adhesion, good corrosion resistance, uniform paint film, color bright persistent, beautiful degree, able to endure, dusty, salt fog, use for a long time will not produce the problem such as craze, peel, fade, not only the beautiful degree of the product, also effectively prevent the corrosion.
