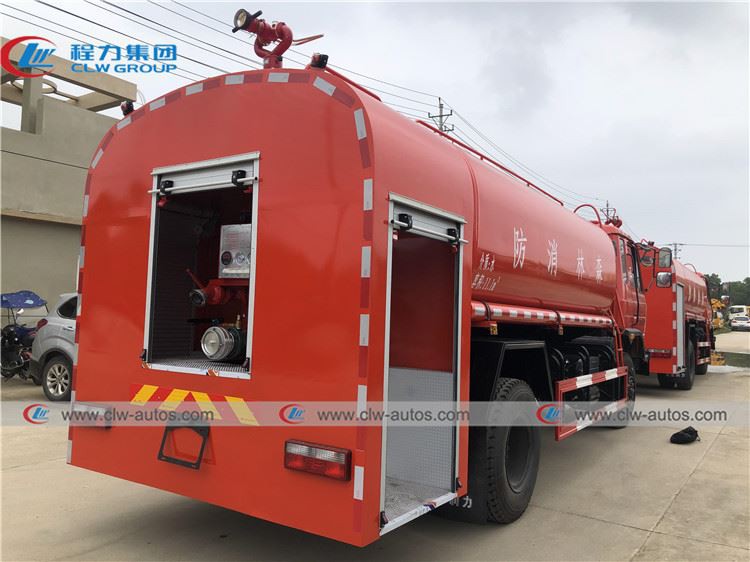

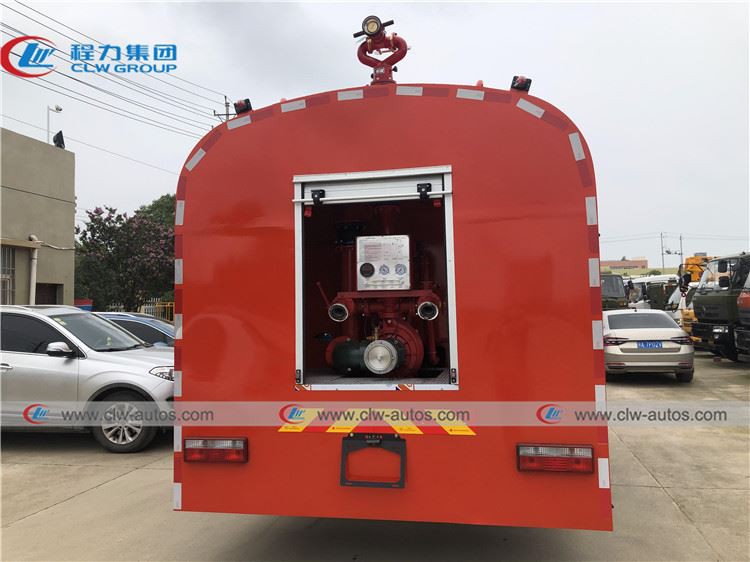

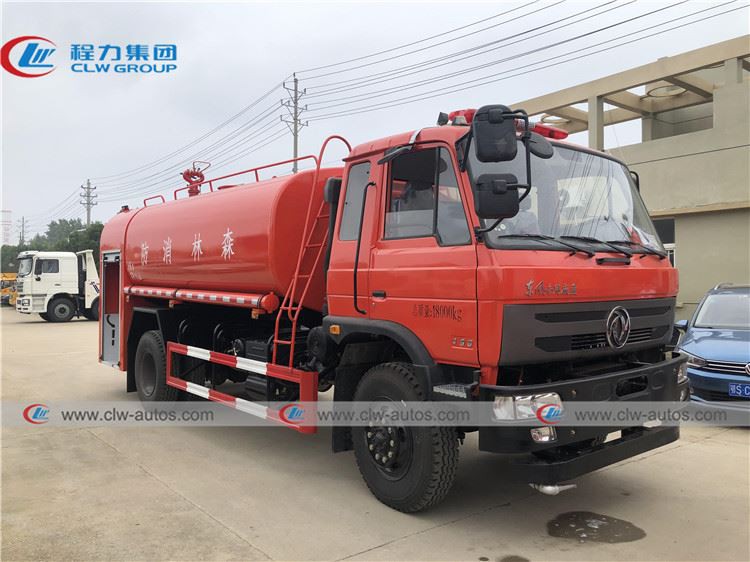

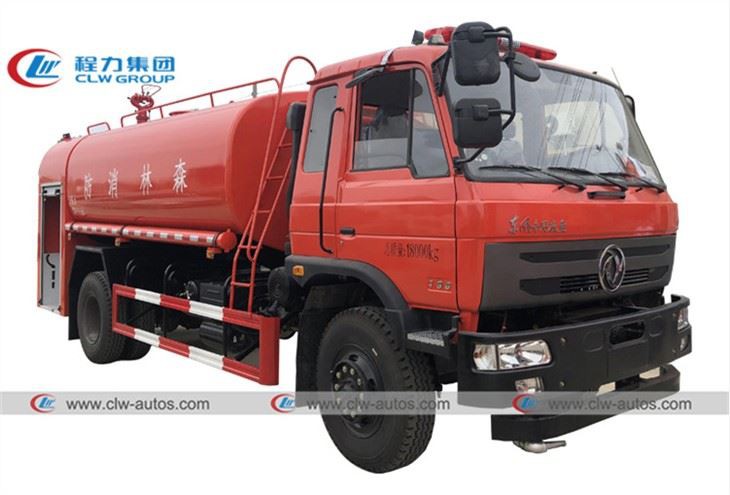

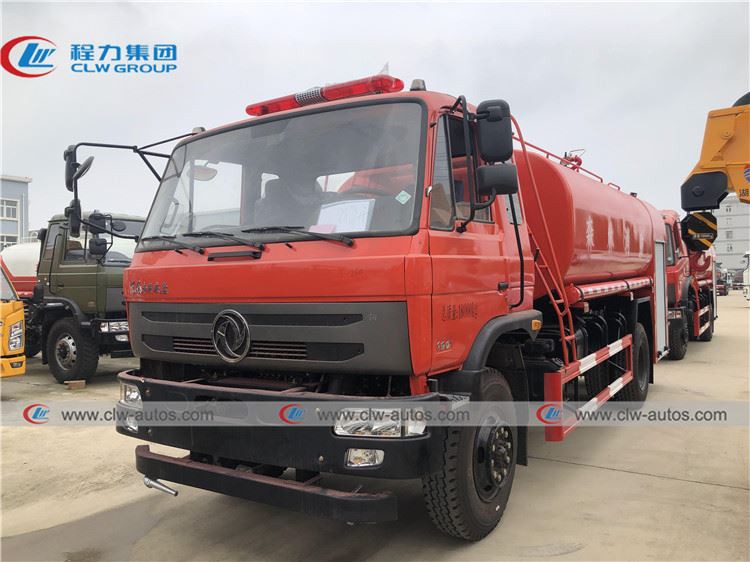

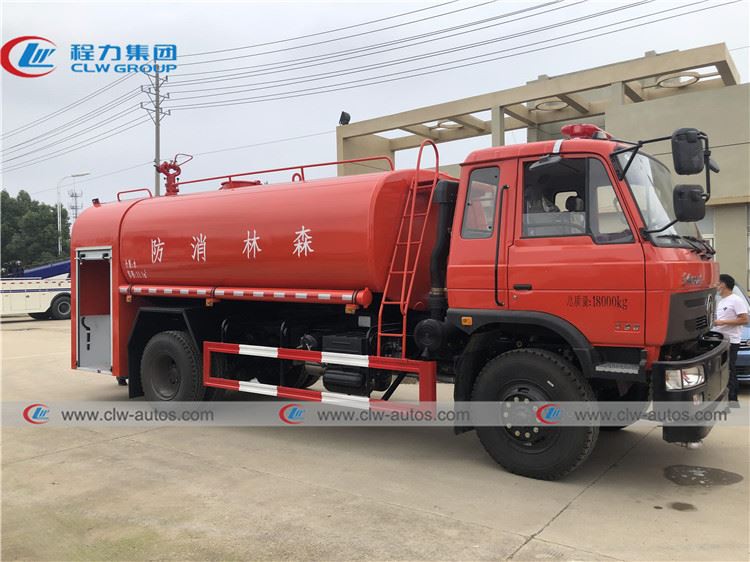

Dongfeng 10tons water sprinkler fire truck

Chassis brand: Dongfeng Tank volume: 10,000Liters/10tons Tank material: carbon steel Function: forest protection

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 10tons water sprinkler fire truck in China. If you're going to buy high quality dongfeng 10tons water sprinkler fire truck, welcome to get more information from our factory. For price consultation, contact us.

Product Description

Water sprinkler fire truck, which is also called water fire engine, water foam fire truck, fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Trucks can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Forest protection fire truck
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Water tower fire truck ;
--Earthquake rescue fire truck;

Product Specification

Overall Dimension(mm)	825024803310	Traction system	4x2, left hand drive
Gross weight(kg)	15550	Curb weight(kg)	8100
Wheel base (mm)	4500 mm	Axle number	2
Front/Rear suspension(mm)	1430/2070	Front/Rear track base (mm)	1880/1860
Approaching/Departure Angle(°)	24/12(°)	Rated load(kg)	7,400
Cab	Dual Cab, 2+3 seats, with air condition, alarm, lamp etc.	Maximum speed(km/h)	90
Number of Tyres	6 (+1 spare tire)	Tyre type	10.00R20
Working Range	Water ≥40 m	Tank Capacity	Water tanker	Foam Tanker	Dry powder
			10000L
Transmission	5 forwarder,1 reverse gear,manual operation	Horse Power	190 HP

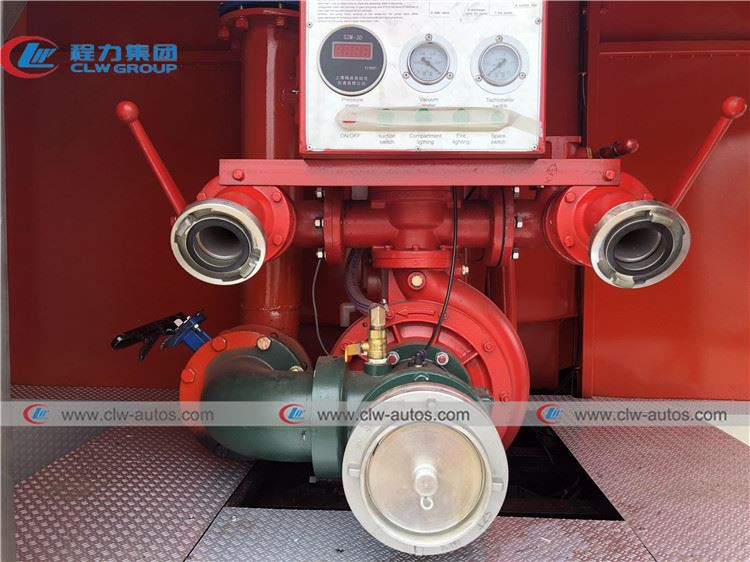

Fire Pump	1 Normal pressure fire pump Model number: BS40 flow rate: 40L/S, Pressure :1.0Mpa 2Middel and normal pressure fire pump Model number: CB20.10/10.20 Low-pressure flow:20L/S/1.0Mpa Medium-pressures flow 10L/S/2.0Mpa 3Time of drawing water: ≤35s(When the suction height is 7m)
Fire Monitor	Model PS20 Flow20 L/S Pressure1.0~1.2MPa Fire distance (water)Water ≥40m
Power take-off	Electromagnetic valve control
	Adjustable water-cooled
	Splash oil lubrication
Other Equipment	Light Bar, Remote control lamp, Flashing lights, Alarm,signs, etc.
