Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6x4 tractor head truck in China. If you're going to buy high quality 6x4 tractor head truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Engine:
1. Weichai, Dachai and Xichai national diesel engines, with the power covering 270-430 horsepower.
2. Standard water removal rate to better protect the engine.
3. engine braking wevb can extend the service life of the brake and improve the braking efficiency.
4. Equipped with fuel saving switch, which can realize multi power conversion, so that the vehicle has different choices under different working conditions.
Gearbox:
Equipped with two gearbox models of fast and FAW, including three types of overdrive, direct gear and with synchronizer.
Drive Axle:
Wheel reducing axle, 498 axle, 485 axle and 457 axle. Various options can make the vehicle adapt to various road conditions.
Specification
FAW Tractor | ||
Engine | Type | WP10.380E32 |
Specification | Turbo charged - Intercooler | |
Number of cylinders | Inline 6 - 2 valves per cylinder. | |
Max output power | 380HP | |
Max torque(N.m/rpm) | 1500 Nm a 1400 - 1600 rpm | |
Fuel type | Diesel | |
Emission standard | EURO III | |
Tank capacity | 8 tanks of 140 liters c / u | |
Clutch | Type | Dry Single disc, diameter 430 mm (17 ") |
| Drive | hydraulic air assisted. |
Transmission | Brand | EATON FULLER |
| Model | ET - 20113A |
| Number of speeds | 13 + 3 Reverse Gears, Mechanic |
synchronized. | ||
Axle and suspension | Front /Rear Axle(kg) | 7000/18000 |
| Front/Rear Suspension(mm) | 1493/800 |
Brake system | System | Full air, dual circuit independent |
| Motor brake | type butterfly valve, the exhaust |
| Parking brake | to the rear wheels. |
Dimensions and Weight | Overall dimension | 7543x2490x3450 |
| Wheelbase(mm) | 3800+1350 |
| Total Mass(kg) | 49000 |
| Kerb Mass(kg) | 10910 |
Tyre | Type | 12 R x 22.5 |
| AROS | Disc Type 9.00 x 22.5 - 10 bolts |
Equipment | Modern sleeper cab 24 "Radio, Digital Odometer, Tachometer, | |
Driver Seat with pneumatic adjustment, height adjustable rudder | ||
and depth, three pen wipers, seat belts, headlights foglamps. | ||

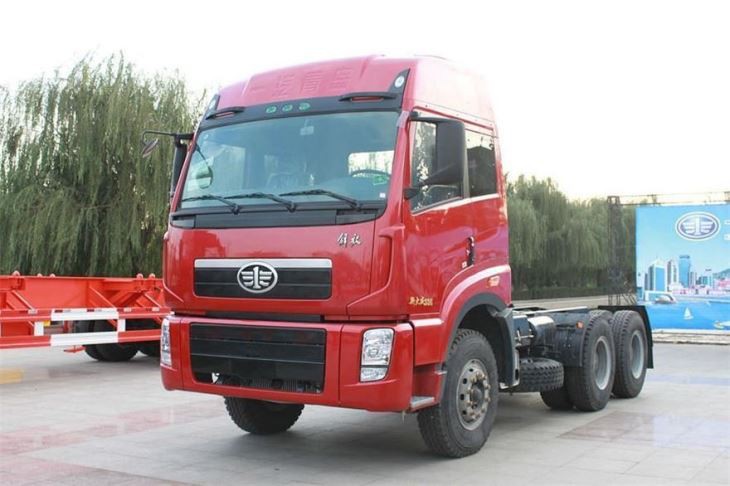

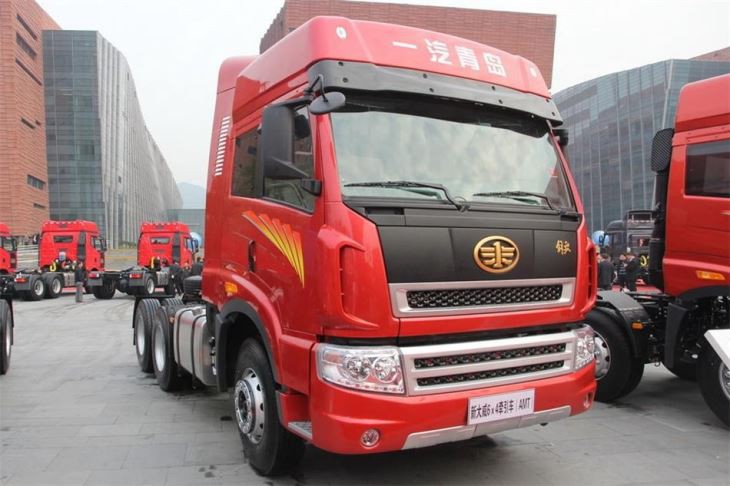

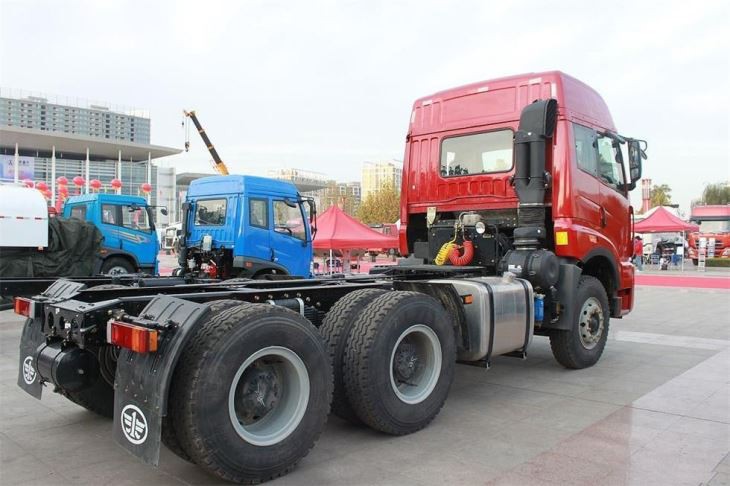

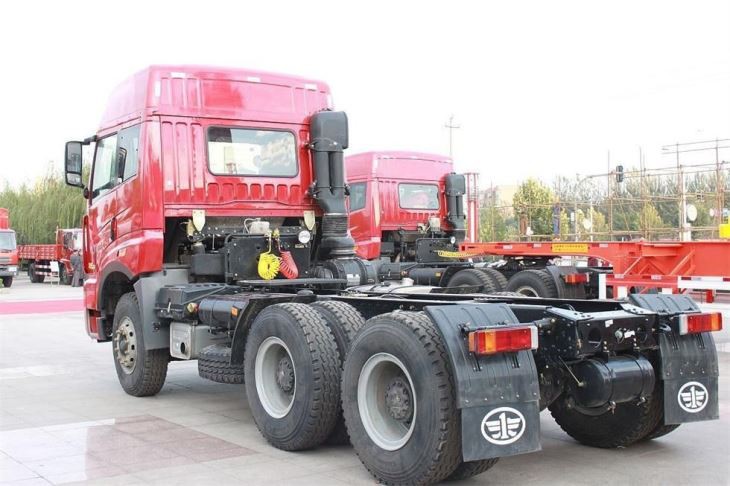

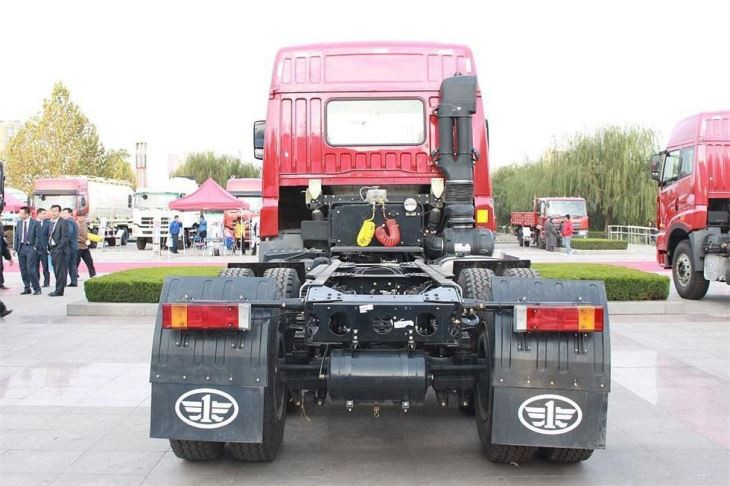

Reference Picture
Ordering Process
1. Thorough communication about the specification.
2. Confirm the ordering quantity payment terms, delivery time.
3. Sign Contract with Mutual Signature & Stamp
4. Arrange Prepayment & Start Production
5. Finished Production & Arrange Balance payment
6. Delivery to Customer’s country
7. Supply all the related shipping documents & Certificate.
8. Do after sales survey through time to time.
Our Advantage
1. Supplying Most Appropriate Model as per Customer’s requirement
2. Good Offer with flexible payment term.
3. On Site After sales service
4. Service Available for Delivery
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: Which brand of Tractor Head I can order from your company?
A: We can supply all brand of Tractor Head, including FAW, Sinotruk HOWO, Dongfeng, Shacman, FOTON, Beiben, Hongyan, etc.
Q2: What type of Tractor head we can order from your company?
A: Our company can supply driving mode 4x2, 6x4, also full driving mode 6x6 truck for off road use.
Q3: Have you supplied to Tractor Head to any renowned companies?
A: We have supply tractor head to some major oil & gas company in Africa.
Q4: What about warranty?
A: Our warranty for the tractor head is 12 months from the date of delivery for the major parts, including Engine, Gearbox, Axles. Easy Wore parts are not included.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
