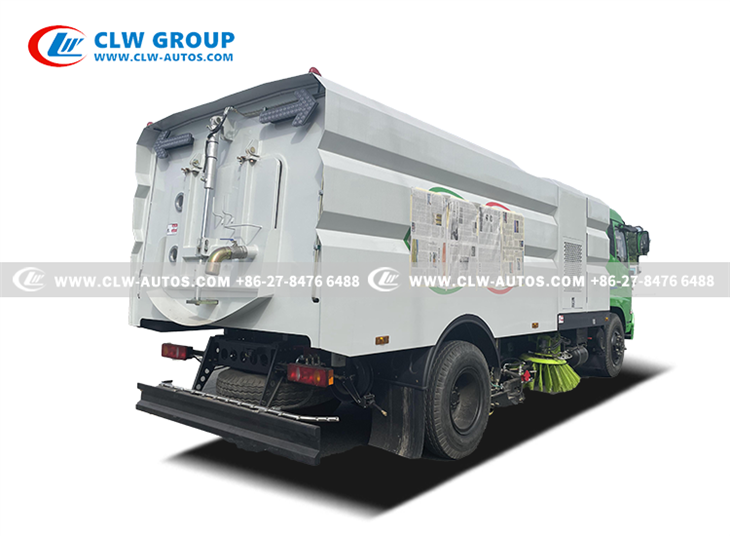

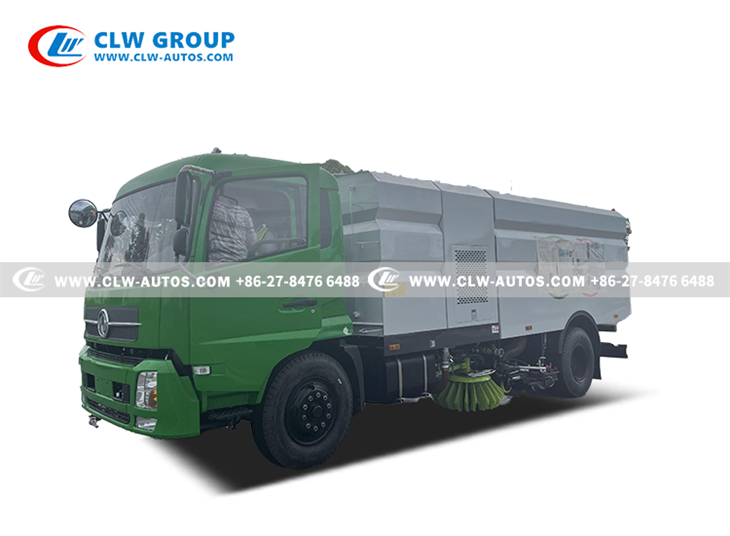

Dongfeng 16m³ Washing Dust Suppression and Sweeping Truck
For Cambodia
Sweeping and Washing Truck can be used individually as a road sweeper to carry out road sweeping and suction operations; and can be used as a high-pressure flushing vehicle to carry out road rinsing and suction operations; can also be used as a combination of road sweeping and suction and high-pressure flushing as a sweeper to realize the combination of sweeping, rinsing, pumping and washing to choose to use to meet the diverse needs of different users. Sweeper can be installed with sprinkler device front punch, rear sprinkler, anti-aircraft guns, fog machine, front spray, rear spray, telescopic reel, can also be installed with snow clearing function snow shovels, snow rollers; sweeper set of sweeping function, dust suction function, high-pressure cleaning function, sprinkler function, snow clearing function and a truly multi-functional sweeper can be called.
| Chassis parameters | |||
| Condition | New condition/Right hand drive/4x2 | ||
| Cabin | It can accommodate 2 people, With Air conditioner | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 7625kg | ||
| Wheelbase(mm) | 5000 mm | ||
| Dimensions(mm) | 8550 x 2500 x 3150 mm | ||
| Axle NO. | 2 | ||
| Front axle loading capacity | 5000 kg | ||
| Rear axle loading capacity | 10000 kg | ||
| Engine | Brand | Cumin | |
| Diesel Engine, 6 Cylinders | |||
| Horsepower(HP/KW) | 210 HP | ||
| Displacement | 5900 ml/cc | ||
| Emission standard | Euro 2 | ||
| Transmission | FAST Manual type, 8 Forwards and 2 Reverses | ||
| Tire | 10.00R20 | ||
| 6 wheels with 1 spare tire | |||
| Max.Driving Speed | 100 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brake | Air brake | ||
| Fuel Tank | Metal | ||
| Steering Gear | Power assistant | ||
| Upper Parameters | |||
| Item No. | Parameters | ||
| Tank | Water Tank | Tank Material: | Stainless steel |
| Tank Capacity: | 9 m³ | ||
| Garbage Tank | Tank Material: | Stainless steel | |
| Tank Capacity: |
7 m³ |
||
| Auxiliary engine | Model | Cumin | |
| Horsepower | 170 HP | ||
| Fuel Type | Diesel | ||
| Sweeping System | Type | Two brushes installed between front and rear axle, driven by gerotor motor. Left and right brushes are controlled to lift up and down separately. Rear brushes and suction nozzle are integrated controlled for up and down. |
|
| Suction Nozzle | Sweep Width | 3.5m | |
| Type | U-shaped | ||
| Cleaning Speed | 3~15 km/h | ||
| Max.Sweeping Capacity | 48000m2/h | ||
| Garbage Dump Angle | ≥ 45° | ||
| Max.Inhaled Particles | ≥ 120mm | ||
| Sweeping Efficiency | ≥ 96% | ||
| High Pressure Flushing Reel | 18m | ||
| Basic Configuration | Front flush, rear sprinkler, side sprayer | ||
| Remarks | 1.Color is optional 2. Customized LOGO painting as per customer request |
||
Multi-functions
√ Road surface cleaning
√ Road surface sweeping
√ Curb cleaning
√ Curb and curbstone elevation scrubbing
√ Low-pressure flushing spraying and dust removal
Cleaning Mechanism
√ Quadruple rotation brush system with rear vacuum extrction
√ Independent brush operation capability for flexible cleaning
√ Smart collision avoidance technology - brushed retract automatically when encountering obstacles and reset afterward
√ Integrated high-pressure spray nozzles (stainless steel construction) for effective dust suppression
Discharge System
√ Hydraulic dump mechanism with twin cylinder actuation for reliable ejection
√ Rear access portal features:
√ Hydraulic operation
√ Optimized inclined plane design for efficient material flow
Brush Features
√ Single Sweep Discs: Left/right independent single-disc design reduces brush wear and costs.
√ Flexible Modes: Sperate control enables left/right/full sweeping combinations.
√ Wide Suction Nozzle: 2418mm width ensures, >3.5m total working span.
√ Adjustable Wheels: 4 height-tunable nozzle wheels optimized ground clearance.
√ Internal Spray Bar: High-pressure nozzles inside the nozzle minimize dust/water splash.
