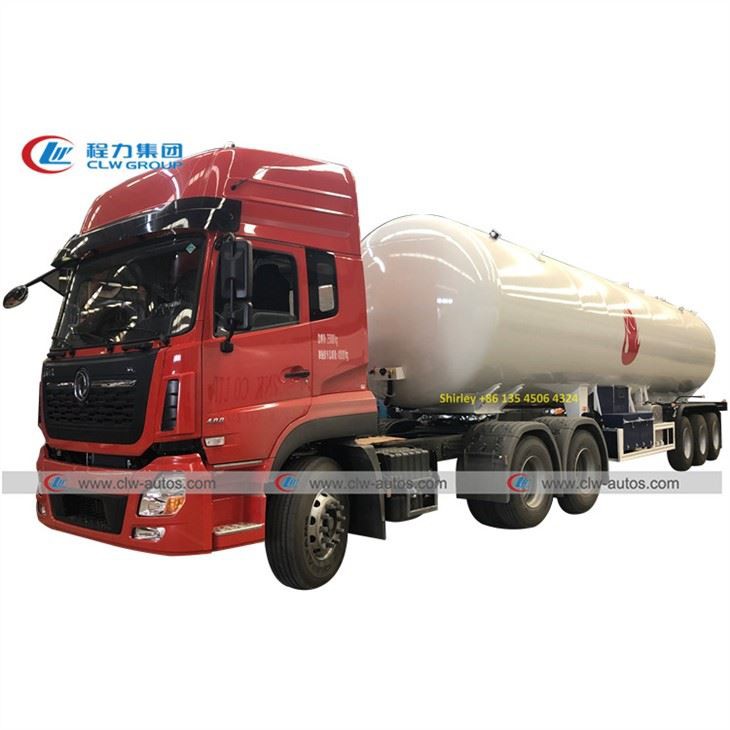

49600L 25MT Propane Gas Tanker Trailer
Tank size:49600L/49600Liters/49.6CBM;
Tank material:Q345R
Axle:FUWA,BPW,L1
Tire:12R22.5
Medium:Propane/LPG
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 49600l 25mt propane gas tanker trailer in China. If you're going to buy high quality 49600l 25mt propane gas tanker trailer, welcome to get more information from our factory. For price consultation, contact us.
Function
--Propane tanker trailer(also called propane road tanker,propane tank trailer,lpg tanker trailer,gas transport truck,lpg bridger truck,lpg tanker truck,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker semi trailer,lpg tanker,lpg semi trailer,liquified petroleum gas truck) is used to transport liquified petroleum gas/propane gas/cooking gas/lpg/butane in large quantity and in long distance from gas depot or terminal station to smaller lpg stations in other cities.
--Propane tanker trailer from clw group is optional for tank size from 40,000litera to 61,900liters usually,from 18tons to 30tons.
--Design standard: GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,auxiliary fuel box
--Material: Q345R;
--Optional for axle brands:13Tons BPW,FUWA,L1 and so on.
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
whatsapp +86 13545064324
youtube https://www.youtube.com/watch?v=9ygdMl6UZ54&list=PLbL-g-SP8MREK5gFx_tXrNFAj34m3-gAZ&index=34
Reference picture

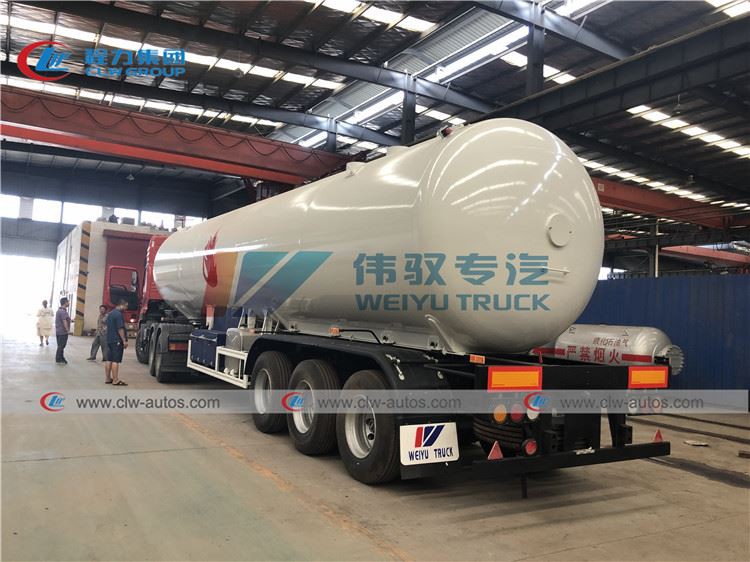

★Rear view of 25mt propane tanker trailer with level gauge

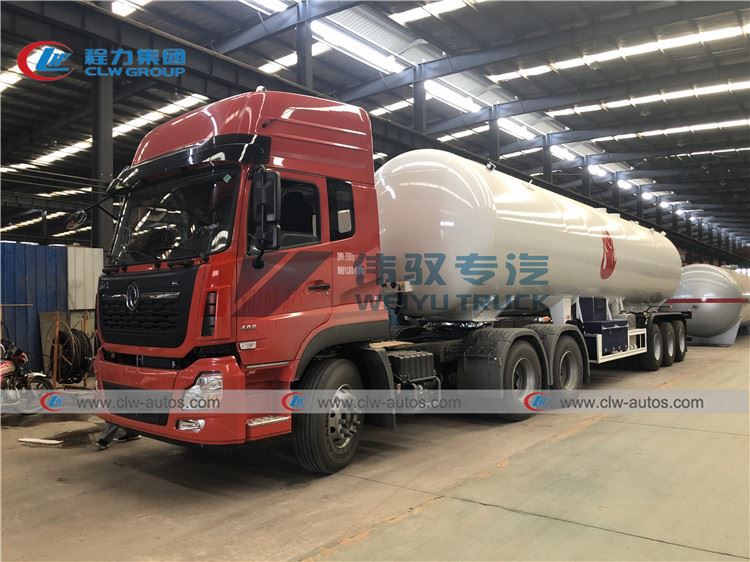

★front view of 25mt propane tanker trailer with dongfeng truck head

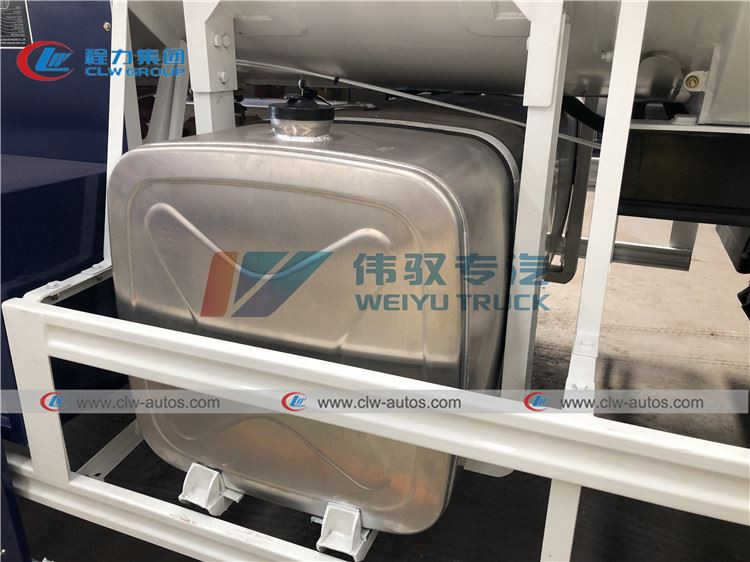

★1000L auxiliary fuel box of 25mt propane tanker trailer(optional part)

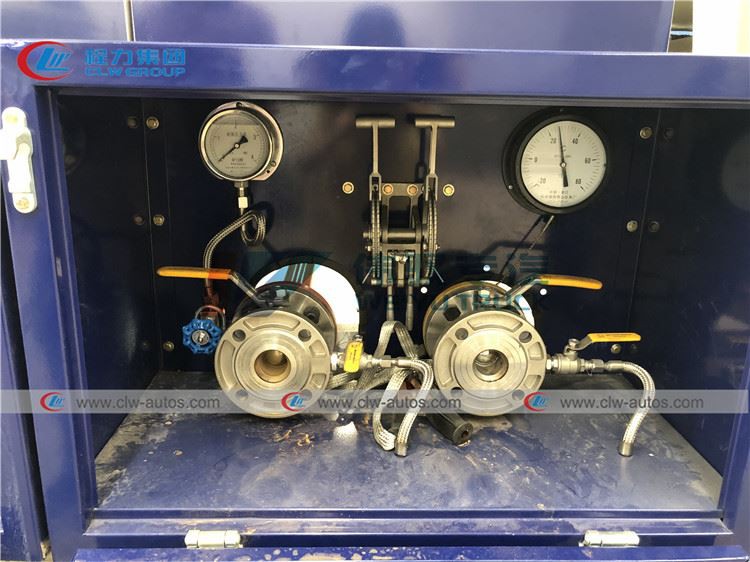

★Emergency shut off of 25mt propane tanker trailer(loading at both sides of propane trailer)

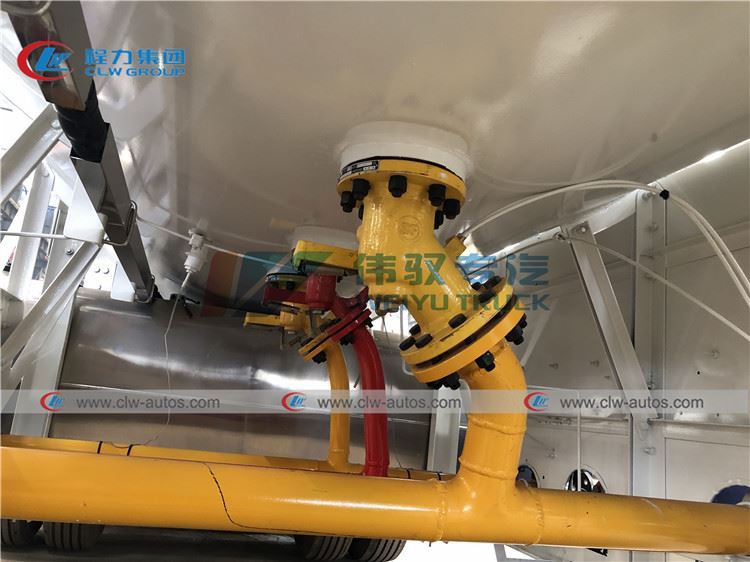

★flange type liquid and vapour phase of 25mt propane tanker trailer
★steel fence of 25mt propane tanker trailer

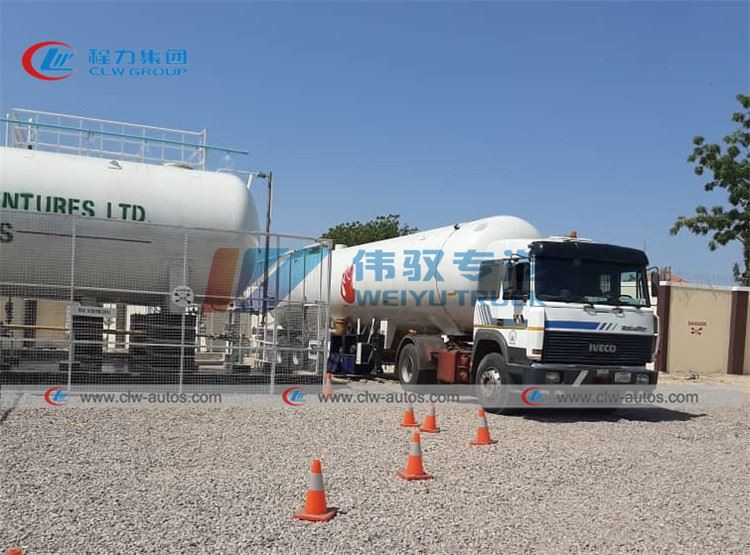

★feedback pictures from client of 25mt propane tanker trailer
Drawing
Specification
VESSEL | |||
To be constructed and tested according to Chinese GB/19905-2017 “LPG TRANSPORT TRUCK”,GB150.1~4-2011 “PRESSURE VESSEL” | |||
Water capacity of Tank | 49.6CBM | ||
Overall Dimensions(L*W*H) | 12740*2480*3800mm | ||
Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12372mm | ||
Estimated Tare Weight (kg) | 15300 | ||
Payload(kg) | 20832 | ||
Total Weight(kg) | 36132 | ||
Wheelbase(mm) | 6800+1300+1300 | ||
Loading medium | Liquefied Petroleum Gas (propane) | ||
Fluid Property | Flammable | ||
Design Temperature | -19 ℃~+50 ℃ | ||
Design Working Pressure | 1.61 Mpa/16.1 Bar | ||
Hydraulic Testing Pressure | 2.12 Mpa/ 21.2 Bar | ||
Corrosion Allowance(mm) | 1.00 | ||
Weld Joint Factor | 1 | ||
Major Tanker Materials and Thickness | Tanker body: Q345,12mm, | ||
End plate：Q345R,12mm,double ellipse | |||
VALVES AND FITTINGS | |||
Emergency Shut-off Valves | Model | Vapour phase | QGJ43F-2.5-8 |
Liquid phase | QGJ43F-2.5-7 | ||
Size | Vapour phase | DN25 or DN50/1” or 2” as required | |
Liquid phase | DN50 or DN80/2” or 3” as required | ||
Type | Mechanical operated | ||
Shuf off time | ≤10 S | ||
Melting-close time | 75±5 | ||
Safety Valve | Model | A412-25-16 | |
Type | Build-in | ||
Nominal pressure | 2.5Mpa/25 Bar | ||
Valve base throat Diameter | 53 mm | ||
Curb discharge pressure | ≤1.93 | ||
Level gauge | YWJ-25A,manual rotation type with measuring range 50~2475mm | ||
Pressure Gauge | YN-100T | ||
Thermometer | WTQ280 | ||
KING PIN AND COUPLING | |||
2” or 3” JOST king-pin,suitable for 4X2 or 6X4 truck head | |||
BRAKING SYSTEM | |||
WABCO RE 6 relay valve; Spring brake chamber; 45L air tanks | |||
FABRICATION&TESTING | |||
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ | ||
Flaw Detection of All Plate | 100% Flaw detection | ||
Radio graphic testing of welding lines | 100% | ||
Air leakage test for piping and valves | 100% | ||
LOADING CABINET | |||
All loading and unloading valves will be placed in a lockable metal cabinet at both sides of tanker trailer | |||
The cabinet will be placed under the tanker between landing leg and axles | |||
PAINT WORK | |||
Two under coating of premier | |||
Two coats of synthetic enamel | |||
Customized color of tanker body and logo | |||
RUNNING SYSTEM | |||

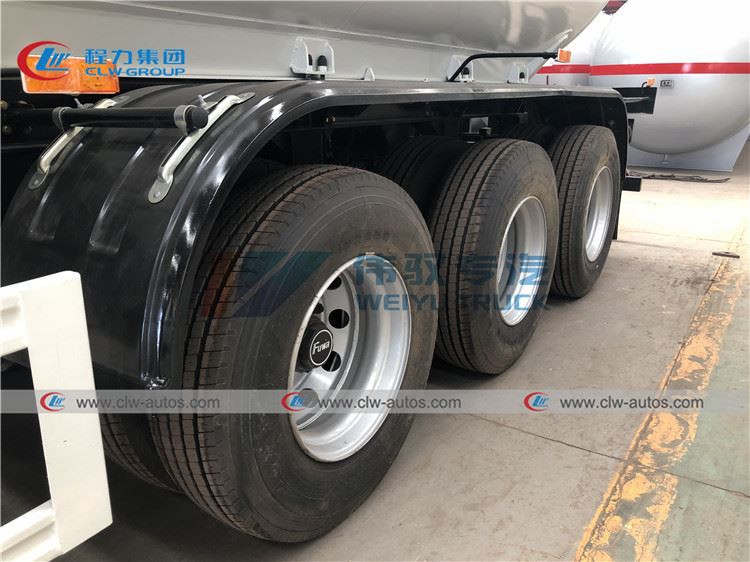

Axles | 3*12T FUWA brand | ||
Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire | ||
Design speed | 80 km/h | ||
Tire Carrier | 2 pcs | ||
