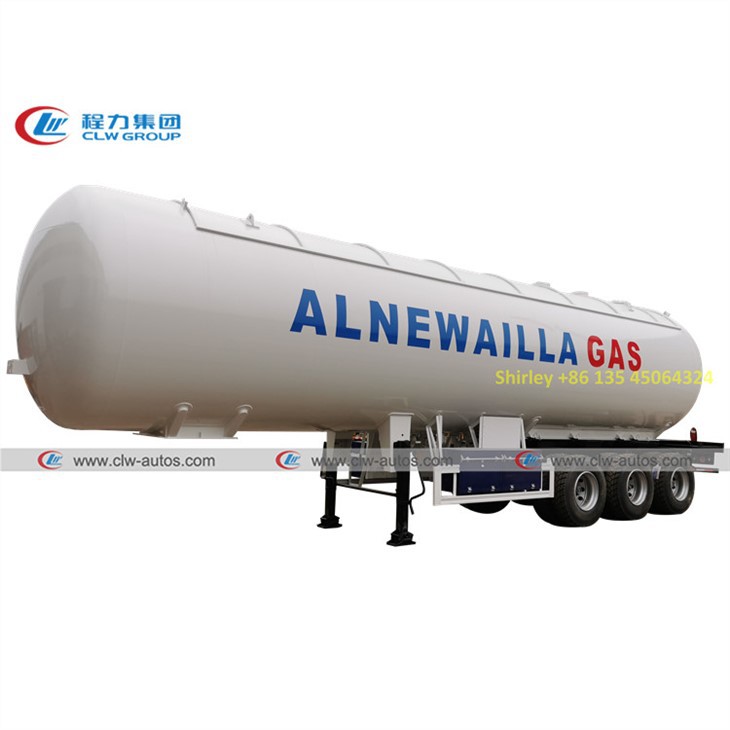

54000L 25MT LPG Transport Tanker Truck With Sun Shelter
Tanker size:54000L/54CBM;
Tank material:Q345R
Axle:FUWA,BPW,L1
Tire:12R22.5
Medium:Propane/LPG
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 54000l 25mt lpg transport tanker truck with sun shelter in China. If you're going to buy high quality 54000l 25mt lpg transport tanker truck with sun shelter, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG Transport Tanker truck(also called lpg tanker truck,lpg transport truck, lpg tanker trailer,gas transport truck,lpg bridger truck,lpg tanker truck,lpg truck trailer,23tons lpg truck,23mt lpg truck,54m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer,liquified petroleum gas truck,three axle lpg truck) is mainly used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from gas depot or terminal station to smaller lpg stations in other cities.
Above 54000L/54000Liters/54cbm lpg transport tanker truck is equipped with Sun shelter and designed for Zimbabwe gas transport company. The sunshelter on top of lpg transport tanker truck is an optional equipment and it is used to avoid over heating in hot weather in Africa.
--LPG transport tanker truck is optional for tank size from 40,000litera to 61,900liters usually,from 18tons to 30tons.
--Design standard: GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump
--Material: Q345R;
--Optional for axle brands:BPW,FUWA,L1 and so on.
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
whatsapp
Reference picture

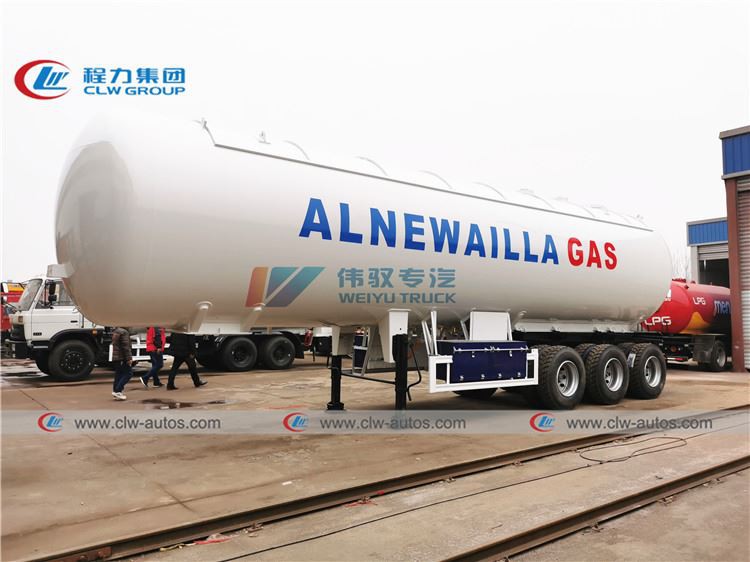

(front side view of 54000L lpg transport tanker truck for ALNEWALLA GAS)

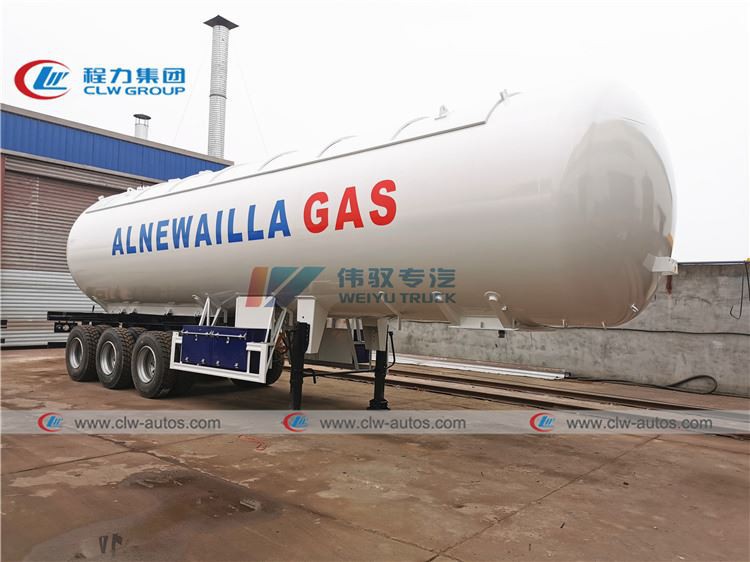

(front side view of 54000liters 23tons/25tons lpg transport tanker truck for Zimbabwe)

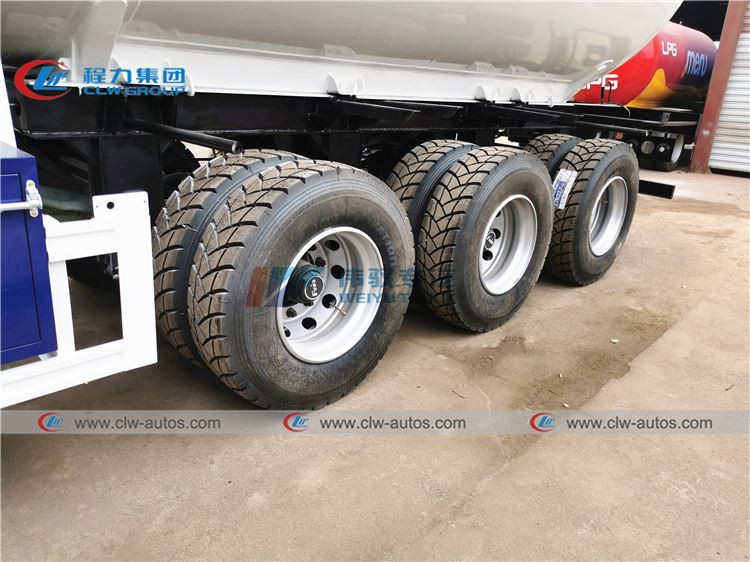

(Tires and FUWA axles of 54000liters 23tons/25tons lpg transport truck for Zimbabwe)
(Float ball level gauge of 54000liters 23tons/25tons lpg transport tanker truck for Zimbabwe)

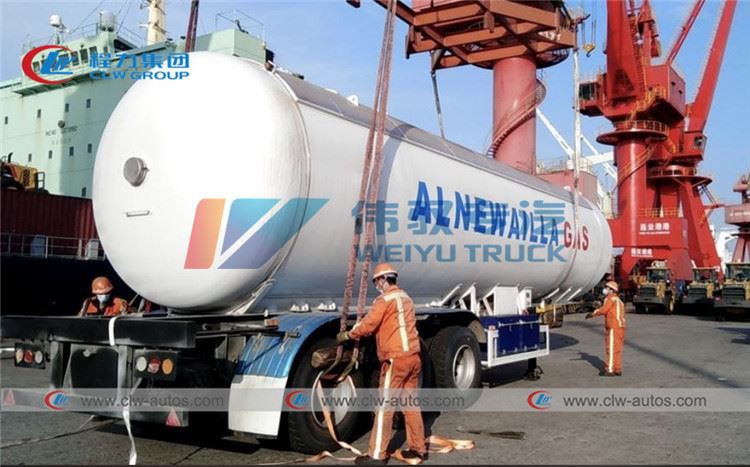

(Shipment of 54000liters 23tons/25tons lpg transport tanker trailer to Beira port)

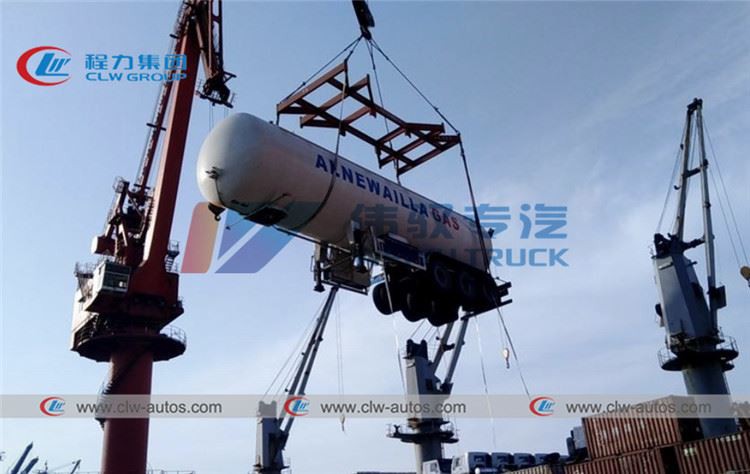

(54000liters 23tons/25tons lpg transport tanker trailer is lifted and will be shipped by bulk ship)
Drawing
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 54 |
Overall Dimensions(L*W*H)(mm) | 12700*2550*3990 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*11450 |
Estimated Tare Weight (kg) | 15000 |
Payload(kg) | 22680 |
Total Weight(kg) | 37680 |
Wheelbase(mm) | 6800+1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
End plate：Q345R,14mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel rotation type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*12T FUWA brand |
Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 2 pcs,1 for liquid phase and 1 for vapour phase |
Ball Valve | 4pcs,can be discharged and loading at two sides. |
Thermometer | 1 |
Pressure Gauge | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 2 |
Paint | As Customer’s Requirement |
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
