10m3 Skid LPG Cylinder Refilling Plant with Cylinder Filling Weight Scales
Goods Dsecription:
1. Feeding gas to transport vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
2. Unloading: The LPG tank truck can unload the medium to the storage tank on the skid-mounted plant smoothly
3.Drainage: The sundries like water-logging in the storage tank will be drained through the drain outlet.
4. Emptying: The residual pressure in storage tank can be released through the emptying port during overgauling.
5. Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
6. Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
7. Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
8. Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
9. LIquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Feature
LPG gas station consists of a storage tank and two pumps, Pipe section, one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily. The structure of lpg gas station is divided into four parts, the tank, skid body, LPG dispenser or filling weight scales, electronic control box.
LPG gas station must do nondestructive examination, air tight test, hydrostatic test and any other inspections. Applicable Industries petrochemical, coal chemical, precision chemical, nuclear power, metallurgical pharmaceutical, machinery, food, pesticide, rubber, aerospace, marine, dye, new power equipment and so on.
Technical parameter
10CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 10CBM, 10000Liters, 10M3, 10 cubic meters | ||
Filling Weight | 5000 kg | ||
Tank Weight | 2600 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 11 mm | ||
Tank Diameter (mm) | 1600 mm | ||
External Dimensions (mm) (length x width x height) | As designed | ||
Overall Skid Size | As designed | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Test Pressure | 2.22 Mpa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50-2" | 1 | |
Inflow Pipe | DN50-2" | 1 | |
Outlet | DN50-2" | 1 | |
Gas phase balance pipes | DN50-2" | 1 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50-2" | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||

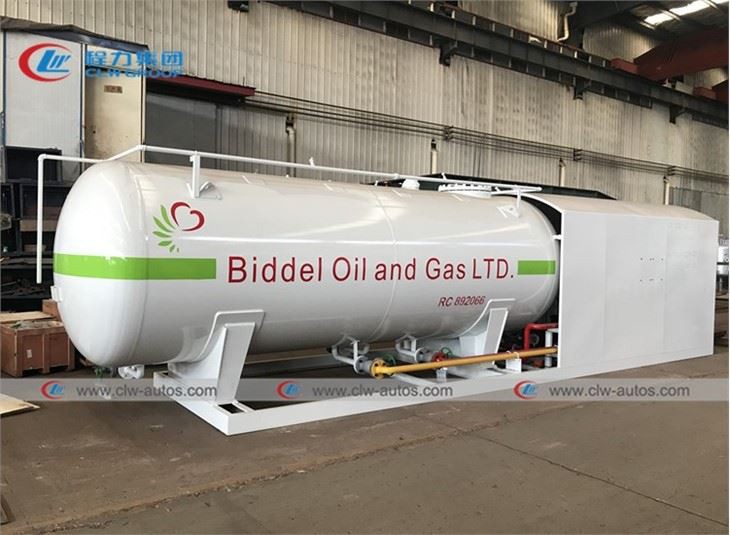

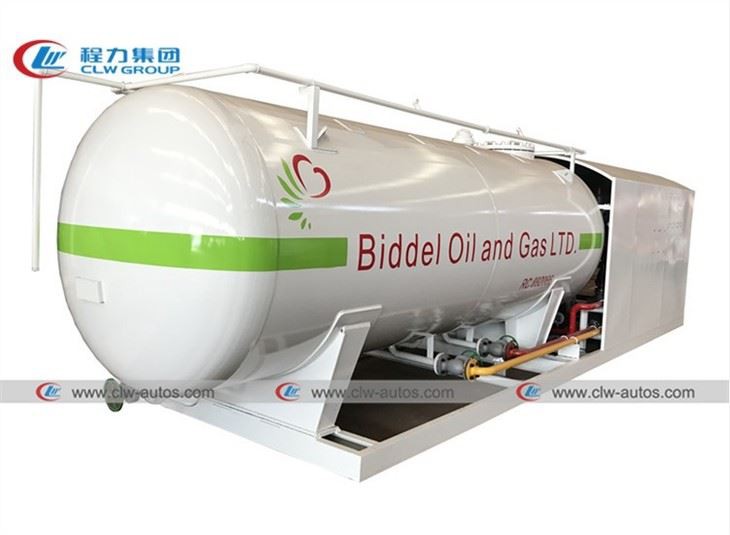

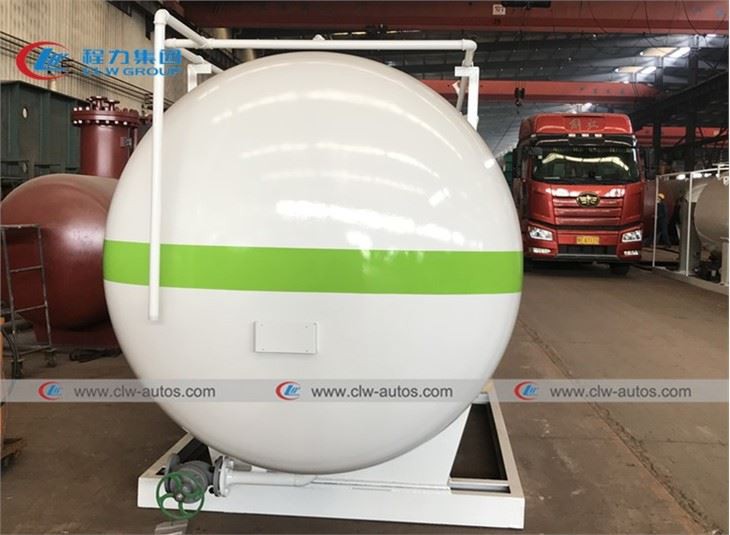

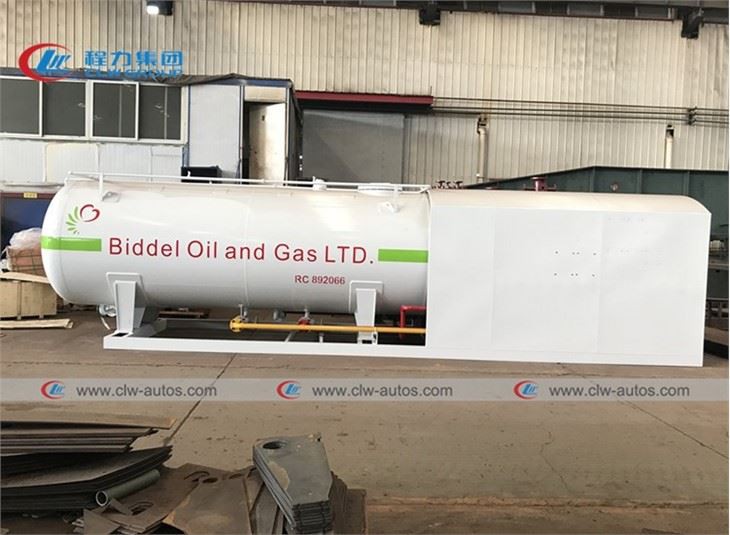

Real pictures for 10m3 5Tons Skid LPG Cylinder Filling Tank Station:
The 10m3 5Tons Skid LPG Cylinder Filling Tank Station is equiped with two sets of Pump & Exprosion-proof motors, One set of it as spare. Exprosion-proof lamp,
Real pictures of Pump & Exprosion-proof motors:
The 10m3 5Tons Skid LPG Cylinder Filling Tank Station is equiped with 4 sets of LPG cylinder filling weight scales:
