Product Description:
1. LPG Skid Station for cooking gas refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector.
10CBM LPG TANKER DIMENSIONS | |||
Volume of Tank | 10CBM | ||
Filling Weight | 5000 kg | ||
Tank Weight | 2950 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 10 mm | ||
Tank Diameter (mm) | 1600 mm | ||
External Dimensions (mm) (length x width x height) | 5260 x 1620 x 1800 mm | ||
Overall Skid Size | 6000 x 1620 x 2200 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Test Pressure | 2.22 Mpa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50-2" | 1 | |
Inflow Pipe | DN50-2" | 1 | |
Outlet | DN50-2" | 1 | |
Gas phase balance pipes | DN50-2" | 1 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50-2" | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
LPG Skid Part list | ||
Item | Model Number | Quantity |
LPG Tanker | LPG Storage Tank with tank accessories | 1 piece |
LPG Filling Pump | 2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, | 1 Piece |
Cylinder Filling Scale | Can fill 3kg to 150kg LPG cylinder | 2 Piece |
Leakage Detector | Leakage warning detector | 1 Unit |
Pipes | / | 1 sets |
Cut-off Valve | J41N-40 DN50 | 5 Pieces |
Ball Vavle | DN50 | 8 Piece |
Safety Valve | A42F-25 DN50 | 1 Piece |
Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
Ball floating level gauge | UQZ-2.5P | 1 Piece |
Discharging pipe | L=4M DN50/DN25 | 1 Piece |
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
Flange | 2.5MPaDN15 | 20 Pieces |
Pressure Gauge | 0 ~4Mpa | 1 Piece |
LPG Tanker | LPG Storage Tank with tank accessories | 1 piece |

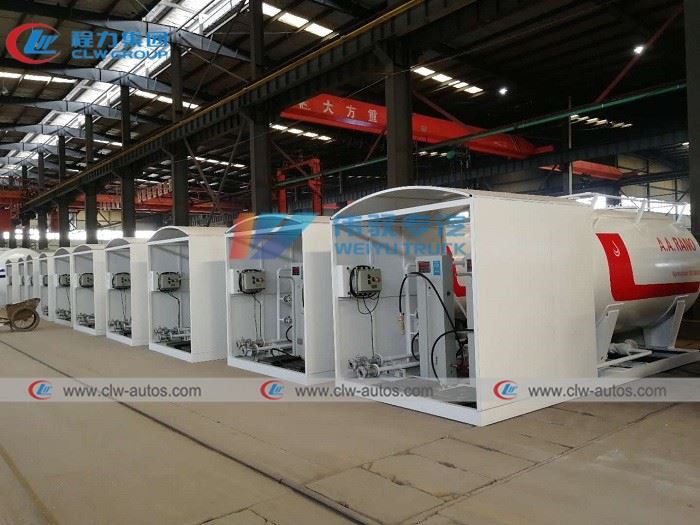

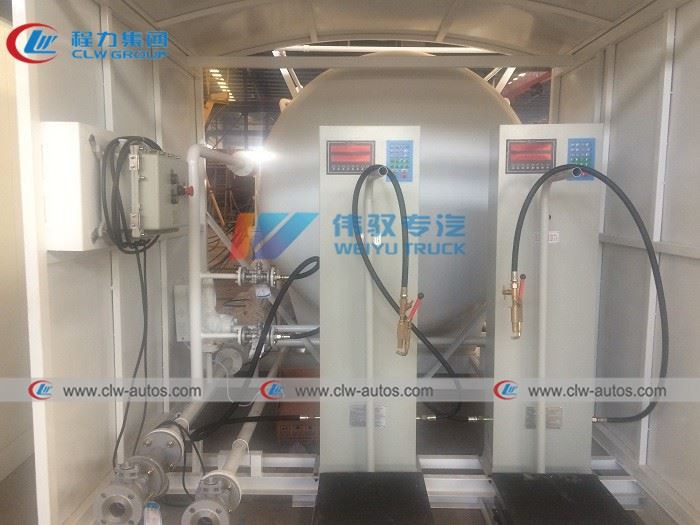

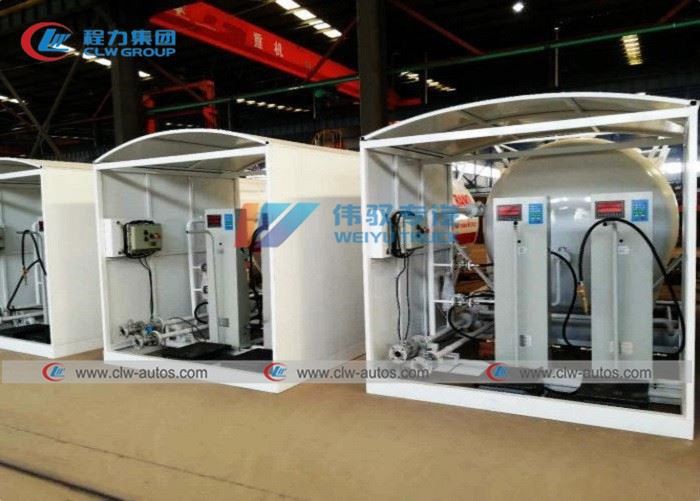

Reference Photos:
