Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 20tons firefighting water bowser in China. If you're going to buy high quality shacman 20tons firefighting water bowser, welcome to get more information from our factory. For price consultation, contact us.

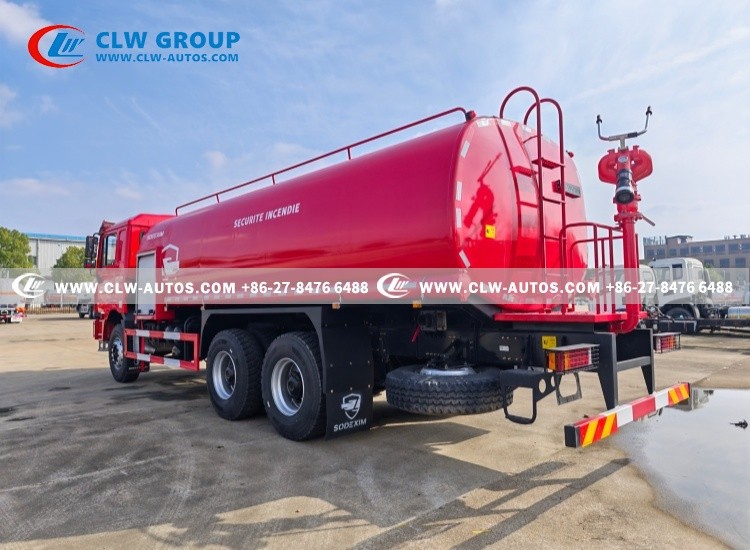

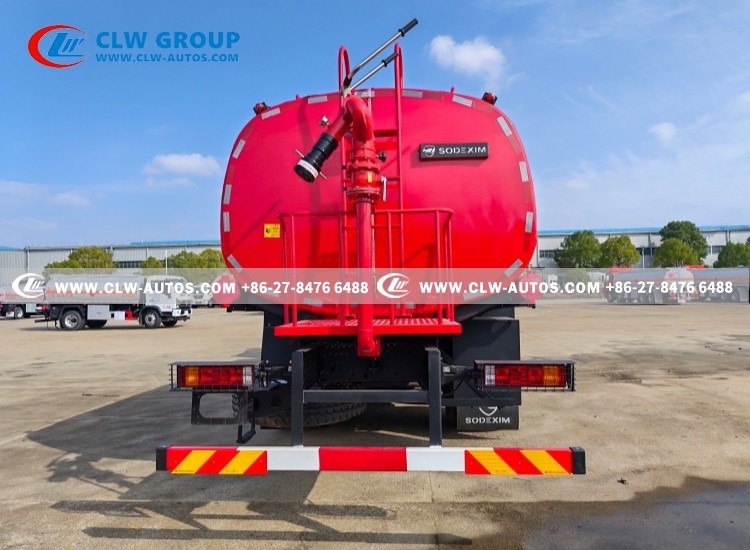

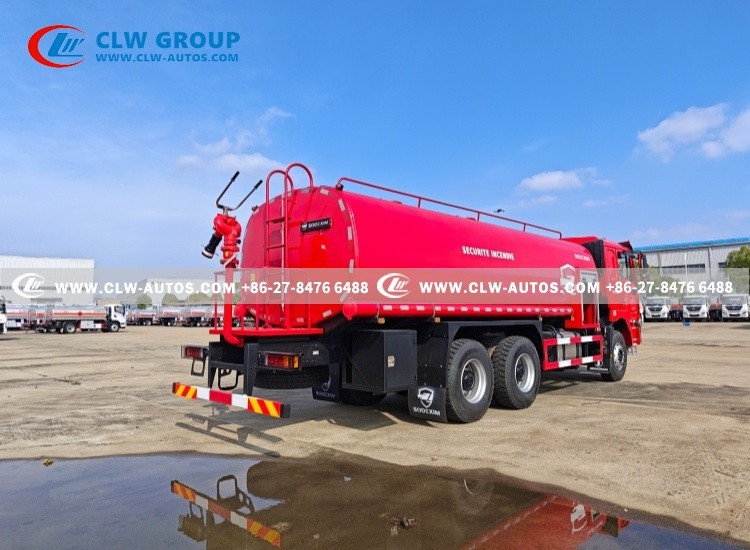

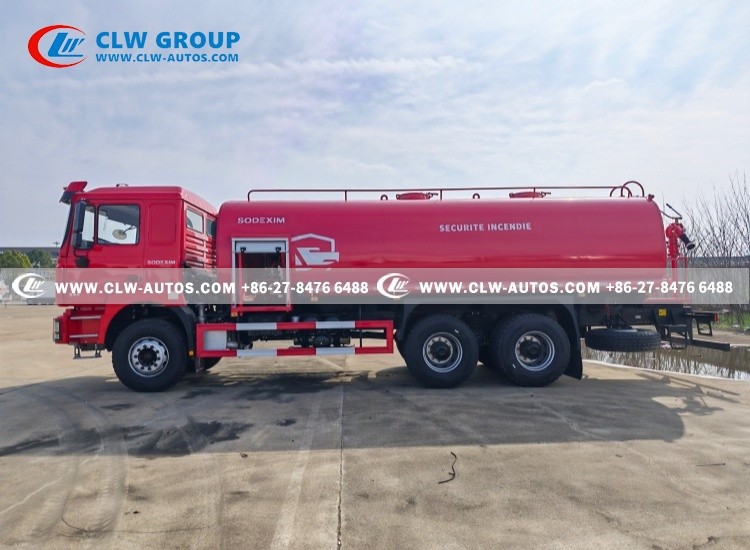

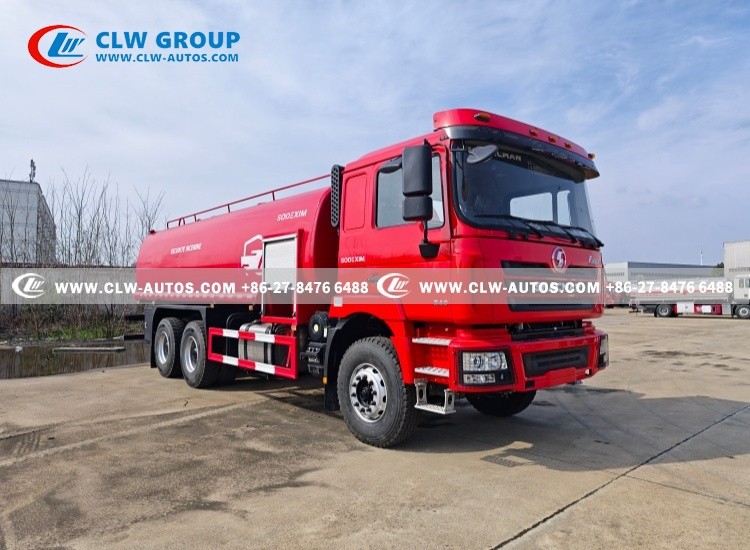

The SHACMAN F3000 6×4 20,000L Firefighting Water Bowser is a purpose‑built mobile water supply and fire suppression truck engineered for industrial fire protection, remote area firefighting, and emergency response. Combining a 20,000‑liter (20,000L) water tank, a high‑flow fire pump, and a remotely controlled water cannon/monitor, this rugged water bowser delivers exceptional fire‑fighting capability where fixed hydrants are unavailable or where large water volumes are required for sustained operations.
Built on the reliable SHACMAN F3000 6×4 heavy‑duty chassis (10 wheels, 3 axles, dual rear drive), this firefighting truck is ideal for petrochemical plants, mining sites, airports, forestry services, municipal fire brigades, and disaster response teams. Its large water capacity and powerful pump enable initial attack, structure protection, and support for wildland firefighting, while the integrated monitor allows safe stand‑off firefighting from up to 70 meters.

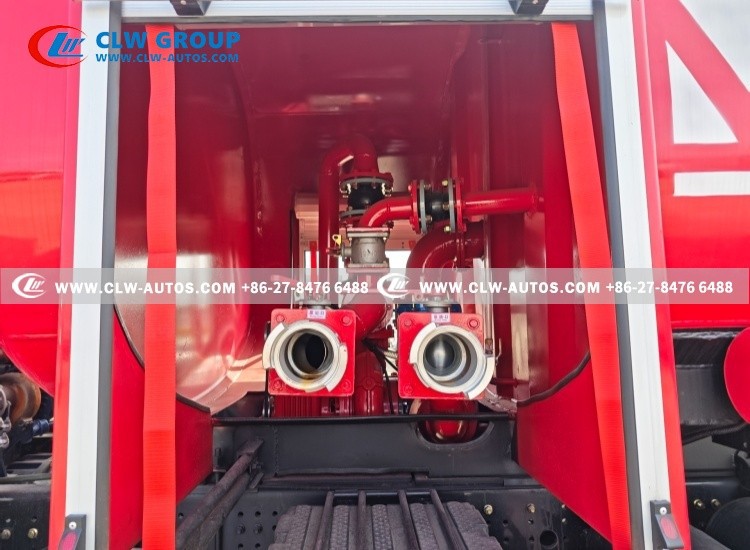

| Parameter | Specification |
|---|---|
| Pump Type | Single‑ or two‑stage centrifugal fire pump |
| Flow Rate | 60 – 100 L/s (3,600 – 6,000 L/min) at 1.0 – 1.4 MPa |
| Priming System | Automatic electric or manual vacuum priming |
| Suction Capability | ≥ 7 meters vertical lift from open water |
| Pump Location | Rear‑mounted or mid‑ship (customizable) |
| Drive | PTO from truck transmission |
High‑Pressure Capability: Can supply multiple attack lines or a large monitor simultaneously.
Self‑Suction: Drafts from ponds, rivers, or portable tanks – no hydrant required.
| Feature | Specification |
|---|---|
| Monitor Type | Electro‑hydraulic, remote‑controlled (cab or wireless) |
| Flow Capacity | 50 – 80 L/s (3,000 – 4,800 L/min) |
| Water Range | 70 – 80 meters (jet mode) |
| Fog Range | 40 – 50 meters (fog mode) |
| Rotation | 360° continuous |
| Elevation | -15° to +75° |
| Pattern Control | Jet, fog, or combination |
Safe Stand‑Off Distance: Operator stays in cab or at safe distance – ideal for flammable liquid fires or structural collapse.
Precision Targeting: Joystick control for pinpoint accuracy.
Basic Water Sprinkler Truck's functions:

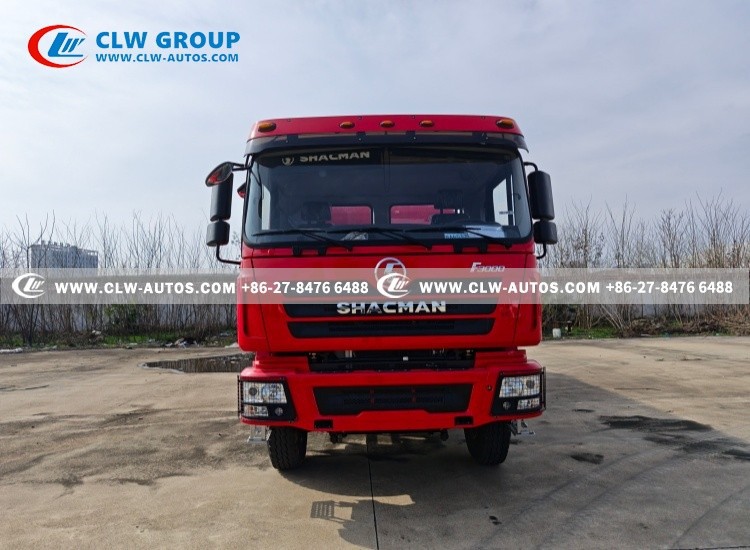

SHACMAN F3000 6×4 heavy duty Truck Chassis:
| Parameter | Specification |
|---|---|
| Chassis Model | SHACMAN F3000 6×4 Heavy Duty |
| Engine | WEICHAI WP10 / WP12 series, 340 – 420 HP, Euro II, or V/VI |
| Transmission | FAST 9 – 12 speed manual with PTO |
| Drive | 6×4 (10 wheels, dual rear drive) |
| Suspension | Heavy‑duty multi‑leaf springs |
| Brakes | Dual‑circuit air brakes with ABS |
| Tires | 12.00R20 (10+1) |
| Fuel Tank | 300 – 400 L |
Fire Water Tanker Parameters:
| Water Tank Capacity | 20,000 liters/20 Cubic Meters/20 Tons |
| Fire Pump Flow | 60 – 100 L/s |
| Fire Pump Pressure | 1.0 – 1.4 MPa |
| Fire Monitor Flow | 50 – 80 L/s |
| Fire Monitor Range | Up to 80 m (water jet) |
| Hose Storage | 200 – 400 m |
| Crew Capacity | 3 – 9 persons |
| Overall Length | 9.5 – 10.5 m |
| Overall Width | 2.55 m |
| Overall Height | 3.2 – 3.6 m |
| Gross Vehicle Weight |
25,000 – 28,000 kg
|
| Application | Why This Water Bowser Excels |
|---|---|
| Petrochemical & Oil Refineries | Large water capacity + remote monitor for safe flammable liquid fire attack |
| Mining Sites | Off‑road chassis; draft from pit ponds; dust suppression and fire standby |
| Airports | Rapid response for aircraft incidents; high‑flow monitor for fuel fires |
| Forestry & Wildland | 20,000L water for sustained mop‑up; self‑suction from natural sources |
| Industrial Warehouses | Protect large storage facilities with high‑volume water delivery |
| Municipal Fire Brigades | Support primary pumpers with water supply and monitor attack |
| Disaster Response | Mobile water supply for earthquake, flood, or wildfire relief |
Self‑Sufficient: 20,000L water + self‑suction – no external water supply needed
Safe Attack: Remote monitor keeps operators at safe distance from chemical or fuel fires
High Flow: 100 L/s pump can handle large industrial incidents
Large Capacity: Reduces water shuttle trips – critical where water sources are scarce
Off‑Road Capable: 6×4 chassis reaches remote fire locations
Multi‑Use: Firefighting, water hauling, dust suppression
Dust Control: Wide‑angle spray nozzles for haul road dust suppression
Fire Standby: Essential for hot work (welding, grinding) and fuel storage areas
Emergency Response: Rapid deployment for vehicle or equipment fires
Petrochemical & Oil Refineries: Industrial fire brigades
Mining Companies: Open‑pit and underground mine fire protection
Airport Authorities: ARFF backup and runway fire coverage
Forestry & Wildland Agencies: Remote area fire suppression
Industrial Facilities: Power plants, steel mills, chemical plants
Municipal Fire Departments: Water supply and monitor support
Construction Contractors: Site fire standby and dust control
SHACMAN F3000 fire bowser, 20,000L water tanker with fire pump, industrial firefighting truck, remote control water monitor, 6×4 fire water bowser, high flow fire pump, off‑road firefighting vehicle, mining fire truck, airport crash tender substitute, wildland fire support, petrochemical fire truck, self‑suction fire tanker, SHACMAN 6×4 fire engine, 100 L/s fire pump truck, emergency water supply bowser.
Industrial Strength, Firefighter Ready – The SHACMAN F3000 20,000L Firefighting Water Bowser Delivers High‑Flow Suppression and Remote Monitor Control for the Toughest Fire Protection Demands.
For Municipal Fire Sprinkler Truck/Industrial Fire Water Spray Truck/Construction Site Fire Water Truck/Mining Fire Fighting Water Bowser
Airport Fire Sprinkler Support Truck/Rural Fire Fighting Water Tanker
