Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 600p 3tons water tank fire fighting truck in China. If you're going to buy high quality isuzu 600p 3tons water tank fire fighting truck, welcome to get more information from our factory. For price consultation, contact us.

Product description

Fire truck is also called fire fighting truck, fire fighter truck, fire engine, fire vehicle, fire pumper truck, fire rescue truck, etc.

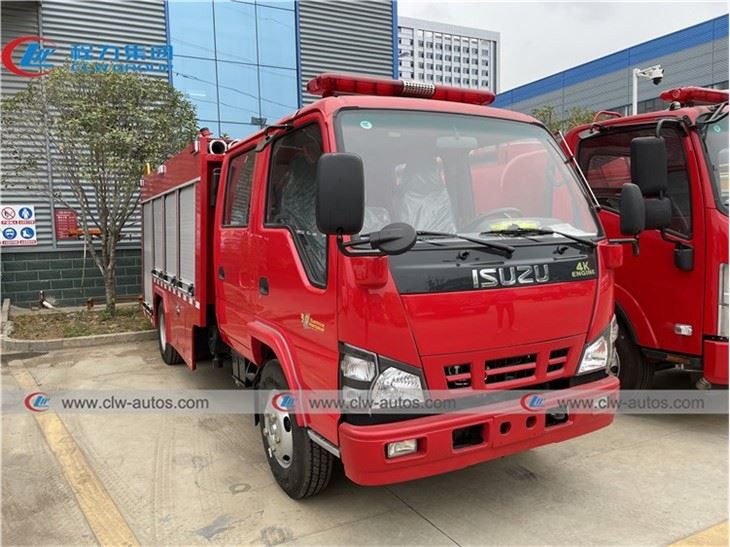

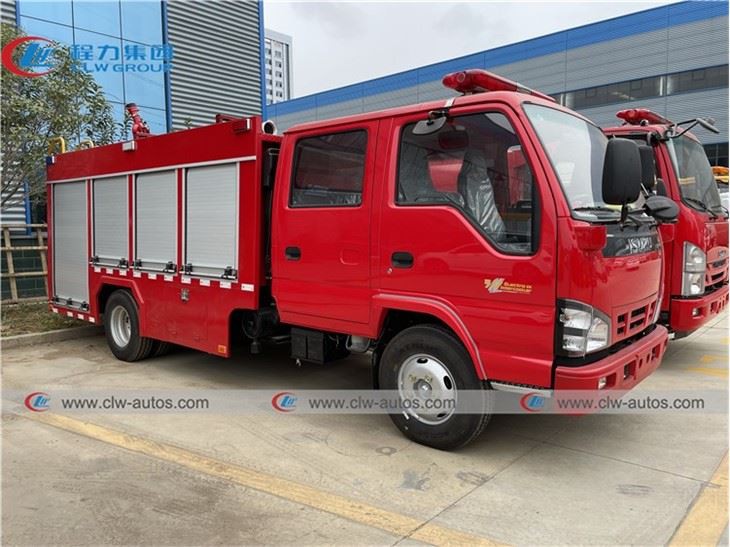

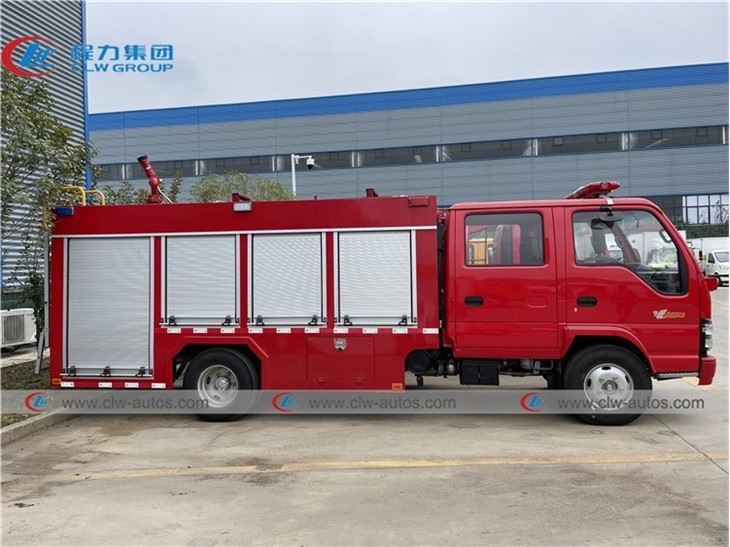

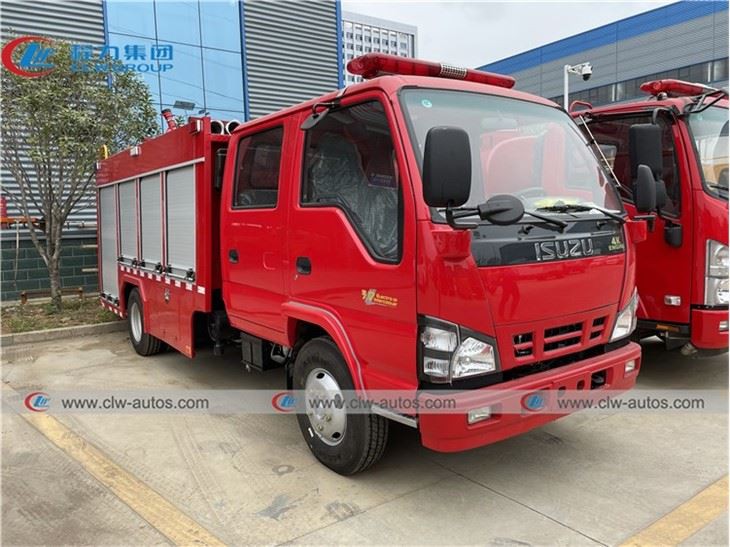

ISUZU 600P 3tons fire truck is adapted from Isuzu 600P series chassis of Qingling Motor Co., Ltd., the original double-row seat 4 door cab, the number of occupants is 2+3, the power is Isuzu 130 horsepower engine, the actual volume of the tank is 3 Cubic meters (3 tons), equipped with domestic well-known brands CB10/20 fire pumps, PS20 fire water cannons, with a range of more than 48 meters, is the first choice for combat fire fighting models in towns, communities, enterprises, factories, shopping malls.

(1). Volume : 2-16M3 fire truck.

(2). Steering wheel: both left and right hand drive,meet the needs of different countries.

(3). Emission standard: Euro 2, Euro 3, Euro 4, Euro 5 fire fighting truck

(4). Truck chassis: ISUZU,DONGFENG,SINOTRUK HOWO, JAC, FOTON,etc.

Production specifications

Chassis model	QL1070A5HWY	engine model	Isuzu 130hp/96KW
Outside dimensions	6360×2000×2740mm	Wheelbase	3360mm
Carrier volume	1980~2500L	Emission Standards	EURO V
Fire Pump	CB10/20	Fire cannon	PS20W
Fire pump rated flow	20L/s 1.0MPa	Environmental protection/exemption	There is environmental protection / declaration
Rated flow of fire monitor	20L/s 1.0MPa	Fire gun range	Water ≥48m

Special function	Liquid tank	Carrier volume	4 cubic meters (announcement 3.38 square meters)
		Material	Carbon steel ( stainless steel or PP material can be selected as required )
		Tank fixing	Flexible connection with chassis frame
		Manhole	1 DN460 manhole with quick lock/open device
		Water inlet	There is a DN65 interface on the left and right sides of the water tank
		Inlet and outlet	1 water tank to the water inlet pipe of the pump, DN100 valve, manual control 1 water pump to the water tank filling pipe, DN65 valve, manual control
		Drain	1 DN40 water tank to put the remaining water port, with manual control of ball valve
		Overflow	1 DN65 overflow port
	Fire Pump	Model	CB10/20 type low-pressure vehicle fire pump
		Form	Atmospheric centrifugal
		Installation location	Rear
		Flow	20L/s @1.0MPa
		Outlet pressure	1.0MPa
		Maximum suction depth	7m
		Water diversion device	Built-in sliding vane pump
		Diversion time	Maximum suction depth≤35s
	Fire cannon	Model	PS20W
		Flow	20L/s
		Rotation angle	360° horizontal rotation
		Range	≥48m
		Maximum elevation/depression angle	Elevation angle ≥+60°	Depression angle≤-15°
	Power take-off and transmission system	Structure type	Sandwich mechanical transmission
		Clutch method	Hand control
		Lubrication method	Splash lubrication
		Transmission system	Cross shaft universal joint drive shaft
	Pipeline system	Pipe material	High-quality seamless steel pipe
		Suction pipe	There is a DN100 suction port on the back side of the pump room
		Water injection line	There is a DN65 water injection port on the left and right sides of the water tank, and a DN65 water pump is installed in the pump room to inject water into the tank
		Outlet pipe	There is a DN80 water outlet on the left and right sides of the pump room, with a shut-off valve and a cover
		Cooling water pipeline	Cooling water pipeline and control valve with cooling power take-off
	Electrical Equipment	Fireplace lighting	1unit 35W fire searchlight installed at the rear
		Strobe light	Install red and blue strobe lights on both sides of the body
		Warning device	Install a long row of red warning lights on the top of the cab
		Siren	The control box is in front of the driver’s cab
		Auxiliary lighting	Firemen’s room, pump room and equipment box are equipped with lights, and the control dashboard is equipped with bright and indicator lights
		Additional electrical	Set up an independent circuit
	Ladder and handle	Ladder	Aluminum alloy two-section flip ladder, when used, it should not exceed 450mm from the ground,
		Get on the car	Adopt anti-skid round steel pipe with groove on the surface, sprayed on the surface
	Equipment box and pump room	Structure	The main frame structure is welded with high-quality square tube, and the outer decorative plate is welded with carbon steel plate.
		Equipment box	The equipment box is located at the rear of the passenger compartment. The aluminum alloy rolling doors on both sides are equipped with lighting lamps. The equipment room is equipped with storage boxes according to needs.
		Pump room	The pump room is located at the rear of the vehicle, with aluminum alloy rolling doors on both sides and the back, with lights inside, and some common equipment can be placed on both sides of the pump room
