Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 316 stainless steel 25cbm vacuum trailer in China. If you're going to buy high quality 316 stainless steel 25cbm vacuum trailer, welcome to get more information from our factory. For price consultation, contact us.
Meet the ultimate solution for your most challenging waste management tasks

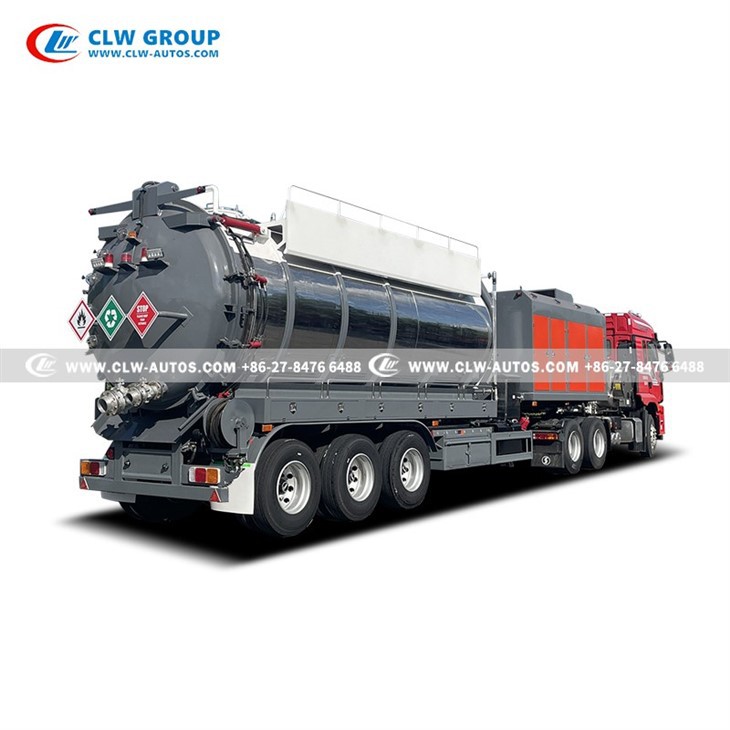

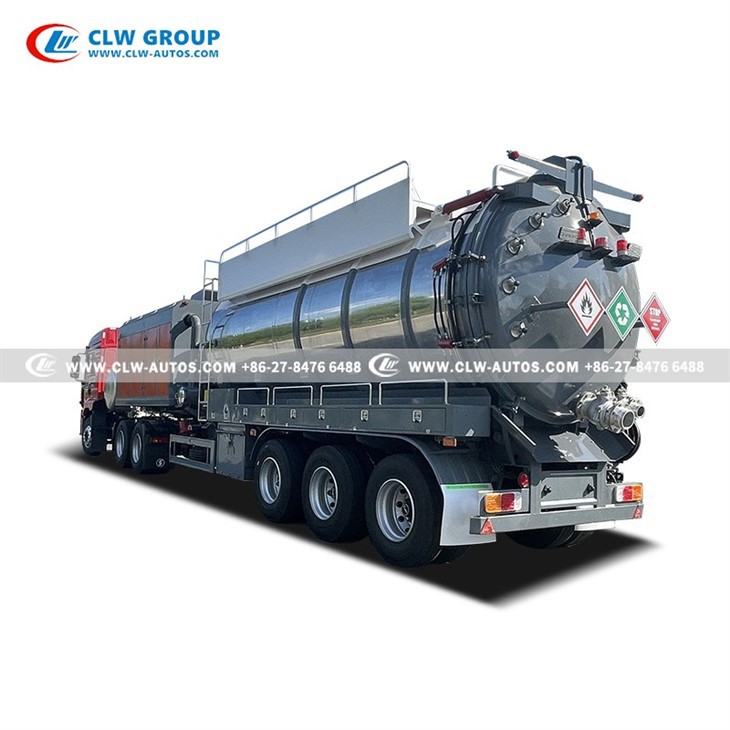

Introducing our premium 25-cubic-meter vacuum tank semi-trailer, engineered for heavy-duty suction and transport of sludge, sewage, industrial waste, and liquid pollutants. Built with a corrosion-resistant stainless steel tank and equipped with world-class components, this model offers superior performance, long service life, and extensive customization-ensuring it meets the unique demands of municipal, industrial, and environmental applications. Whether you require a basic suction unit or a combined suction and high-pressure washing system, this semi-trailer delivers unmatched reliability and efficiency.
-25m³ capacity made from premium stainless steel (SS304/316L optional) to resist rust, chemicals, and wear.
-Internally fitted with baffle plates to reduce liquid surge during transport, enhancing stability and safety.
-Secondary cyclone anti-overflow valve prevents accidental spillage, and a rear sight glass allows visual monitoring of tank level.
-All wetted parts, including suction and discharge ports, are constructed from Euro-standard stainless steel for extended durability.
-Equipped with a separate auxiliary engine (choice of internationally renowned brands: Cummins, Isuzu, or others) to drive the vacuum pump via a hydraulic system-ensuring reliable, independent operation without affecting the towing vehicle.
-Emission standards available: Euro 3, Euro 4, Euro 5 to comply with global regulations.
-The hydraulic drive offers smooth power transmission, reduced noise, and low maintenance.
Our standard high-spec configuration features the Italian JUROP PVT series vacuum pump, renowned for efficiency and durability:
-Model: JUROP PVT (2600 m³/h flow rate)
-Vacuum degree: Up to 93% (excellent suction power)
-Max power: 71 kW (96 hp)
-For even higher demands, we offer upgrades to JUROP PVT 700 or PVT 1000 pumps (flow rate and vacuum capacity increase accordingly, with a corresponding price adjustment).
Note: For budget-conscious projects, we also provide reliable Chinese-brand vacuum pumps as an alternative.
The trailer can be fitted with a cleaning package to handle jobs that require both suction and pressure washing:
-5m³ fresh water tank (larger capacity available upon request).
-High-pressure pump – choose between cost-effective Chinese brands or premium international brands (Italy/Germany).
-15m hose reel with adjustable high-pressure gun and various nozzle types (flat jet, rotary, etc.) for different cleaning tasks.
Two drive options for the high-pressure pump:
-PTO via splitter gearbox from the auxiliary engine (integrated with the vacuum system).
-Separate small diesel engine dedicated solely to the high-pressure pump, making suction and washing completely independent-ideal for continuous operation without interference.
|
Technical parameters |
|||
|
Tank design |
Tank volume 25m3 |
sewage tank |
20 m3 (cylindrical tank) |
|
Water tank |
5m³ (customized as request) |
||
|
Tank material |
316 stainless steel |
||
|
Tank thickness |
8mm |
||
|
Maximum design pressure of the tank |
0.05 bar / -1 bar |
||
|
Tank safety support |
Inner baffle plate and outer reinforcing hoop |
||
|

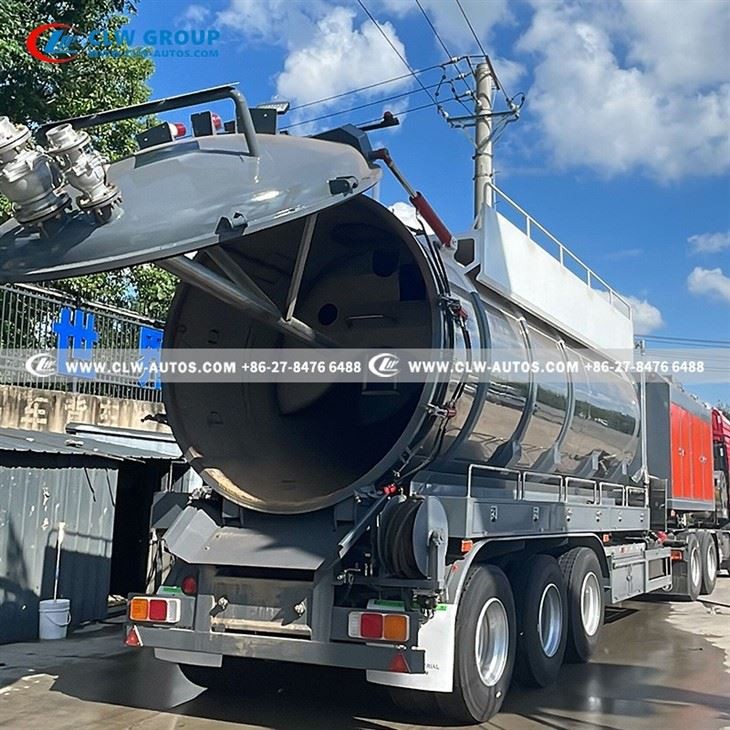

Back cover opening method |
Hydraulic opening |
||
|
Back cover locking method |
Rotary manual locking |
||
|
Sewage suction system |
Secondary brand |
Cummins |
|
|
Vacuum pump brands |
Italian vacuum pump Jurop PVT700 |
||
|
flow |
4150 m³/h; 2445 cfm |
||
|
rotational speed |
D2500 rpm |
||
|
vacuum degree |
93% (28.0 " in HG) |
||
|
Power at maximum absolute pressure |
112 kW, 151 hp |
||
|
Self-respect |
640kg (1.411lbs) |
||
|
Positive pressure |
Overpressure safety valve |
||
|
negative pressure |
Vacuum relief valve (-80KPM) |
||
|
filter |
Metal Filter |
||
|
High-pressure cleaning system |
High pressure pump brands |
Italy or Chinese pump |
|
|
Automatic pipe laying device |
15 meters |
||
|
Adjustable high-pressure water gun |
0-45° |
||
|
Suction and discharge |
Equipped with unloading pipe with a diameter of Ø150 mm . |
||
|
Equipped with suction pipes ( Ø 100 mm) |
|||
|
other |
With ladders, control panel, hydraulically opened rear cover with manual locking |
||
Applications
We understand that every project has unique requirements. Therefore, we offer extensive tailor-made solutions:
Just tell us your needs, and we will provide a cost-effective configuration.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
Whether you need a single unit or a fleet, we are ready to deliver a vacuum tank semi-trailer that exceeds your expectations.
Contact Cathy Gao,Mobile: +86-17343341170. Our sales team will respond within 24 hours with a detailed quotation and tailored recommendations.
Let's discuss your project – customize your ideal suction trailer today!
