Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 32m 105ft aerial platform truck in China. If you're going to buy high quality isuzu 32m 105ft aerial platform truck, welcome to get more information from our factory. For price consultation, contact us.

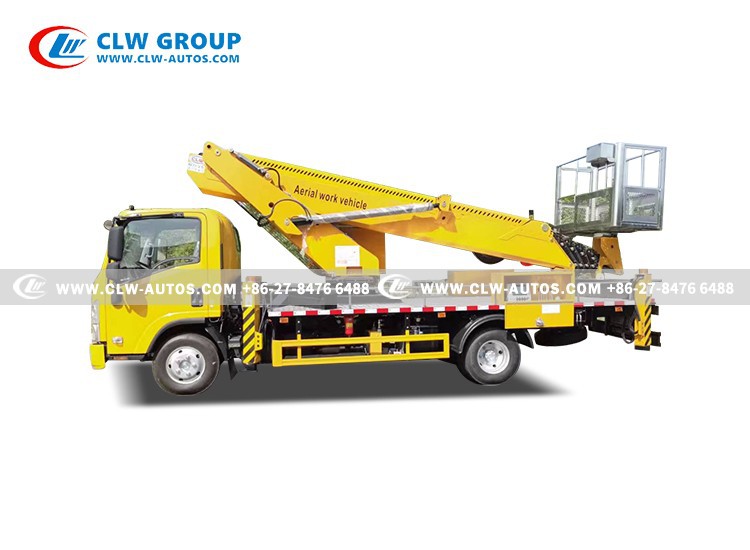

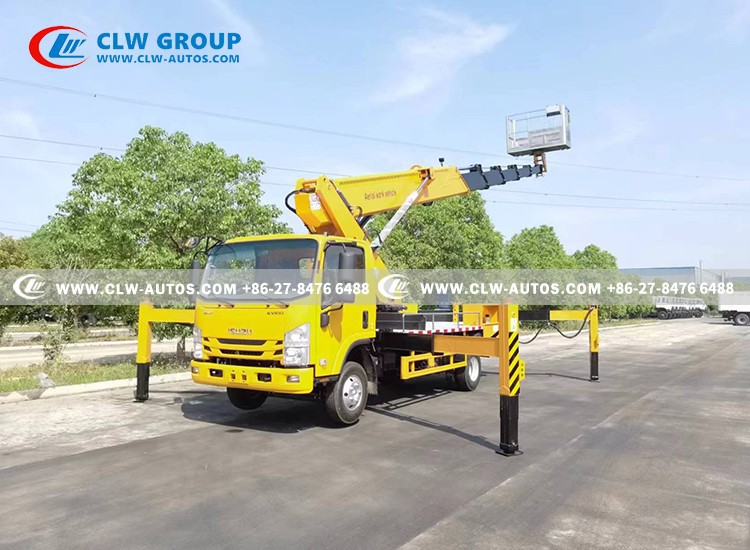

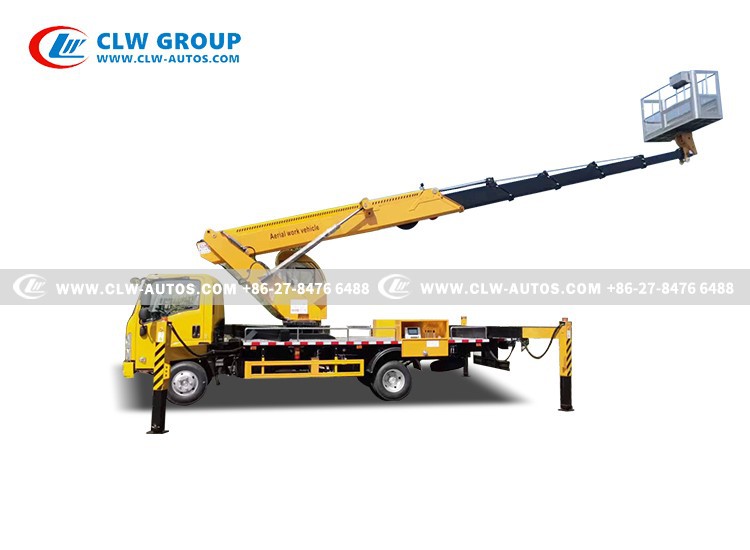

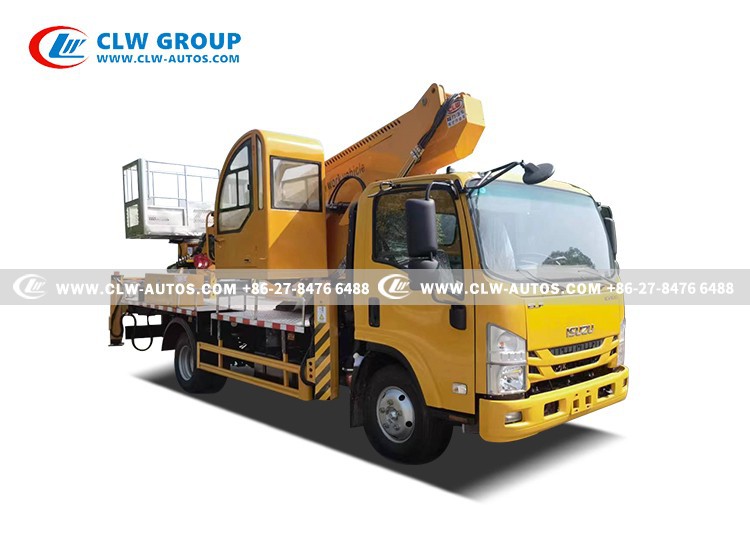

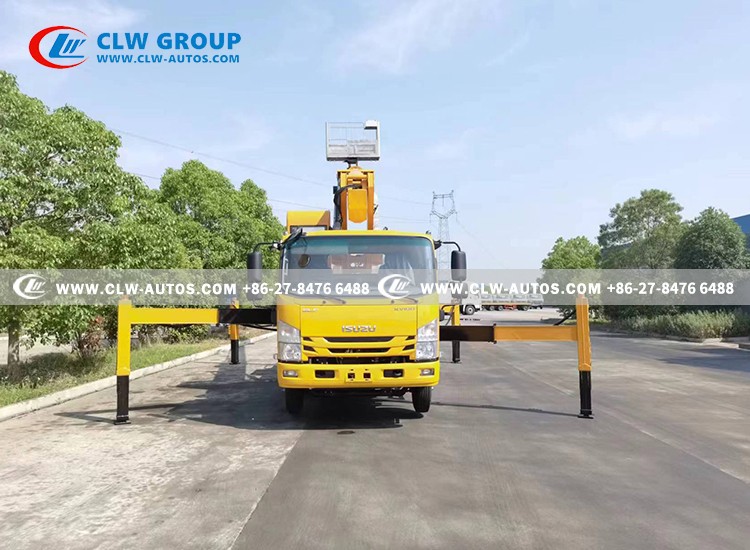

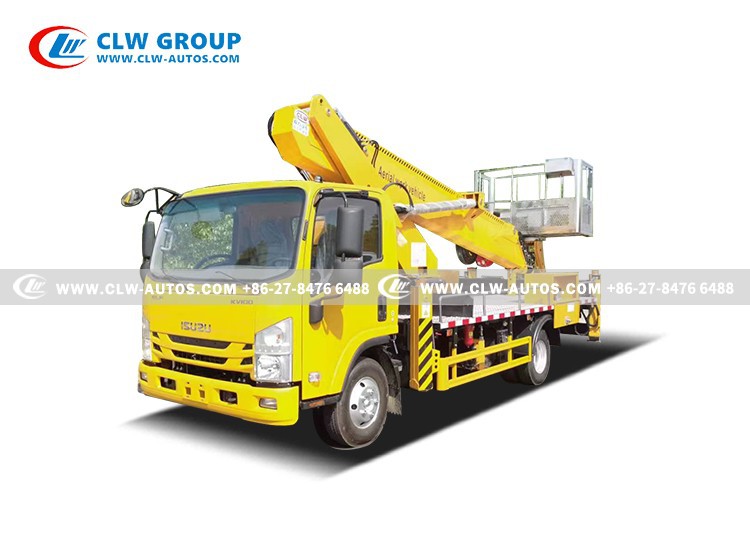

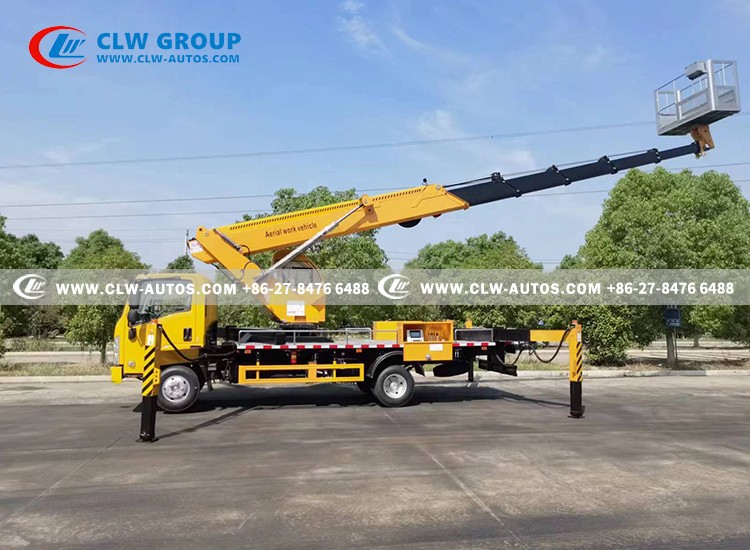

ISUZU 32M 105FT Aerial Platform Truck
Factory Price For Sale
We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance
An aerial platform truck, also known as an aerial work platform truck,elevated work platform truck, aerial working truck, bucket truck, or cherry picker truck, among other names, is essentially a utility truck equipped with a hydraulic boom that features a man-carrying bucket at its end.
Elevated work platform trucks play a vital role across various industries such as municipal services, electric power maintenance, street light installation, advertising, communications, photography, landscaping, shipbuilding, transportation, operations at docks, airports, and ports, as well as in rescue and maintenance undertakings within large industrial and mining enterprises.
- Platform rotation: 360°
- Maximum operating height: up to 32 meters (105 feet)
- Load capacity of the platform: 200kg to 400kg
- Advanced features: Includes imported electro-hydraulic proportional valve group with CAN bus control system, wireless remote control
- Operator interface: Features a 5-inch LCD screen that displays real-time data such as detection arm length, elevation angle, platform height, and working height
- Working mechanism: Utilizes a hexagonal working arm, synchronous telescopic movement, compact structure, high efficiency, and large range
- Maintenance features: Equipped with a built-in telescopic cylinder, double-chain telescopic mechanism for easier fault observation and maintenance
- Boom structure: Consists of a 4-section full chain-type telescopic structure with a built-in broken chain protector
- Leg design: Front V after H type legs, horizontal double-jointed legs telescopic, wide transverse span, "soft leg" protection function
- Coating: Features vehicle electrostatic spraying for corrosion resistance and aesthetics
1. Aerial platform height options include: 8m, 12m, 14m, 16m, 18m, 20m, 21m, 22m, 24m, 26m, 28m, 29m, 30m, 32m, 34m, 45m, and more.
2. Chassis brands available: ISUZU, FAW, FOTON, SINOTRUK HOWO, SHACMAN, DONGFENG, BEIBEN, JAC, JMC, KAMA, and others.
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
| Overall Dimension |
7150×2200X3150mm |
| G.V.M | 7300 kg |
| Wheelbase | 3815mm |
| Cab | LHD, Single row cabin,with A/C |
| Engine | Diesel engine,ISUZU 4KH1CN6LB,120HP, Euro VI |
| Transmission | Manual, ISUZU 5 forward and 1 reverse gear |
| Axle loading | Front/Rear 2500/4800kgs |
| Tyre |
7.00R16, 6 pieces with 1 spare tire |
|
Boom type |
Six section sexangular telescopic arm |
| Max. working height | 32meters / 105feet |
|
Operating radius at maximum operating height |
9meters |
| Platform operating range when maximum operating height |
16meters
|
| Platform operating height when maximum operating range |
9meters
|
|
Rotation Angle |
360 degree |
|
Outrigger |
4 landing legs
Front V rear V design
Individually adjustment
|
| Leg span |
Lateral leg span:6180mm Longitudinal leg span:7050 mm |
| Control system | Manual control and remote control |
| Bucket Loading Capacity | 200kgs~400kgs |
| Colors |
Customized with client's logo Electrostatic Spraying Treatment |
