Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of hongyan 8x4 50 tons rotary wrecker tow truck in China. If you're going to buy high quality hongyan 8x4 50 tons rotary wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.

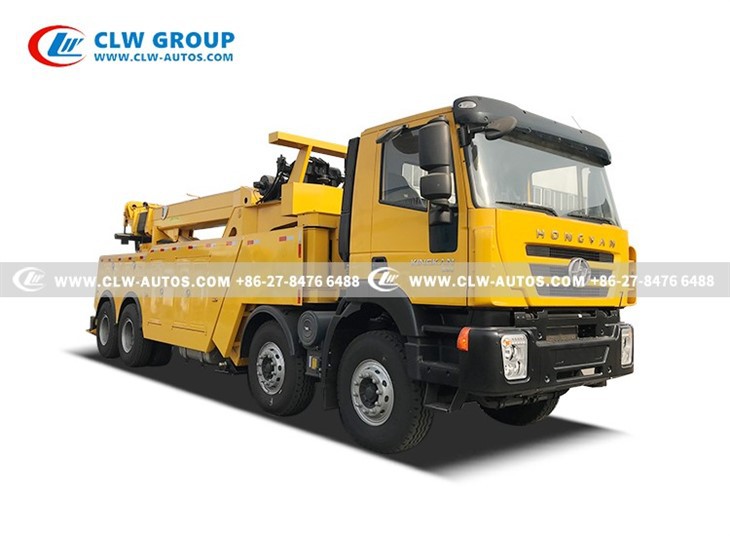

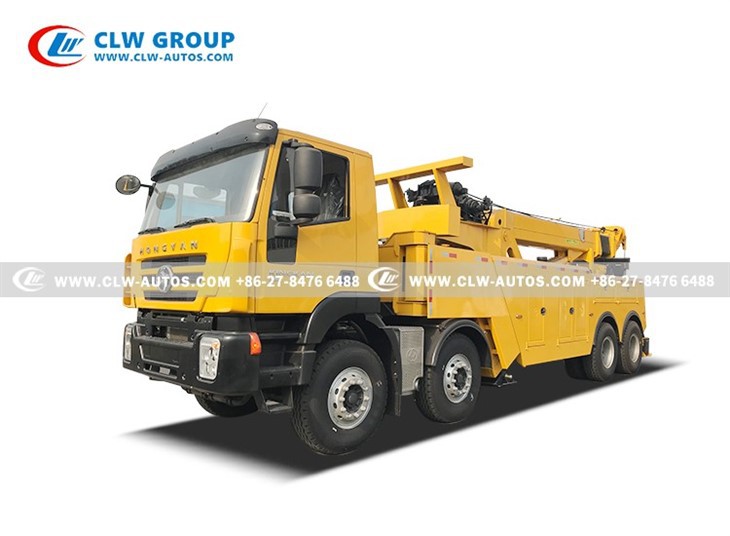

HongYan Iveco 8x4 360 degree Rotator 50 Ton Wrecker Tow Truck
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Hongyan rotation wrecker called Chinese IVECO rotator tow truck,rotation wrecker,shacman breakdown truck,heavy crane wrecker, HONGYAN 360 degree recovery vehicle or hongyan heavy breakdown lorry, hongyan rotation wrecker tow truck, rotation 360 degree remote control crane wrecker towing vehciel
It is used to remove road disabled ,pull broken or damaged vehicles, Buses, Construction Engineering Machines, improperly cars parked ,when your cars suddenly breaks down on a highway, you need call a rotator towing truck .
Hongyan rotator breakdown tow truck Feature
-–Hongyan Chinese Made Iveco chassis with weichai engine
-–Easy parts
-–Low center of gravity ,rotator crane and under towing equipment is seperate
-–different kinds choices
-–High quality steel and directly manufacture factory in suizhou city,HuBei province . China .
More Technical Support, contact:
WhatsApp: +86 13554195719
Mail: helen@clw-autos.com
Wechat: 13554195719
| Truck name | HONGYAN 360 degree rotation crane and towing equipment seperated 8×4 wrecker truck | |
| Towing (T) | 100-150 tons | |
| Truck parameter | Vehicle size(mm) | 11995×2495×3630 |
| Total mass(kg) | 32000 | |
| Curb mass(kg) | 19880 | |
| Drive type | 8×4 | |
| Color | According client request | |
| Fuel type | Diesel | |
| Oil consumption per 100km(L) | 30 | |
| Max speed | 90 | |
| Engine parameter | Model | Weichai WP12.400E201
Four-valves engine Euro 2 emission Engine power:400HP |
| Gear box | FAST 12JSD200T-B fuller technology | |
| Clutch | Eaton 430 diaphragm clutch | |
| Driving axles | MAN technology 16tons double reduction axle | |
| Front axlea | MAN technology 7.5tons | |
| Chassis information | Steering | Right hand drive |
| Tyre | 315/80R22.5 with one spare tyre | |
| Fuel tank | 400L Aluminum alloy fuel tank | |
| Cabin | HY half heightened half lengthened roof cabin,A/C | |
| Others | WABCO valves, four-point floating cab, 2sets of hazard triangle , 50ton jack ,fire extinguisher . | |
|

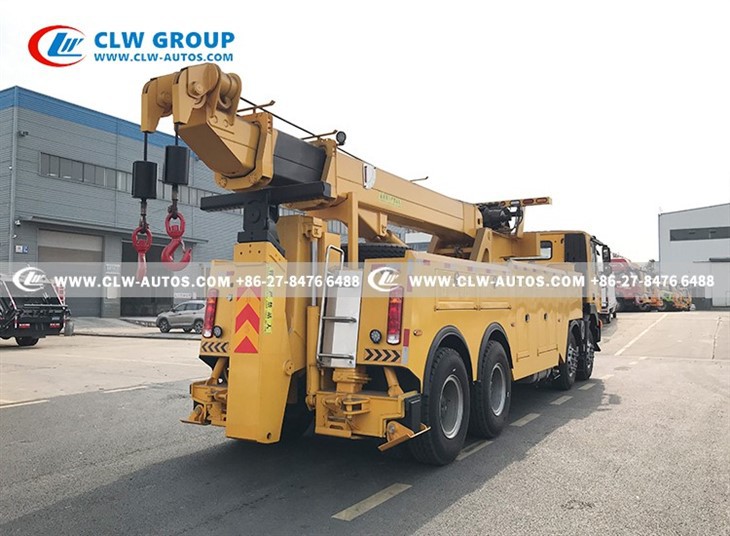

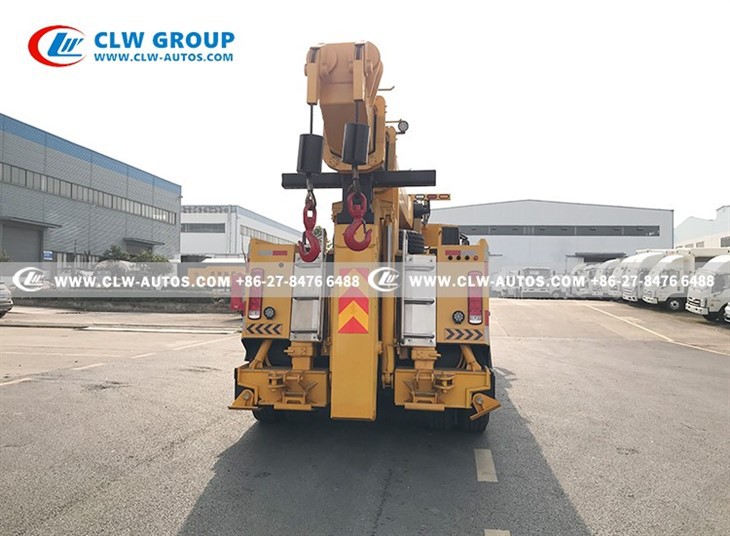

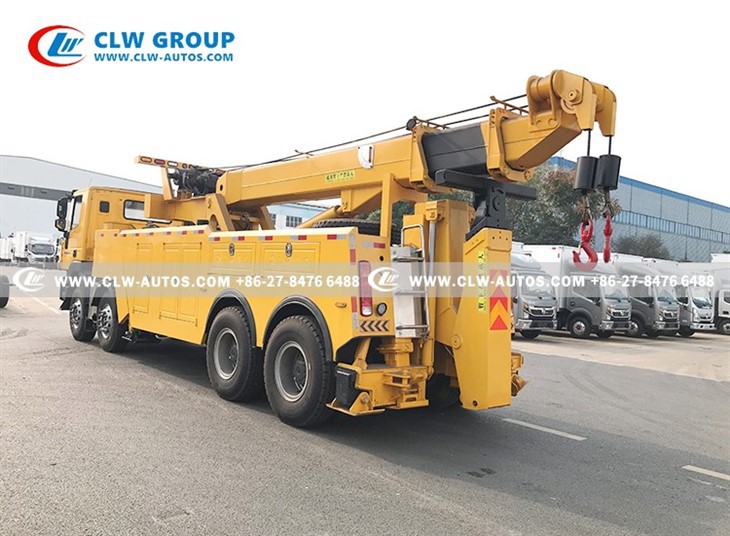

rotation towing truck Upper Equipment showing |
360 degree rotation wrecker type Towing capacity :50tons
50tons crane lifting capacity Two units winch . each one is 25tons The two six variant boom, Three arm, Split type carriage, Bilateral linkage operation device, Front bumper with counterweight, After working lamp three, 2 150KN hydraulic winch 55 meters of steel wire rope A washing box U reported fetal device one set Supporting fork 5ton Supporting fork seat 1ton Chain hook 2 1 long line engineering lamp ( LED ) 1 sets of auxiliary lamp assembly, Auxiliary brake pipe assembly of 1 sets. |
|
Hot Tags: HongYan 8x4 50 Tons Rotary Wrecker Tow Truck, China, manufacturers, suppliers, factory, price
