Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 50 tons rotation road recovery wrecker truck in China. If you're going to buy high quality howo 50 tons rotation road recovery wrecker truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
1. Based on STR technology
2. Cabin: Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
3. Engine:371HP WD615 STR engine ( from 290hp - 420 hp you can chose ) Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging,
Inner cooling.
4. Front axle: HF9 STEYR technology front steering axle
5. Rear axle: AC16,16ton STEYR technology double reduction hub reductor driving axle
6. Steering: ZF8098, driver sit at the left hand side(LHD),also can change into RHD
7. Loading capacity: More than 30ton
8. Designed for tough road condition especially for African countries
9. Punctual delivery time (Usually within 10days)
10. Excellent spare parts supply for after-sales service.
For More information, Please contact: Ms. Helen Jiang. Mob/WhatsApp: +86 135 5419 5719

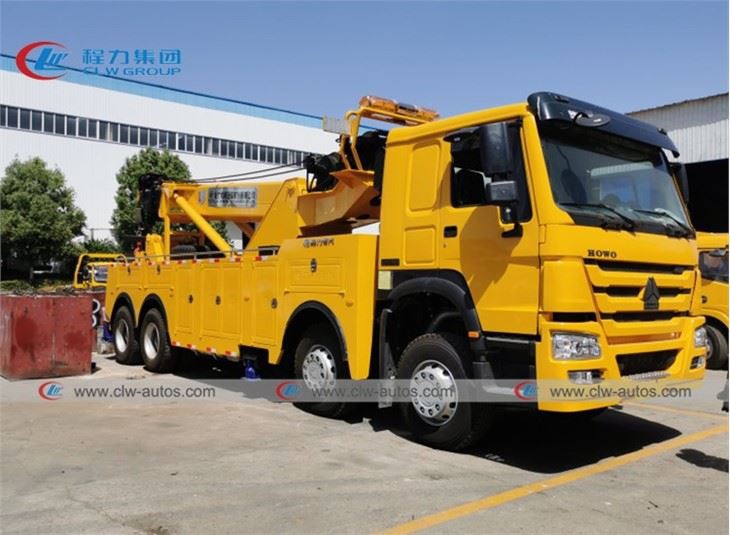

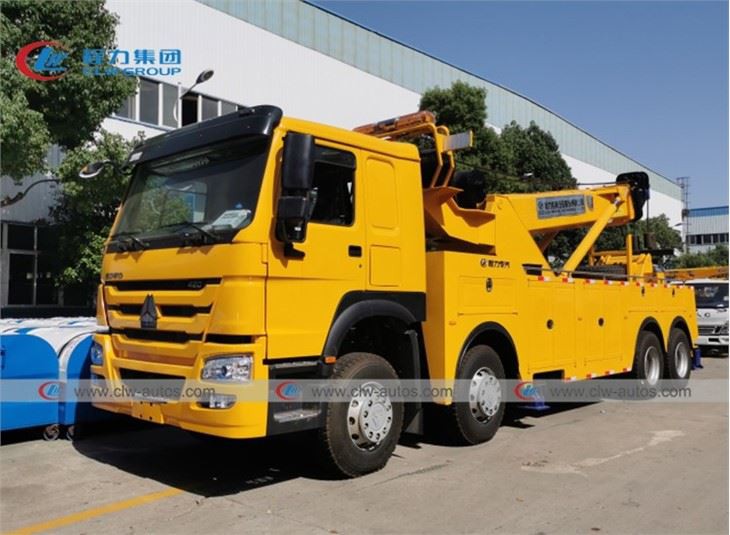

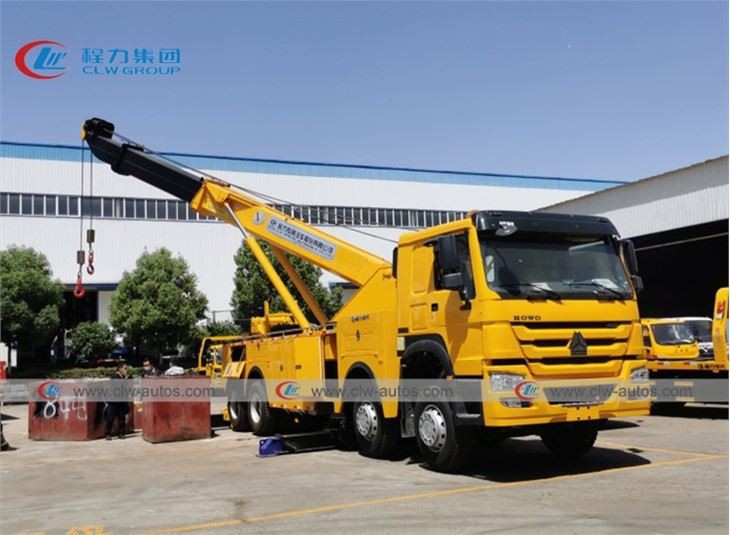

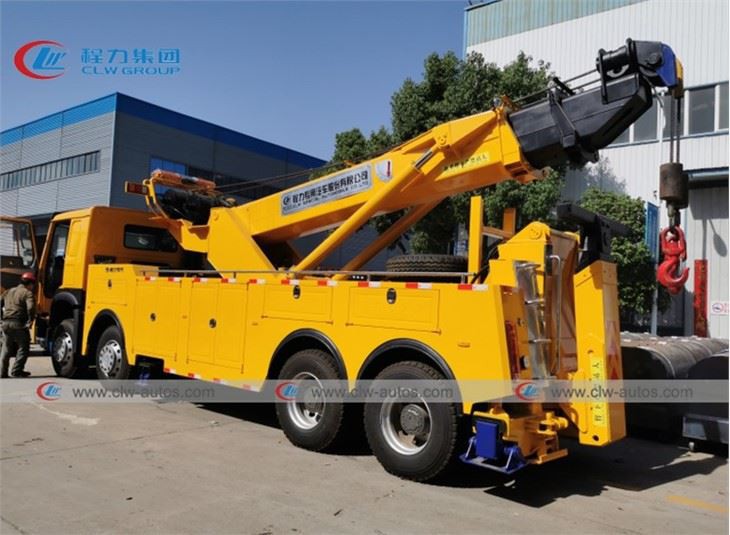

More Pictures for HOWO 50 Tons Rotation Road Recovery Wrecker Truck:
50Tons Capacity Lifting Crane Operation Area Working Range as below:
Hydraulic System and Manifold Valves, made by Italy Hydrocontrol:
Hoisting System with ABS:
Winches system: Two 25Tons Winches, Can customize as customer's requirement.
Landing Legs (Outrigger): 4 pieces, Front: 2 pieces; Rear: 2 pieces.
Both sides manual control Manual lever:
Remote Control, English format is available:
Other Standard Spare parts, put inside of tool box:
Papameters for Sinotruck HOWO 8x4 420HP 360 degree rotation 50tons road sliding rotator wrecker tow truck
Road Emergency Recovery Truck:
Truck Chassis Specification:
Cabin | A/C installed,2~3 persons,LHD, electric window | |
No load(kg) | Curb Weight | 27070 |
Front axle | 1*9 TONS | |
Rear axle(double) | 2*16 TONS | |
Full load | Max. Overall Weight | 38000 |
Overall Dimensions(mm) | Length | 11260 |
Width | 2500 | |
Height | 3570 | |
Wheel base(mm) | 1800+4600+1350 | |
Driving Model | 8*4 | |
Tyre | 12.00R20 or 12R22.5 with one spare | |
Engine | Model | WD615.47 |
Power(kw) | 273 | |
Displacement(mL) | 9726 | |
Transmission | HW19710,10forwards&1 reverses | |
Upper Wrecker Equipment:
Wrecker Equipment | ||
Max. Towing Weight(kg) | Above 50Tons | |
Lifting System | Max. Lifting Weight(kg) | 30-50Tons |
Max. Lifting Weight under all extension(kg) | 8000 | |
Lifting Weight in Situ(kg) | 18000 | |
Max. Ground Distance(mm) | 900 | |
Hoisting System | Max. Hoisting Weight(kg) | 18000 |
Max. Hoisting Weight under all extension(kg) | 8000 | |
Extension Distance of Oil Cylinder(mm) | 6000 | |
Length of crane Arm(mm) | 8470 | |
Max. Hoisting Height(mm) | 6500 | |
Winch | No. | 2 |
Curb Traction/Per(KN) | 250 | |
DN of Steel Rope(mm) | Φ20 | |
Length of Steel Rope(m) | 40*2 | |
Min. Line Speed(m/min) | 5 | |
Outrigger | No. | 2 |
Outrigger Span(mm) | 1440 | |
Landing Strength(KN) | 80*2 | |
Crane | 360°rotate | |
Lifting Forks | 5 pairs | |
Lifting fork base | 1 pair | |
Jump-start cables | 12~24 Volts | |
Electric system | Rear working lamp(stop,tail,turning) | 3 |
Revolving beacon | 1 | |
Lamps for license plate/warning lamp | 1 set | |
Pneumatic hoses | 1 set | |
