Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 50cbm fuel refueling semi trailer truck in China. If you're going to buy high quality 3 axle 50cbm fuel refueling semi trailer truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1-Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2-Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3-Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4-Nice shape and rational structure.
5-High class running system and tank material.
6-High-intensity kingpin and landing legs.
7-Top gemany brand BPW axle or Chinese brand FUWA axles.
8-Durable and long term service life.

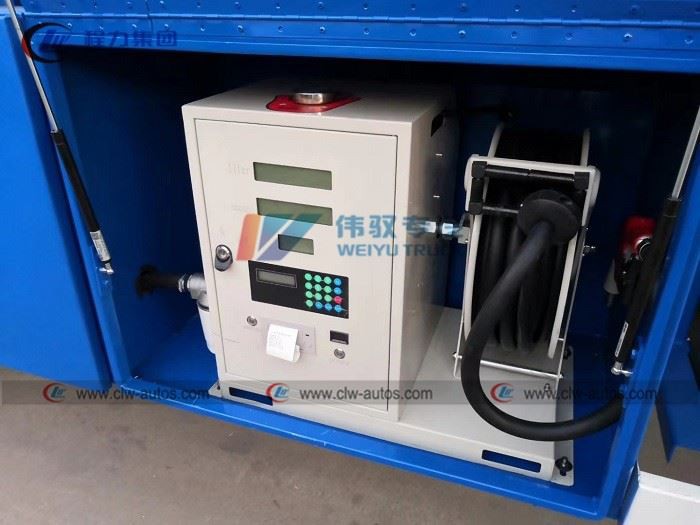

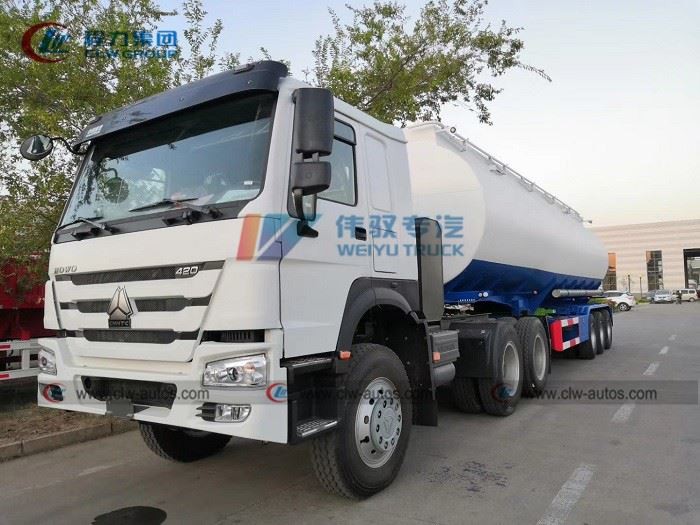

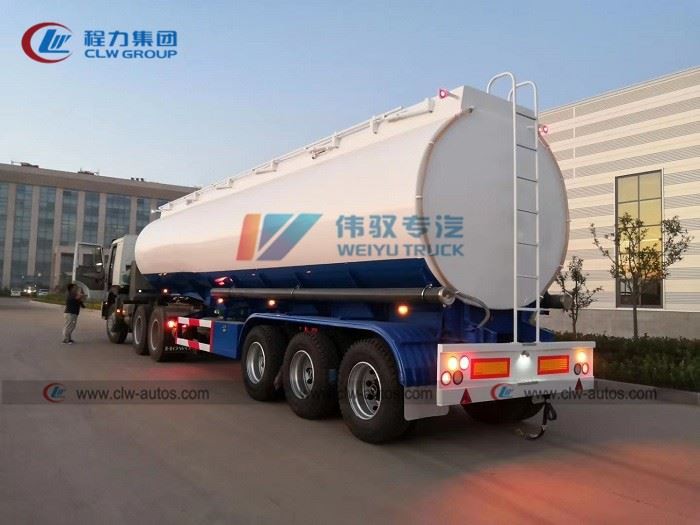

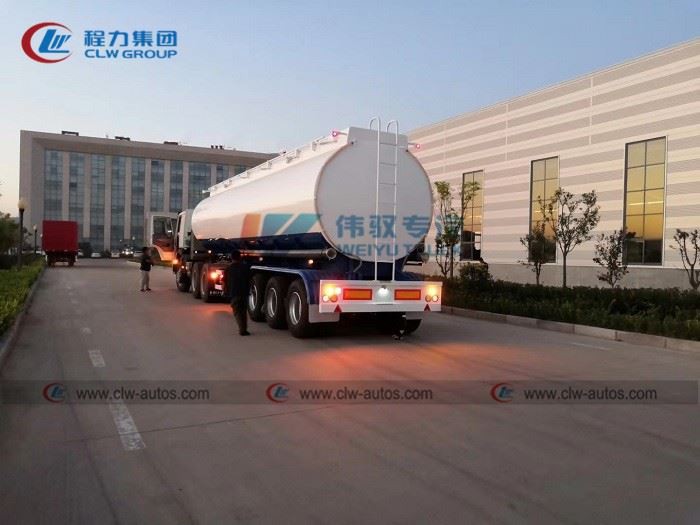

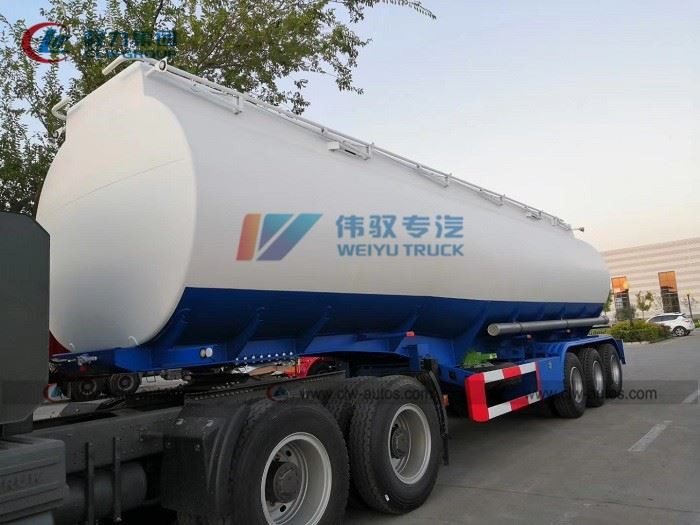

Reference Photos
Product Specifications
| Tare weight | 9500kg |
| Volume | 45m3 |
| Overall length | 12300mm |
| Overall width | 2500mm |
| Overall height | 3950mm |
| Tank body | Q235A/5mm steel |
| End plate | Q235A/6mm steel |
| Axle number | 3,Brand:fuwa,Capacity:13T |
| suspension | mechanical suspension |
| Leaf spring | Leaf spring |
| Manhole cover | 500mm manhole cover.2 sets with 2 breather valve. |
| Tire | 315/80R22.5 Triangle brand,12pcs |
| Wheel rim | 9.0-22.5 steel wheel rim |
| Discharge valve | 2 sets of 100mm discharge valves |
| Discharge pipe | 4"rubber hose,2pcs,6m long |
| Kingpin | 3.5"bolt-in king pin |
| Landing gear | JOST brand two-speed,manual operating,heavy duty landing gear |
| Bottom valve | 1set of bottom valve |
| Outside sheet | 1.2mm steel sheet |
| Compartment | One |
| Braking system | WABCO RE6 relay valve;T30/30 Spring brake chamber;40L air tanks |
| Painting | Complete chassis sand blasting to clean rust,1coat of anti-corrosive prime,2coats of final paint |
| Accessories | One standard tool box. |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
