Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 43000liters aluminum alloy edible oil tanker trailer in China. If you're going to buy high quality 43000liters aluminum alloy edible oil tanker trailer, welcome to get more information from our factory. For price consultation, contact us.
Function
--Edible oil tanker trailer,also called china best oil tanker semi trailer,diesel tanker semitrailer,fuel tanker semitrailer,oil tanker semitrailer,gasoline tanker semitrailer,stainless steel tanker trailer,aluminum tanker trailer,are mainly used to transport,haulage all kinds of inflammable liquids,such as edible oil,diesel,oil,gasoline...
--Optional for fuel tank size from 5,000litera to 60000liters
--best chinese fuel truck manufacturer can supply edible oil truck with different material: carbon steel,stainless steel,aluminum alloy 5083
--Edible oil tanker trailer can be divided into serveral compartments to load different types of oils.
--Optional for axle brands:BPW,FUWA,L1,HJ and so on.
--Optional for tire brands: double coin,Bridgestone,triangle
--Optional for landing leg brands: JOST or FUWA;
--Optional for FUWA/BPW/HJ air bag suspension and aluminum alloy auxiliary beam;
Feature
--high quality steel from chinese top steel company;
--Reliable design for tough road with reliable performance;
--high corrosion-resistance with long life time 15~20 year;
--light tanker body and more efficient loading weight;
--lower cost on daily maintenance and easy to clean tanker surface;
--lower gravity center of aluminum alloy oil tanker trailer and more safe;
--It can deform to absorb the energy produced by the collision without tearing suddenly
--high material recycle value
-No sparks, lower static accumulation

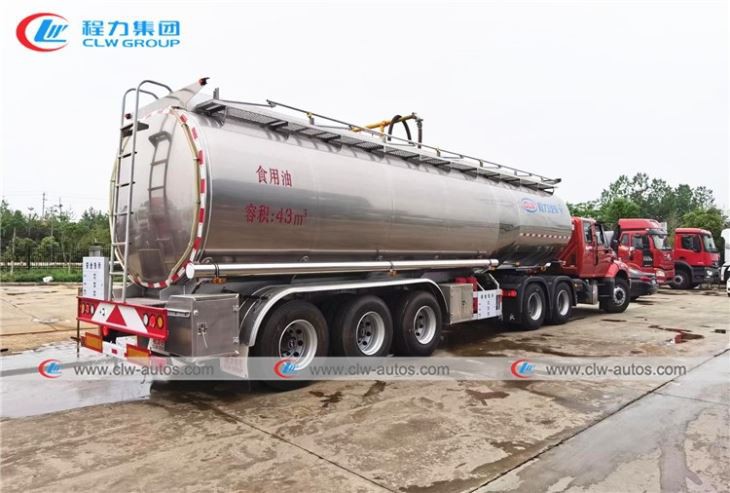

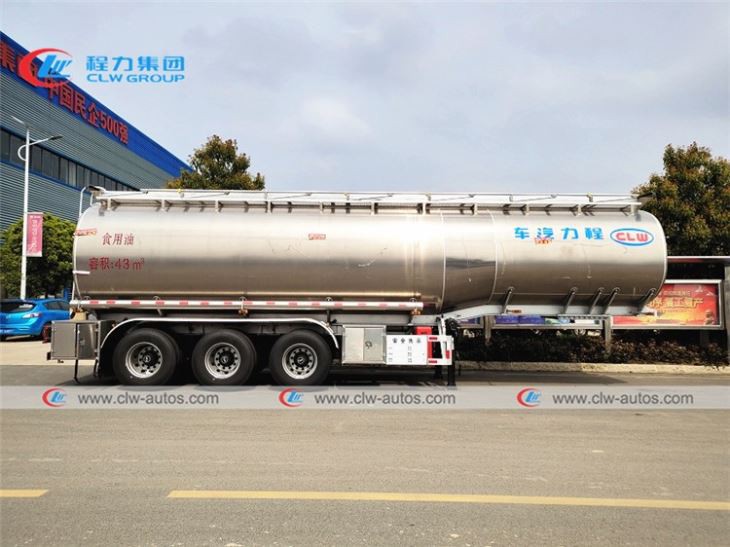

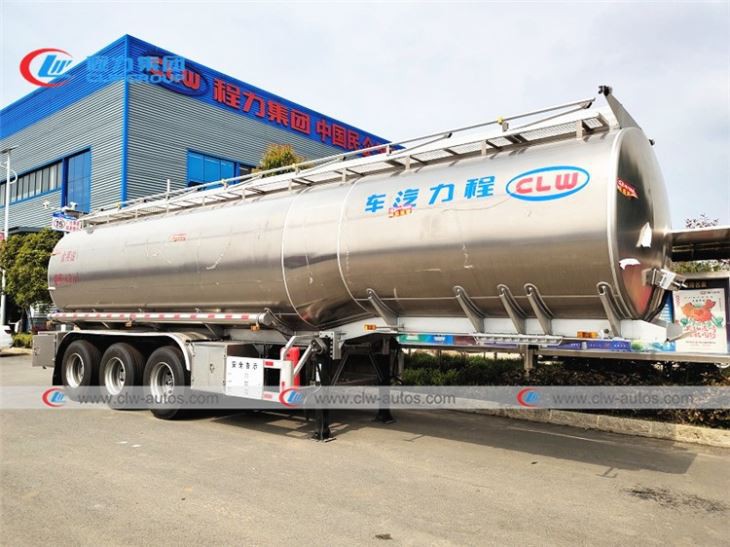

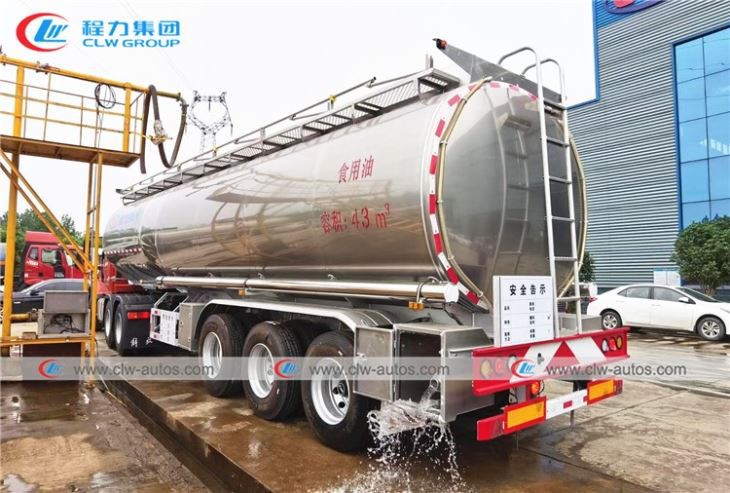

Reference picture
Specification
Main Dimensions | |||
Overall Length | 12500mm | ||
Overall Width | 2500mm | ||
Overall Height | 3900mm | ||
Tare Weight | 7100KGS | ||
Loading Capacity | 43m3 | ||
| |||
Shape | Mono block Cylinder | ||
Total Volume（m3） | 43 CBM | ||
Tanker Body Material | 6 mm Aluminum Alloy 5083 | ||
End plate | 7 mm Aluminum Alloy 5083 | ||
Baffle | 5mm Aluminum Alloy 5083 | ||
Lifting Ladder | Including Top walkway and backside steel material | ||
Manhole cover | Aluminum alloy API manhole covers, ∮500mm 6 sets with 6 breather valves | ||
Bottom Valve | Aluminum API Pneumatic Bottom Valves | ||
Top Safety Rail | Pneumatic control | ||
Discharging valve | 3” or 4”discharging valves | ||
No.of Compartment | Optional | ||
Discharging Pipe | 4”rubber hose, 2 pc, 6m long | ||
| |||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body,Q345 carbon steel material,optional for aluminum alloy | ||
Axle | 3 FUWA/BPW.HJ.L1 axles,13 Tons | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
King Pin | JOST brand 2” bolt-in king pin | ||
Suspension | Mechanical suspension/Germany or American type/air bag suspension | ||
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||
Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | ||
Tire | 12R22.5/315 80R22.5/11.00R20/12.00r20 tire including one spare tire, 13 pieces,brand can be optional | ||
ABS | Optional | ||
Painting | Logo as required | ||
Accessories | One standard tool box; One 600L galvanized water bank; 2Nos of 8kg fire extinguisher; | ||
