ISUZU FTR 10Ton Van Cargo Truck
Cargo Loading Capacity: 10,000kg
Engine Power: 205HP
With a deflector
With a side door
Lorry, Delivery truck, Freight truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 10ton van cargo truck in China. If you're going to buy high quality isuzu ftr 10ton van cargo truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FTR 4X VC61 4X2 6 Wheels 10Tons Cargo/Lorry/Delivery/Freight Truck
Products Description
Main Functions
- Urban Logistics Distribution – Suitable for cargo transportation in industries such as supermarkets, express delivery, and e-commerce.
- Cold Chain Transportation – Can be modified into a refrigerated truck for transporting temperature-controlled goods like fresh food and pharmaceuticals.
- Less-Than-Truckload (LTL) Freight – Ideal for short to medium-distance transport, such as goods transfer between wholesale markets, factories, and warehouses.
- Specialized Modifications – Can be configured as box trucks, curtain-sided trucks, postal vehicles, etc., to meet the needs of various industries.
Core Advantages
1. High-Efficiency Powertrain
- Equipped with the Isuzu 4HK1 diesel engine (205 HP), delivering robust power and excellent fuel economy.
- Paired with a 6-speed/8-speed transmission, adaptable to various road conditions with strong climbing capability.
2. Spacious Cargo Capacity
- 6.5-meter cargo compartment with a volume of approximately 35-40 cubic meters, meeting high-volume transportation demands.
- Enclosed box design, providing weatherproof and anti-theft protection, ideal for high-value or fragile goods.
3. Reliability & Durability
- Built on the Isuzu chassis, offering high load-bearing capacity and stability, suitable for long-term heavy-duty use.
- Rugged body structure with low maintenance costs and minimal failure rates, ensuring long-term operational efficiency for logistics enterprises.
4. Comfort & Maneuverability
- Ergonomic cabin design featuring air conditioning and shock-absorbing seats, reducing driver fatigue.
- Agile steering, making it suitable for navigating narrow urban roads and frequent loading/unloading scenarios.
5. Compliance & Efficiency
- Gross vehicle weight: 12 tons (compliant with blue or yellow license plate requirements, depending on regional regulations).
- Meets China VI emission standards, ensuring nationwide accessibility without environmental restrictions

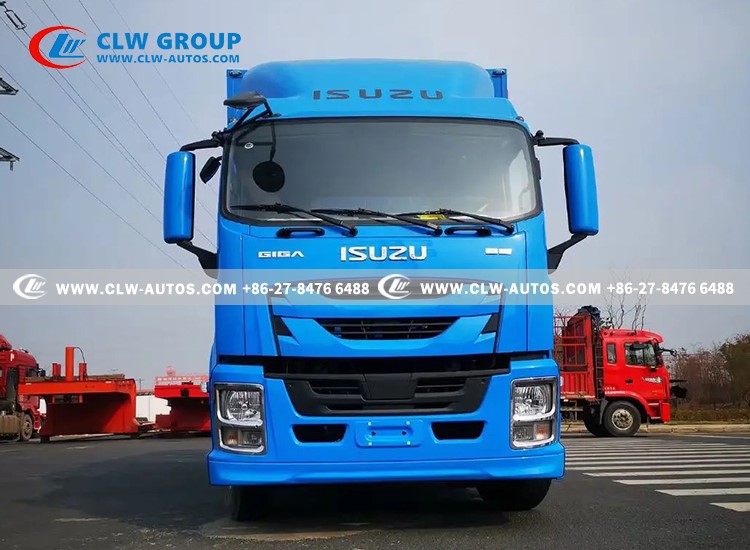

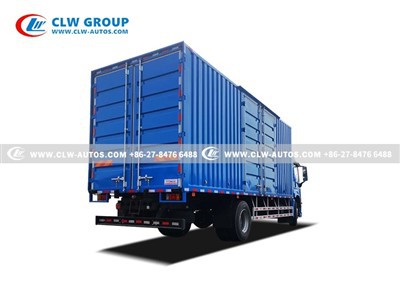

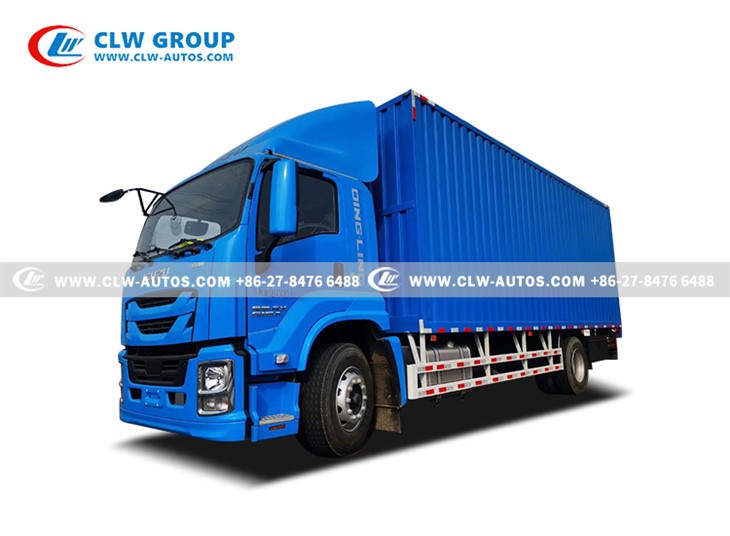

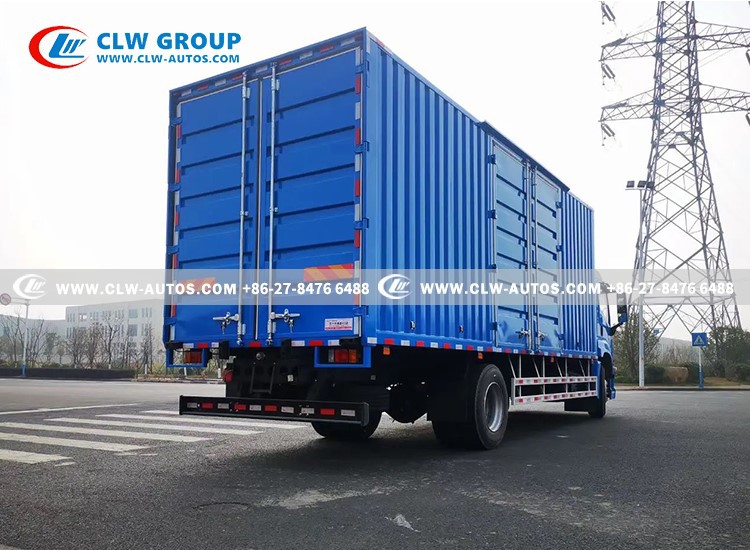

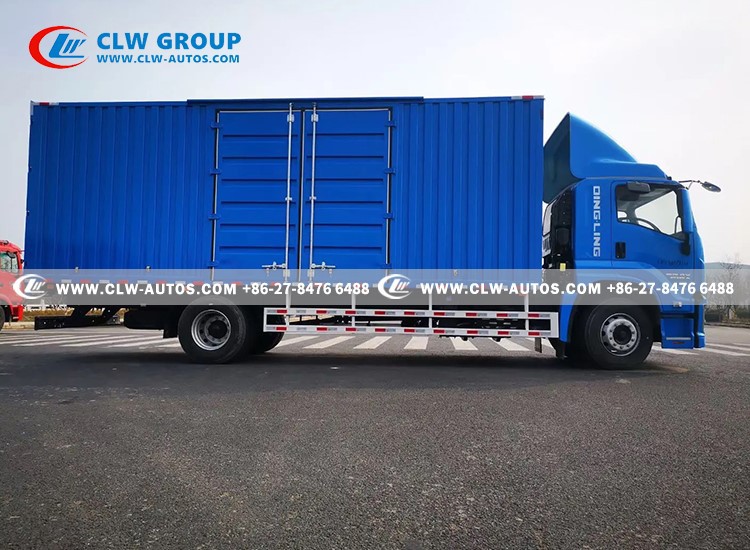

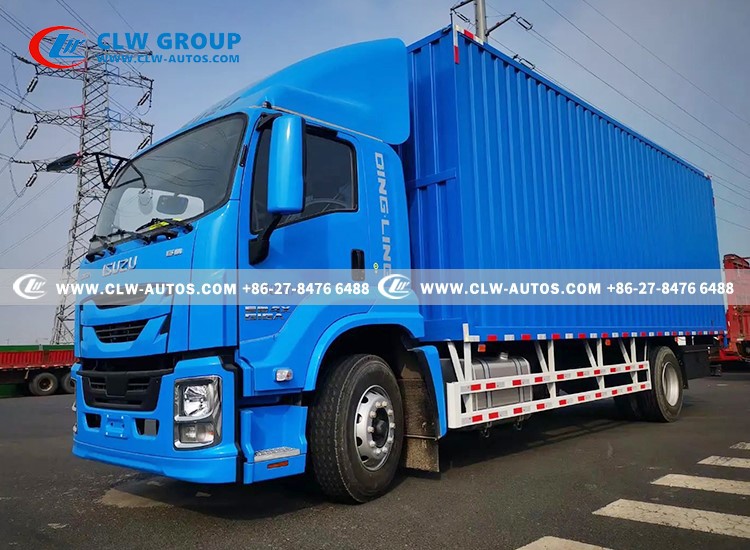

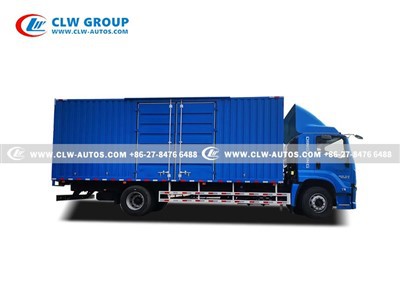

Products Pictures
Driver Cabin & Safety
-
Ergonomics: Wide-body cab (2,080mm) with air suspension seat, tiltable steering column, and multi-function LCD display
-
Braking: Dual-circuit air brakes with ABS + exhaust brake for downhill control
-
Lighting: LED headlights with auto-leveling and fog lamp configuration
Powertrain System
-
Engine: Equipped with Isuzu 4HK1-TCG61 turbocharged diesel engine, delivering 205HP with optimized torque output for heavy-load operations
-
Transmission: 8-speed manual gearbox with synchronized shifting for smooth acceleration and gradeability
-
Fuel System: High-pressure common rail injection technology ensuring fuel efficiency (approx. 18-22L/100km)
Chassis & Load Performance
-
Frame: Reinforced ladder-type chassis with 8+5mm high-strength steel beams for 10T payload capacity
-
Suspension: Front 9-leaf parabolic springs + rear 10+8 multi-leaf springs with shock absorbers
-
Axles: 6T front axle and 11.5T rear axle (single-wheel configuration) with 6.142 final drive ratio
Cargo Body Specifications
-
Dimensions: 6,500mm(L) × 2,450mm(W) × 2,600mm(H) with 40m³ capacity
-
Construction: Full-sealed box with aluminum alloy side panels (thickness 50mm) and anti-slip diamond plate flooring
-
Access: Rear swing doors (270° opening) + optional side sliding door (1,800mm width)
Products Specification
|
ISUZU FTR CARGO TRUCK |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
9000 x 2500 x 3000 mm |
|
Cab |
|
|
Wheelbase |
5000 mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
9650 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 18PR |
|
6pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4HK1-TC60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5200ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forwards & 1 Reverse |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
6500 X 2300 X 2500 mm |
|
Loading Capacity |
10 Tons |
|
Material |
High quality Q235 carbon steel |
Products Video
