Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw jk6 20m3 refuse compactor truck in China. If you're going to buy high quality faw jk6 20m3 refuse compactor truck, welcome to get more information from our factory. For price consultation, contact us.

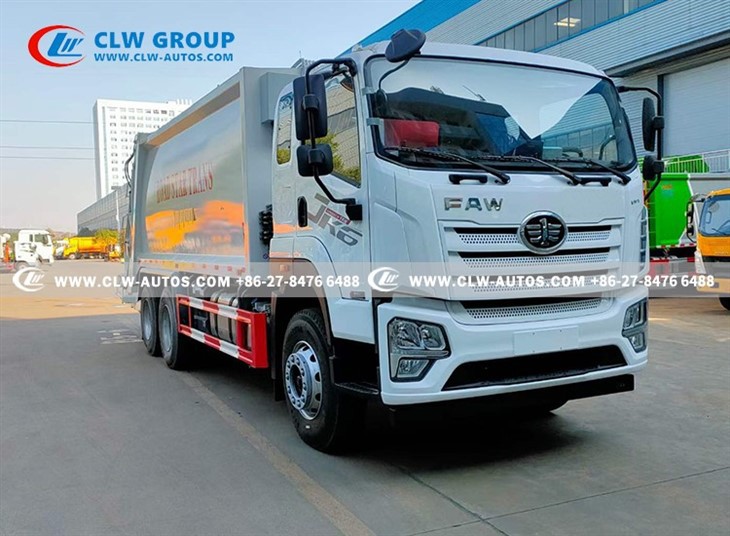

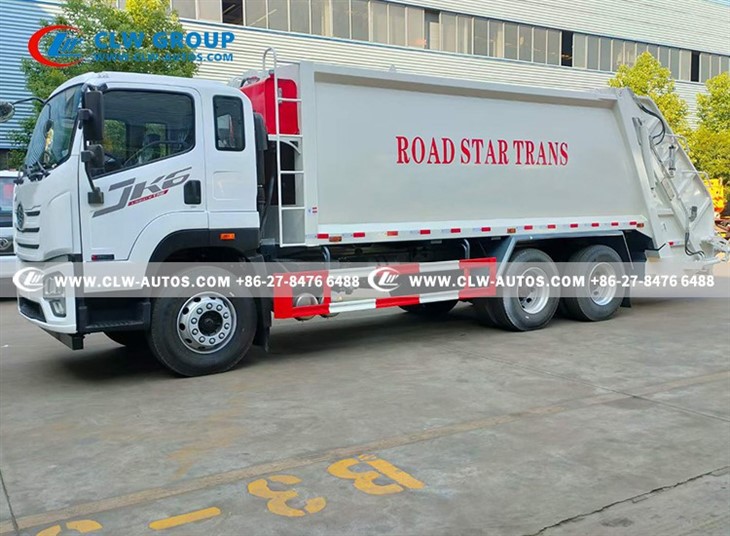

FAW JK6 20m3 Refuse Compactor Truck
Refuse compactor truck also known as garbage compactor truck, compression garbage truck, refuse comression truck, waste compactor truck, waste disposal truck, refuse collection truck,is widely used for domestic waste, solid waste, plastic bottles and recyling objects and transport to waste treatment facilities. Garbage truck are mostly used by municipal facilities and private companies for waste management purpose. CLW factory has more than 20 years experience in producing garbage trucks, we have been sold more than 300,000 units in China market, and for more then 5,000 Units for oversea market.
Garbage compactor truck feature:
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system.
* The garbage tank is made by high intense Q235b carbon steel, 6mm thickness
* Compression cycle time: 25-30s
* compression density: 0.6-0.8t/m3.
* unloading garbage is: 40s
* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin
* Rear loading : lifting mechanism working with 120L/240/600L plastic garbage, can be customized as per customer's request
Maintenance tips:
Clean the engine fuel filter, air filter, and engine oil Filters, hydraulic system air filters regularly.
| FAW 20cbm Garbage Compactor Truck | |||
| Condition | New condition/Left hand drive/6x4 | ||
| Chassis | Brand | FAW JK6 | |
| Curb weight(kg) | 1620kg | ||
| Wheelbase(mm) | 4350+1300mm | ||
| Dimensions(mm) | 10510*2550*3990 mm | ||
| Axle Load(kg) | 5000/11500/11500 kg | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | air brake | ||
| Steering Gear | Power assistant | ||
| Tire | Number | 10pcs with one spare tire | |
| Specifications | 12.00R22.5 | ||
| Transmission | Manual type, 8 Forwards and 2 Reverses | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | Xichai | |
| Model | CA6DLD-26E5 | ||
| Horsepower/(HP) | 260 HP | ||
| Emission standard | Euro V | ||
| Upper Body | |||
| Item No. | Parameters | ||
| Volume Capacity(Garbage) | 20.0 CBM | ||
| Thickness of the tank | 6mm for the bottom and 5mm for the side carbon steel | ||
| Sewage tanker(one side of the truck) | 200 L | ||
| Tail gate volume(L) | 700L(Filling structure) | ||
| Rated Pressure of Hydraulic system: 16 Mpa | |||
| Filling time of loading system: 8-10 s | |||
| Specification | Working cycle of Loading system: 50-60 s | ||
| Working cycle of the unloading system: 30-40 s | |||
| Compress ratio:0.6:0.7 | |||
| Equipped with hermetic dustbin, hydraulic system and operating system. | |||
| Automatic compress and uninstall, sewage can be collected by the sewage tank. | |||
| Equipment | Control system: China top brand operate system. | ||
| Painting and Logo | As customer's requirement | ||
| Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, | ||
| Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder. | |||
Contact Alice for quick inquiry +86 180 7154 2196(whats app)
You can also choose different loading method for the garbage compactor truck
