Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu kv100 5m3 fuel truck in China. If you're going to buy high quality isuzu kv100 5m3 fuel truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU KV100 ELF 6 Wheels 4x2 5CBM Fuel Tank Truck

product key technologies

ISUZU KV100 Chassis

Optimal Mobility: Shorter wheelbase ensures excellent steering and urban maneuverability without compromising cargo space.

Cost Efficiency: 120HP engine delivers reliable power with outstanding fuel economy, reducing long-term operating costs.

Features of 5CBM Fuel Truck

Strong Flexibility: The compact body allows it to navigate narrow or rugged roads such as village paths, construction sites, and mountainous areas.
Lower Costs: The purchase, operation, and maintenance costs are lower than those of large tanker trucks, making it suitable for small and medium-sized enterprises.
Precise Delivery: Ideal for small-batch, high-frequency distribution needs, helping customers reduce inventory pressure.

Products Parameters

ISUZU KV100 5CBM Fuel Tank Truck
Chassis Specification
Chassis Model	QL104
Driving Model	4x2
Dimension	8000 x 2400 x 3500 mm
Cab	Original ISUZU KV100 cabin With Air Conditioner Left Hand Drive
Wheelbase	3360mm
Gross vehicle Weight	4000 kg
Front Axle Loading Capacity	2500 kg
Rear Axle Loading Capacity	4800 kg
Axle Number	2
Tire	7.00R16
	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4KH1CN6LB
	Horse power: 120 HP
	Displacement: 2999ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
	5 Forward & 1 Reverse
Fuel Tank Capacity	100L
Upper structure parameter
Fuel tank capacity		5m3/5,000liters
Tank material		Carbon steel/ Stainless carbon/ Aluminum alloy
Compartment No.		ONE
Fuel dispenser		2 sets, flow rate at 70L/min English operation panel Showing unit price/ filling volume/ total price
Oil pump		2 Nos of 2.5'' Oil pumps, driven by TPO Independent pump in and pump out for each compartment
Filling hose		1 inch and 15 meters 2 sets for diesel and petrol separately
Filling hose reel		2 Nos
Filling nozzle		2 Nos
Manhole cover		2 sets with breath valves
Bottom valve		2 sets of APL aluminum pneumatic bottom valves
Level gauge		Each tank top is equipped with an electronic level meter
Operation compartment		Located at rear of truck with aluminum alloy door
Control system		Power on/off Lighting Fuel pump on/off Fuel dispenser on/off Main valve on/off Fuel level digital display
Others		2 sets of 4kg extinguishers 1 set of static belt
Painting		Color and design as customer's requirement
Special design		Tank body is covered by carbon steel van

Chassis Pictures

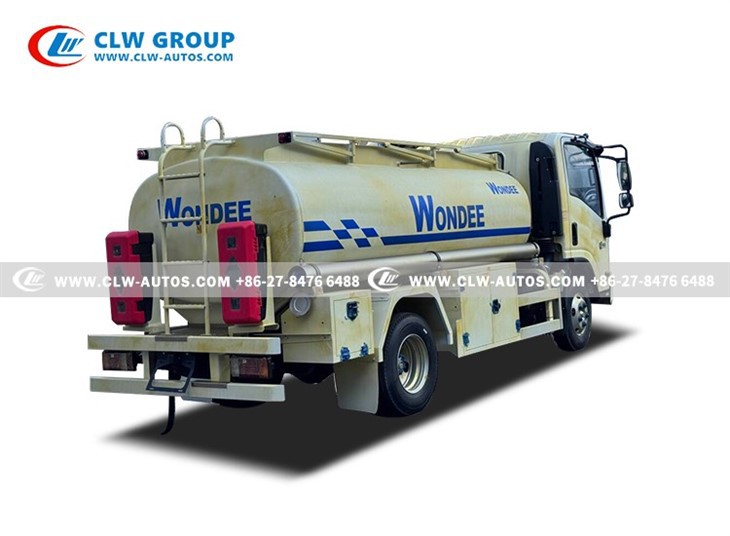

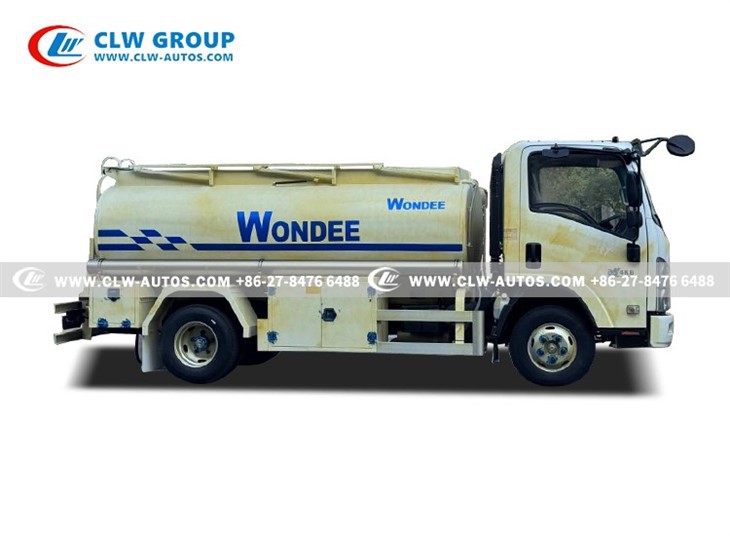

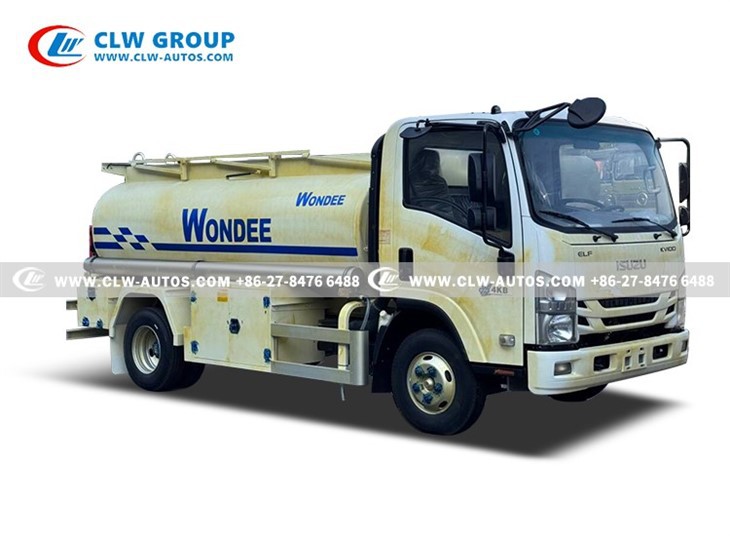

ISUZU 5CBM Fuel Tank Truck

1. Compliance and Safety

The tank body is constructed from high-quality carbon steel or stainless steel, offering high strength and corrosion resistance.
It is equipped with standard safety devices such as a bottom valve (emergency shut-off valve), static grounding strap, fire-resistant cap, fire extinguisher, and anti-wave baffles to ensure safety during loading, unloading, and transportation.
With a moderate capacity of 5 cubic meters, it complies with national regulations for small and medium-sized hazardous materials transport vehicles, avoiding the risk of "overloading under a lower registered capacity."

2. Professional and Fully Functional

Self-Priming and Self-Draining: Typically equipped with well-known brand oil pumps, enabling rapid loading and unloading operations.
Precise Measurement: Fitted with specialized flow meters for high measurement accuracy, facilitating trade settlement and management.
Compartmentalized Design: The tank can be divided into 1–3 independent compartments based on user requirements, allowing the transport of different types of oil products (such as diesel and gasoline) and enhancing operational flexibility.

3. Balance of Economy and Efficiency

Moderate Capacity: A capacity of 5 cubic meters (approximately 5,000 liters) meets the single-trip demands of most small and medium-sized clients without being excessively large, which could lead to transportation inefficiencies or access difficulties. Its high single-trip efficiency makes it ideally suited for a "high-frequency, small-batch" delivery model.
Multi-Purpose Use: With a rationally designed compartmentalized structure, it can simultaneously transport two types of oil products in a single trip, improving operational efficiency.
