Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 4*4 oil fuel tanker in China. If you're going to buy high quality dongfeng 4*4 oil fuel tanker, welcome to get more information from our factory. For price consultation, contact us.

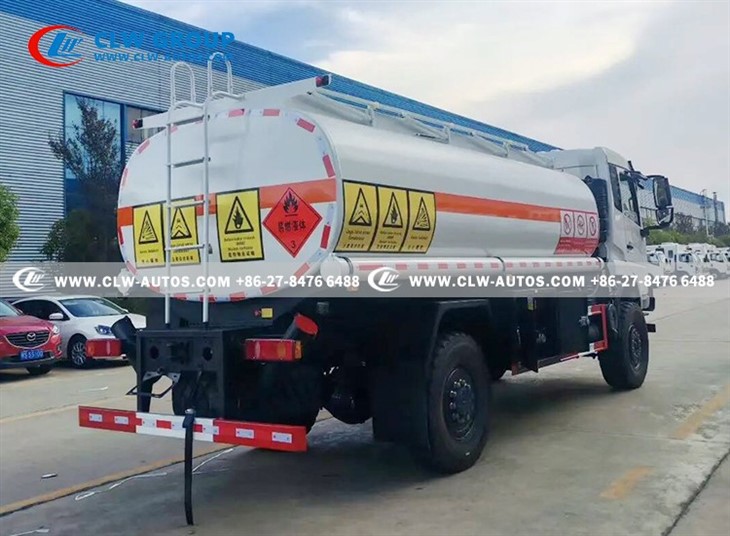

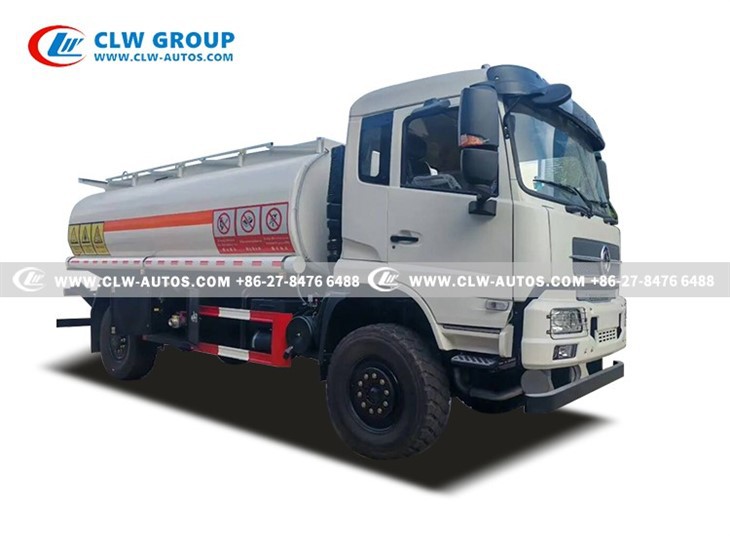

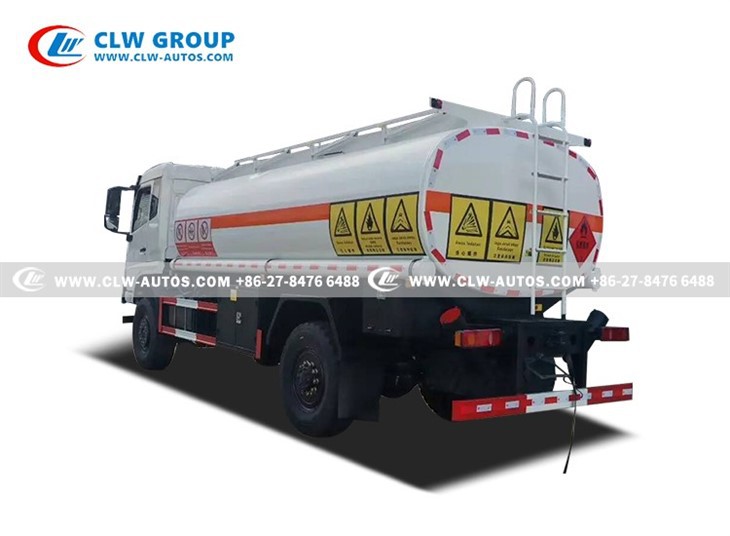

**5,000 litres 4*4 Dongfeng 170HP Fuel Tanker Truck**

Products Description

The Dongfeng 4X4 5-cubic meter diesel refueling truck is a specialized vehicle designed for safe, efficient, and versatile fuel transportation and on-site refueling operations. Built on Isuzu's proven commercial chassis and configured with right-hand drive for global markets, this model integrates power, safety, and functionality to meet the demands of modern fuel logistics.

Our Key Features and technical highlights

Robust Powertrain

Powered by YUCHAI Commins engine (170 HP), delivering reliable performance, low fuel consumption, and compliance with CN6 emission standards.

Enhanced Safety Systems

ABS ensures stable braking during sudden stops or slippery conditions.

Front axle (4.5T) and rear axle (6.5T) provide excellent load capacity and stability.

12.5R20 tires offer durability and adaptability to rough roads.

Right-Hand Drive Configuration

Designed for left-hand traffic markets (e.g., UK, Australia, Southeast Asia), enhancing driver visibility and operational safety.

Driver-Friendly Cabin

Ergonomic single-row cabin (700mm width) with air conditioning, power steering, central locking, power windows, and a multi-function LCD dashboard for comfort and control.

Specialized Refueling Tank

5m³ tank capacity with internal anti-surge baffles to minimize liquid sloshing and improve stability.

Constructed with anti-corrosion materials and equipped with standard safety features (e.g., grounding strap, fire extinguisher).

Functional Flexibility

Can be equipped with optional accessories: fuel meter, hose reel, electric pump, or automatic shut-off system for precise dispensing.

Key Applications

Mobile Refueling Services: Ideal for directly refueling construction machinery, agricultural equipment, generator sets, and fleet vehicles on-site.
Fuel Distribution: Efficiently transports diesel from depots to remote locations, gas stations, mining sites, and industrial plants.
Emergency and Backup Supply: Deployed for urgent fuel delivery in disaster relief, remote area support, or infrastructure projects.
Aviation and Marine Support: Suitable for ground support refueling at small airports or docks (with optional customization).
Construction and Mining Sites: Provides continuous fuel supply to heavy equipment in challenging terrains.
Agriculture and Forestry: Supports farming operations and remote forestry projects requiring frequent refueling.
Transportation Fleets: Used by logistics companies to refuel trucks and buses at depots or along routes.
Isolated Communities and Islands: Ensures reliable fuel delivery to off-grid communities or island territories.

Products Specification

Chassis Technical parameter
Driving mode		Dongfeng 4*4
Dimension		680024003000mm
Gross weight		11000kg
Curb weight		3500kg
Wheelbase		3800mm
Cabin	Steering wheel	Left hand drive or right hand drive
	Configuration	With air conditioning Steering power Central locking Electric door and window
Engine	Engine brand	Commins B170-33
	Horsepower	170HP
	Displacement	5900ml
	Emission standard	Diesel, EuroⅡ
Transmission		FAST 6 forward gears and 1 reverse , Manual
Tire		12..5R20
Front axle loading		4500kg
Rear axle loading		6500kg
Upper structure parameter
Fuel tank capacity		5m3/5,000liters
Tank material		Carbon steel/ Stainless carbon/ Aluminum alloy
Compartment No.		ONE
Fuel dispenser		2 sets, flow rate at 70L/min English operation panel Showing unit price/ filling volume/ total price
Oil pump		2 Nos of 2.5'' Oil pumps, driven by TPO Independent pump in and pump out for each compartment
Filling hose		1 inch and 15 meters 2 sets for diesel and petrol separately
Filling hose reel		2 Nos
Filling nozzle		2 Nos
Manhole cover		2 sets with breath valves
Bottom valve		2 sets of APL aluminum pneumatic bottom valves
Level gauge		Each tank top is equipped with an electronic level meter
Operation compartment		Located at rear of truck with aluminum alloy door
Control system		Power on/off Lighting Fuel pump on/off Fuel dispenser on/off Main valve on/off Fuel level digital display
Others		2 sets of 4kg extinguishers 1 set of static belt
Painting		Color and design as customer's requirement
Special design		Tank body is covered by carbon steel van

Factory Real Shot Video For You

Dongfeng 4X4 fuel tanker truck producer

Dongfeng 4X4 fuel tanker truck manufactuer

4X4 refilling tanker truck

Company profile

Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
